Hunter Pro-C Manuel utilisateur

PC Series

Modular Controller

Indoor/Outdoor Models

Owner’s Manual and

Installation Instructions

PROC®

Residential and Light Commercial

Irrigation Controller

SPECIFICATIONS

Operating Specications

• Station Count: Conventional wiring from 4 to 23 stations,

Two-wire EZ Decoder option up to 32 stations

• Station Run Time: 1 minute to 6 hours on programs

A, B, and C

• Start Times: 4 per program, three programs for up

to 12 starts

• Watering Schedule: 7-day calendar, interval watering up

to a 31-day interval or true odd or even day programming,

made possible by the 365-day clock/calendar

Electrical Specications

• Transformer Input: 120 VAC, 60 Hz

(230 VAC, 50/60 Hz for international use)

• Transformer Output: 24 VAC, 1 amp

• Station Output: 24 VAC, 0.56 amps per station

• Maximum Output: 24 VAC, 0.84 amps

(includes Master Valve Circuit)

• Battery: 9-volt alkaline battery (not included) used

only for non-AC programming; the non-volatile memory

maintains program information

• Battery, front panel, internal CR2032 lithium for

real-time clock

Cabinet Dimensions

Height: 9" (23 cm)

Width: 10" (21.5 cm)

Depth: 4 ⁄" (10.9 cm)

Outdoor cabinet is NEMA 3R, IP44 rated.

Default Settings

All stations are set to zero run time. This controller has a

non-volatile memory that retains all entered program data

even during power outages, without the need for a battery.

Cleaning

Clean only with cloth dampened with mild soapy water.

PROC COMPONENTS







   









 



PROC COMPONENTS CONTINUED

Main Display Indicates various times, values,

and programmed information

Year Identies current calendar year

Month Identies current calendar month

Day Identies current calendar day

Start Time Identies selected program

start time

Program Selector Identies the program in use:

A, B, or C

Station Number Identies currently selected

station number

Run Time

Allows user to set each valve

station run time from 1 minute

to 4 hours

Days of the Week Identies days of the week

to water or not water

Odd/Even Watering Identies if odd or even

watering days are selected

Interval Identies if interval watering

has been selected

Seasonal Adjustment

Displays in increments of 5% the

selected percentage of seasonal

adjustments

Running Indicates when watering occurs

Rain Drop Indicates watering will occur on

selected day

Crossed Rain Drop Indicates watering will not occur

on selected day

ALCD Display

BControl Buttons and Switches

+Button Increases the selected

ashing display

-Button Decreases the selected

ashing display

→Button

Advances the selected ashing

display to the next item, also use

to start a manual cycle

←Button Returns selected ashing display

to the previous item

PRG Button Selects programs A, B, and C;

also use to start a test program

Rain Sensor

Bypass Switch

Use to bypass weather “Clik-type”

sensors if one is installed

PROC COMPONENTS CONTINUED

D   

 





















 



PROC COMPONENTS CONTINUED

CControl Dial

Run Normal dial position for

automatic operation

Set Current Date/

Time Set current date and time

Set Program

Start Times

Set 1 to 4 start times in each

program

Set Station Run Times Set each station run time

Set Days to Water

Select individual days to water,

odd, even or interval watering

schedule

Set Pump Operation Turn pump or master valve

on or o for each station

Seasonal Adjustment

Make global run time changes

without programming the

controller (from 5% to 300%)

Solar Sync®Allows user to program settings

when using Solar Sync ET sensor

Manual—Single

Station

Activates a one-time watering of

a single station

System O

Used to discontinue all programs

and stop all watering until the dial

is returned to the RUN position,

or to set the programmable rain

o feature

DWiring Compartment

9-Volt Battery

An alkaline battery (not included) allows

programming of the controller without

AC power

Reset Button This button will reset the controller.

All programmed data will remain intact

Power Area Used to attach transformer, sensor wires,

and other systems to the controller

SmartPort®

Input Terminals

Used to connect a SmartPort, which

enables Hunter remote controls

Transformer

A transformer is installed (outdoor

models only; indoor models are supplied

with a plug-in transformer)

Junction Box This box provides an area for connecting

primary AC power (outdoor models only)

Ground Lug For additional surge protection, connect

lug to earth ground

Sensor Terminals Used to connect Hunter Solar Sync or

“Clik-type” sensors

Power Slide Release to remove or insert Pro-C

modules

MOUNTING THE CONTROLLER TO A WALL

All necessary hardware is included for most installations.

1. Use the hole at the top of the controller as a reference and

secure a 1" (25 mm) screw into the wall. Note: Install screw

anchors if attaching to drywall or masonry wall.

2. Align controller with the screw and slide the keyhole

on top of the controller over the screw.

3. Secure controller in place by installing screws in the holes.

For PC-401-A: If the supply cord is damaged, it must be

replaced by the manufacturer or service agent or a similarly

qualified person to avoid hazard.

NOTE: The indoor Pro-C is not weather-

or water-resistant, and must be installed

indoors or in a protected area. This device

is not intended for use by young children.

Never let children play with this device.

The outdoor model is water- and weather-

resistant. Connecting the outdoor Pro-C

to the primary power should be done by

a licensed electrician following all local

codes. Improper installation could result

in shock or re hazard. This device is not

intended for use by young children. Never

let children play with this device.

CONNECTING AC POWER

Indoor Cabinet

Route transformer cable through the hole on the bottom left

side of the controller and connect one Yellow Wire to each of the

screws marked AC and the Green wire to GND.

Outdoor Cabinet

1. Route AC power cable and conduit through the ½" (13 mm)

conduit opening on the left side of the bottom of the cabinet.

2. Connect the wires to the transformer wires located inside the

junction box. International units are supplied with a built

terminal strip. Always use a UL listed conduit ½" (13 mm) male

adapter when installing the AC wiring.

3. Insert the adapter into the ½" (13 mm) hole at the bottom of the

controller. Attach a nut to the adapter inside the enclosure.

4. Connect a 9-volt alkaline battery (not included) to the battery

terminals and place in the battery compartment in the front

panel. The battery allows the user to program the controller

without AC power. Watering will not occur without AC power.

Since this controller has non-volatile memory, the program

clock and calendar will be retained during a power outage even

if no battery is installed.

 GND

(Green)

 AC1

(Yellow)

 AC2

(Yellow)



  

120 V 230 V

U.S.A. INTERNATIONAL

Outdoor Cabinet

 GROUND

(Green)

 NEUTRAL

(White)

 HOT

(Black)

Indoor Cabinet

To be performed by a licensed

electrician only.

Always use UL listed ½”( mm) conduit

with male adapter when installing AC

wiring. Pro-C/PCC controllers are

intended to be supplied AC power with a

A rated overcurrent protected device.

INSTALLING STATION MODULES

The Pro-C controller is supplied with a factory-installed base

module for up to 4 stations. Additional modules may be added in

increments of 3 stations (PCM-300), 9 stations (PCM-900), or

16 stations (PCM-1600). In total, a conventionally wired system

can be expanded up to 23 stations. Additional modules are sold

separately.

The Pro-C is also compatible with the EZ Decoder System

(EZDS) for hybrid conventional and two-wire operations. Add

a Pro-C Decoder Module (PC-DM) to enable control for up to

32 total stations. This system uses the same EZ-1 decoders

used with ICC2 and HCC controllers. For more installation and

programming details, please refer to the PC-DM Installation

Guide.

Installing PCM Modules

The Pro-C controller is designed with a simple-to-use “Power

Lock” feature that assures that the modules are energized and

firmly secured into the controller. The “Power Lock” can unlock

or lock all modules at once or at the same time by simply pushing

the “Power Lock” slide.

1. Slide the “Power Lock” into the “Power Off” (unlocked)

position. Insert the PCM or PC-DM modules into the

appropriate sequential position in the controller cabinet.

2. Once all of the modules are in place, slide the “Power Lock”

into the “Power On” (locked) position to energize and secure

the modules into the controller.

3. The Pro-C will automatically recognize the correct number of

stations. It is not necessary to press the reset button on the

back of the facepack or cycle power to the controller.

1–4

Conv.

5–32

Decoder

1–7

Conventional

8–32

Decoder

NOTE: To expand your controller to  or

 stations with a PCM- or PCM-,

respectively, install one PCM- in the

rst expansion slot (stations –). Then

install the PCM- or PCM- in the

upper two expansion slots. These modules

will not t or operate in any other station

output slot.

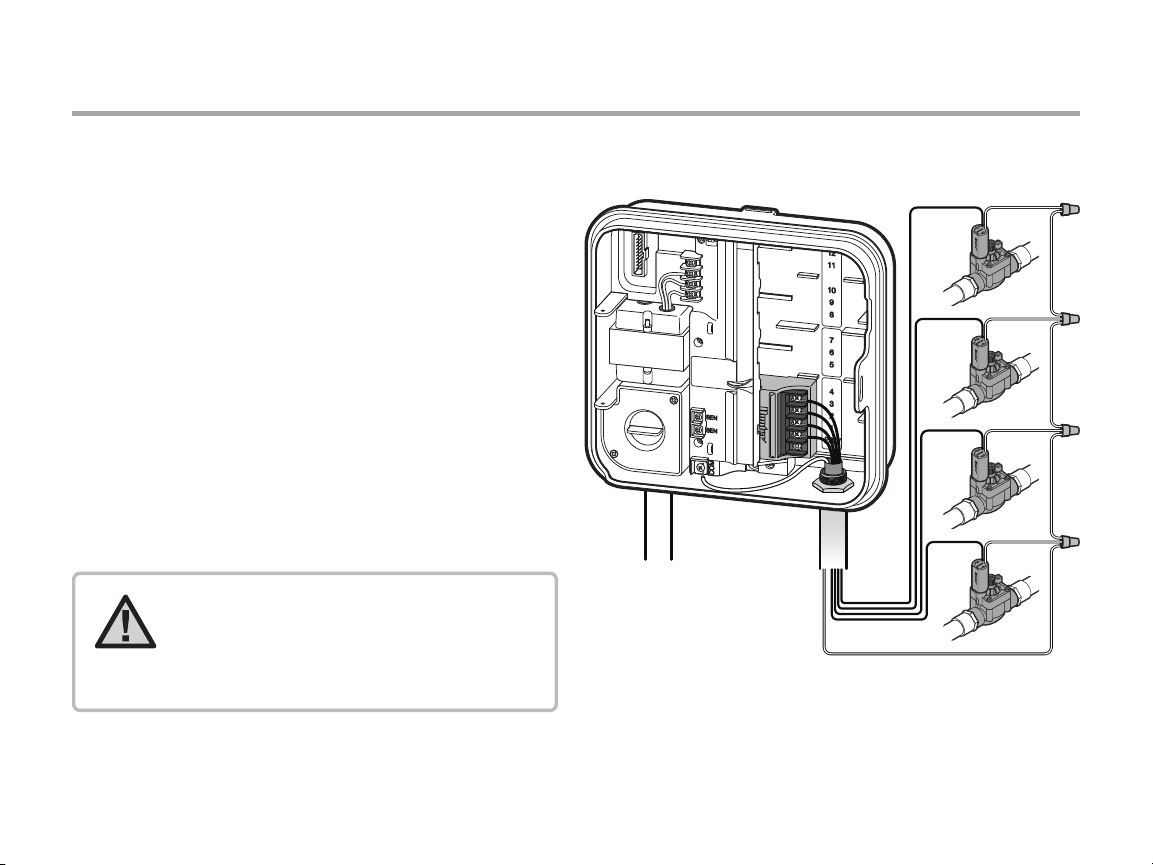

CONNECTING STATION WIRES

1. Route valve wires between control valve location

and controller.

2. At valves, attach a common wire to either solenoid wire

of all valves. This is most commonly a white colored wire.

Attach a separate control wire to the remaining wire

of each valve. All wire splice connections should be

done using waterproof connectors.

3. Route valve wires through the conduit and attach conduit

to one of the openings on the bottom of the cabinet.

4. Strip ½" (13 mm) of insulation from ends of all wires.

Secure the valve common wire to “COM” (Common) terminal.

Attach all individual valve control wires to the appropriate

station terminals.

COM

NOTE: The common terminal screw has

moved from the base module and is

now below the sensor terminals. Do not

connect the incoming common wires to

the P/MV terminal.

Autres manuels pour Pro-C

Table des matières

Autres manuels Hunter Contrôleurs

Hunter

Hunter WVC-100 Instructions originales

Hunter

Hunter 27206 Manuel utilisateur

Hunter

Hunter Hydrawise HC-1200M Manuel utilisateur

Hunter

Hunter X-CORE XC-800I Mode d'emploi

Hunter

Hunter X-CORE Mode d'emploi

Hunter

Hunter Hydrawise HC-1200M Instructions de montage

Hunter

Hunter PRO-C P2C Series Mode d'emploi

Hunter

Hunter Pro-C Mode d'emploi

Hunter

Hunter Smart Valve Controller Mode d'emploi

Hunter

Hunter Hydrawise HCC-FPUP Manuel utilisateur

Hunter

Hunter Pro-C Manuel utilisateur

Hunter

Hunter NODE-BT Manuel utilisateur

Hunter

Hunter ICC2 Manuel utilisateur

Hunter

Hunter EC Manuel utilisateur

Hunter

Hunter Hydrawise HC-1200M Manuel utilisateur

Hunter

Hunter 600-Z Manuel utilisateur

Hunter

Hunter Hydrawise Pro-HC Manuel utilisateur

Hunter

Hunter X-Core XC-801i-E Mode d'emploi

Hunter

Hunter X-CORE XC-2 Manuel de la liste des pièces

Hunter

Hunter Hydrawise Pro-HC Guide de démarrage rapide

Hunter

Hunter Node Manuel utilisateur

Hunter

Hunter XC Mode d'emploi

Hunter

Hunter ICC2 Manuel utilisateur

Hunter

Hunter SVC Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
