Table of Contents
Table of Contents
Performing a Reboot or Factory Default at Controller
Can I use the controller if I don't have internet access?
Basic Screen Navigation & Offline Functions
Setting up a Controller in Offline Mode
Configuring the Offline Adjustments - Watering with No Internet
Viewing the Time and Date
Viewing the Controller Status
Server Status
Success
Offline
Saving Settings
Serial Number
Viewing the Serial Number
Viewing the Zone Information
Viewing Network Information / Testing Internet Connectivity / Connection Status
Viewing Network Information
Test Network
Checking Connection Status
Manual Operation from the Controller
Running a SINGLE zone manually from the controller
Running ALL ZONES manually from the controller
Controller has a Blank Display
Flow Meter Pressure Loss Chart
Flow Meter - Configuration
Flow Meter - Installation Quick Start Guide
The flow meter consists of two parts:
The following instructions assume you have already installed your Hydrawise controller
Use your Hydrawise account to complete your flow meter configuration.
Flow Meter - Installation Tips
Flow Meter - Specifications
Flow Meter - Reading Meter
Flow Meter - Testing Meter
Flow Meter - Custom Flow Sensor Configuration
Can I Use One Flow Meter for Two Controllers?
Flow Meter - Winterization
Wire Distance (Controller to Valve)
Pump Start Relay Wiring and Online Setup
Summary
Operation Chart
Wiring (24 VAC)
Wiring to Power Source
Online Setup
Pump Start Relay Operation per Station
One Master Valve - Two Controllers
Master Valve Wiring and Online Setup
Brief Summary
Copyright 2020 Hunter Industries. All Rights Reserved. 2

Operation Chart

Wiring

Setup Online

Master Valve (P/MV) Operation per Station

Sprinklers Running with the Controller Off or Unplugged

Performing a Reboot or Factory

Default at Controller

In the event you are having issues connecting to your Wi-Fi network, it is a good idea to

reboot and/or perform a factory default at the controller. Please follow the steps below to

perform a reboot on your controller. This can help reestablish WiFi if you are having

communication issues. The reboot will not erase any settings in your controller.

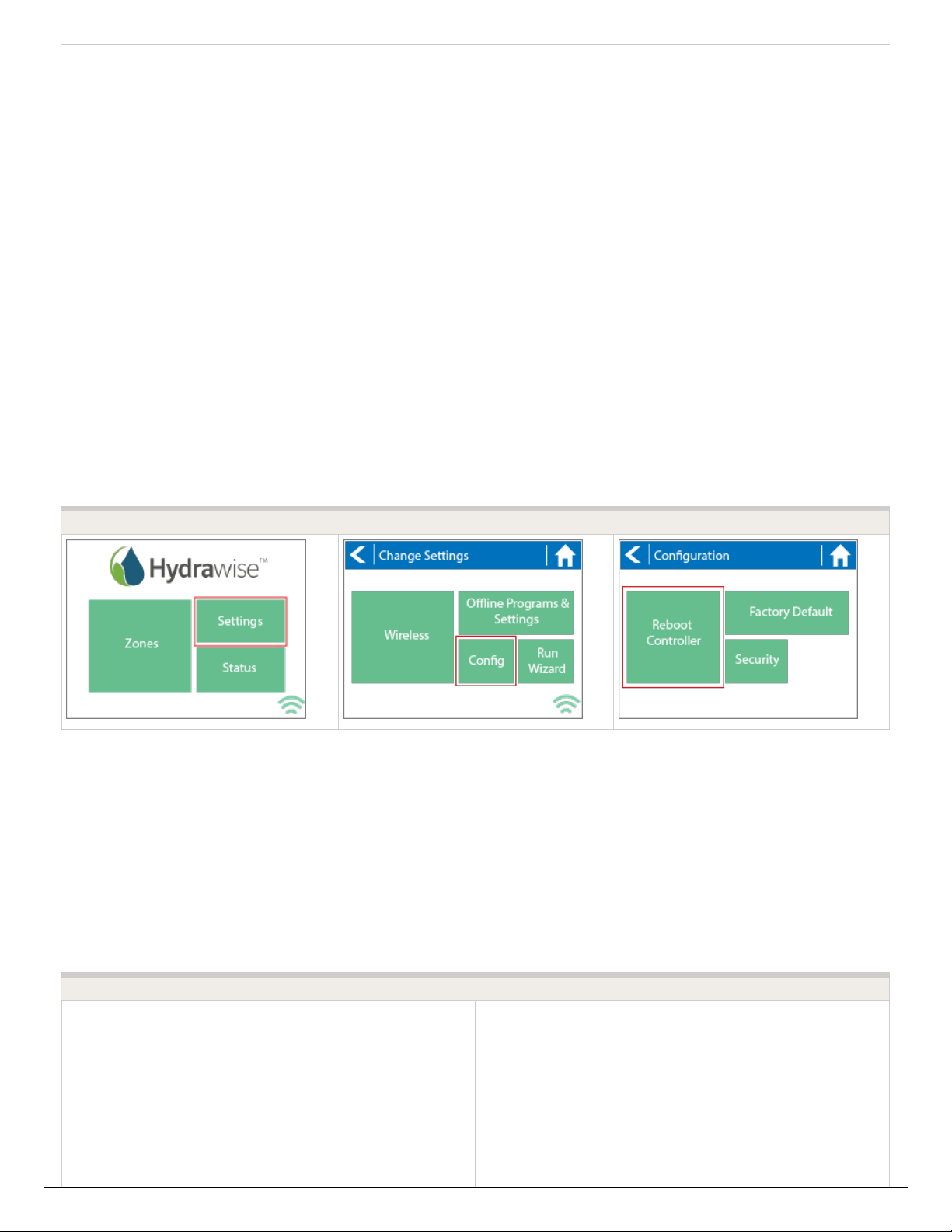

1. From the home screen, select SETTINGS.

2. Select CONFIG.

3. Select REBOOT CONTROLLER.

STEP 1 STEP 2 STEP 3

If the reboot procedure did not help with connection, please follow the steps below to

perform a factory reset on your controller. When the controller goes back online, the

settings in the software will sync back into the controller within seconds.

1. From the home screen, select SETTINGS.

2. Select CONFIG.

3. Select FACTORY DEFAULT.

4. Select ERASE CONFIG.

STEP 1 STEP 2

STEP 3 STEP 4

The controller is now ready for new configuration settings, either manually or automatically

through synchronization with your Hydrawise account.

To link your controller to your account, refer to How to Remove or Link your Serial Number

[1].

Can I use the controller if I don't

have internet access?

Yes! If you don't have internet access, you can configure the controller using the touch

screen. Refer to the Offline Setup [2]Wizard [3]if you have questions about how to do this.

Internet connectivity, however, is required for advanced functions, such as automatic

schedule modifications.

Basic Screen Navigation & Offline

Functions

The controller features a full color touchscreen making navigation easy.

The Home screen, shown below, has 3 buttons allowing you to view and run your irrigation

zones, change controller settings or view status information.

Touch to view all zones

Touch to change controller settings

Touch to view controller status information

Each screen (except for the home screen) has two buttons at the top of the page allow you

to quickly navigate to the Home screen or the previous screen.

Go to previous screen (changes not saved)

Go to Home screen (changes not saved)

GREEN items indicate settings which can be changed

GREY items indicate status information

All items on each screen are color coded to indicate which screen elements are buttons

and which screen elements indicate status information.

GREEN screen items indicate settings that can be changed. If you touch on the GREEN

color item then you'll be able to change that setting.

GREY colored items indicate status information. Touching on these has no effect.

If you're entering information into the controller and use the Home or Back buttons then

your changes on that screen will not be changed.

The charts below will walk you through the different function paths when programming at

the controller with and without internet.

OFFLINE STANDARD MODE

Adjust Time: Home > Settings > Offline Programs and Settings >Time

Enable Wi-Fi: Home > Settings > Offline Programs and Settings > Enable Wi-Fi

Program Sensor/Check Status: Home > Settings > Offline Programs and Settings > Sensors >

Configure to level type for normally closed style.

Start Times: Home > Settings > Offline Programs and Settings > Offline

Programs > Edit Start Times

Water Days: Home > Settings > Offline Programs and Settings > Offline

Programs > Edit Water Days

Zones: Home > Settings > Offline Programs and Settings > Offline

Programs > Edit Zones

Master Valve: Home > Zones > Zone > Click blue bar > Select Master Valve >

Confirm

Set Seasonal Adjust: Home > Settings > Offline Programs and Settings > Seasonal

Adjust

OFFLINE ADVANCED MODE

Adjust Time: Home > Settings > Offline Programs and Settings >Time

Enable Wi-Fi: Home > Settings > Offline Programs and Settings > Enable Wi-Fi

Program Sensor/Check Status: Home > Settings > Offline Programs and Settings > Sensors

Start Times: Home > Settings > Offline Programs and Settings > Offline

Programs > Edit Start Times

Water Days: Home > Settings > Offline Programs and Settings > Offline

Programs > Add or Modify

Zones: Home > Zones > Choose Zone > Run Time > OK

Master Valve: Home > Zones > Zone > Click blue bar > Select Master Valve >

Confirm

Set Seasonal Adjust: Home > Settings > Offline Programs and Settings > Seasonal

Adjust

ONLINE MODE

Change Wi-Fi/Check Status: Home>Settings>Wireless>Select a Setting to Modify

Controller Status: Home>Status>Controller Status

Program Expander: Home>Status>Expansion Modules

Manually Run Zone(s): Home>Zones>Select Zone> Run>Enter Time>OK

Model: Home>Status>Controller Status

Network Status: Home>Status>Network

Reboot Controller: Home>Settings>Config>Reboot Controller

Reset Controller: Home>Settings>Config>Factory Default

Run Wizard: Home>Settings>Run Wizard

Sensor Status: Home>Status>Sensor

Serial Number: Home>Status>Controller Status

Server Status: Home>Status>Controller Status

Test Network: Home>Status>Network>Test Network

Test Zone: Home>Status>Zone Tester

Time and Date: Home>Status>Time

Version Number: Home>Status>Controller Status

Zone Status: Home>Zones>Select Zone

Setting up a Controller in Offline

Mode

Offline programming will allow your controller to run without any internet access like a

traditional irrigation controller. You have two options to program your controller if you

currently do not have WiFi access.

1. Using the App to Program controller with no WiFi

2. Offline programming at the controller

Using App to Program controller with no Wifi (e.g; new construction)

In some cases, it may not be convenient to program the controller using the offline mode

feature (programming using controller screen). The following steps must be taken if

programming the controller through the app with a hotspot.

1. Create Hotspot with Smartphone: Depending on your smartphone, please use either

guide below:

Apple hotspot [4]

Android hotspot [5]

2. Once you activate your hotspot, connect the controller to verify the Wi-Fi on the

controller is working properly.

3. Disable WIFI completely. Settings > Offline Settings > Disable Wifi

4. Remove hotspot and programming will remain in the controller.

Programming at Controller

Hydrawise has two different modes that will run in offline mode at the controller.

Modes Controller Models

Standard Mode HPC, HCC, PRO-HC, and X2

Advanced Mode HPC, HCC, PRO-HC, and HC

Standard offline programming will allow the controller to run like our traditional controllers

the X-core and the Pro-C models. Each of the six programs (a-f) allows you to start each

program up to four times a day, set run lengths and set specific days to water.

Advanced offline programming will allow the controller to run independently for each

zone(station). Each zone (station) can have up to four start times with their individual run

times.

To set your controller in Offline Mode for manual configuration, please follow the steps

below:

1. From the main menu, tap on SETTING.

2. Select CONFIG.

3. Select FACTORY DEFAULT.

4. Next , press ERASE CONFIG. This will reset the controller back to factory

settings. You will be presented with a warning dialogue.

5. Select CONFIGURE OFFLINE and follow the wizard steps.

This wizard will guide you through the steps to set up your controller to run in offline mode

without an internet connection.

If you choose to switch modes when using the compatible model, use the steps below:

1. From the main menu, tap on SETTINGS.

2. Select OFFLINE PROGRAMS AND SETTINGS.

3. Select OFFLINE MODE.

4. Choose mode and select CONFIRM.

If you decide to connect the controller via internet at a later date, the online programming

will sync with controller within a few seconds and override the offline programming.
