Timing Mobile Set (4 Gates) Quick Start Guide
Please contact our support team, they are happy to help!
Phone: 0049 251-590 80 540
E-mail: support@humoon.net
Or visit our website www.smartracks.run
Humoon GmbH
Heerdestraße 23
48149 Münster
Germany
1. Charge the sensor with a regular USB adapter 5V
2. Download the Smart Run app and register your
account using a valid email address
3. To register your Timing Gates, use the app to scan
the QR code on the yellow Timing Gate case
4. Link up your sensor with the app
Getting started Timing a run Any questions left?
1. Set up the Timing Gates on the desired distance
2. Put on the TB40 Belt
3. Start the sensor with the app
4. The ming starts once you pass the first Timing Gate
5. Aer passing the final Timing Gate, stand sll for one
second
6. Press stop
XXX
XXX
!
≥5m
Creates a magnec field which allows accurate
ming by the sensor.
To be able to use the Timing Gates with the Smart
Run app, scan the QR code on the yellow metal
case on first-me use.
Keep enough space between the magnets and any electronical
device, including the sensor.
Timing Gates
Movement sensor that connects to the Smart Run app. Records
all ming and step data. Can be charged with a regular USB
adapter. Fully charged, a sensor can measure ca. 8-10 hours,
dependent on acvies.
Charging me - 100% : ca. 3 hours
Charging me - 80% : ca. 2 hours
The DX5.0 Timing sensor is not compable with SmarTracks Diagnoscs soware.
DX5.0 Timing Sensor
Keeps the sensor in the right place to ensure correct data.
Make sure the sensor is placed in the middle on your lower
back. The sensor cap should point le and the T-number
should face outward.
TB40 Belt

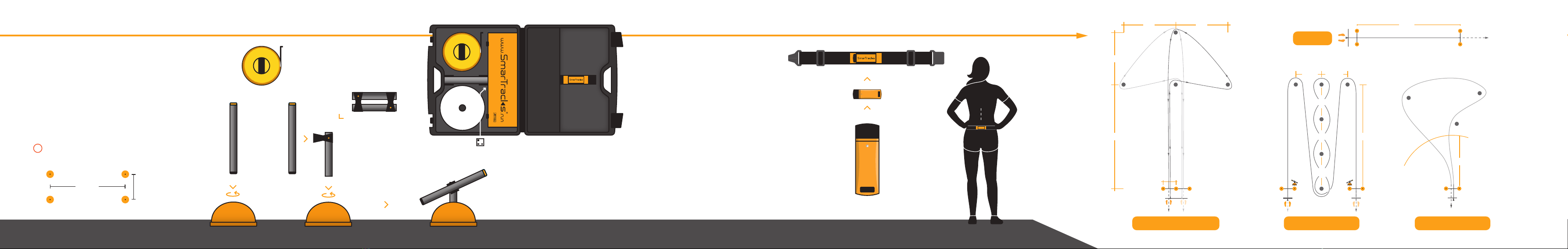

What is in your Timing Mobile Set?
8x MCD
1x Measuring tape
8x Cones
2x Angle holders
ca. 45°
≤ 1,2 m≥ 5m
T0001
T0001
T0001
Angled MCDs are
recommended for shorter
persons and for certain
agility test setups.
!
FINISH FINISH
START START
2,5m 2,5 m
3,3m
3,3m
3,3m
-1m
10m
1,2m
-1m
FINISH FINISH
START START
5m
5m 5m
Arrowhead Agility Test Illinois Agility Test
Sprint
XXX
XXX
!
≥5m
≤1,2m
XXX
XXX
!
≥5m
≤1,2m
10m
START FINISH
-1m ≥ 5m
Make sure to start
the run 1m before
the first Timing gate!
With the Custom Agility
test, an athlete should
not turn within 5m from
the Timing Gate.
Custom Agility Test
5m
FINISH
START -1m
