Humanscale M/FLEX Manuel utilisateur
M/Power
M/Connect 2
Assembly Instructions
North America: +1 800 400 0625
Europe: +353 (0)1 858 0910
Asia Pacic: +852 2581 0570
EN 1-8
FR 9-16
22
3 mm
Hex Key
4 mm
Hex Key
5 mm
Hex Key
Cable Routing Hook
INSTALLATION HARDWARE
4 Standard VESA
Bracket Screws
With Each VESA Plate:
4 Plastic Spacers 4 Extended VESA
Bracket Screws
VESA Plate and Cover
33
STEP 1: ATTACH MOUNTTO WORK SURFACE
Before you install your new M/Flex and monitor arms you will need to set up your
M/Connect 2 or M/Power base.
Before proceeding, please refer to the installation manual that came with your
M/Connect 2 or M/Power for instructions on mounting the base to your work surface.

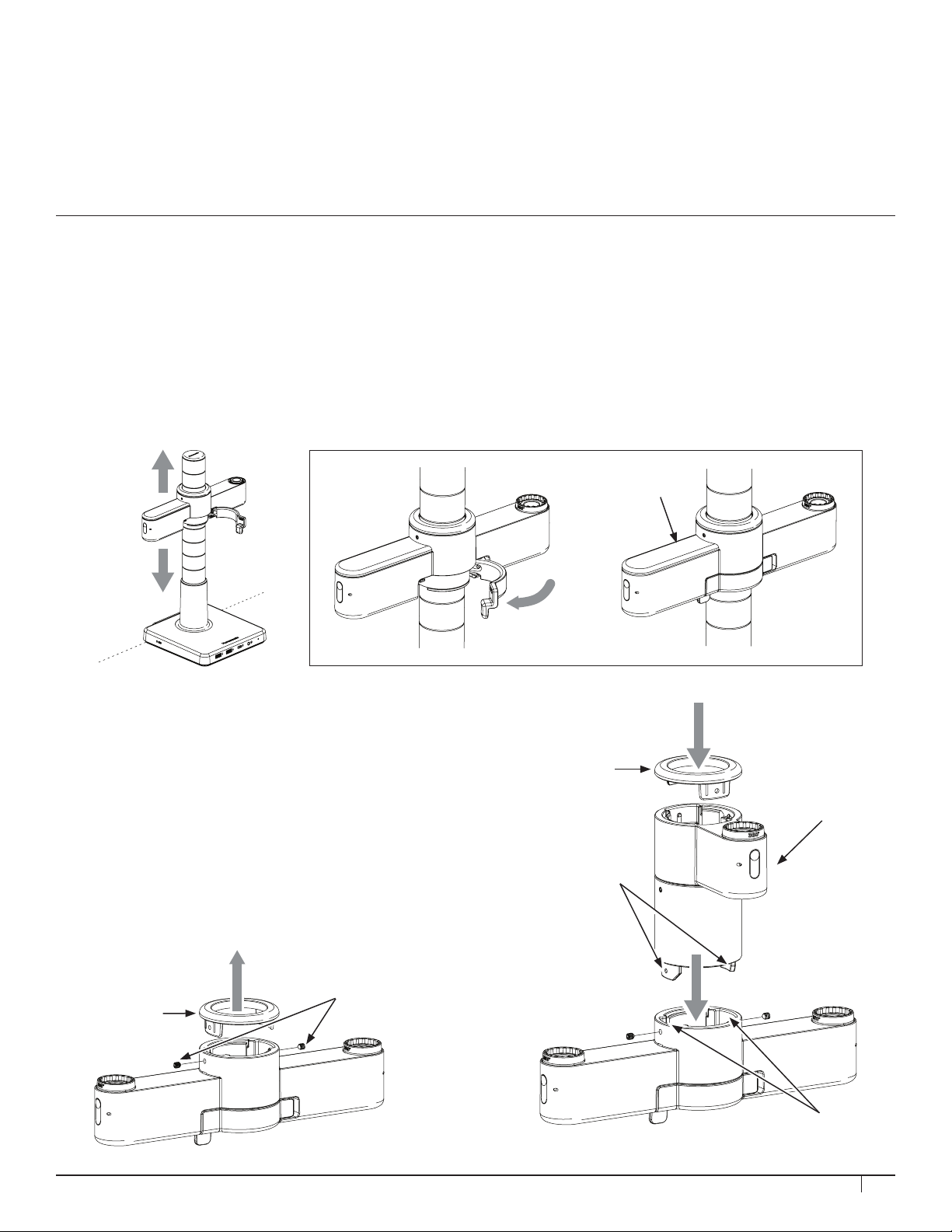

STEP 2: BRACKET ASSEMBLY AND CABLE CLIP
SINGLE AND DUAL MONITOR APPLICATIONS
1. With the Lever (A) open, position the Dual Bracket (B) at the
desired height on the Post (C).
2. Close the Lever entirely.
3. If you are using a second monitor, lift and remove the Cover (D).
D
A
B
C
TRIPLE MONITOR APPLICATIONS
1. Remove the two set screws (E) that retain the Bracket Cap (F).
Lift the Bracket Cap (F) upwards to remove it.
2. Install the Extension Bracket (G) on top of the Dual Bracket.
Insert the Tabs (H) into the Pockets (J). Replace the Set Screws.
Tighten screws until the Extension Bracket is secure and the
screws are ush with the surface.
3. Insert the Bracket Cap into the top of the Extension Bracket.
Push down until it clicks into place.
F
H
G
J
E
F
4
CABLE ROUTING HOOK
1. Spread the hooks around the post in the desired location.
2. Squeeze the two sides until the Lock (K) snaps together.
3. To release, use ngernail to disengage the Lock.
Before adding each link, adjust the Smart Stop according to
Step 3.
1. Insert the rst link into the mount until the release button
(A) locks in place.
2. Insert the next link into the rst link.
3. To remove a link, press the release button and lift upward
near the joint.
NOTE: Triple link congurations are not supported.
The installation order of the links must not allow
the monitor to pass behind the rear edge of the unit.
STEP 4: ATTACH ARMSTO BRACKET
STEP 3: SMART STOP ADJUSTMENT
A Smart Stop Ring is included at every Quick Attach joint.
Position the Smart Stop Ring to limit the arm’s range of motion.
The marked angle will be in the center of the range of motion.
NOTE: The stop rings must be congured in such a way that
does not allow the monitor to pass behind the rear edge of
the unit.
Arm can rotate
without stopping
Arm can rotate 180˚
Arm can rotate 90˚
A
K
5
1. Separate the VESA cover from the VESA plate.
2. Position the VESA plate over the mounting holes on the back of monitor with the
D-shaped cutouts (A) in a vertical orientation. Attach using provided VESA screws.
3. Snap the VESA cover back in place.
The VESA plate features 75 mm and 100 mm hole patterns.
You may also use the screws which came with your monitor to attach the VESA plate.
If you must offset the plate from the monitor, use the plastic spacers and extended screws provided.
STEP 5: ATTACH VESA BRACKETTO MONITOR
STEP 6: ATTACH MONITORTO ARM
1. Hold the monitor at an angle and lower it onto the arm. Fit the hook at the top of the arm into the
D-shaped cutout in the VESA plate.
2. Push the bottom of the monitor back until the Quick Release Tab (B) on the arm snaps into position.
3. To remove the monitor, lift the Quick Release Tab and pull the bottom of the monitor away from the
arm, then lift free of the hook.
NOTE: If needed, adjust the Tension Screw (A) to hold the monitor in position.
A
B
A
6
STEP 7: CABLE MANAGEMENT
1. Route power and monitor cables through
the exible Cable Clips (A) on the Upper Link.
2. Slide the Cover (B) off of the Straight Link.
3. Route cables into the Straight Link and
replace the Cover, sliding until it clicks
into place.
4. Route cables through Cable Routing
Hook (C).
CAUTION: Don’t insert extension cords. Don’t insert
any cord connecting one workstation to another.
1. Remove Cap from the top of the rst Post.
2. Install the Coupling Screw (A) into the top of
Post. Leave half of the Screw sticking out.
3. Screw second Post onto the Coupling Screw.
Posts must be tightly seated against each other.
4. Push Cap on top of second Post.
CAUTION: Do not install a Post, or a combination
of Posts, that exceed 24” (610 mm) in height.
STEP 8: ADDING A SECOND ROW OF MONITORS
B
A
C
A
7
STEP 9: M/FLEX CLAMP ADJUSTMENTS
Your M/Flex arrives ready for use, however it may become
necessary to adjust the clamp.
1. Remove monitors and links from the Bracket.
2. Open the Lever (A) all the way.
3. Turn the Adjustment Screw (B) clockwise ¼ of a turn using
the 3 mm hex key (C).
4. Test your adjustments by closing the Lever.
CAUTION: If the lever is difcult to close, or will not close
fully, it is over-tightened. Turn the Adjustment screw
counter-clockwise slightly.
Forcing it closed will damage the M/Flex.
Your monitor should move up and down easily and stay in position.
If the monitor moves down from the desired position, or is hard to
lift, you should increase the counterbalance force. If the monitor
moves up from the desired position you should decrease the
counterbalance force.
1. Push the Upper Link (A) down until the Adjustment Screw (B)
is visible.
2. Using the appropriate hex key (4 mm for M2.1, 5 mm for M8.1)
turn the Adjustment Screw clockwise (towards +) to increase
force, or counter-clockwise (towards – ) to decrease force.
Turn the Adjustment Screw (B) until the monitor is balanced.
3. Move the monitor around to ensure that the motion is
smooth and the arm holds the monitor in place.
NOTE: When installing several of the same monitors, note the
position of the needle in the indicator (C) on top of the arm.
Adjust the other arms to match.
CAUTION: Do not over-tighten the Adjustment Screw as it can
damage the Arm.
Monitors Should Not Exceed:
15.5 lbs (7 Kg) for M2.1
28 lbs (12.7 Kg) for M8.1
Total Weight NotTo Exceed 60 lbs (27.2 Kg)
STEP 10:WEIGHT ADJUSTMENTS
A
B
C
B
A
C
For our terms and conditions please go to
https://www.humanscale.com/about/legal-information/terms-conditions.cfm
© 2021 Humanscale Corporation. The text and artwork are copyrighted materials.
All rights reserved.The Humanscale mark and logo are trademarks of Humanscale Corporation and are
registered in the United States and certain other countries. The M/Flex trademark is owned by Humanscale Corporation.
humanscale.com
M/Power
M/Connect2
Instructions d’assemblage
Amérique du Nord: +1800400-0625
Europe: + 353(0)1858-0910
Asie pacique: + 8522581-0570
EN 1-8
FR 9-16
10
Clé
hexagonale
de 3 mm
Clé
hexagonale
de 4 mm
Clé
hexagonale
de 5 mm
Crochet
d'acheminement
des câbles
MATÉRIEL D'INSTALLATION
4 vis de support
VESA standard
Inclus avec chaque plaque VESA :
4 entretoises en
plastique
4 vis de support VESA
prolongées
Plaque et couvercle
VESA
