HumanCentric XT Series Guide de configuration

Fits VESA patterns 100mm x 100mm and 75mm x 75mm. If your monitor doesn’t have VESA holes, check

www.humancentric.com for an appropriate adapter for your model.

Models 101-3001 (single), 101-3002 (dual)

TOOLS INCLUDED

M6 Large Allen Wrench

XT-Series Monitor Mount

Patented in the US, International Patents Pending

TECHNICAL SPECIFICATIONS

Dual arm socket

Single

Arm

Dual

Arm

9 kg per arm

N/A 100036003600240010500 - 540 mm 0 - 270mm 9 kg

160 mm 3600360024001050

Lift Angle Pivot Swivel Pan Tilt Extension Vertical Max Weight

Load

Monitor Screws (4)

Base and pole Clamp Padding Lower Arm Upper Arm Monitor Bracket

Monitor Screws (8)

Clamp Padding Lower Arms (2) Upper Arms (2) Monitor Brackets (2)

Base and pole

with clip

PARTS INCLUDED

SINGLE ARM

DUAL ARM

COMPATIBLE WITH MODELS

M6 M3

M3 Small Allen Wrench

0 - 21 in 0 - 10.5 in

0 - 540 mm 0 - 270 mm

0 - 21 in 0 - 10.5 in

1000

6.3 in

19.8 lbs

19.8 lbs per arm

2. INSTALL LOWER ARMS

Install and tighten

the adjustable clamp

as shown. Insert the

M3 allen wrench into

the wrench slot.

click!

DUAL MOUNT

SINGLE MOUNT

click!

Place the clamp

padding between

the desk and the

intended clamp

location. For

optional permanent

placement, remove

the adhesive

backing.

Place the clamp

padding between the

desk and the intended

clamp location. For

optional permanent

placement, remove the

adhesive backing.

Desk Thickness: 20 - 110 mm (0.8 - 4.3 in)

GROMMET OPTION

CLAMP OPTION

1. INSTALL BASE

Disassemble clamp

base as shown. Desk Thickness: 20 - 60 mm (0.8 - 2.35 in)

Hole Diameter: 10-60 mm (0.4 - 2.35 in)

2. INSTALL UPPER ARMS 3. INSTALL MONITOR

The black screw goes

toward the bottom of the monitor

Slide the upper arm(s) onto the

lower arm(s) until the lock clicks

into place.

click!

4. ROUTE CABLES WARNING

Without the monitor weight to hold

the spring in place, the monitor arm

could swing upward and cause

personal injury.

Please make sure that the monitor

arm is in the highest possible position

when mounting or removing the

monitor.

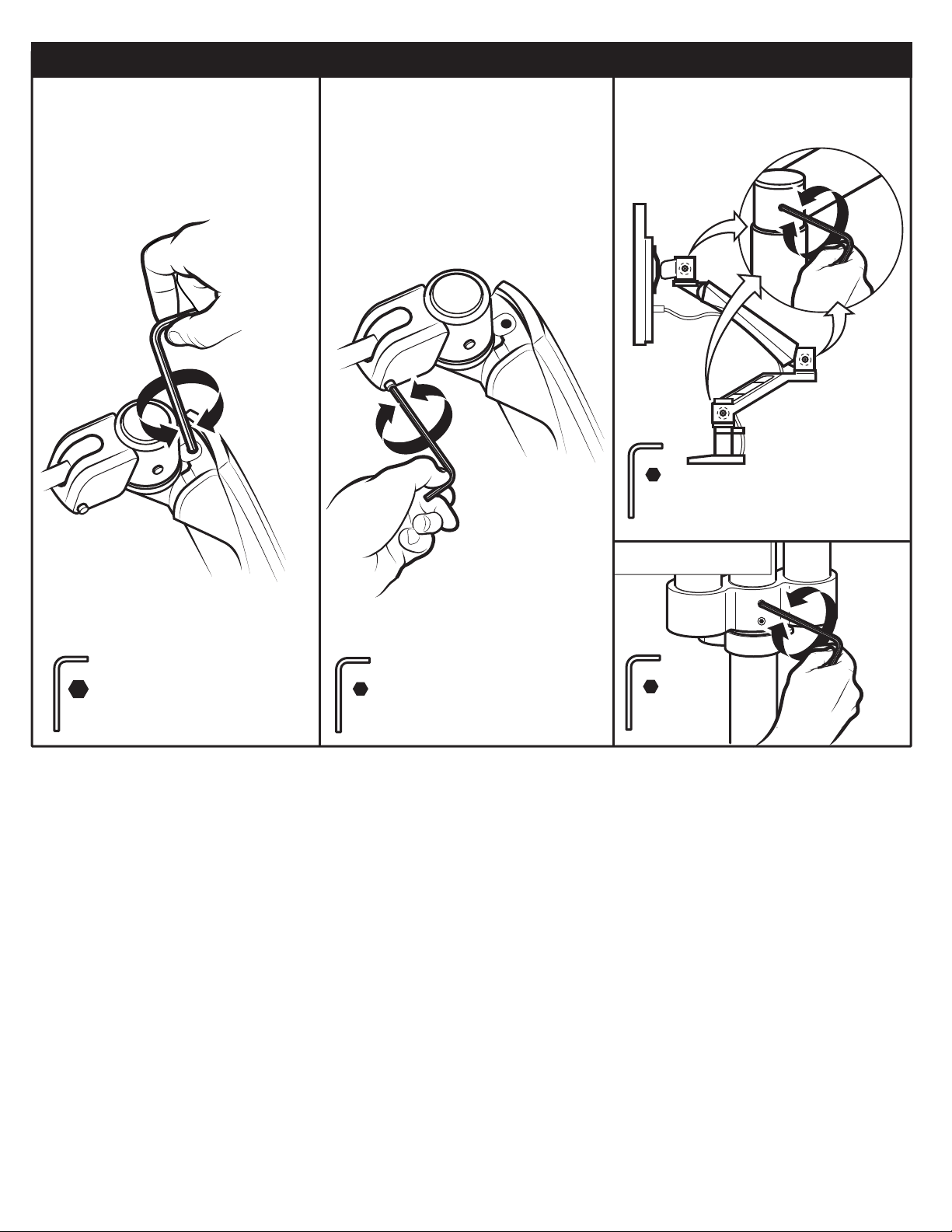

To adjust the swing tension of the arms,

tighten or loosen the set screws with the

M3 allen wrench.

5. ADJUSTMENTS

To adjust the tension for the monitor’s tilt

and rotation, tighten or loosen the monitor

bracket tension screw appropriately.

To adjust the spring tension for your

monitor, raise the monitor up to the

highest position and insert the M6 allen

wrench into the gap at the top of the arm.

To increase the tension for heavier

monitors, loosen the screw. To decrease

the tension for lighter monitors, tighten

the screw.

DUAL MOUNT

M6 M3

For heavier monitors, turn

counter-clockwise.

For lighter monitors, turn clockwise.

Ce manuel convient aux modèles suivants

Autres manuels HumanCentric Support et étagère

HumanCentric

HumanCentric 101-1058 Manuel utilisateur

HumanCentric

HumanCentric 101-2020 Manuel utilisateur

HumanCentric

HumanCentric 101-1012 Manuel d'instructions

HumanCentric

HumanCentric 101-2092 Manuel utilisateur

HumanCentric

HumanCentric 101-1015-V2 Manuel utilisateur

HumanCentric

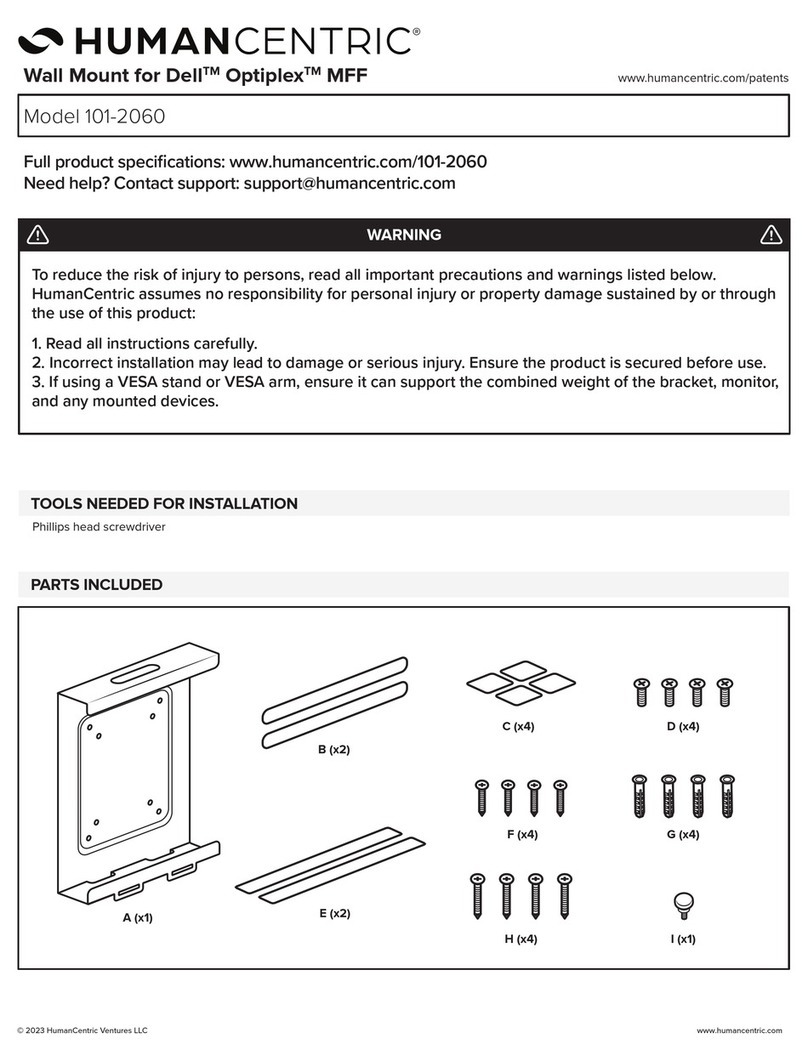

HumanCentric 101-2060 Manuel utilisateur
