Hubsan H123D X4 JET Guide de démarrage rapide

E: 0%

T: 0%

R: 0%

A: 0%

45.877 503 , -106.123984

45.877503 , -106.123984，65m

Pi tch 35 °

Yaw 2 5°

Ro ll 45 °

SPEED 0.0M/S

H: 0.0m

D: 0.0m

0

50

Connected

®

《Connecting Tutorial for Android Devices and Zino》

Version 2.0

®

Step 1:

Go to the Settings on your device and go into System

01

Before connecting to the device, Android devices need to be swiched to USB debugging

mode. Take Huawei's phone as an example:

02

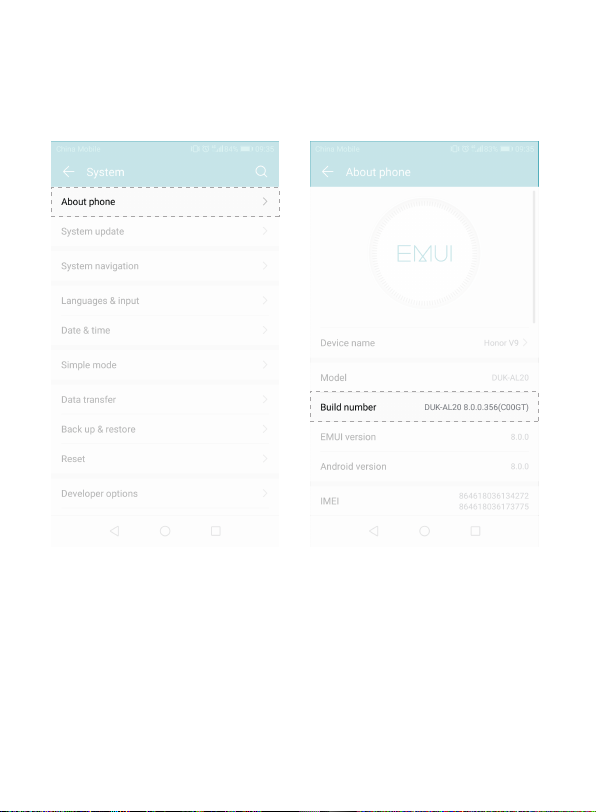

Step 2:

Go to "About Phone" and click on "Version Number" then you will see the device is

already in Developer Mode.

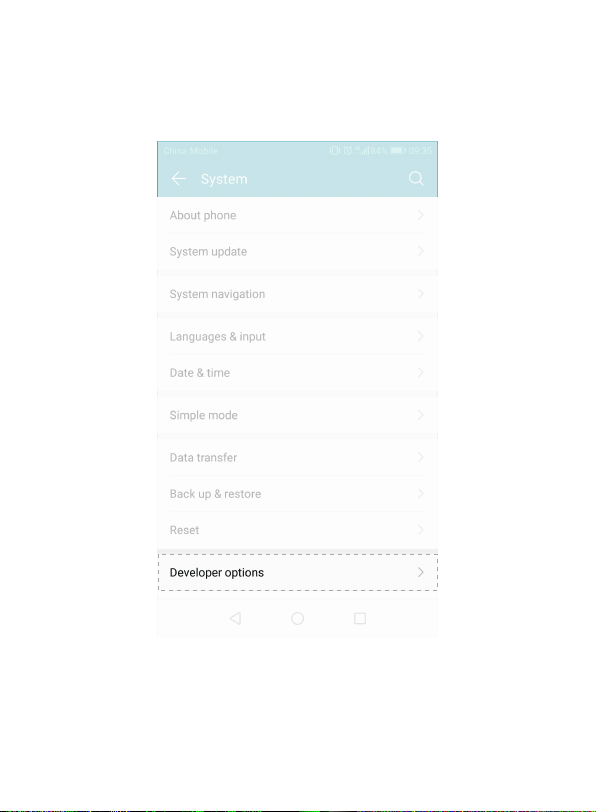

Step 3:

Go back to "System" and go to "Developer Options"

03

Step 4:

Turn on the "USB Debugging" Mode.

04

05

（2）Confirm to use the USB in X-Hubsan.

06

√

Step5:

（1）Long press the power button on the transmitter, run the X-Hubsan APP and use the

adapter cable to connect the HT016B transmitter to the mobile device.

For USB connection Mode, use the default "Charging Only" option.

After connecting the devices successfully, the control icon in the APP will change.

Before

After

Not connected

N00.0000000,E000.0000000

45.877503 , -106.123984，65mPitch 0° Yaw 0°Ro ll 0°

Speed 0.0m/s

H: 0.0mD: 0.0m

T: 0%

E: 0%R: 0%

A: 0%

Connected

N00.0000000,E000.0000000

45.877503 , -106.123984，65mPitch 0° Yaw 0°Ro ll 0°

Speed 0.0m/s

H: 0.0mD: 0.0m

T: 0%

E: 0%R: 0%

A: 0%

07

08

c. Opening USB Debugging methods on other Android devices can refer to:

http://www.shuame.com/faq/usb-connect/9-usb.html

Precautions:

a. Be sure to turn on the "USB Debugging" mode on the mobile device. Each device may

have slight difference in opening the debugging mode.

b. "Charge Only" option is preferred. If you cannot connect the devices after multiple

attempts, you may try "Media Devices (MTP)" and wait for the data transfer mode to be

connect again.

Controls

Transmitter connection Bluetooth WIFI

Transmitter firmware version

Transmitter hardware version

Set up transmitter connection to aircraft

Transmitter model

Connect

Scan Aircraft

Refresh

Press refresh to refresh wifi list. Please mak e sure

your phone has connect ed to the air craft.

Hubsan Zino_XXXXXX

Controls

（3） Run the X-Hubsan APP. In the "Settings" on the upper right corner, click "Control".

Select "WIFI" for the transmitter connecting method. Enter "Set up the transmitter with the

aircraft" screen and connect the aircraft.

（4） Refresh the WIFI list, select the WIFI name (such as Hubsan-Zino-XXXXXX) depending

on the product that you are using and click connect. After connecting successfully, you

can control the aircraft accordingly.

Some models of the Android devices may have data transmission restrictions and

cannot be connected. Please consult Hubsan Customer Service Team for analysis.

09
