OPERATING AND MAINTENANCE MANUAL FOR

T1000 CONTROLLER

ELECTRIC HEATER COMPANY

CONTROLLER DESCRIPTION

CONTROL BOARD AND DISPLAY

The control board supplies all the necessary

function for heater operation. These include

control temperature, hi-limit cut-out, low water

detection, and leak detection.

CONTROLLER OPERATION

NOTE: All controller variables come preset from the factory to include a preset temperature of 185°F.

1. To turn unit on or off:

a. Press the ON/OFF button on the display module.

b. Note that the controller will resume its last mode of operation if power is disconnected.

2. To change setpoint temperature (the temperature is fully adjustable from 32° to 194°F (0°-90°C):

a. Press the UP and DOWN arrows simultaneously to enter setpoint change mode.

b. Press the UP or DOWN button to change the setpoint temperature.

c. Pressing and holding the UP or DOWN button will scroll through the setpoint temperature.

d. To leave setpoint change mode

i. Wait 5 seconds without pushing any buttons or press the UP and DOWN buttons

simultaneously.

3. To view the number of operational hours (the number of hours when a contactor is pulled in) and

software version:

a. Press the UP and DOWN arrows simultaneously to enter setpoint change mode.

b. Press the ON/OFF button.

c. Display will flash the software version (e.g. R14), HRS, followed by the hours in thousands

of hours, followed by the hours.

i. Example: r14, HrS, 123, 456; indicates software version R1.4 and 123,456 hours.

d. To leave operational hours mode

i. Wait 5 seconds without pushing any buttons or press the UP and DOWN buttons

simultaneously.

4. Configuration Menu. (NOTE: Configuration menu change should only be made by qualified

personnel).

a. To enter the configuration menu, press and hold the UP, DOWN, and ON/OFF buttons

simultaneously for 5 seconds.

b. To scroll through menu settings, press the ON/OFF button.

c. To make a change to a menu setting use either the UP or DOWN arrow.

d. Settings:

i. Relays – sets the number of magnetic contactors used in the heater.

1. r##, where ## is the number of magnetic contactors (01 or 02).

ii. Low water detection – sets the low water detection on or off.

1. LOn, for low water on. (Factory Default)

2. LOF, for low water off.

iii. Low water reset – sets the low water reset for either automatic or manual

1. LAU, for low water automatic reset. (Factory Default)

2. LAn, for low water manual reset.

iv. Temperature units – sets the temperature units to either degrees Fahrenheit or

Celsius.

1. DEF, for degrees Fahrenheit. (Factory Default)

2. DEC, for degrees Celsius.

v. Differential – sets the number of degrees below setpoint that the heater will resume

heating after it has achieved setpoint.

1. d##, where ## is the differential in degrees (1 to 20). (Factory set at 02)

vi. Display – sets the display to either setpoint or actual temperature.

1. dSS, for display setpoint temperature. (Factory Default)

2. dSt, for display actual temperature.

e. To leave the configuration menu, wait 5 seconds without pushing any buttons or press the UP

and DOWN buttons simultaneously.

5. To reset any high-limit, no probe, or low water (when in manual reset mode) fault condition, press the

RESET button.

6. Display

a. By default the display will show the setpoint of the booster heater.

b. The decimal points on the display, as shown below, indicate that the controller is calling for a

contactor to pull in.

Setpoint

Contactor

(if supplied)

WIRING OPTIONS

OPTIONAL REMOTE ALARM CONTACTS

1. If desired, the control board can be wired to a remote alarm to indicate a reset fault condition. These

fault conditions include over-temperature, no probe, and low water (when the configuration is set to

manual reset).

2. This alarm can be wired to the J4 connector on the control board as shown below. To facilitate this

installation, an optional adapter, Hubbell P/N PLUG ADAPTER J4, can be purchased to provide wire

connections.

J4 Connnector

Common

(NO)

(NC)

FOR REMOTE ON/OFF CONTROL

To remotely control the On / Off operation of the heater, it is

recommended that a DPST switch or relay (by others) be used to break

both power legs (white and black wires) connected to the top two

terminals of the J5 connector on the control board. See diagram at

right.

Use a NC (Normally Closed) relay to turn the booster ON when energizing the relay

coil or to turn the booster OFF when de-energizing the relay coil.

Use a NO (Normally Open) relay to turn the booster OFF when energizing the relay

coil or to turn the booster ON when de-energizing the relay coil.

Note: Rating (resistive)

Max. Switching Power:

60W, 62.5VA

Max. Switching Voltage:

220VDC, 250VAC

Max. Switching Current: 2A

Max. Carrying Current: 3A

PLUG ADAPTER J4

Wiring by

Customer

Remote Relay by Customer

Controller J5 Connector

Red Wire to

Contactor #2

Wiring from Contactor,

Power Distribution Block,

or Transformer

Yellow Wire to

Contactor #1

TROUBLESHOOTING

ERROR MESSAGES

1. Err, No, Prb

a. This message will flash when the controller does not detect that the probe is

connected to the control board. To clear this error reinsert the probe connector and

press RESET. If the error message does not clear, replace the probe assembly.

2. Err, too, hot, ### (where ### is the actual temperature of the water.)

a. This message will display if the temperature of the water exceed the high limit

temperature setpoint. To clear this error, wait until the temperature is below the

operating setpoint and press RESET. Note that the unit will not reset until the

indicated temperature is below 195°F. If this message continually occurs, follow

the troubleshooting flow chart for continuous over-temperature condition.

3. Err, No, H2O

a. This message will display when the water level in the tank has dropped below the

sensor probe. To clear this message, refill the tank. If the low water reset is set for

automatic, the error will clear. If the low water reset is set for manual, when the

tank is full press RESET. Check the heater and the piping for leaks. Check for

mineral buildup on the probe and clean as required. Check for continuity between

the yellow wire and ground. See diagram 2 on the following page.

4. Err, H2O, LEA

a. This message displays if the leak detection sensor determines there is water in the

base of the heater shell. To clear this message, remove the water from the leak

detection sensor. Check the unit and piping for leaks.

MISCELLANEOUS

1. If the display flashes when the unit is first turned on or turned on after maintenance,

check that the J5 terminal on the controller is engaging all four pins on the board.

2. Note that before replacing the control board, display, or probe, it is recommended that the

power supply to the booster heater be turned off at the main circuit breaker disconnect to

the booster heater to reset and clear the electronic controller.

CAUTION: Do not use plumber’s tape/Teflon tape/pipe dope when installing the probe. Tape

will prevent the low water detection system from operating properly and will cause false low

water errors. Lubricate O-ring prior to installation.

Tighten probe at the brass hex flats only. Use a 13/16” open ended socket or spark plug wrench.

Do not apply pressure, twist, or turn the black wire or the stainless steel jam nut, as this will

damage the probe.

TROUBLESHOOTING FLOW CHARTS

No Hot Water

Continuous Low

Water

Temperature

Unit properly

sized?

Replace with

correctly sized unit

Is the

display on?

See 'No Display'

flowchart

Is there an

error

message?

Yes

Check for loose

wires and tighten

as necessary

Magnetic

contactor pull

in?

See Error

Message section

of this manual

Yes

OK?

Replace contactor

208/240V

at contactor

coil?

Verify T1000

configuration

settings. Replace

control board, if

needed

Yes

Yes OK?

Correct amps

at elements? OK? Contact factoryNo No

Replace faulty

element

Verify water inlet

pressure and

temperature

OK?

Yes

Correct fault

condition

Plug probe end into RJ45 pigtail

(not supplied). Check ohms

across terminals 1 and 4

(see diagrams 1 & 2). Compare

this with the ohms the thermistor

should supply for the actual

temperature in the tank

Do ohms

match?

Yes

Replace probe

OK?

Diagram 1

Thermistor Resistance vs Temperature

(error ±3%)

70°F = 11883

Ω

80°F = 9299

Ω

90°F = 7334

Ω

100°F = 5828

Ω

110°F = 4664

Ω

120°F = 3758

Ω

130°F = 3048

Ω

140°F = 2488

Ω

150°F = 2043

Ω

160°F = 1687

Ω

170°F = 1400

Ω

180°F = 1169

Ω

190°F = 980

Ω

Probe End RJ45 Pigtail

Blue

Yellow

Green

Red

Black

White

Diagram 2

Verify setpoint

To verify that

there is water

in the tank

check for

continuity

between

yellow(#2) and

ground.

Verifythat all wires

are installed and in

correct positions

(see wiring

diagrams)

Continuous

over-temperature

condition

contactors pull out

at setpoint?

Correct

temperature

setpoint?

Yes

Properly set

temperature

setpoint

Yes

Plug probe end into RJ45 pigtail

(not supplied). Check ohms

across terminals 1and 4

(see diagrams 1 & 2). Compare

this with the ohms the thermistor

should supply for the actual

temperature in the tank

Do ohms

match? Yes

Replace probe

OK?

Contact factory

Yes

Is there

208/240V across

terminals 1 & 2 of J5 on

the control board as

shown in the

diagram 3?

Replace contactor

Replace control

board

Any or all buttons

do not work, but

display is

operational.

Re-seat ribbon

cable from display

to control board

Replace digital

display OK?

Replace control

board

OK?

Verify that the

display is properly

seated to the base

and that the

buttons click when

pressed.

OK?

Individual display

elements do not

work or unusual

characters are

displayed

Re-seat ribbon

cable from display

to control board. Be

sure ribon cable is

not reversed.

Replace digital

display OK?

Replace control

board

OK?

Diagram 3

White

Red

Yellow

For 1 contactor:

check voltage across 1 & 4

For 2 contactor:

check voltage across 1 & 3 and 1 & 4

Black

Is there

zero amp draw when the

contactors drop out at

setpoint?

Yes

Are configuration

settings set properly,

per Section III, Para.

Yes

No Display

Is the circuit

breaker tripped at

source?

Reset circuit

breaker

Is the circuit

breaker tripped

inside heater

(if supplied)?

Yes

Press ON/OFF

button on heater

Is correct voltage

measured at power

distribution block or line

side of contactor for

each phase?

Reset circuit

breaker

Yes

OK?

Check incoming

power

Is there 480V at

the line side of the

transformer

(480V models only)?

No Check wiring

Yes

Replace

Transformer

OK?

Yes

Is there

208/240V at the load side

of the transformer

(480V models only)?

Is there

208/240V across

terminals 1 & 2 of J5 on

the control

board? (see

diagram 4)

Re-seat ribbon

cable from control

board to display

Check wiring

Yes

Replace digital

display

Replace control

board

OK?No

208/240V

OK?

Contact factory

Diagram 4

SERVICING

CONTROL BOARD

1. Disconnect power from unit.

2. Disconnect display cable, probe cable (J3), leak detection wire (J2), ground wire (J7), and

terminal block (J5) from the control board. NOTE: The terminal block (J5) is removable

from the control board. Grasp the terminal block on the ends and pull straight away from

the board.

Ground Wire (J7) Display Cable Leak Detection Wire (J2) Probe Cable (J3)

Power Wire (Common, White) Connector (J5)

Power Wire (Black) Wire to #2 Wire to #1 Contactor (yellow)

Contactor (red)

(only for two contactor operation)

3. Remove four (4) screws securing control board to panel.

4. Remove and replace control board.

5. Reconnect wires disconnected in step 2. NOTE: When reconnecting the ribbon cable be

sure to have the key on the cable align with the slot in the connector.

6. Connect power to unit.

SENSOR PROBE

1. Disconnect power from unit.

2. Shut off incoming water supply.

3. Attach hose to drain connection.

4. Lift manual release lever on relief valve to let air into system or break union on outgoing

water line.

5. Drain water from tank.

6. Disconnect probe wire from control board. (See picture)

Probe connection (J3)

7. Remove probe from tank using a 13/16” slotted socket or 13/16” spark plug wrench to

accommodate the probe cable.

NOTE: Care should be taken not to pull or put excessive force on the cable to probe

connection.

8. Install new #115 Buna-N o-ring gasket and

install new probe. NOTE: Hubbell

recommends lubricating the o-ring with Parker

O-Lube prior to installation. WARNING: Do

not remove the jam nut. To replace the probe,

remove the entire probe assembly from the

tank.

Probe

9. Reconnect probe wire to control board.

10. Refill tank.

11. Check for leaks. Retighten as required.

12. Note that to resume operation the controller will need to be reset by pressing the

‘RESET’ button on the display.

CAUTION: Do not use plumber’s tape/Teflon tape/pipe dope when installing the probe. Tape

will prevent the low water detection system from operating properly and will cause false low

water errors. Lubricate O-ring prior to installation.

Tighten probe at the brass hex flats only. Use a 13/16” open ended socket or spark plug wrench.

Do not apply pressure, twist, or turn the black wire or the stainless steel jam nut, as this will

damage the probe.

Table des matières

Autres manuels Hubbell Contrôleurs

Hubbell

Hubbell Reversing-Plugging Control 4010 Manuel utilisateur

Hubbell

Hubbell Electric Fire Pump Controllers LXi 1300 Manuel utilisateur

Hubbell

Hubbell GAI-Tronics 013-02-0095-005 Manuel utilisateur

Hubbell

Hubbell Electric Fire Pump Controllers LXi-2400 Manuel utilisateur

Hubbell

Hubbell Electric Fire Pump Controllers LXi 1800 Manuel utilisateur

Hubbell

Hubbell Fire Pump Controller LX-1500 Manuel utilisateur

Hubbell

Hubbell Electric Fire Pump Controllers LXi-1200 Manuel utilisateur

Hubbell

Hubbell GAI-Tronics HUBBCOM GSC3100 Manuel utilisateur

Hubbell

Hubbell Electric Fire Pump Controllers LXi 2200 Manuel utilisateur

Hubbell

Hubbell CHANCE Manuel utilisateur

Hubbell

Hubbell EnergyHUBB NX Energy Dashboard Manuel utilisateur

Hubbell

Hubbell Electric Fire Pump Controllers LXi 2900 Manuel utilisateur

Hubbell

Hubbell LXi-2300 Manuel utilisateur

Hubbell

Hubbell Euclid Lifting Magnet Controller 4296 Manuel utilisateur

Hubbell

Hubbell LXi-1100 Manuel utilisateur

Hubbell

Hubbell Electric Fire Pump Controllers LXi 1700 Manuel utilisateur

Hubbell

Hubbell Euclid Lifting Magnet Controller 4291 Manuel utilisateur

Hubbell

Hubbell Euclid Lifting Magnet Controller 4295 Manuel utilisateur

Hubbell

Hubbell GAI-Tronics HUBBCOM GSC1100 Manuel utilisateur

Hubbell

Hubbell CHANCE BPRS Manuel utilisateur

Hubbell

Hubbell Silicon Controlled Rectifier 4922c Manuel utilisateur

Hubbell

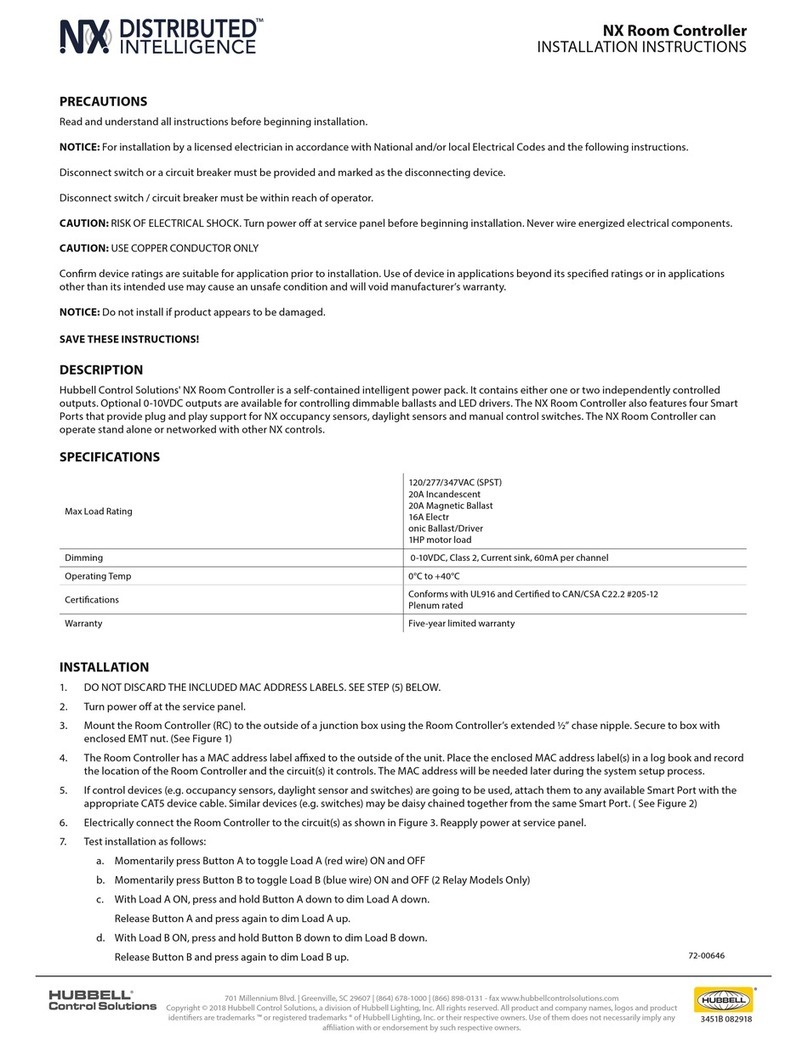

Hubbell NX Distributed Intelligence Room Controller Manuel utilisateur

Hubbell

Hubbell Electric Fire Pump Controllers LXi 1900 Manuel utilisateur

Hubbell

Hubbell GAI-TRONICS E3 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
