Hubbell Industrial Controls, Inc.

Euclid™ Lifting Magnet Controller 4296

Resistor Type Manual Discharge

Specifications 4296 • March 2004 • Replaces July 1998

Page 1 of 2

Features

Front-Wired Front-Removable components.

Mechanically interlocked "LIFT" and

"DROP" contactors.

Permanently connected discharge path

completely independent from the line.

High-Thermal capacity resistor discharge

path.

Peak magnet induced voltage limited to

600 volts.

Long electrical contact life.

Minimum Maintenance.

Dribble control - Standard.

Ventilated NEMA 3R Enclosure.

Application

The Euclid Type 4296 Lifting Magnet Con-

trollers are suited for many uses from light

scrap handling to the handling of heavy billets

or plates. It may be used with all types and

makes of dc lifting magnets.

Description

The Euclid Type 4296 Magnet Controllers

incorporate heavy duty time proven compo-

nents arranged to provide optimum control of

your lifting magnets.

A mechanically rugged high thermal capacity

discharge resistor assembly is permanently

connected in parallel with the magnet and

provides a safe discharge path for the stored

magnetic energy. With Euclid magnet con-

trollers, induced volts cannot return to the line,

permitting rectified power supplies to be used

without the added expenses of special pro-

tective loads or by-pass circuits.

Manual Discharge

Type Controller

The Euclid Type 4296 Manual Discharge

Type Lifting Magnet Controller provides for

optimum operator control over the release of

magnet loads.

The Manual Discharge Type Controller is

controlled via a three (3) position master

switch, which places the full control of the

"Lift", "Fan" and "Clean" functions directly

under the control of the operator. The Manual

Discharge Type of controller is best suited for

applications requiring accurate load control

rather than operational speed.

SYMBOL FUNCTION SYMBOL FUNCTION

CFU CONTROL FUSE DR DISCHARGE RESISTOR

RR REVERSE CURRENT RESISTOR LR FORCING RESISTOR (IF USED)

D2 DIODE D DROP CONTACTOR

D1 RECTIFIER, MAGNET DISCHARGE

PATH 1L, 2L LIFT CONTACTOR

MOV SURGE SUPPRESSOR

Euclid™ Lifting Magnet Controller :: Resistor Type Manual Discharge 4296

Hubbell Industrial Controls, Inc.

A subsidiary of Hubbell Incorporated

4301 Cheyenne Dr., Archdale, NC. 27263

Telephone (336) 434-2800 • FAX (336) 434-2803

http://www.hubbell-icd.com

[email protected]

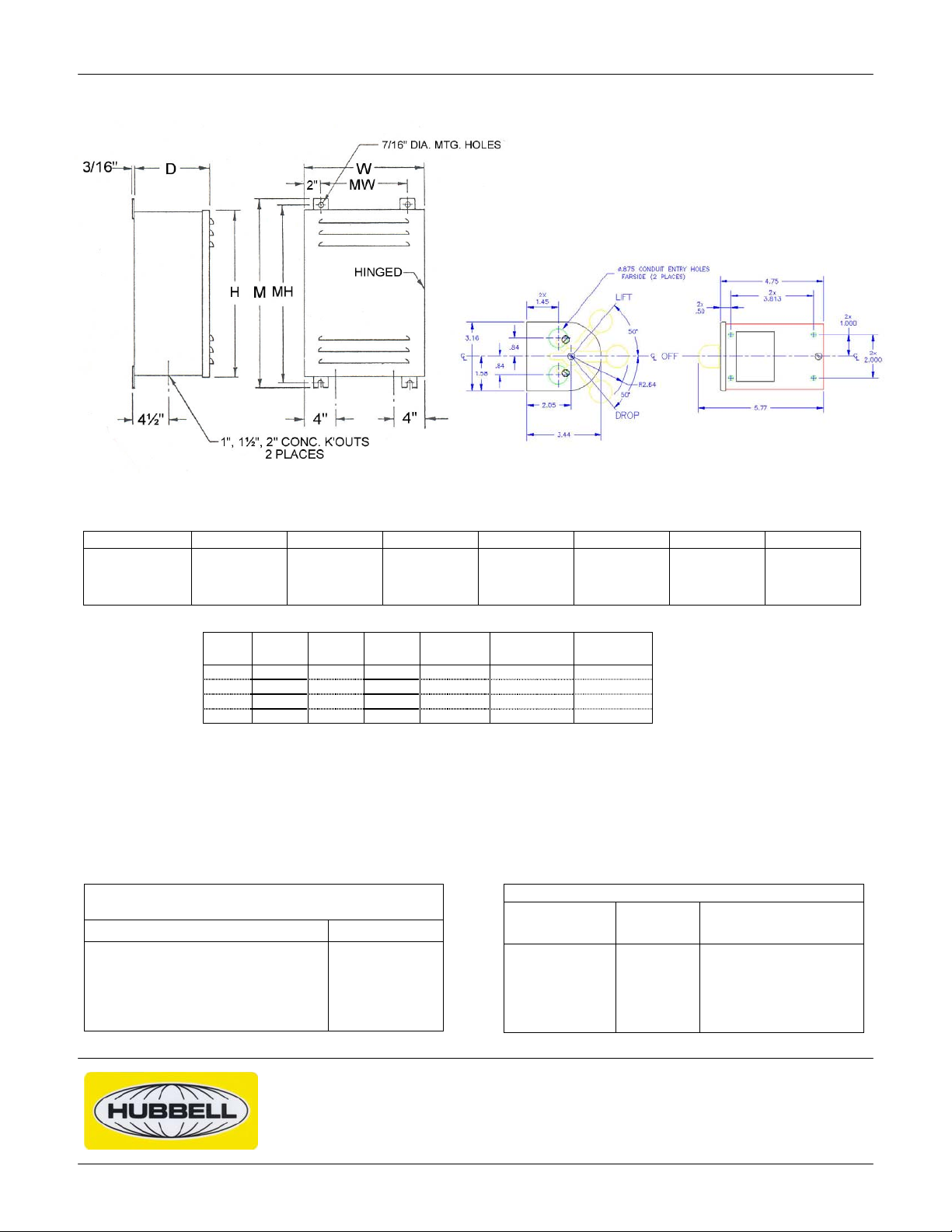

APPROXIMATE DIMENSIONS & WEIGHTS

DO NOT USE FOR CONSTRUCTION PURPOSES

CABINET OUTLINE SIZE 1, 2 & 3 J2M92B

Full Voltage Controllers

SIZE W H D M MW MH NET WT.

16.37"

16.12"

19.12"

12.00"

21.90"

27.90"

11.00"

10.00"

14.25"

14.00

24.25"

30.25"

9.50"

11.50"

14.50"

12.64"

23.00"

29.00"

Consult

Factory

FULL VOLTAGE MANUAL DISCHARGE TYPE

Size System

Voltage

Control

Voltage

Magnet

Current

Part

Number

Minimum Cold

Magnet Ohms

Maximum

Cold Magnet

Ohms

1C 300 Max. 12 7.0 - 13 91907-XXX 19.23 32.8

1C 300 Max. 24 7.0 - 13 91907-XXX 19.23 32.8

1C 300 Max. 12 13 - 25 91907-003 10.00 17.7

1C 300 Max. 24 13 - 25 91907-XXX 10.00 17.7

PILOT DEVICES & ACCESSORIES ADDITIONS

FOR MAGNET CONTROLLER

DESCRIPTION PART NUMBER

Type 4212, Cat. No. M-92B, NEMA 1 enclosed Master

Switch (Standard "Lift-Off-Drop").

Type 4211, Catalog No. 4211-1164M/SIFXI "Lift-Drop"

NEMA 1 Flush Mounting Master Switch.

Type 2001, Catalog No. S-N "Lift-Drop" NEMA 1

Maintained/Momentary Surface Mounting Push Button

Station.

J2M92B

4211-99848-003

(Consult Factory)

SPARE PARTS KIT (SEE PRICE LIST 1200)

Used With

Magnet Controller

Part Number

Spare Parts Kit

Part Number Spare Parts Kit Includes:¹

4296-91827-XXX

4296-91907-XXX

4296-91828-XXX

4296-91829-XXX

4296-91830-XXX

59401-410

59401-411

59401-012

1 - Set of Contacts, Springs and

Coil for "Lift" Contactor.

1 - Set of Contacts, Springs and

Coil for "Drop" Contactor.

1 - Polarity Sensing Rectifier.

1 - Auxiliary Contact Assembly for

Drop" or "Lift" Contactor.

¹ Except Size 1 and 2 Controllers. Kit Includes (1) Coil for both lift and drop Contactors.
