Huawei PowerCube 500 Manuel utilisateur

Issue: 01

Date: 2018-05-20

PowerCube 500 Quick Guide (Kenya Safe City, PC500-300G1)

1 Overview

Function module: PC500-300G1

Lithium battery: CBM20E-N14A1

Appearance Grid Hybrid Scenario

Lithium

Battery

Indicator

Color

Status

Meaning

Run

indicator

(RUN)

Green

Off

The lithium battery has no power input

or is faulty.

Steady on

The lithium battery is powered on.

Blinking

slowly

(0.5 Hz)

The lithium battery is communicating

properly with upstream monitoring

equipment.

Blinking

fast (4 Hz)

The lithium battery fails to

communicate with upstream

monitoring equipment.

Alarm

indicator

(ALM)

Red

Off

There is no alarm.

Steady on

The lithium battery has generated a

fault alarm and needs to be replaced.

Blinking

slowly

(0.5 Hz)

The lithium battery has generated a

protection alarm, which can be cleared.

Function

Module

Indicator

Color

Status

Meaning

Run

indicator

Green

Off

The function module has no power input

or is faulty.

Blinking

slowly

(0.5 Hz)

The function module is communicating

properly with upstream monitoring

equipment.

Blinking

fast (4

Hz)

The function module fails to

communicate with upstream monitoring

equipment.

Alarm

indicator

Yellow

Off

There is no alarm.

Blinking

slowly

The function module has generated an

alarm, which can be cleared.

Steady

The function module has generated an

AC power failure or PV array fault alarm,

which can be cleared.

Fault

indicator

Red

Off

The function module is normal.

Blinking

slowly

The function module has an external

fault, which can be cleared.

Steady

The function module has an internal fault,

which cannot be cleared.

NOTE

The three indicators are steady on when the power unit of the

function module is upgrading. They return to normal status after the

upgrade is complete.

Lightning rod

Bullet cameras

Dome camera

Pole mounting kit

Function module

Lithium battery

Pole

Cantilever

Bullet cameras

Dome camera

Lithium battery

Connective kit

2 Tools

3 Routing Cables Through the Pole

1. Place the pole on a wooden case or a similar object.

2. Route a pull wire.

3. Route cables.

Cables

Inlet

Outlet

Mains AC cable and optical fiber

Module ground cable

Camera ground cable

Dome camera signal cable, power cable, and alarm cable

Bullet camera signal cable, and power cable

The cables routed from the pole cable hole have a

length of 1.5 m reserved. The cables routed from the

cantilever cable hole have a length of 0.5 m reserved.

The object where the pole is placed should be able to

bear a load above 700 kg.

NOTE

4 Installing Cantilevers

1. Install the cantilevers. 2. Adjust the connective kit according to the actual situation to

adjust the relative angle between the two cantilevers.

7 Installing the Function Module and Lithium Battery

6 Installing an Antenna Fastener and Lightning Rod

Wear gloves during installation.

Do not place a module with its bottom against the ground.

Never install a module with power on. Ensure that the angle between a module and the line vertical to the ground is within 10 degrees.

The paint on the module exterior should be intact. If paint has flaked off, repaint the area to avoid corrosion.

NOTICE

5 Installing Cameras and Cables

Installing Cameras

5.1For the camera installation method, see the camera document.

Installing Camera Cables

5.2For the cable connections at the camera side, see the camera document. Reserve the other ends of cables.

1. Use a positioning

stickerto mark the

installation position for

the pole mounting kit.

2. Install the pole

mounting kit.

Positioning

sticker

Cable hole

Ensure that the arrow on the top of the pole mounting kit points exactly to the middle

point on the top of the positioning sticker.

There are three types of bolts available for installing the pole mounting kit. Choose

the appropriate type of bolts based on the pole diameter.

NOTE

Bolt

(190 mm)

Bolt (120 mm) Bolt (160 mm)

Pole Diameter

(105–140 mm) Pole Diameter

(140–175 mm) Pole Diameter

(175–210 mm)

3. Install the function module

hanging kit. 4. Install a function module. 5. Install the lithium battery hanging kit.

6. Install a lithium battery.

If two lithium

batteries are required,

install one above the

other. Install the pole

mounting kit after

using a positioning

sticker at the cable

hole in the upper part

of the pole to mark its

installation position.

For the method, see

steps 1 and 2.

7. (Optional) Install the second lithium battery.

NOTE

Installing Ground Cables for Modules

8.1

8 Installing Cables

Route inter-device cables through the pole.

NOTE

Module ground cable

1. Connect ground cables between the function module and lithium batteries. 2. Connect the other end of the module

ground cable to the pole ground bar.

Pole ground bar

Function module Lithium battery Lithium battery

Installing Cables for the Maintenance Compartment

8.2

No.

Cable Hole Silk Screen

Cable Type

Cable Outer

Diameter

GE1 - GE2

Optical fiber

6.8±0.3 mm

GE3/P&E(++) - GE7 /P&E(++)

P&E network cable

GE8/DI

Dome camera alarm

linkage cable

12VDC

Bullet camera power cable

9.3±0.4 mm

24VAC

Dome camera power cable

Cable Hole Diameter Requirements

1. Push up the sunshade

until the spring fastener

is stuck gently.

2. Open the maintenance

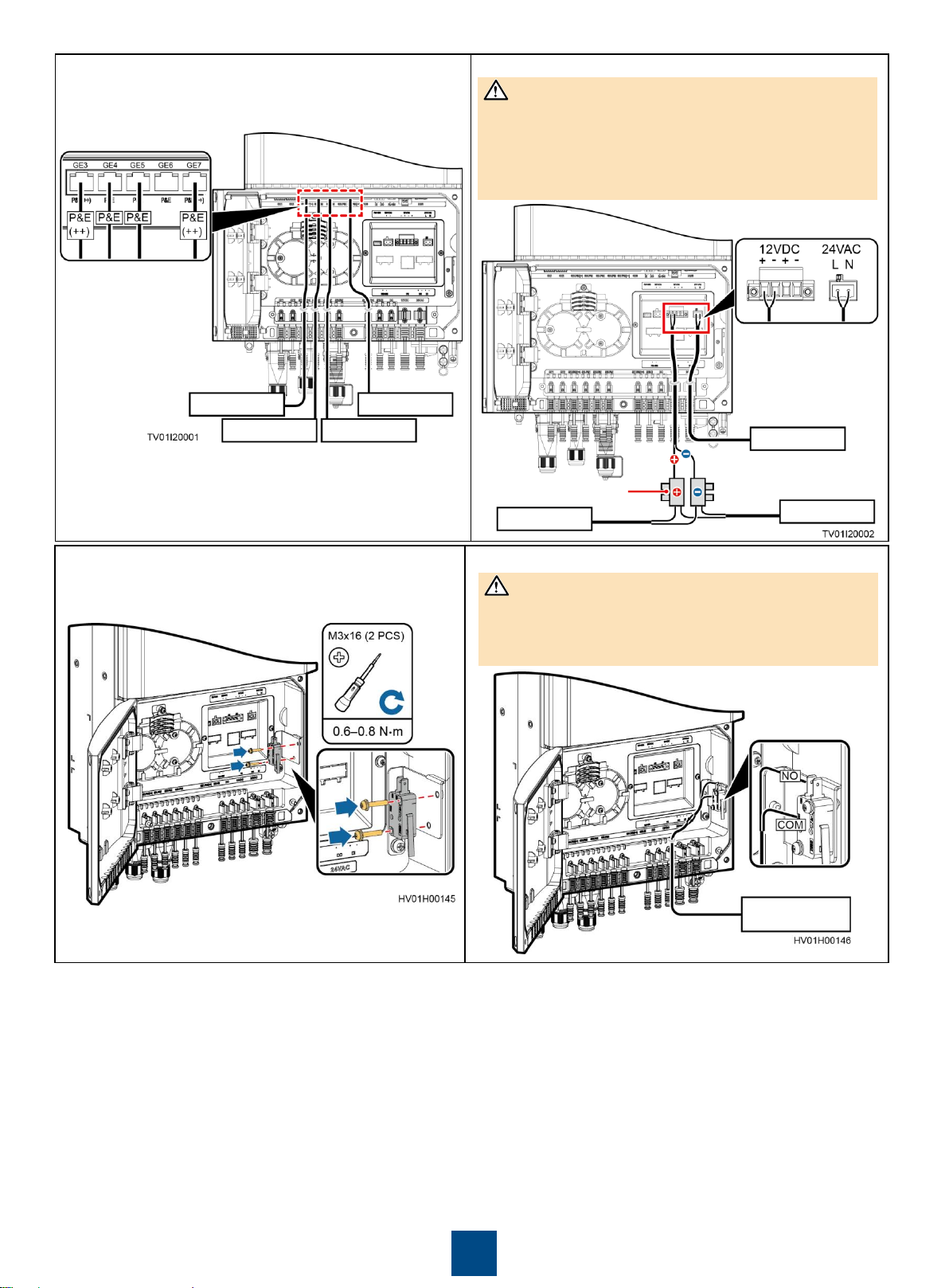

compartment. 3. Install cables for P&E cameras.

Installation Procedure

Cables for the dome

camera can only be

connected to the

P&E(++) ports.

Bullet camera 1 Bullet camera 2

Dome camera 2

Dome camera 1

NOTE

4. (Optional) Install signal cables for non-P&E cameras. 5. (Optional) Install power cables for non-P&E cameras.

Bullet camera 2

Bullet camera 1

Dome camera

Cable distribution terminal

The power cable for the dome camera can only be connected to

the 24V AC port.

One PC500-300G1 can supply power to one non-P&E dome

camera.

Use waterproof tape to protect the cable distribution terminal

and put it inside the pole.

NOTICE

Bullet camera 1 Bullet camera 2

Dome camera 2

Dome camera 1

6. (Optional) Install the door status sensor. 7. (Optional) Install the dome camera alarm linkage cable.

Dome camera

alarm cable

The alarm cables of the two dome cameras can be connected to

the door status sensor. Select one dome camera for connection

according to the actual situation.

NOTICE

Battery cable terminal

AC input cable terminal

Preparing Cable Terminals

8.3

8. Install optical fibers. 9. Close the maintenance compartment door.

10.Push down the

sunshade until

the spring

fastener is stuck

gently.

Optical network

This figure uses single-ring networking as an example.

NOTE

Battery cables are finished cables. You only need to strip the cables and then insert them into the cable terminals.

AC input cables need to be prepared onsite. Multi-core cables must be used; otherwise, waterproof connectors may be exposed to water

leakage.

Before assembling cables with waterproof connectors, ensure that the connections between the cables and terminals are secure and reliable.

Negative (blue)

Positive (red)

PE (green)

N/L2 (blue)

L/L1 (brown)

Cable Type

Core Cross-

Sectional Area

Cable Outer

Diameter

Battery cable (2-core)

3.3–6 mm2

9.0–14.5 mm

AC input cable (3-core)

1.5–4 mm2

NOTE

Before closing the maintenance compartment

door, check that cables are properly installed.

After closing the door, press the left side of the

maintenance compartment door by hand and

tighten the screws.

Preparing AC Input Cables and Connecting Waterproof Connectors

(Unit: mm)

Flat-head

screwdriver Scale line

Scale line

Preparing Battery Cables and Connecting Waterproof Connectors

Flat-head

screwdriver

Installing Power Cables and Signal Cables

8.4

Installing an RJ45 Communications Cable for a Lithium Battery

Ensure that caps and waterproof connectors are installed at all idle ports on the modules.

NOTICE

Connecting Cables Between the Function Module and Lithium Batteries

AC input

Function module Lithium battery Lithium battery

9 Installing Cable Covers

Installing a Cable Cover for the Function Module

9.1

Install a Cable Cover for the Lithium Battery

9.2

10Erecting the Pole

1. Check whether the pole needs to be repainted. Repaint the damaged area

of the pole, and then use the crane to hoist the pole to the foundation. 2. Secure the pole to the foundation.

12 Power-On Commissioning

11 Verifying the Installation

1. Check the indicators on the function module and lithium batteries. Ensure that the green indicators are blinking slowly and that the

yellow and red indicators are off.

2. If a problem is found, refer to the alarm definitions in the user manual for troubleshooting.

3. Observe the board indicators in the maintenance compartment.

Powering On Modules

12.1

Normally, The STAT, PWR,

and WIFI indicators on the

EG8P panel are: green.

NOTE

1. Check that the mounting kits are securely installed and all screws are tightened.

2. Check that all cables are reliably connected with correct polarity and there is no short circuit.

3. Check whether any screw holes are not installed with screws. If so, install screws at the holes.

4. Check that all idle cable holes in modules are protected with waterproof caps.

Logging In to the Web Server

12.2

1. Use a mobile phone or laptop to search for devices by

searching for WIFI.(Set the laptop to automatically obtain

IP, even after the WIFI will automatically assign an IP

address.)

Changing an NE ID

12.3

1. Choose Configuration > NE Attribute from the Function Tree.

2. Enter the name of the NE in the Name field.

3. Click Apply.

NOTE

Default network element (NE) IP address: 192.168.1.1.

Default user name: szhw. Default password: Changeme_123.

2. Use the browser to enter the NE default IP address,

access the Web Server login page, and enter the values

of User Name, Password, and Verification Code.

3. Click Login.

NOTE

Default WIFI

name: RMn-******.

Default password:

Modify_123.

Changing the NE IP Address

12.4

1. Choose Communication > Communication Parameters from the Function Tree.

2. Configure the communication parameters of the NE.

3. Click Refresh.

During site commissioning, the IP address of the gateway NE needs to be configured in compliance with the external DCN requirements but

other non-gateway NEs use IP addresses that are automatically generated based on NE IDs.

NOTE

Do not use the default NE IP address to access the public network (such as Internet).

The default NE IP address is a temporary address, and is only used for management DCN plug-and-play. The IP address must be

modified in a timely manner.

Autres manuels pour PowerCube 500

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Huawei UPS

Huawei

Huawei UPS5000-S Series Manuel utilisateur

Huawei

Huawei UPS5000-A-400 kVA Manuel utilisateur

Huawei

Huawei PDU8000 Series Manuel utilisateur

Huawei

Huawei UPS5000-S Series Manuel utilisateur

Huawei

Huawei UPS5000-S200K-SM Manuel utilisateur

Huawei

Huawei SmartLi Series Manuel utilisateur

Huawei

Huawei UPS5000-S Series Manuel utilisateur

Huawei

Huawei UPS5000-A-200 Series Manuel utilisateur

Huawei

Huawei UPS5000-E-60K-F60 Manuel utilisateur

Huawei

Huawei PDC-0038V4ACIOA-V2 Manuel utilisateur

Huawei

Huawei UPS2000-H Manuel utilisateur

Huawei

Huawei PDU8000 Series Manuel utilisateur

Huawei

Huawei UPS5000-E-300K-SM Manuel utilisateur

Huawei

Huawei UPS5000-E-30K-FM Manuel utilisateur

Huawei

Huawei iSitePower-M Manuel utilisateur

Huawei

Huawei UPS2000-G-3KRTLL Manuel utilisateur

Huawei

Huawei UPS5000-E Series Manuel utilisateur

Huawei

Huawei UPS5000-E-****-FM series Manuel utilisateur

Huawei

Huawei PowerCube 500 Manuel utilisateur

Huawei

Huawei UPS2000-G-3KRTLL Manuel utilisateur

Huawei

Huawei UPS5000-S-600 Manuel utilisateur

Huawei

Huawei Telecom Power TP48200A-DX12A1 Manuel utilisateur

Huawei

Huawei UPS5000-E-400K-FMS Manuel utilisateur

Huawei

Huawei UPS2000-A Series Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
