Introduction to OceanStor V5 Series
Before You Start
OceanStor 5110 V5，5300 V5, and
5500 V5
V500R007
Quick Installation Guide
Issue: 08
Date: 2019-06-30
Huawei OceanStor V5 series storage systems are innovative offerings that are ready to meet your current and
future storage requirements. They are designed to provide medium- and large-scale enterprises with improved
storage performance, efficiency, security, scalability, and manageability.
This guide describes how to quickly install OceanStor 5110 V5, 5300 V5, and 5500 V5. For more information,
see the OceanStor 5000, 5000F, 6000, and 6000F V5 Series V500R007 Installation Guide.
Note: For OceanStor 5110 V5, this document is only applicable to the V500R007C30 version.
You can obtain the product documentation from https://enterprise.huawei.com. You can also register for a
Huawei support account at this website to browse and download valuable information and sign up for product
updates.
Your feedback is important to us. If you have any comments about this document, go to
https://support.huawei.com/enterprise (Huawei enterprise technical support website) to submit your
feedback and suggestions.
Arrange for at least three persons to carry and install an enclosure to avoid personal injury or device damage.
Before you handle devices, wear ESD clothes, wear a pair of ESD gloves or an ESD wrist strap, and remove
conductive objects such as ornaments and watches.
Do not operate devices or handle cables on a stormy day.
To avoid eye injuries, do not look into the optical outlets without eye protection.
To avoid electric shock, do not wear an ESD wrist strap during the power-on process.
Scenario 1 Wearing an ESD wrist strap whose
ground terminal is a plug Scenario 2 Wearing an ESD wrist strap whose
ground terminal is a metal clip

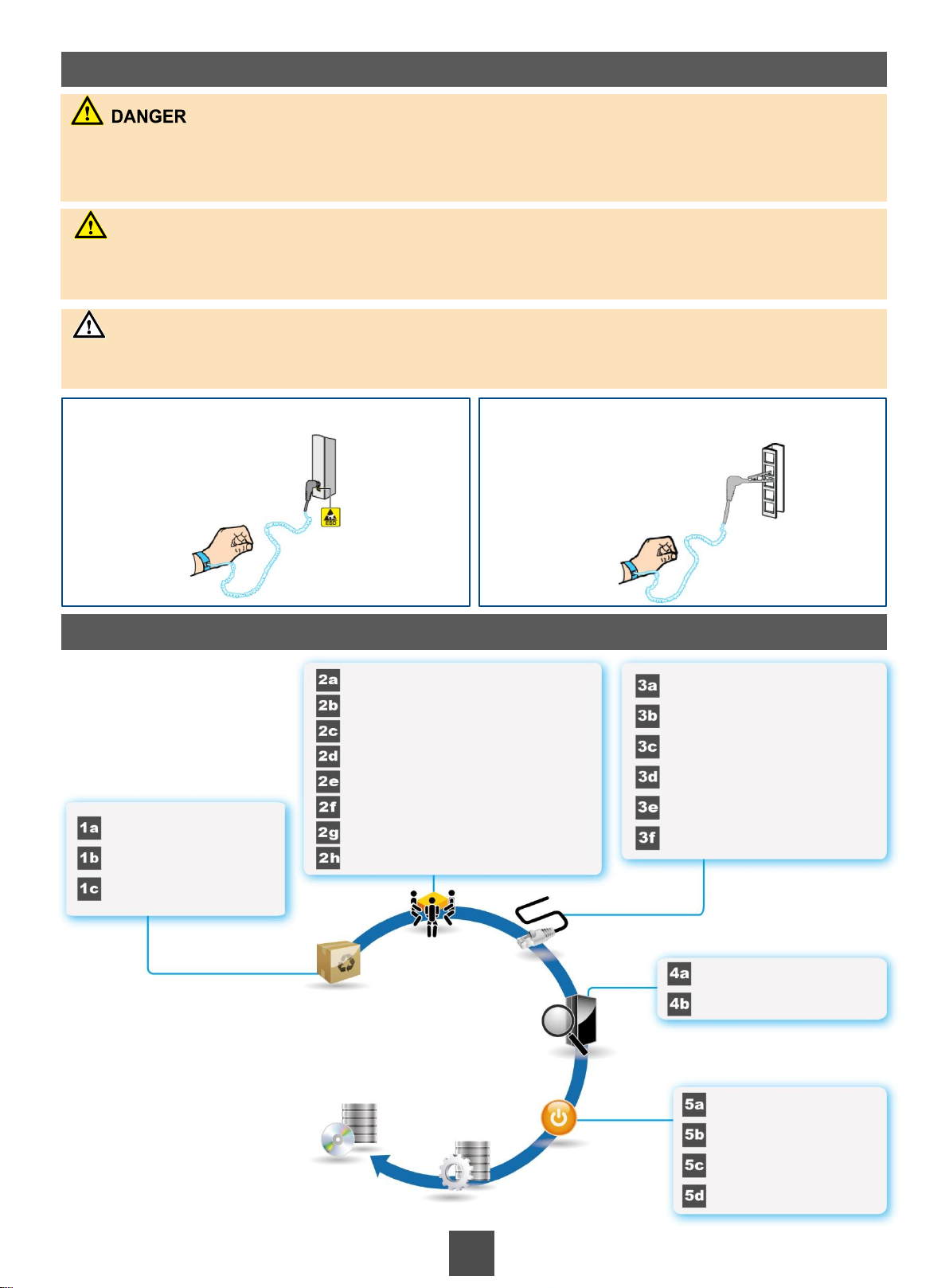

Installation Process
Safety Information
Initializing the Storage System
A generic view
of cable connections
(Optional) Connecting ground
cables
Connecting disk enclosures
Connecting the storage system
to the network
Connecting to the maintenance
terminal
Connecting power cables
Checking device installation
Checking cable connections
Switching on external
power supplies
Pressing the power button
on the controller enclosure
Checking status indicators
Installing front panels
Installation Preparations
Installing
Devices
Connecting Cables
Powering On the
Storage System
Checking
Hardware Installation
(Optional) Installing Host Software
2
Checking installation tools
Checking circuit breakers
Checking components
Planning device installation positions
Removing filler panels from device
installation positions
Determining device installation
positions using installation templates
Installing guide rails
Installing storage devices
into the cabinet
Installing a cable tray
(Optional) Installing disk modules
(Optional) Installing filler panels
CAUTION
Do not remove or insert controllers, disks, expansion modules, or cables during the power-on process to prevent
data loss.
NOTICE
1c Checking components
The following installation tools are required:
Phillips screwdriver (M3 to M6)
Flat-head screwdriver (M3 to M6)
Diagonal pliers
Floating nut mounting bar
A storage system power failure may cause devices connected to the
same circuit breaker to power off unexpectedly. Therefore, ensure
that the storage system power supplies have functioning circuit
breakers with the following amps:
AC power: not smaller than 10 A
DC power (not applicable to 5110 V5): not smaller than 30 A for
controller enclosures, not smaller than 18.5 A for disk enclosures
1 Installation Preparations
Only materials used in the installation process are listed here. The Packing List contains all materials required by the installation. The bag
containing the Packing List is attached to the outside of the carton.
Each controller of the OceanStor 5110 V5/5300 V5 is equipped with four GE electrical ports. Each controller enclosure of the OceanStor 5500
V5 is equipped with four SmartIO ports that do not support IP Scale-out networking. The following sections describe the process for installing
the OceanStor 5500 V5. The process for installing the OceanStor 5110 V5/5300 V5 is similar.
5110 V5 does not support high-density disk enclosures.
3

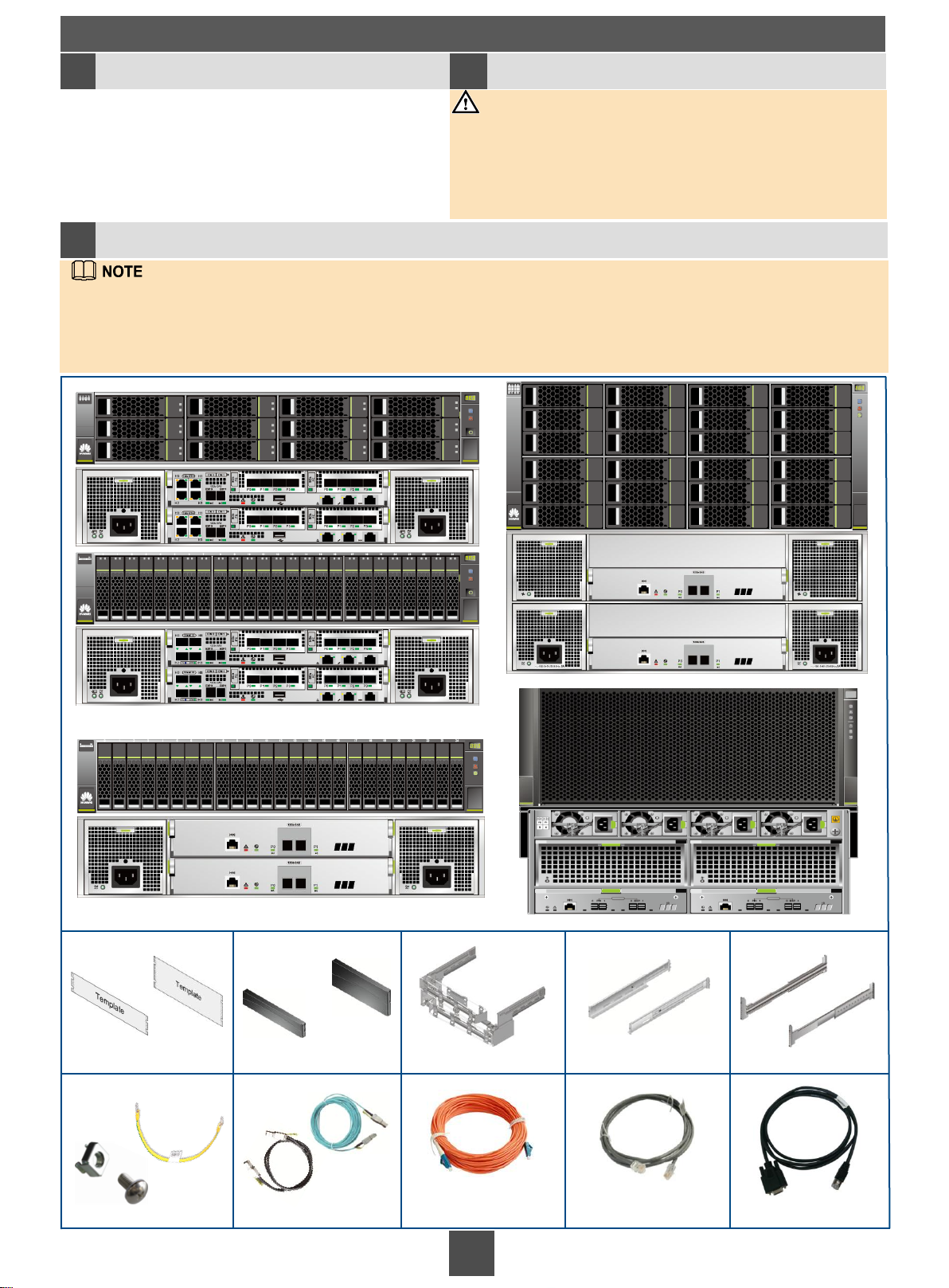

Disk enclosure (2 U)
Controller enclosure (2 U)
Installation template
(for 2 U devices) Front panel of a
2 U device
High-density disk enclosure (4 U)
Adjustable guide rails Ball bearing guide rails
Disk enclosure (4 U)
Installation template (for
4 U devices) Front panel of a 4 U
device
Checking installation tools Checking circuit breakers1b1a
NOTICE
Cable tray
Floating nut and M6 screw
Ground cable
Multi-mode optical fiber
cable Network cable Serial cable
Mini SAS HD optical
cable
Mini SAS HD electrical
cable
Planning device installation positions
Removing filler panels from device installation positions
2 Installing Devices
2b
2a

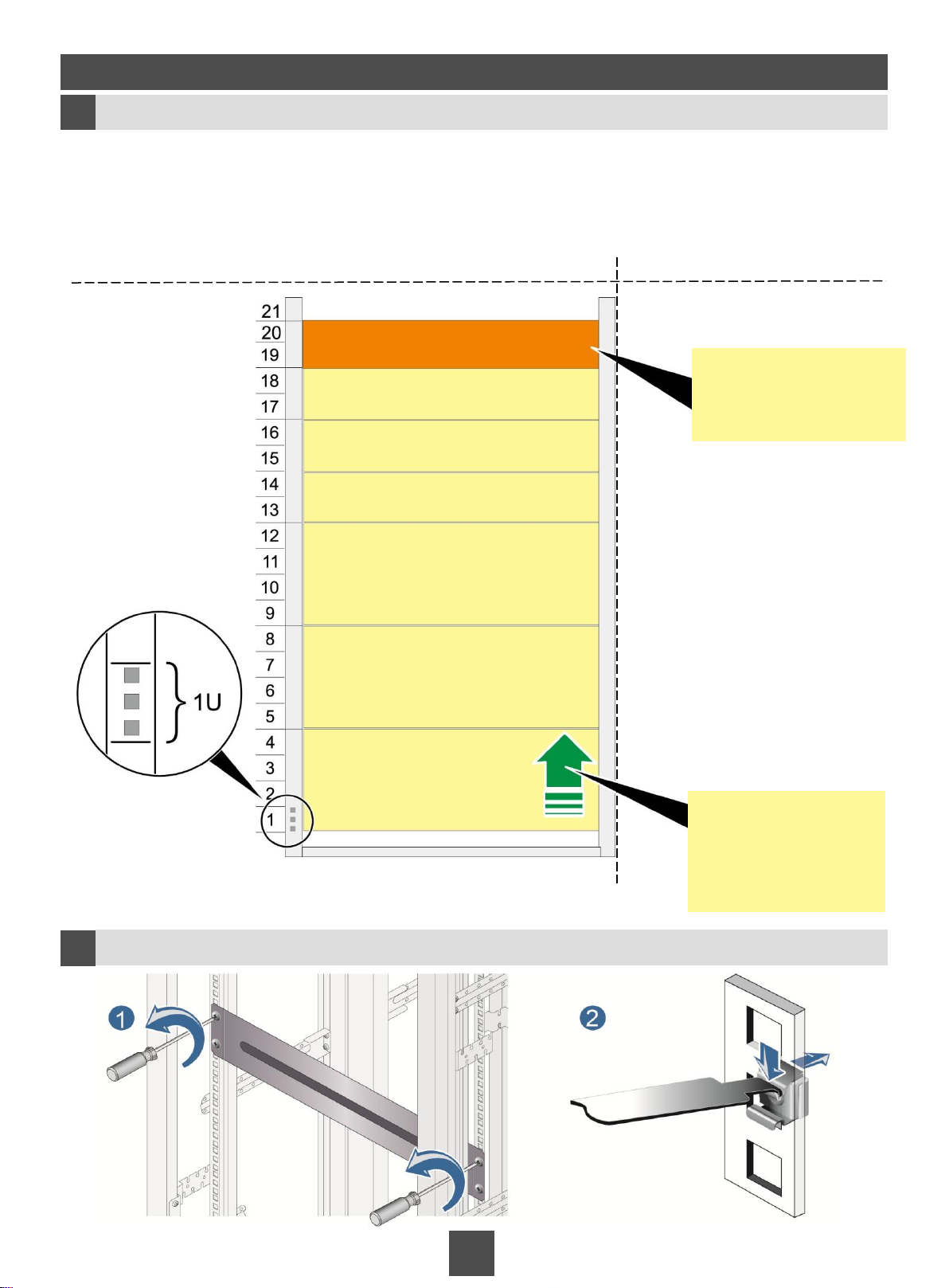

Recommended installation positions
Total required cabinet space = 2 U + 2 U x (Number of 2 U disk enclosures) + 4 U x (Number of 4 U disk enclosures)
For example, if the OceanStor 5500 V5 is equipped with three 2 U disk enclosures and three 4 U disk enclosures,
the space required by a cabinet is calculated as follows:
20 U = 2 U + 2 U x 3 + 4 U x 3
Note: The height of the storage system is measured by the unit of U. 1 U equals 44.45 mm (1.75 inches).
Tips
Install devices from the
bottom up and from heavy
to light (The total power of
all the devices cannot
exceed the total power of
the cabinet).
4
Disk enclosure (4 U)
Install the controller
enclosure in the middle of
a cabinet between 19 U
and 20 U.
Disk enclosure (4 U)
Disk enclosure (4 U)
Disk enclosure (2 U)
Controller enclosure (2 U)
Disk enclosure (2 U)
Disk enclosure (2 U)

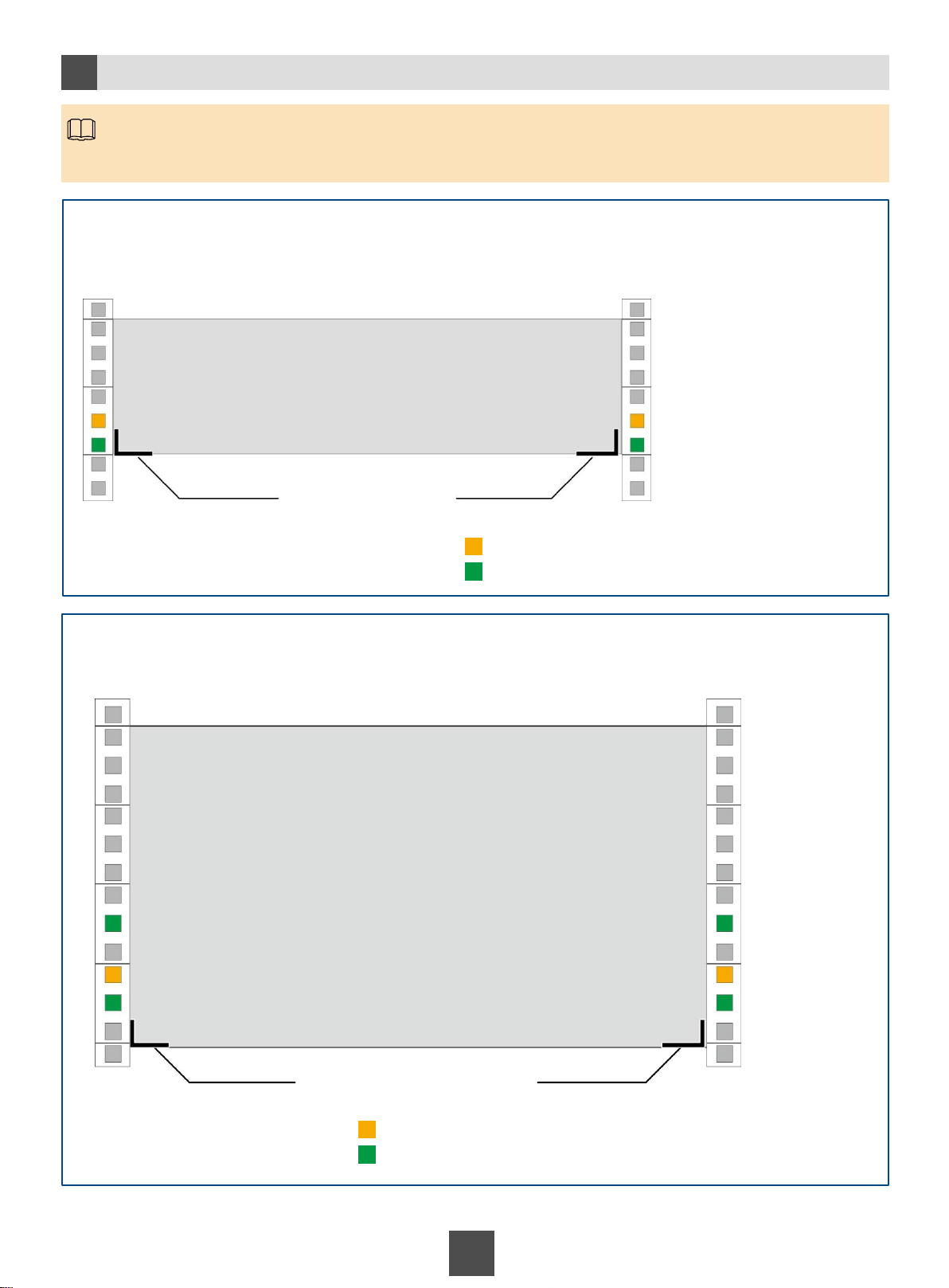

Determining device installation positions using installation templates
2c
Scenario 2
Installation position of a 4 U device
Scenario 1
Installation position of a 2 U device
Low base of
the guide rail
On the mounting bars, use a marker to mark the holes where screws will be installed to secure the storage devices.
Installation positions of 2 U device fixing screws
Installation positions of guide rail fixing screws
Installation positions of 4 U device fixing screws
Installation positions of guide rail fixing screws
5
NOTE
Low base of the guide rail
Installing guide rails

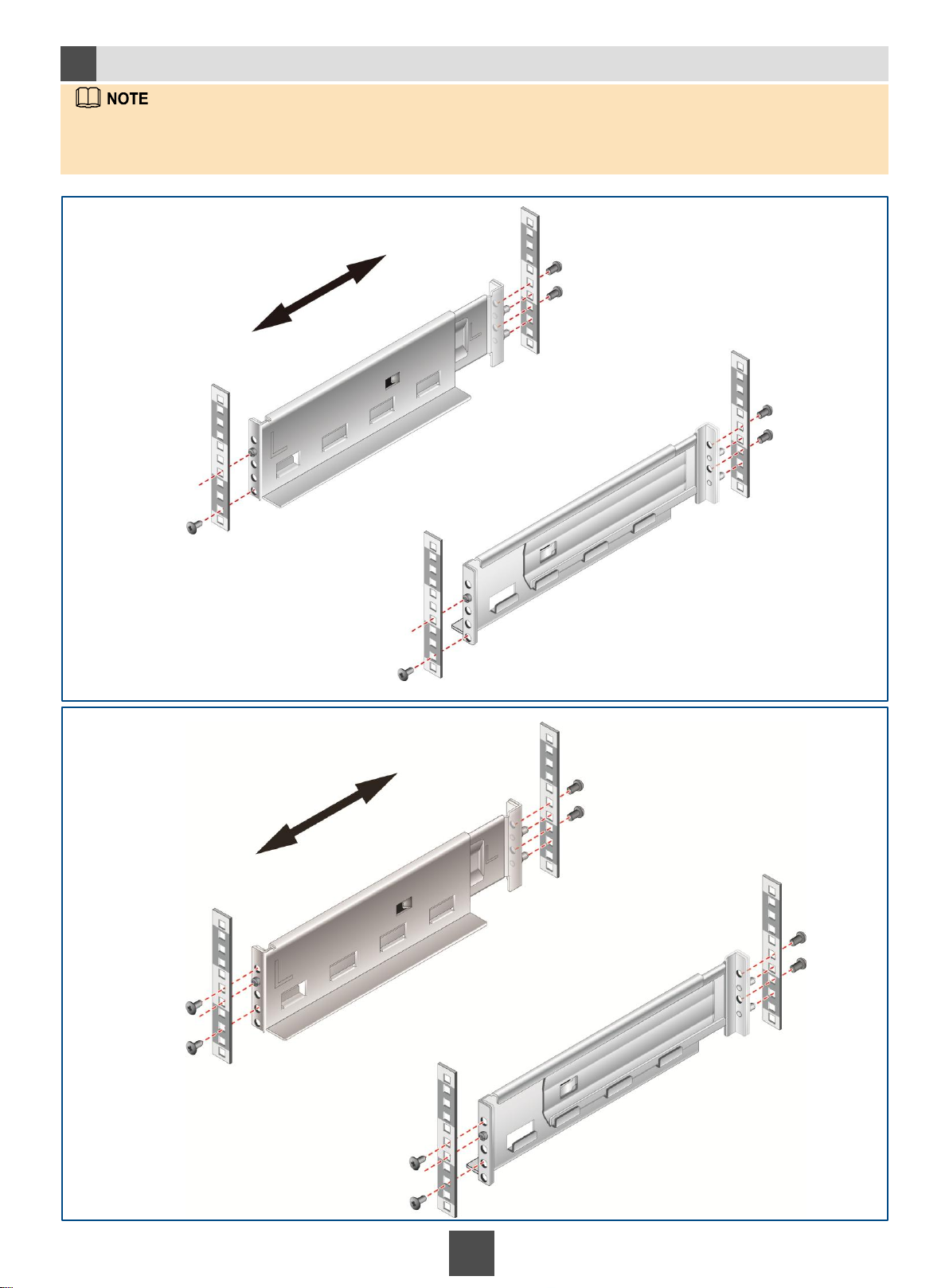

2d

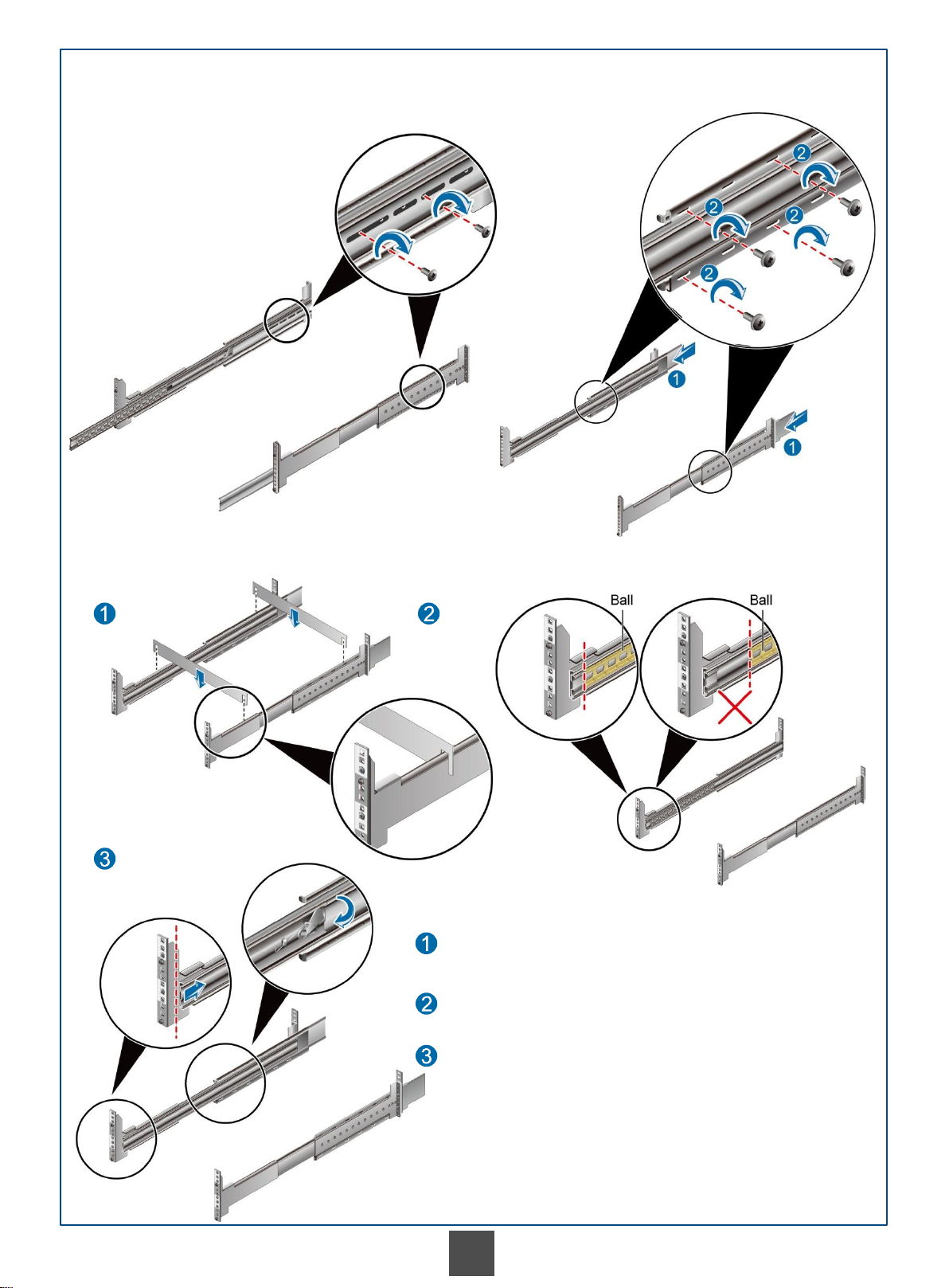

The adjustable guide rails are 600 mm (23.62 inches) to 900 mm (35.43 inches) long.
The adjustable guide rails are preconfigured with positioning pins before delivery.
Two paired adjustable guide rails must be positioned exactly parallel to one another.
Scenario 2
Installing adjustable guide rails for
a 4 U device
Scenario 1
Installing adjustable guide rails for a
2 U device
Front
Front
Rear
Rear
6
7
Scenario 3

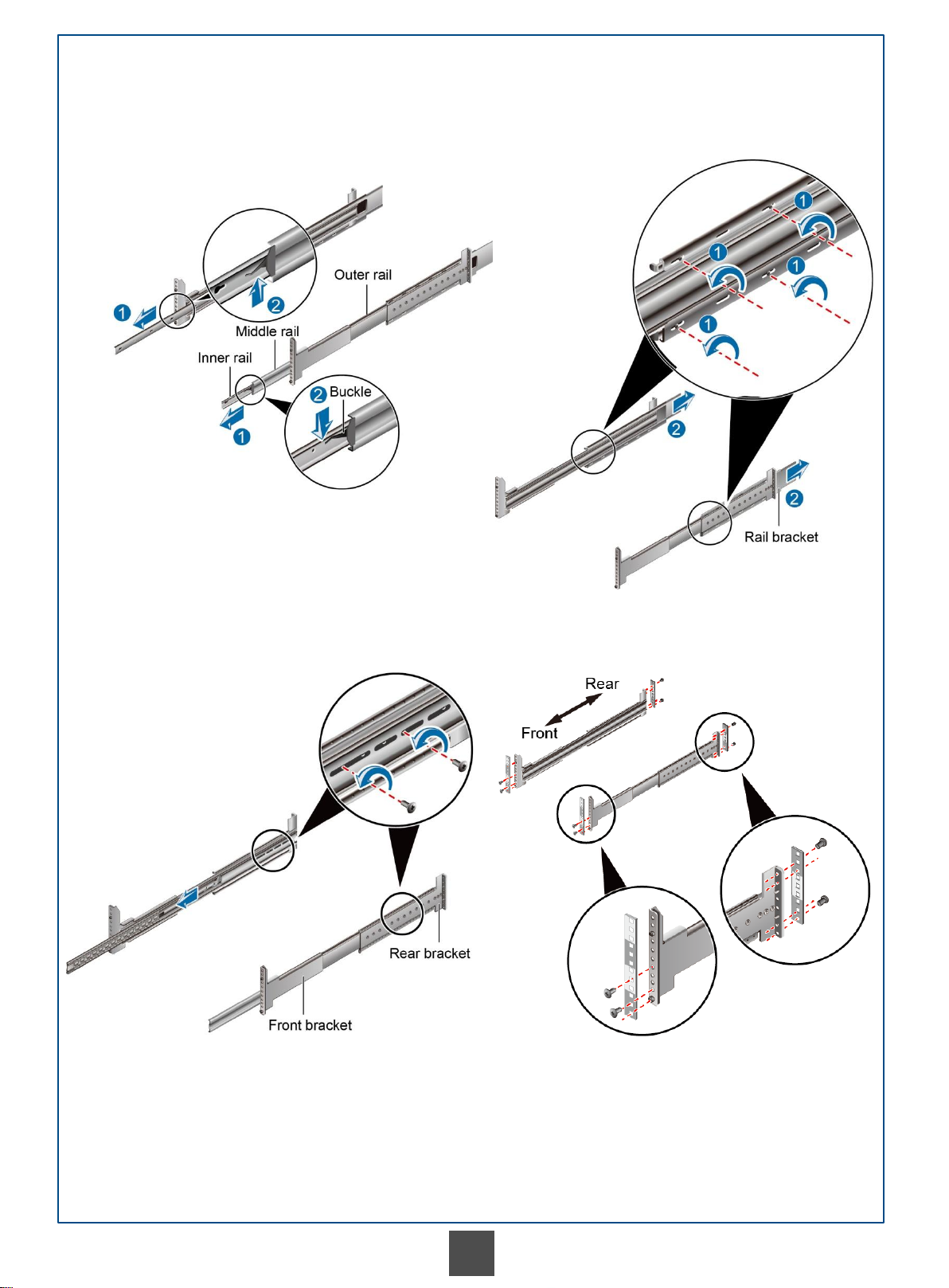

Installing ball bearing guide rails for a high-density disk enclosure
(2) Remove a rail support.(1) Pull out the inner rail of the ball bearing guide rails.
(3) Loosen the screws and adjust the length of the ball
bearing guide rail to be the same of the cabinet depth. (4) Install the ball bearing guide rails.
Left guide rail
Right guide rail
8
(6) Installing a ball bearing guide rail bracket.
(7) Check the installation of the ball bearing guide rails.ng Hardware Installation
Check the distance between the left and right guide rails, and
ensure that the two templates can align and slot into the ball
bearing guide rails.
Check that the ball of the ball bearing guide rail has been
placed at the most front end of the middle rail.
Check that the edges of the middle rail and external rail are
at the same vertical plane.
(5) Fasten screws.
9
Scenario 2 Installing a high-density disk enclosure
Scenario 1 Installing a controller enclosure and a disk enclosure
Install a disk enclosure onto the guide rails using the same method as installing the controller enclosure.
After the controller enclosure is installed, pull out the information plate from the controller enclosure, as
instructed in step 4 in the preceding figure. On the left part of the information plate, you can record the
device's management IP address. On the right of the information plate, you can use your cellphone to
scan the QR code to obtain more information.

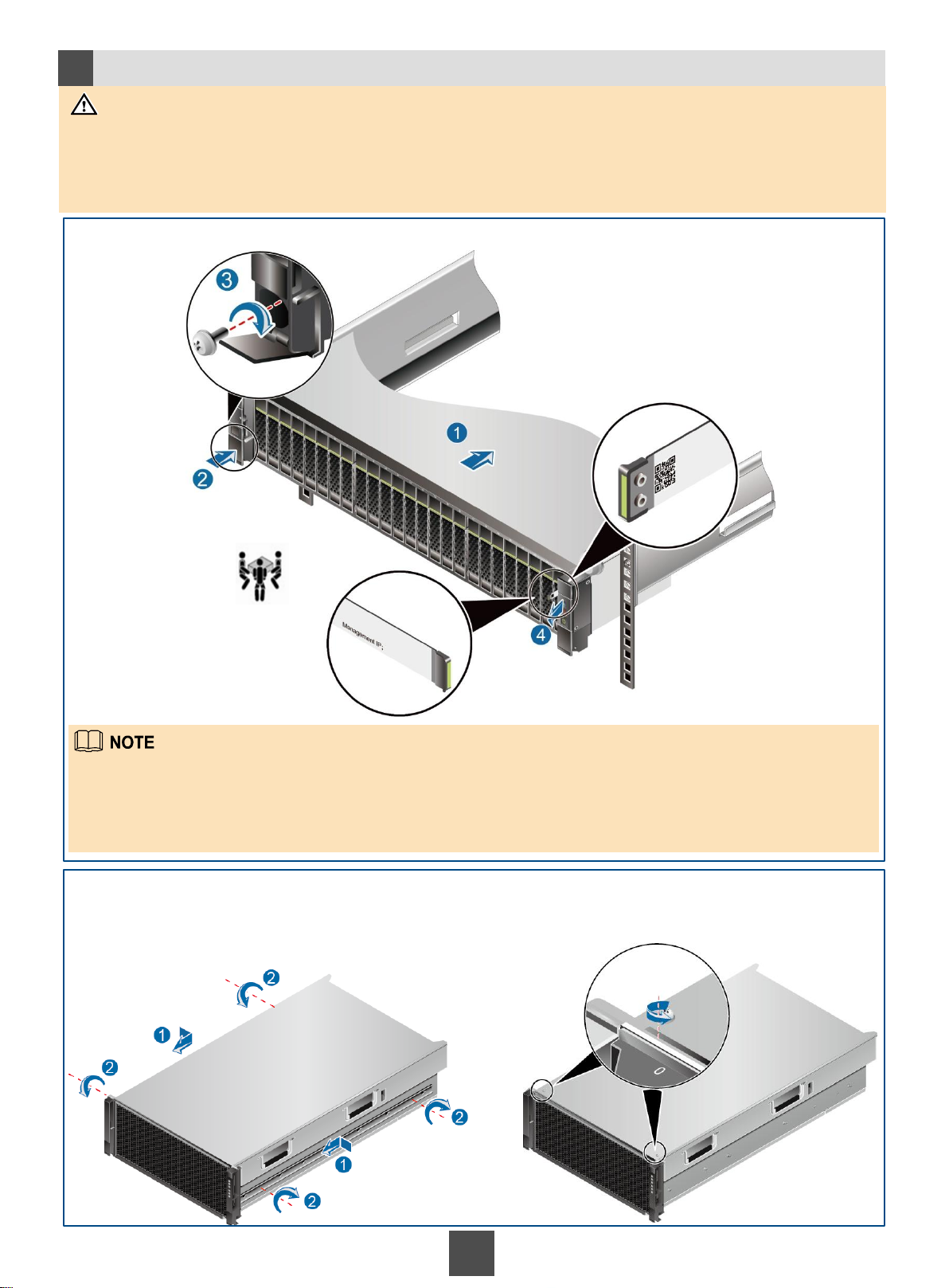

2e Installing storage devices into the cabinet
To avoid device damage, do not stack any components but install them onto guide rails.
If you remove controllers and disks for easily moving and installing enclosures, record the slots of these
controllers and disks in advance. This helps you insert controllers and disks back to their correct slots later. If a
controller is inserted into a different location, a system power-on failure may occur.
NOTICE
(1) Install the inner rail.
1. Install the inner rail onto the system enclosure.
2. Use two M4 screws to secure the inner rail.
(2) Remove the two M3 screws from the upper panel.
1010

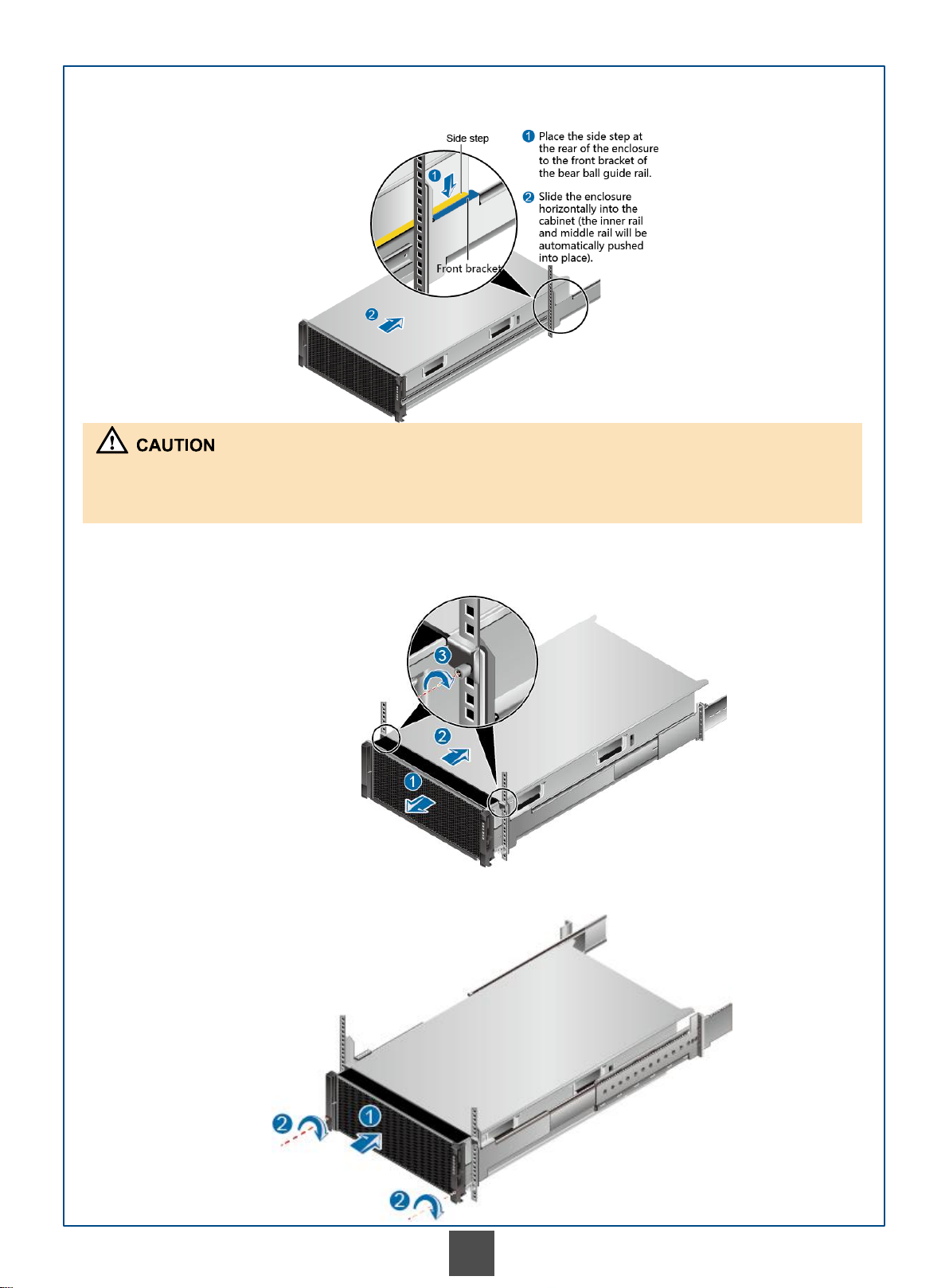

(3) Place the side step at the rear (excluding the inner rail) of the high-density disk enclosure onto the front
bracket of the ball bearing guide rails, and slide the disk enclosure into the cabinet along the ball bearing guide
rails (no manual alignment is required because the inner rail automatically connects to the middle rail).
Do not pull out the middle guide rails when sliding the high-density disk enclosure into the cabinet.
Otherwise, the guide rails may be warped.
Before you install disk modules, install the high-density disk enclosure into the cabinet.
(4) Install a cover.
1. Pull out the enclosure slowly.
2. Push the upper cover backward until the upper cover touches the mounting bars.
3. Fasten the two captive screws on the cover.
(5) Secure the high-density disk enclosure.
1. Slide the enclosure into the cabinet slowly along the ball bearing guide rails.
2. Fasten the two captive screws on the front panel.
