WS319 300Mbps Wireless Router

User Guide

Contents

1 Product Overview ......................................................... 5

Supported Features............................................................................... 5

Ports and Buttons ................................................................................. 6

Indicators ............................................................................................. 7

2 Hardware Installation ................................................... 8

Selecting an Installation Location ......................................................... 8

Connecting the WS319 on an Ethernet Broadband Network.......... 8

Connecting the WS319 on a DSL Broadband Network ................... 8

Installing the WS319 on a Cable Broadband Network .................... 9

Connecting a Computer or Other Devices ............................................ 9

Powering On......................................................................................... 9

3 Setting Network Parameters....................................... 11

Setting the Computer IP Address........................................................ 11

Logging In to the Web Management Page......................................... 13

Setting Network Access Parameters.................................................... 14

Setting Dial-Up Connection Parameters .............................................. 15

4 Wireless Connection Setup.......................................... 22

Setting Up a Wireless Connection Using the WPS Button ................... 22

Manually Setting Up a Wireless Connection ....................................... 22

5 Network Security........................................................ 25

Improving WLAN Security................................................................... 25

Hiding the WLAN Name ............................................................... 25

Changing Your WLAN Name and Password.................................. 25

Using High Security Encryption Modes ......................................... 26

Allowing Only Specified Computers to Access Your WLAN ........... 27

Controlling Computer Internet Access ................................................ 28

Filtering Out Inappropriate Websites .................................................. 29

Controlling Computer Bandwidth ....................................................... 30

Configure the Firewall to Prevent Attacks on the Internet .................. 31

The Description of Firewall Level................................................... 31

Configuring the Firewall ............................................................... 32

6 WLAN Configuration................................................... 33

Expanding WLAN Coverage................................................................ 33

Turning On Smart Coverage................................................................ 35

7 Maintenance Guide..................................................... 36

Changing the IP Address Used to Log In to the Web Management Page

........................................................................................................... 36

Changing the Web Management Page Password ............................... 36

Configuration Backup ......................................................................... 37

Restoring Default Settings .................................................................. 38

Using the Configuration Tool ........................................................ 38

Using the Reset Button ................................................................. 39

Restoring Configuration by Importing Backup File ........................ 39

Upgrading Software ........................................................................... 40

Power Saving Settings ........................................................................ 41

8 Reference Operations.................................................. 42

Enabling Wireless Configuration on Windows .................................... 42

Checking the Computer MAC Address................................................ 42

9 FAQs ........................................................................... 45

What Can I Do If I Cannot Open the Web Management Page? .......... 45

How Can I Restrict My Computer to Specified Websites? ................... 45

I Often Need to Restart the WS319 to Display Web Pages. What Can I

Do?..................................................................................................... 45

What Is the Difference Between Wireless MAC Address Filtering and

MAC Address Filtering?....................................................................... 45

Can I Change the WLAN Password? ................................................... 45

10 Appendix .................................................................. 46

Technical Specifications ...................................................................... 46

Default Settings .................................................................................. 46

11 For More Help........................................................... 47

12 Legal Notice.............................................................. 48

1Product Overview

Supported Features

The WS319 300Mbps Wireless Router (WS319 for short) is a high-speed wireless router

designed for home and small office use. This chapter describes the features supported by the

WS319.

Ethernet provides rugged stability, and with the WPS button, zero configuration is required

for connections to multiple devices.

Network range allows any device in a home to be connected with a transmission rate of up to

300Mbps.

A powerful firewall is provided with a flexible network configuration and quality of service

(QoS) strategy, enabling different home devices to enjoy high-speed and high-quality

broadband services.

Smart Wi-Fi coverage

When the WS319 is connected to Huawei wireless routers and repeaters that support the smart

Wi-Fi coverage feature, wireless parameters of these devices are automatically synchronized,

which simplifies user configuration. What's more, smart Wi-Fi coverage helps wireless devices

automatically detect and connect to the wireless router or repeater with the best signal

reception.

Easy configuration and management

Access the web management page from your computer, smartphone, or tablet to easily

configure WS319. You can also install the HUAWEI RuMate app on your smartphone or tablet to

manage your router.

High-Speed Ethernet Connectivity

The WS319 provides WAN ports for Ethernet-enabled devices to access the Internet at high

speeds.

Routing

The WS319 supports routing. It can obtain an IP address through PPP dial-up or Dynamic Host

Configuration Protocol (DHCP), which provides simultaneous access for multiple devices.

WLAN

The WS319 supports multiple WLAN protocols, including 802.11b/g/n (2.4 GHz). Adopting

802.11n multiple-input multiple-output antennas (MIMO) technology, the WS319 delivers a

wireless transmission rate of up to 300Mbps with its dual antennas. In addition, the WS319

supports multiple wireless encryption modes to provide a secure, reliable, and high-speed WLAN.

Bandwidth Control

The WS319 supports bandwidth control and allocates bandwidth to different computers within

your home based on Internet access requirements. Your family can then access the Internet, play

online games, and watch videos without interfering with each other.

WDS Wireless Bridging

The wireless distribution system (WDS) function in wireless bridging mode enables you to set up

wireless connections between wireless routers to implement large-scale WLAN coverage.

Firewall

The powerful built-in firewall effectively protects against viruses and malicious attacks.

ARP Attack Protection

You can bundle an IP address and MAC address bi-directionally, which effectively protects your

LAN from Address Resolution Protocol (ARP) attacks.

Parental Controls

Parents can control their children's computer usage by placing time limits on usage duration or

forbidding access to certain websites.

Energy-saving

Automatic switch to energy-saving state when no service is detected, Wi-Fi function enabled

and disabled as scheduled.

Ports and Buttons

No. Item Description

1 Power Connects to a power adapter.

2 WAN Connects to an Ethernet device that provides Internet access,

such as a modem or switch.

3 LAN1～LAN4 Connects to Ethernet devices, such as computers, set-top boxes

(STBs), and switches.

4 WPS/Reset WPS button: Press the WPS button to start Wi-Fi protected

setup (WPS) negotiation while the WS319 is powered on.

Reset button: Press Reset button (more than 6 seconds) to

restore to its default settings while the WS319 is powered

on.

A reset will result in all custom data and settings being lost. Use

with caution.

Indicators

Indicator Status Description

Power Steady on The WS319 is powered on.

off The WS319 is powered off.

Internet Steady on The WS319 WAN port is connected to the

Internet.

Off The WS319 WAN port is not connected to

any device.

WLAN Steady on The WS319 has WLAN enabled.

The WS319 has WLAN enabled by default, so

the WLAN LED is steady on while the WS319

is powered on.

off WLAN is disabled.

WPS Steady on The WS319 is connected to a wireless client,

such as a computer with a wireless network

adapter, over the WLAN using the Wi-Fi

Protected Setup (WPS) function.

Blinking The WS319 is attempting to connect to a

wireless client over the WLAN using the WPS

function.

Off WPS is disabled.

LAN Steady on A LAN port is connected to a computer or

other Ethernet device through a network

cable.

off No LAN port is connected to a computer or

other Ethernet device.

2Hardware Installation

Selecting an Installation Location

Place the WS319 on a well-ventilated even surface without exposure to direct sunlight. For the

best possible performance, take note of the following:

Make sure there are no obstacles, such as concrete or wooden walls, between the computer

and WS319.

Ensure that the computer and WS319 are far from electric appliances that generate strong

magnetic or electric fields, such as microwave ovens.

Connecting the WS319 on an Ethernet Broadband Network

If you have subscribed to the Ethernet Broadband, you can connect the WS319 to an Ethernet

port, so that multiple computers could access the Internet.

Connecting the WS319 on a DSL Broadband Network

If you have subscribed to digital subscriber line (DSL) broadband, you can connect the WS319

to a telephone port for Internet access, so that multiple computers could access the Internet.

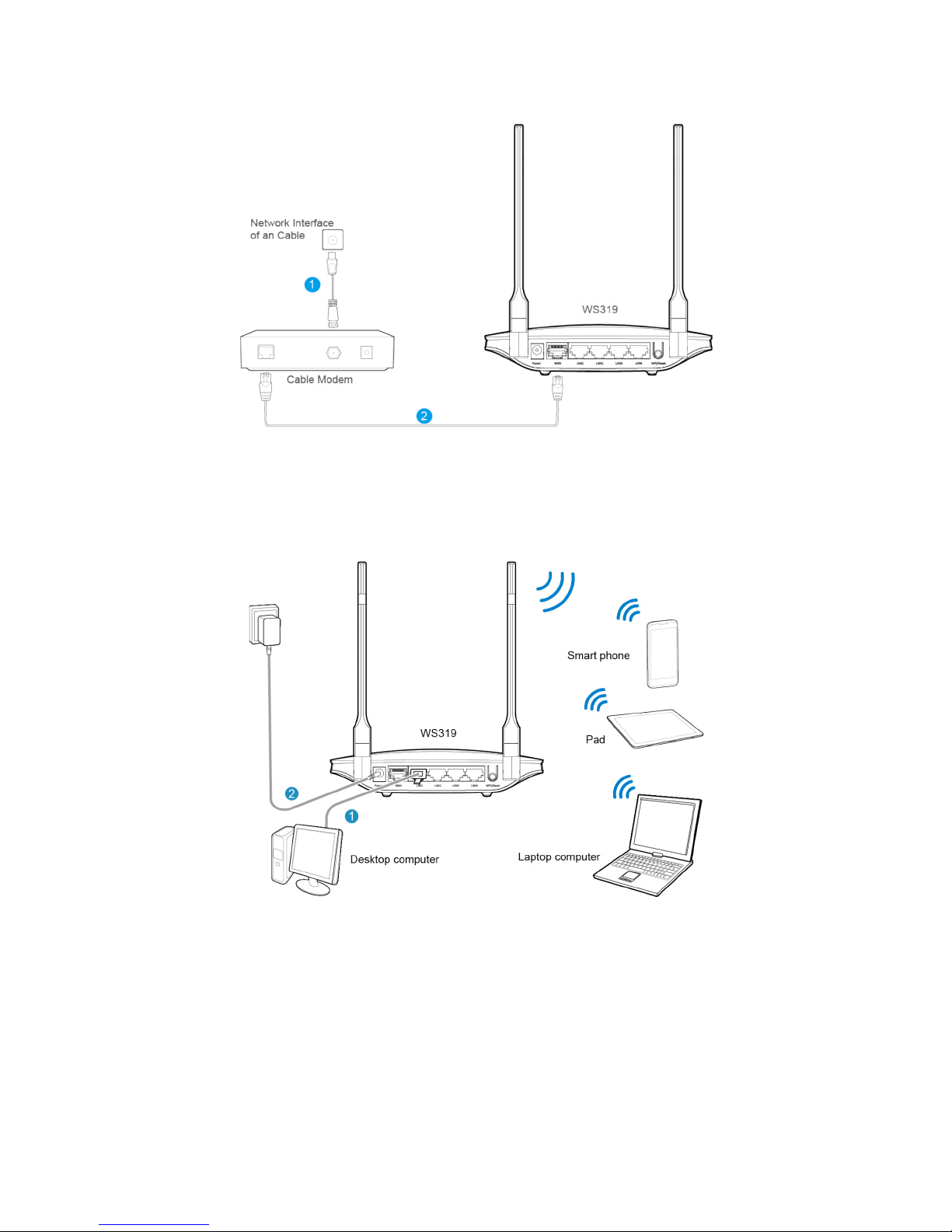

Installing the WS319 on a Cable Broadband Network

If you have subscribed to the cable broadband network, you can connect the WS319 to an

Ethernet port of a Cable Modem, so that multiple computers could access the Internet.

Connecting a Computer or Other Devices

When the WS319 had been accessed to the network normal, you can add the Laptop computer,

desktop computer, set-top box, pad, smart phone and other devices to the network.

Powering On

With all cables connected, plug the power adapter into the wall-mounted power outlet to

power on the WS319.

After the WS319 is powered on, the WS319 indicator turns on. The following table lists how the

indicators behave when the WS319 is operating correctly. If the indicators do not behave as

expected, ensure that everything is plugged in correctly.

Indicator Expected State

Power Steady on

Internet Steady on

WLAN Steady on

WPS Steady off

LAN Steady on (A LAN port is connected to a computer or other

Ethernet device through a network cable.)

3Setting Network Parameters

Setting the Computer IP Address

Before logging in to the WS319 web management page, set the IP address of the computer that

will be used for the login.

On Windows 7

1. Click in the lower right corner of your desktop. Choose Open Network and Sharing

Center.

2. Choose Change adapter settings. Right-click Local Area Connection and choose

Properties.

3. Double-click Internet Protocol Version 4 (TCP/IPv4).

Table des matières

Autres manuels Huawei Routeur réseau

Huawei

Huawei B683 Manuel utilisateur

Huawei

Huawei AR1200 Series Manuel utilisateur

Huawei

Huawei E586BS-6 Manuel utilisateur

Huawei

Huawei Quidway S3500 Series Manuel utilisateur

Huawei

Huawei SUN2000-M5 Series Manuel utilisateur

Huawei

Huawei E5180s-22 Caractéristiques techniques

Huawei

Huawei AR550 Series Manuel utilisateur

Huawei

Huawei OptiXstar HG8145X6-10 Manuel utilisateur

Huawei

Huawei H155-381 Manuel utilisateur

Huawei

Huawei Mobile WiFi Smart E355 Manuel utilisateur

Huawei

Huawei e5180s Manuel utilisateur

Huawei

Huawei quidway s7700 Manuel utilisateur

Huawei

Huawei Quidway S3526 Manuel utilisateur

Huawei

Huawei AR1200 Series Manuel utilisateur

Huawei

Huawei B310 Manuel utilisateur

Huawei

Huawei SmartAX MT800 Manuel utilisateur

Huawei

Huawei InZone E960 Manuel utilisateur

Huawei

Huawei CX210 Guide de référence rapide

Huawei

Huawei EchoLife EG8041V5 Manuel utilisateur

Huawei

Huawei UR-LPUF Manuel

Huawei

Huawei 31010GAS Manuel utilisateur

Huawei

Huawei Quidway NetEngine 20 series Manuel utilisateur

Huawei

Huawei NE05E Instructions d'installation

Huawei

Huawei AR100 Series Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
