Quidway® NetEngine 80E Core Router OC-3c/STM-1 POS Optical Interface Boards

Copyright ©2007 Huawei Technologies Co., Ltd. All rights reserved.

http://www.huawei.com/products/datacomm/ 1

Quidway® NetEngine 80E Core Router

OC-3c/STM-1 POS Optical Interface Boards

Overview

The Quidway®NetEngine 80E core router (“NE80E” hereinafter) provides high-density

OC-3c/STM-1 POS optical interface boards to connect with the SDH transmission equipment or

other equipment. The boards provide 155M transmission channels. Currently, they are widely

applied in the networking of carriers, industries and large- and medium-sized enterprises.

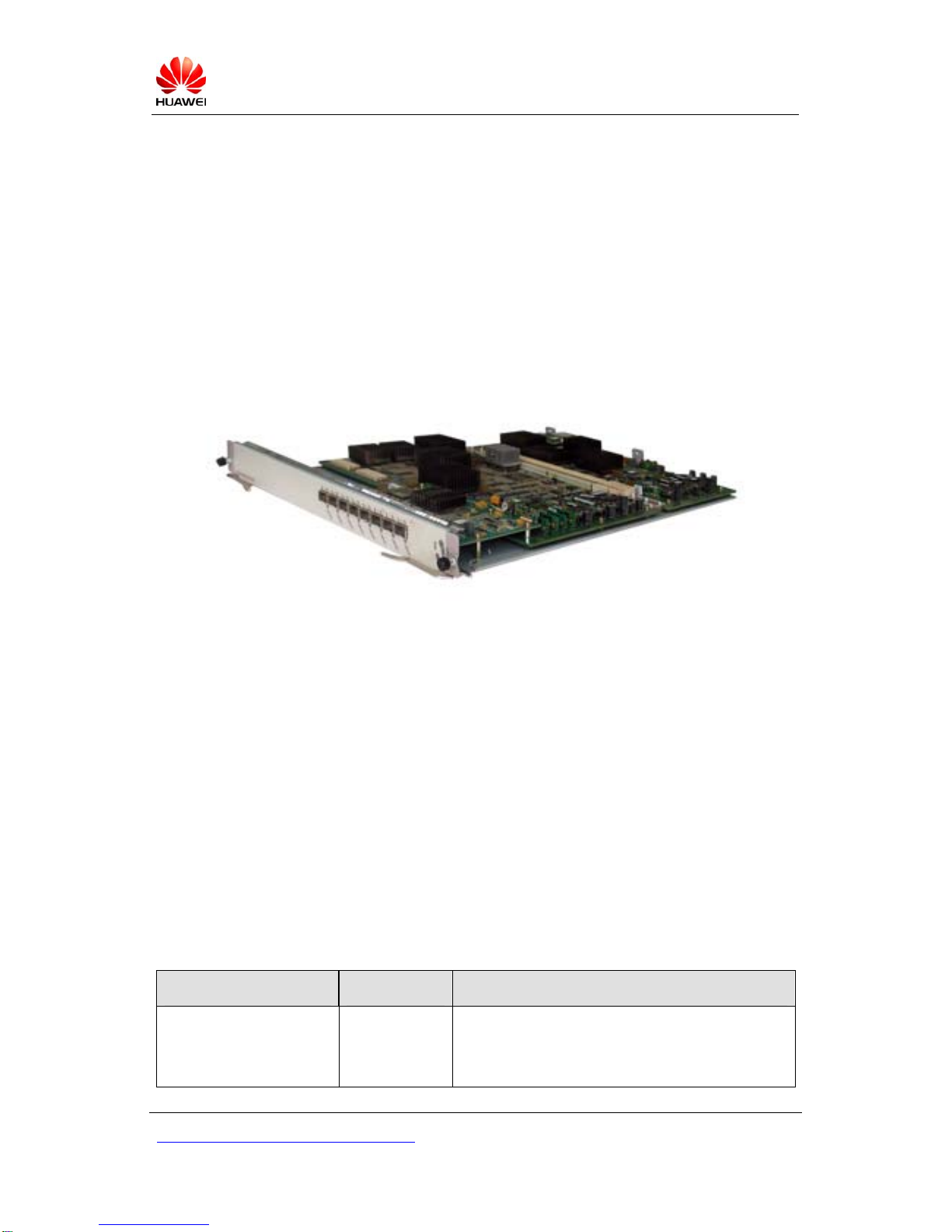

CR52-8xPOS/STM1-SFP

The OC-3c/STM-1 POS optical interface boards implement POS frame encapsulation/

decapsulation of data flows and SDH/SONET mapping/demapping of POS frames, provide external

optical interfaces at a rate of 155 Mbps, and provide such functions as loopback, environment

monitoring and information query.

Hot pluggable SFP optical modules are adopted for these boards and the rate can reach 155 Mbps.

Optical modules supporting different transmission distances may be selected depending on the

networking requirements.

Specifications

The NE80E provides two types of OC-3c/STM-1 POS optical interface boards:

CR52-8xPOS/STM1-SFP and CR52-4xPOS/STM1-SFP.

Module name Interface type Description

CR52-8xPOS/STM1-SFP LC 8-port 155M POS SFP optical interface board,

which may have different SFP optical modules

depending on the transmission distance

Quidway® NetEngine 80E Core Router OC-3c/STM-1 POS Optical Interface Boards

Copyright ©2007 Huawei Technologies Co., Ltd. All rights reserved.

http://www.huawei.com/products/datacomm/ 2

Module name Interface type Description

CR52-4xPOS/STM1-SFP LC 4-port 155M POS SFP optical interface board,

which may have different SFP optical modules

depending on the transmission distance

The NE80E provides the following four types of 155M POS SFP optical modules:

Interface rate 155Mbps

Transmission distance (km) 2 15 40 80

Center wavelength (nm) 1310 1310 1310 1550

Min. -19.0 -15.0 -5.0 -5.0

Transmitting optical

power (dBm) Max. -14.0 -8.0 0.0 0.0

Receiving sensitivity (dBm) -30.0 -31.0 -37.0 -37.0

Overload optical power (dBm) -14.0 -8.0 -10.0 -10.0

Fiber type Multi-mode Single mode Single mode Single mode
