User Guide
About This Document
Please read this document before you begin using the device.
Some components mentioned in the document may not be included with the device, and
need to be purchased separately. Some features described in this document are only available
when used together with other components. The gures and Graphical User Interfaces (GUIs)
in this document may dier from reality, and all gures are for reference only.
1
Appearance and Ports
No. Button
1Five-way joystick
•Press upwards to power on the device. Press and hold for more than 2 seconds
to power o the device.
•Press upwards, forwards, backwards, leftwards, or rightwards when the device is
powered on, to open the menu. Press forwards, backwards, leftwards, or
rightwards to congure the settings.
For details, please refer to Using the Five-Way Joystick to Power on/o and
Congure the Settings.
2Five-way joystick protective case*
Protects the ve-way joystick from damage during initial assembly.
Only SSN-CBA and SSN-CBABZ are relevant to the ve-way joystick
protective case.
2
No. Button
3Power port
Connects to a power adapter to supply power to the monitor.
4DisplayPort (DP)
Connects to a device, such as a computer, via the DP.
5HDMI port
Connects to a device, such as a computer, via the HDMI port.
Appearance and Ports
3
Assembling and Disassembling the
Monitor
Conguring SSN-CAA:
1Place the carton horizontally with the foam arrow facing upwards, open the carton, and
take out the device and foam.
2Remove the base from the foam.
3Lift the display post slightly, and attach the base to the bottom of the post. When you
hear a click, it means that the base has been correctly attached.
4Hold the assembled monitor with both hands, and place it on a at desk. Feel free to
adjust the tilt angle to suit your needs.
5To disassemble the monitor, place it on the desk, push the quick-release tab on the base
inwards with one hand, and hold the post with the other hand to push the base outwards.
Conguring SSN-CBA:
4
1Place the carton horizontally with the foam arrow facing upwards, open the carton, and
take out the device and foam.
2Remove the base support from the foam, and use screws to connect the base to the
support.
3Tilt the upper end of the base support so that it ts into the slot on the back of the
monitor, and press the base support downwards until you hear a clicking sound, which
indicates that the base support has been correctly attached.
4Hold the assembled monitor with both hands, and place it on a at desk. Feel free to
adjust the tilt angle, swivel angle, and height to suit your needs.
5To disassemble the monitor, place it on the desk, push the quick release button on the
back of the monitor upwards, and lift the bottom of the support.
Conguring SSN-CAABZ:
1Place the carton horizontally with the foam arrow facing upwards, open the carton, and
take out the device and foam.
Assembling and Disassembling the Monitor
5
2Remove the base from the foam.
3Lift the display post slightly, and attach the base to the bottom of the post. When you
hear a click, it means that the base has been correctly attached.
4Hold the assembled monitor with both hands, and place it on a at desk. Feel free to
adjust the tilt angle to suit your needs.
5To disassemble the monitor, place it on the desk, push the quick-release tab on the base
inwards with one hand, and hold the post with the other hand to push the base outwards.
Conguring SSN-CBABZ:
1Place the carton horizontally with the foam arrow facing upwards, open the carton, and
take out the device and foam.
2Remove the base support from the foam, and use screws to connect the base to the
support.
3Tilt the upper end of the base support so that it ts into the slot on the back of the
monitor, and press the base support downwards until you hear a clicking sound, which
indicates that the base support has been correctly attached.
4Hold the assembled monitor with both hands, and place it on a at desk. Feel free to
adjust the tilt angle, swivel angle, and height to suit your needs.
5To disassemble the monitor, place it on the desk, push the quick release button on the
back of the monitor upwards, and lift the bottom of the support.
Assembling and Disassembling the Monitor
6
Pivot
Erect the monitor, adjust the height and tilt angle of the screen to the maximum, face the
screen, and rotate the screen 90 degrees clockwise until the screen is in portrait mode.
This feature is only available on SSN-CBA and SSN-CBABZ.
7

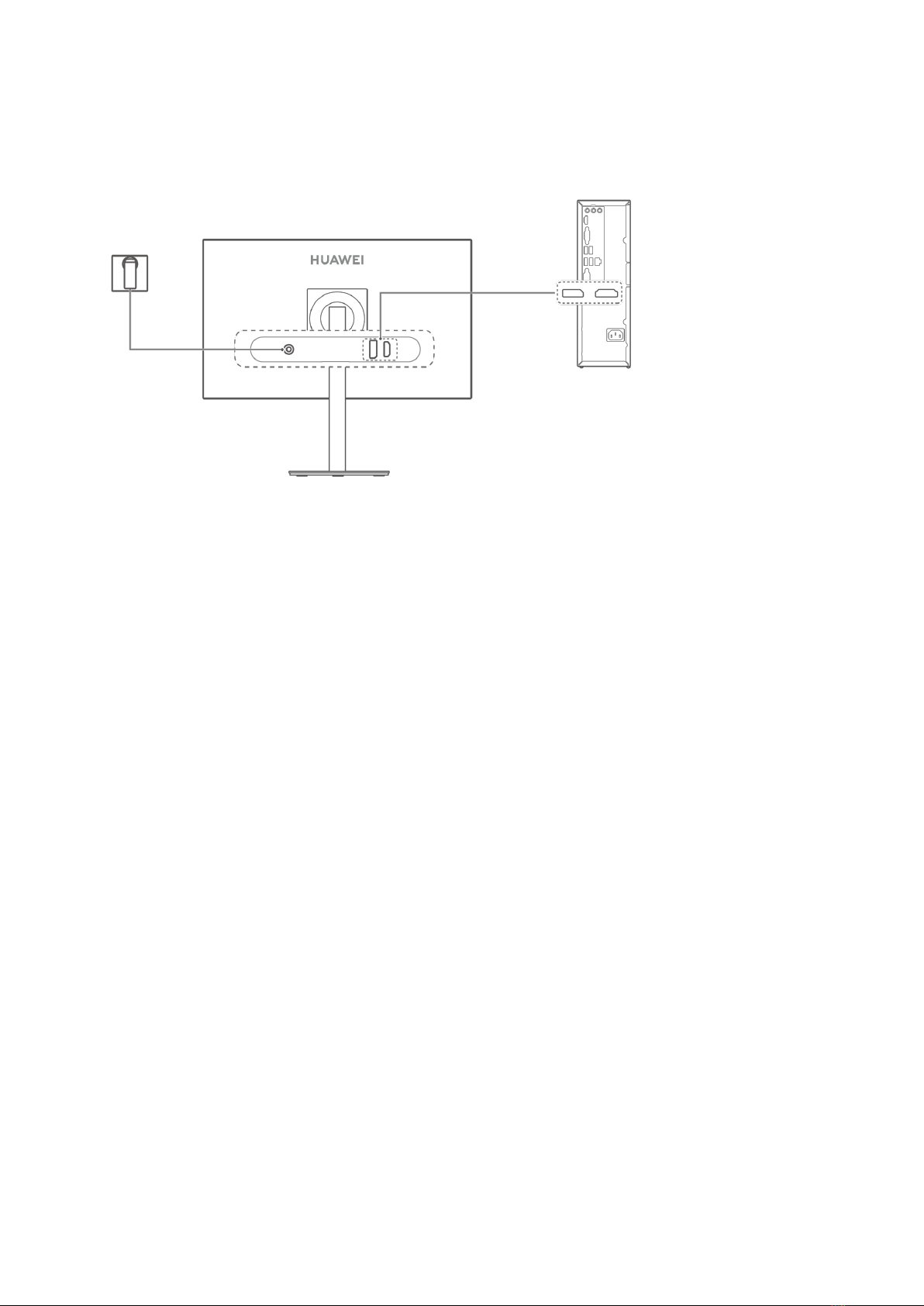

Connecting the Monitor to a Device (such
as a computer)
1Connect one end of a DP or HDMI cable to the DP or HDMI port on the monitor, and
connect the other end to the DP or HDMI port on a computer.
2Connect other cables, such as power cables, to the monitor and computer, and then power
on both devices. If the computer screen is displayed on the monitor, it indicates that the
connection is successful.
