Huawei USG6305 Manuel de l'opérateur

All other trademarks and trade names mentioned in this document are the

property of their respective holders.

HUAWEI USG6305/6305-W/6310S/6310S-W/6310S-WL-OVS/6510/6510-WL

V500R001

Quick Start

Issue: 02

Date: 2017-06-15

Thank you for using Huawei USG6305/6305-W/6310S/6310S-W/6310S-WL-OVS/6510/6510-WL products. This USG prod-

uct series protects your network against Internet threats. This Quick Start shows the product appearance and provides the

essential information required for installing the device and setting up Internet access. For detailed hardware description and

installation guidelines, refer to the

Hardware Guide

. For detailed conﬁgurations, refer to the

Administrator Guide

Safety Precautions

Be aware of the following safety precautions when installing the device.

•Deactivatepowerwheneverpossiblebeforeperformingmaintenanceonpowercables.

•Alwayswearaproperly-groundedwriststrapbeforetouchingthedeviceorexpansioncardsinit.

Device and Accessories

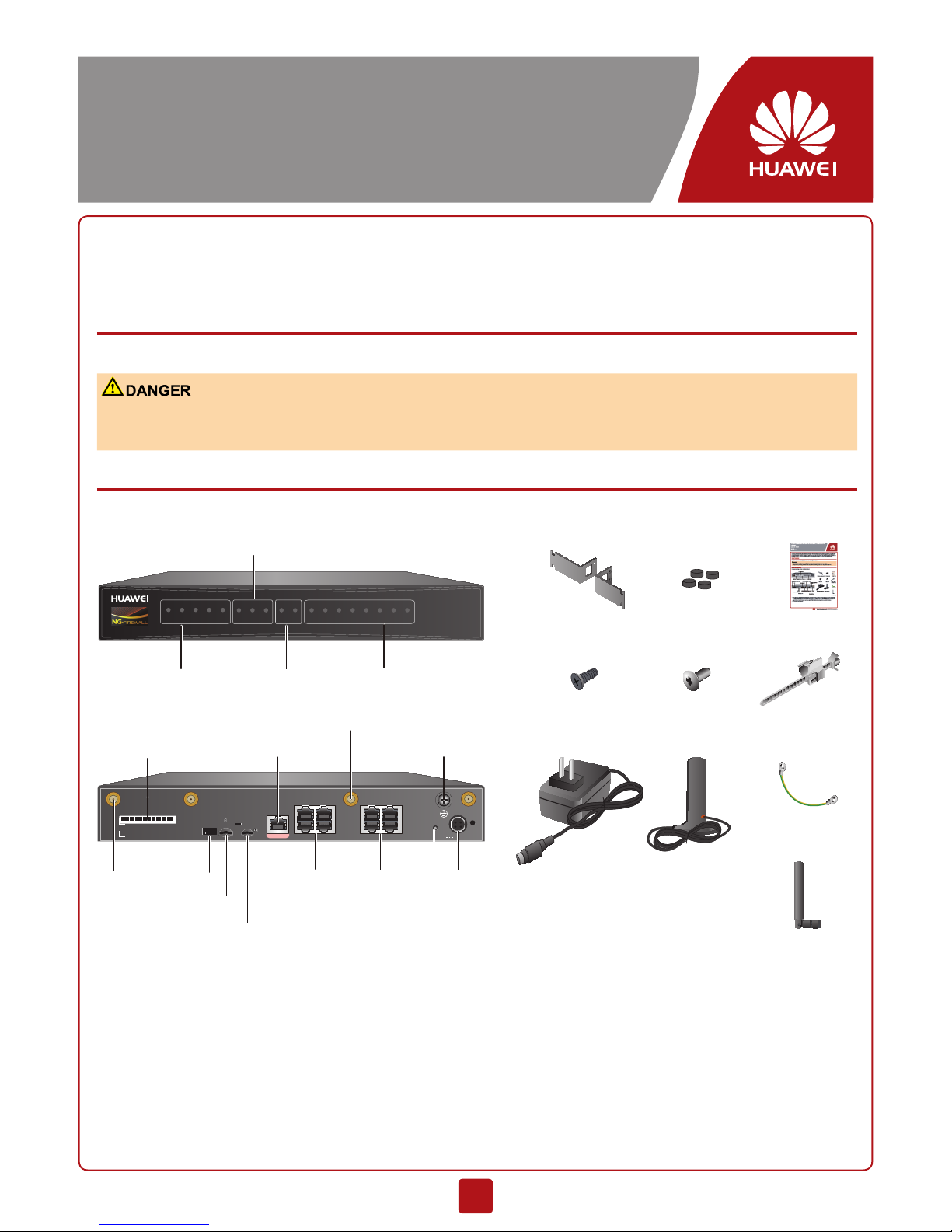

Your product package includes the following items:

PGND cable

Power cable

retention clip

Quick start

M4 screw M6 screw

Rack-mounting ears

24W power adapter LTE antenna

WiFi antenna

Rubber feet

PWR SYS ALM USB

micro

Secospace USG6000

0 1 2 3 4 5 6 7

ETH

2.4G

WLAN

5GLTE WWAN3G/2G

Secospace USG6000

0 2

1 3

4 6

5 7

RST

micro

12V ; 2A

CONSOLE

LTE DIV WiFi 0 LTE MAIN

WiFi 1

XXXXXXXXXXXXXXXXXXXXXXXXXXX

WiFi indicators

LTE indicators

WiFi antenna connector

Micro SD card slot

USB

System Indicators Port indicators

Console port Protection ground

terminal

Power

Reset button

10/100/1000M autosensing

Ethernet electrical interface

SIM card slot

SN label (including the

SN and product model)

LTE antenna

connector

•In the figure, the USG6310S-WL-OVS/6510-WL that support Ethernet, WiFi, and LET access are used as an example.

•The USG6305/6310S/6510 support only Ethernet access. The USG6305 has four 10/100/1000M autosensing Ethernet

electrical interfaces, and the USG6310S/6510 have eight Ethernet electrical interfaces.

•The USG6305-W/6310S-W support Ethernet and WiFi access. The USG6305-W has four 10/100/1000M autosensing

Ethernet electrical interfaces, and the USG6310S-W has eight Ethernet electrical interfaces.

•All models support 4G access by inserting a 4G LTE data card in the USB slot.

•The rack-mounting ears are optional.

Cabling

•TheUSG6310S-WL-OVSsupports4GLTE,3GUMTS,and2GGSMSIMcards.TheUSG6510-WLsupports4G

FDDLTE/TDDLTE,3GTD-SCDMA/WCDMA,and2GGSMSIMcards.

•SIMcardsarenothotswappable.

•YouareadvisedtoplacetheLTEantennaatleast1.2mawayfromtheWiFiantenna.

1. Connect the ground terminal on the device to the ground bar using a PGND cable.

2. Internet connection: Connect GE0/0/4 to the Internet using a network cable, or install a SIM card and LTE antennas to

connect to the Internet in 4G mode.

3. LAN connection: Connect GE0/0/6 to the wired LAN using a network cable, or install WiFi antennas to connect to the

wireless LAN.

4. Connect the device' interface GE0/0/0 to the administrator PC using a network cable.

5. Insert the cable retention clip into the hole close to the power socket. Insert the 4-pin self-locking plug of the power adapt-

er into the power socket on the device. Then round the clip over the power cable and ﬁx it using the clip. Plug the other

end of the power adapter to the power supply socket.

AsUSGdoesnotprovideapowerswitch,itstartsupimmediatelyafterreceivingpower.WhentheSYSindicatoron

theSPUApanelisblinking(onceeverytwoseconds),thedeviceisrunningandreadyforconfiguration.

Administrator

GE0/0/4 GE0/0/6

GE0/0/0

Secospace USG6000

0 2

1 3

4 6

5 7

RST

micro

12V ; 2A

CONSOLE

LTE DIV WiFi 0 LTE MAIN

WiFi 1

XXXXXXXXXXXXXXXXXXXXXXXXXXX

Intranet

SIM card

Switch

Rear panel

Default Conﬁguration

The following table lists the default conﬁguration.

Item Description

GE0/0/0 The IP address is 192.168.0.1.

Administrator account/password You can use the default account/password (admin/Admin@123) to log in through web or

console.

Connecting to the Internet

Collect the information in the following table based on the WAN mode you use and the IP address plan for the LAN. The un-

derlined red texts in the table are examples for reference only.

Item Port Description

WAN GE0/0/4 WAN Mode Static IP IP Address: 1.1.1.1 Request your ISP or

network administrator

to provide the data.

Subnet Mask: 255.255.255.0

Default Gateway: 1.1.1.254

Primary DNS: 2.2.2.2

(Optional) Secondary DNS: 2.2.3.3

PPPoE User name/Password: user/Password123

DHCP -The device functions

as a DHCP client.

Cellular

0/0/0

WAN Mode 4G APN: example Request your ISP or

network administrator

to provide the data.

User name/Password: user01/Admin123

Dial string: *99#

LAN GE0/0/6 LAN Mode Wired

LAN

IP Address: 10.0.0.1 The LAN IP address range

shall be pre-determined.

Subnet Mask: 255.255.255.0

IP address assigned by the DHCP Server:

10.0.0.1 to 10.0.0.254

Wlan-

Radio 0/0/0

LAN Mode WLAN SSID: example The WLAN parameters

shall be pre-determined.

Security Protocol: WPA2

Password: Admin@123

Service VLAN Interface: Vlanif10

IP address assigned by the DHCP Server:

10.1.0.1 to 10.1.0.254

1. Set the IP address to 192.168.0.2 (or any other in the range of 192.168.0.2 to 192.168.0.254) and subnet mask to

255.255.255.0 of the corresponding network interface on the administration PC.

2. Open a web browser and navigate to https://192.168.0.1:8443.

3. Enter the user name (admin) and password (Admin@123) in the login dialog box, and then click Login. You need to

change the user password as instructed after the first login.

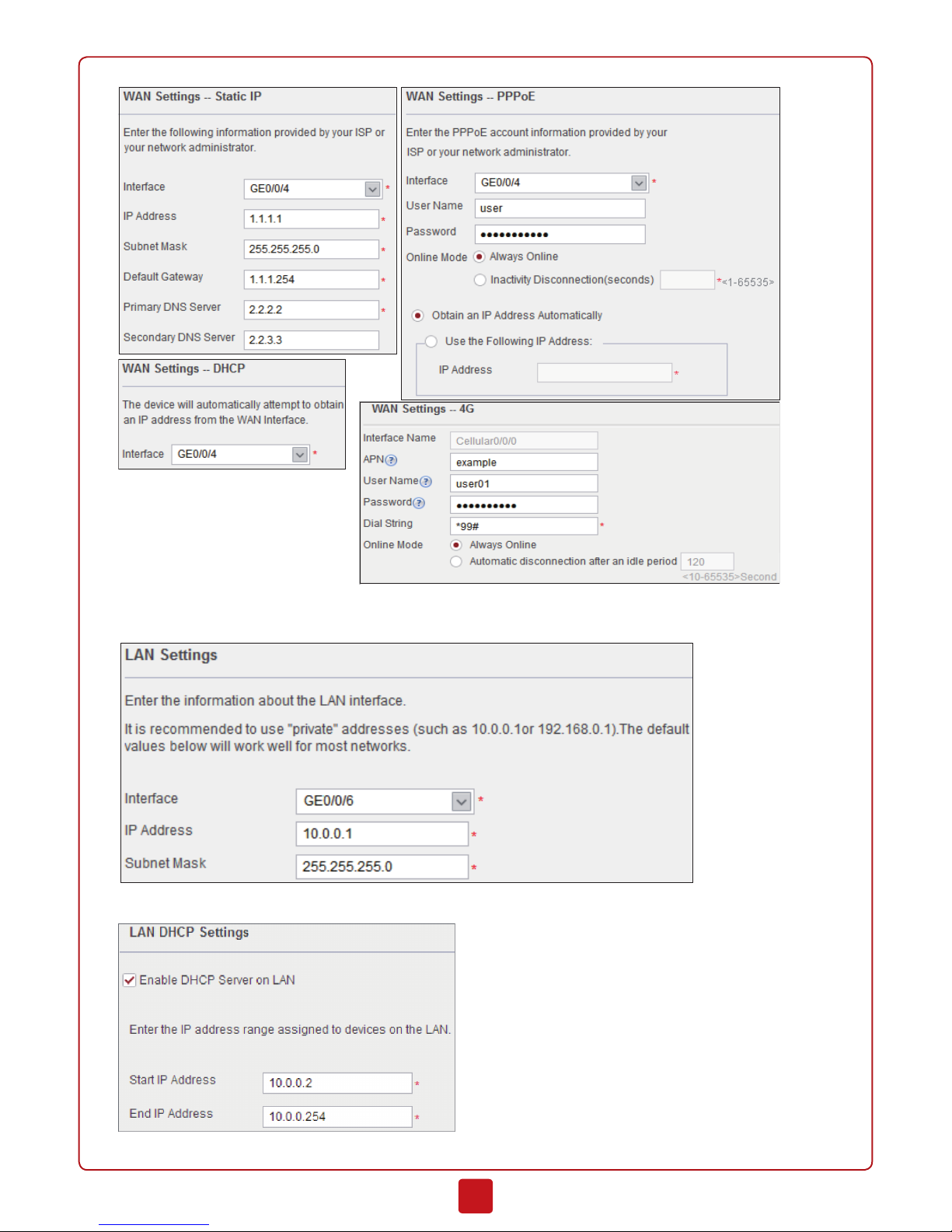

4. In the Startup Wizard page that is displayed, click Next to access the Basic Configuration page. Change the device

name and click Next.

IftheStartup Wizardpageisnotdisplayed,clicktheSystemtabandchooseWizard > Startup Wiz-

ardinthenavigationtree.

5. In the Time Settings step, configure the system clock of the device according to your local time zone, and click Next.

6. In the WAN Mode step, select a WAN mode and click Next.

7. In the WAN Settings step, set the parameters and click Next.

8. In the LAN Settings step, set the parameters and click Next.

9. (Optional) In the LAN DHCP Settings step, set the parameters and click Next.

10. (Optional) In the Configure WLAN step, set the parameters and click Next.

Click New interface in VLAN Interface, create interface VLANIF10, set the interface IP address to 10.1.0.1, and set the

security zone to trust.

11. (Optional) In the Configure DHCP Service on WLAN step, set the parameters and click Next.

12. In the Summary step, confirm the previous settings and click Apply.

13. Click Finish in the Startup Wizard Complete page to complete Internet access configurations. For other settings, refer to

the

Administrator Guide

Appendix

•Activating Licenses

More functions of the device will be available after a license is activated. Activate a license as follows:

1. Click the System tab on the web UI, and click License Management in the navigation tree.

2. Select Automatic Online Activation in License Activation Mode.

3. Fill the domain name of the license authorization server in the License Center Domain Name field. You can also

leave the field as default.

4. Find the license authorization code in the license certificate, which is delivered with the device, and enter it in the

License Authorization Code field.

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Industrial Base Bantian Longgang

Shenzhen 518129

People's Republic of China

e.huawei.com

5. Click Activate to activate the license.

•Open Source Software Notice

You can access the device web UI and click Open Source Software Notice at the bottom of the UI to view details of the

open source software notice.

•Declaration of Conformity

Hereby, Huawei Technologies Co., Ltd. declares that the radio equipment type is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.huawei.com/en/product-certiﬁcation

•Obtaining Product Documents and Technical Support

•Log in to http://support.huawei.com/enterprise and select a specif product model and version to find its documentation.

•Log in to http://support.huawei.com/ecommunity and post your questions in the community.

Huawei Enterprise

Technical Support

•Contact your local representative for further information.

Thecontactinformationisavailableathttp://e.huawei.com/en/service-hotline.
