Huawei EchoLife HG532 Manuel utilisateur

EchoLife HG532

Home Gateway Quick Start

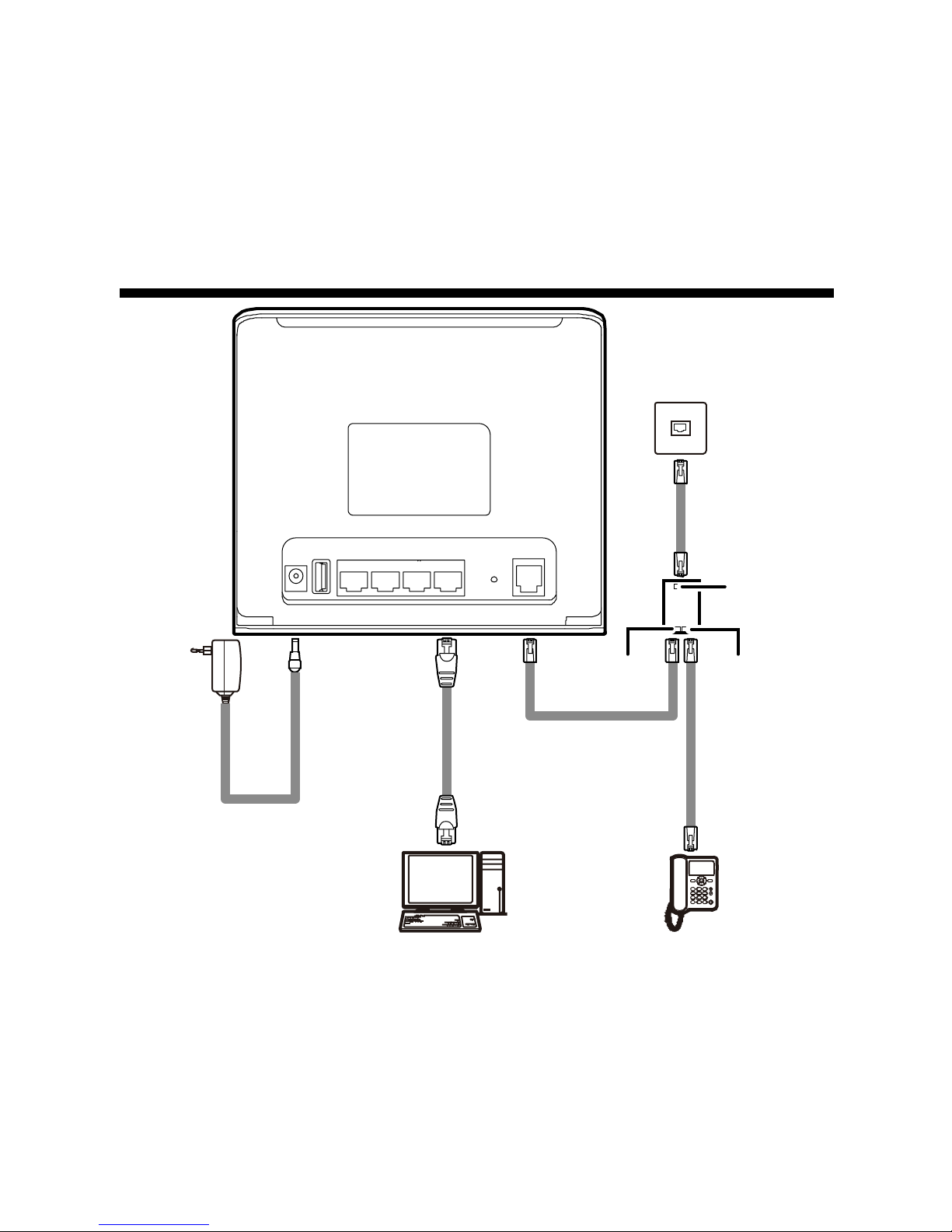

1 Connecting the Cables

####

#### ####

PHONE

LINE

MODEM

POWER LAN4 LAN3 LAN2 LAN1USB

RESET

ADSL

1. Telephone jack on the wall 2. Splitter 3. Power adapter

4. Computer 5. Telephone

To connect the cables, do as follows:

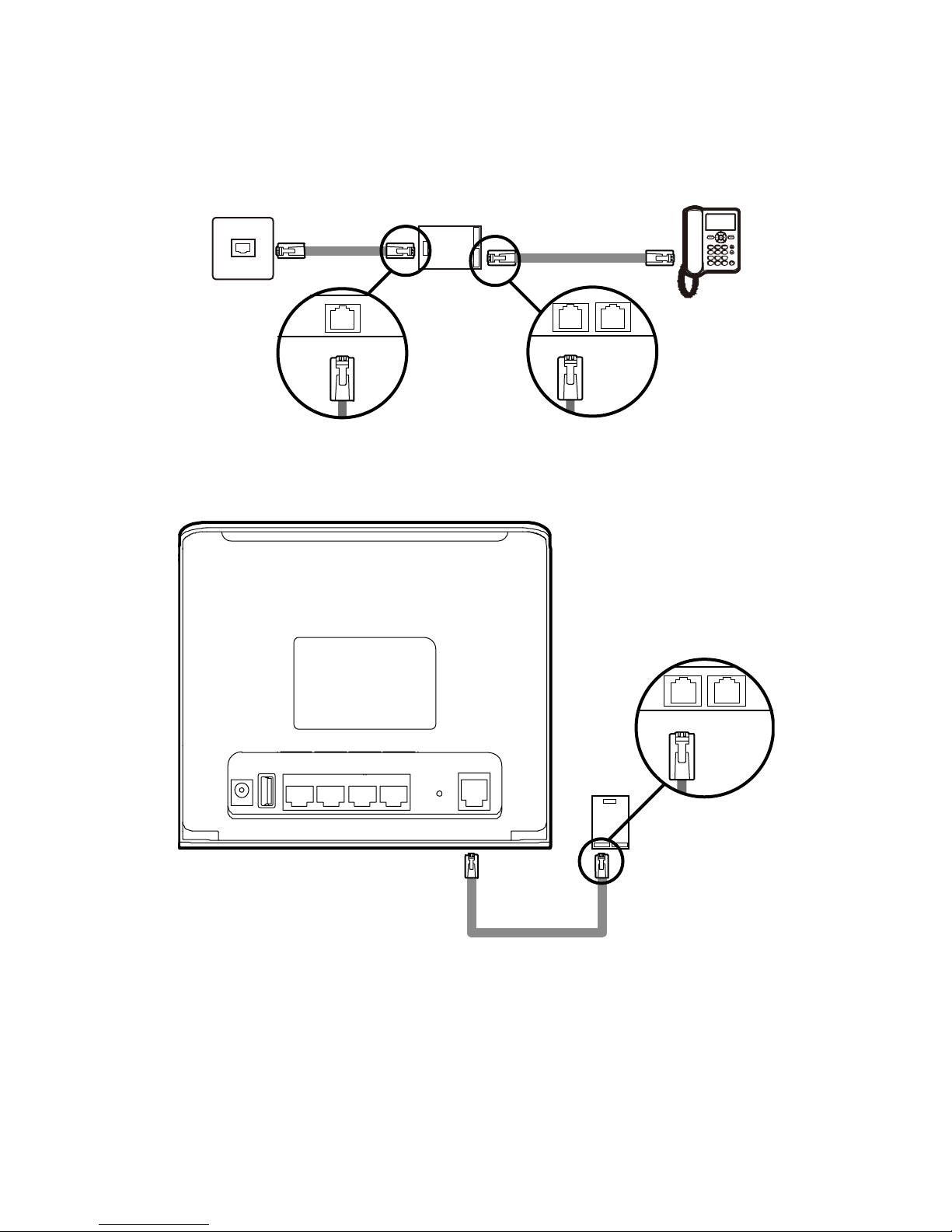

Step 1 Connect the telephone jack on the wall to the LINE interface on the splitter

with a telephone line. Connect the telephone to the PHONE interface on the

splitter with a telephone line.

####

#### ####

LINE PHONE

Step 2 Connect the ADSL interface on the HG532 to the MODEM interface on the

splitter with a telephone line.

####

#### ####

MODEM

POWER LAN4 LAN3 LAN2 LAN1USB

RESET

ADSL

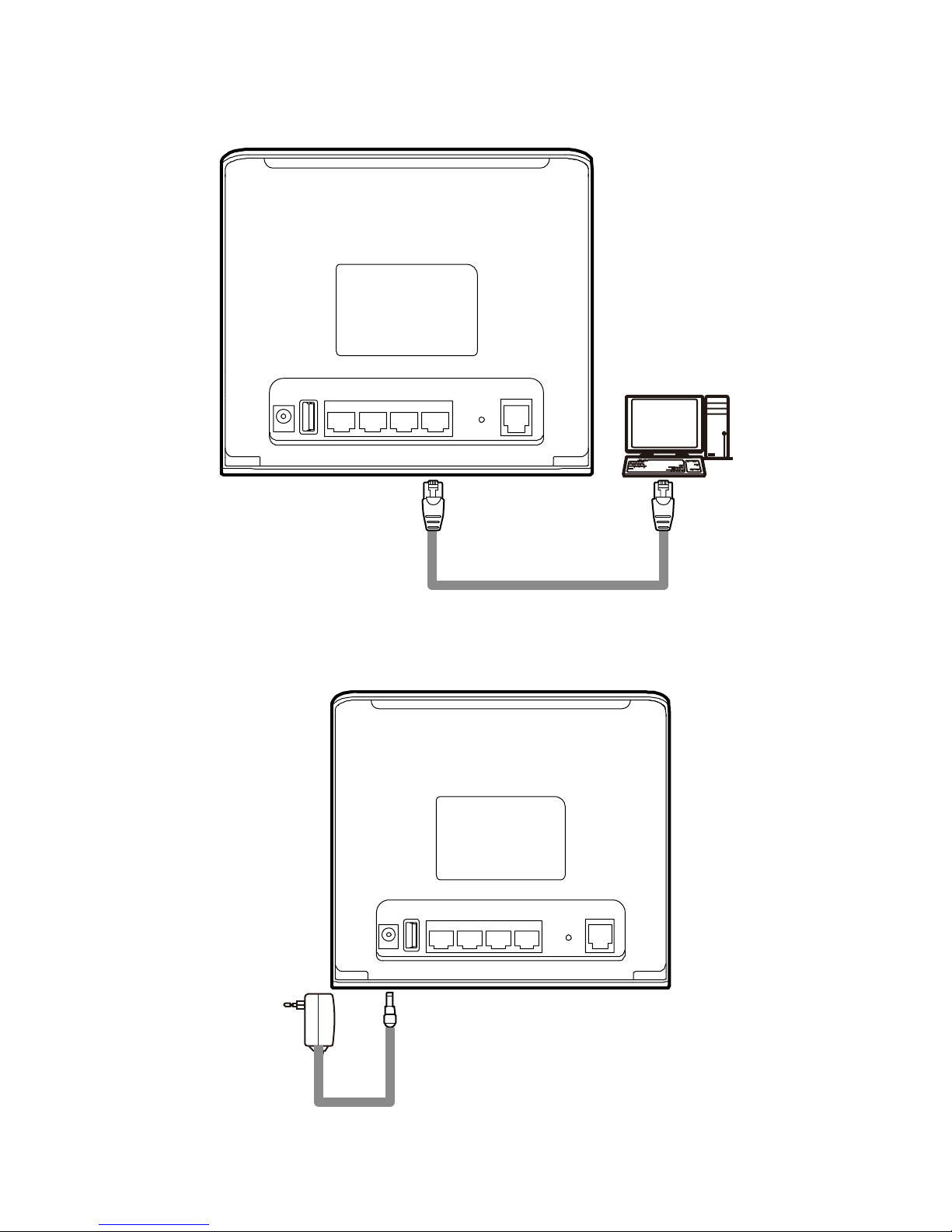

Step 3 Connect the LAN interface on the HG532 to the Ethernet interface on the

computer with a network cable.

POWER LAN4 LAN3 LAN2 LAN1USB

RESET

ADSL

Step 4 Connect the POWER interface on the HG532 to the power socket with the

power adapter.

POWER

LAN4 LAN3 LAN2 LAN1USB

RESET

ADSL

2 Getting Started

Press down the ON/OFF button on the side of the HG532 to power on the HG532.

After you power on the HG532, the POWER indicators turns on and the ADSL indicator

blinks (for less than three minutes), which indicates that the HG532 is being activated.

After the ADSL indicator blinking, the POWER and ADSL indicators keep solid on,

which indicates that the HG532 is working properly.

3 Configuring the HG532

After you enable the embedded dial-up function of the HG532, if the

HG532 is not used for the network access, power off the HG532.

Otherwise, even if you have shut down your computer, the network

operator may still charge you for the network access.

Step 1

Step 2

1. Launch the Internet Explorer on the computer. Enter http://192.168.1.1 in

the address bar and press Enter.

2. In the displayed dialog box, enter the user name and the password, and then

click Login.

By default, both the user name and the password are admin. After the password

authentication is passed, you can access the Web-based configuration utility.

Enable the embedded dial-up function.

1. In the navigation tree on the left of the Web-based configuration utility,

choose Basic > WAN.

2. Select a PVC from the connection list.

3. Select Route from the Connection mode drop-down combo box.

4. Enter the VPI and VCI parameters that are provided by the network operator

in the VPI/VCI text boxes.

5. Select PPPoE from the Connection type drop-down combo box.

6. Enter the user name and password that are provided by the network operator

in the Username and Password text boxes, keep the default settings of other

parameters.

7. Click Submit to save the settings.

After you complete the preceding settings, you can surf the Internet.

You need to perform the preceding operations on a computer only once. The next time

when you power on the computer, you can surf the Internet without performing any

configuration.

4 Indicators

Indicator Status Description

On The HG532 is powered on.POWER

Off The HG532 is powered off.

Blinking The HG532 is being activated.

On The HG532 is activated.

ADSL

Off The HG532 is powered off.

Blinking Data is being transmitted.

On The dial-up operation through the embedded PPP

dial-up function of the HG532 succeeded, but no

data is being transmitted.

INTERNET

Off The HG532 is working in bridging mode or the

dial-up operation through the embedded PPP

dial-up function of the HG532 failed.

Blinking zThe wireless network function is enabled.

zData is being transmitted through the WLAN.

On zThe wireless network function is enabled.

zNo data is being transmitted through the

WLAN.

WLAN

Off The wireless network function is disabled.

Blinking The HG532 is attempting to set up a wireless

connection with a wireless client (such as a PC on

which a wireless network adapter is installed)

through the WPS function.

This state lasts no more than 120s.

On A wireless connection is set up between the HG532

and a wireless client through the WPS function.

This state lasts 300s.

WPS

Off The WPS function is disabled.

Indicator Status Description

Blinking Data is being transmitted through the Ethernet

interface.

On The Ethernet connection is established.

LAN1-LAN4

Off The Ethernet connection is not established.

Blinking Data is being transmitted on the USB port.

On The USB port is connected.

USB

Off The USB port is not connected.

reserved.

THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY,

AND DOSE NOT CONSTITUTE ANY KIND OF WARRANTIES.

Issue: 03 (2010-06-25)

Part Number: 201133
