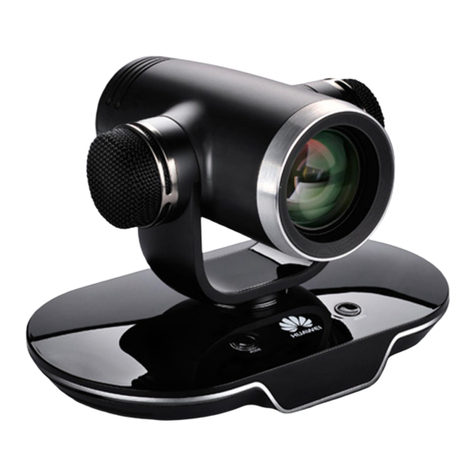

Huawei TE30 Guide de l'utilisateur

123

1. Press for 2s.

Q: How can I access the Conference Schedules window?

A: Press on the remote control to bring up the conferencing screen.

Then press the left or right arrow key to access the Conference Schedules

window.

HUAWEI

TE30&TE40&TE50&TE60&TX50&RP100&RP200

Quick Operation Guide

Select or control a camera

Switch between the local and

remote cameras

Go back to the previous screen

or close the current screen

Confirm the current selection

End a conference or

disconnect a site

Start or stop presentation sharing

Switch between layouts

Enter letters, digits, and symbols

or select a camera preset

Switch between text-entry methods

or display the virtual keyboard

Delete characters or a site

from a conference

Two-stage dialer

Zoom in / out

Power on or off the

endpoint

Increase / Decrease

the volume

Go to the menu screen

Scroll through the screen

or turn the camera

Place a call or

initiate a conrefence

Mute or unmute

the microphone

Enter dots used in

an IP address

Display help

information

Q: What should I do if the remote control is unresponsive when I try to use it?

A: The maximum operating distance of the remote control is 6 meters.

The remote control performance may also be affected by bright light.

Point it at the infrared sensor on the camera.

1 Power On

2 Join a Conference

An ongoing conference is indicated by .

2. Select an ongoing conference.

1. Press the left or right arrow keys to access the

Conference Schedules screen.

3. Press or .

3 Create a Conference

2. Enter the site name, IP address,

or number.

1. Press to access the conferencing screen.

3. Press or .

Q: How can I create a multi-party conference?

A: On the conferencing screen, press the left or right

arrow keys to access the Conference Schedules

screen. Then select Create Conference and press .

4 Manage Conference Layouts

1. Press to switch to view sites only, view

presentation only, or view a combination of

sites and presentation.

Using cables:

Connect the audio and video output ports on the computer

to the audio and video input ports on the system.

2. Press to start the presentation.

5 Start Presentation

1. Connect to a presentation source.

Using the Air Content Sharing client:

A: On your computer, open a web browser and enter the endpoint IP

address in the address bar, then press Enter. Click Download Air

Content Sharing in the upper left corner to download the Air Content

Sharing client. Then install it as prompted.

Q: How can I install the Air Content Sharing client?

a. On the computer desktop, double-click Air Content

Sharing.

b. Locate the presentation source and double-click it.

The message “An air content sharing source device

requests to connect to your endpoint. Accept?” is

displayed. Then select Accept and press .

467

添加会场

Q: The Continuous Presence option is invisible.

A: Contact the administrator: Choose Advanced > Settings > Display >

Personalize and set Select conference controls.

If the chairperson's password is required,

contact the administrator.

2. Press the arrow key to select Add Site

and press .

3. Search for a site you want to call, select

it, and press .

4. Press the arrow key to select Call and

press .

2. Press the arrow key to select

Continuous Presence and press .

3. Press the arrow keys to select your

preferred layout and press .

If the chairperson's password is required,

contact the administrator.

5. Press the arrow keys to select OK and

press .

6. Press the arrow key to select Broadcast

Site and press .

7. Select Continuous presence, press

, and press to view

continuous presence.

If the chairperson's password is required,

contact the administrator.

2. Press the arrow key to select Extend

Conference and press .

3. Enter the period of extension, press

the arrow key to select OK, and

press .

1. Press to invoke the main menu, select

Conference Control, and press .

HUAWEI Telepresence

Information Service Portal

The descriptions and figures in this document are for your reference only.

Website: http://e.huawei.com

Product version: V500R002C00

Release date:

2016-06-08

Document Issue: 04

6 Add Sites 7 Set Continuous Presence 7 Set Continuous Presence 8 Extend a Conference

4. Press the arrow keys to select a pane

andpress .Then select a site and

press .

1. Press to invoke the main menu, select

Conference Control, and press .

1. Press to invoke the main menu, select

Conference Control, and press .

OPEN SOURCE SOFTWARE NOTICE

and click to open the online help, in

which you can view the details of OPEN

SOURCE SOFTWARE NOTICE.
