Huawei LUNA2000-NHS0 Manuel utilisateur
HUAWEI TECHNOLOGIES CO., LTD.
LUNA2000-(5-30)-NHS0
Quick Guide
Issue: 03
Part Number: 31500EMB
Date: 2021-05-30
1
1Product Overview

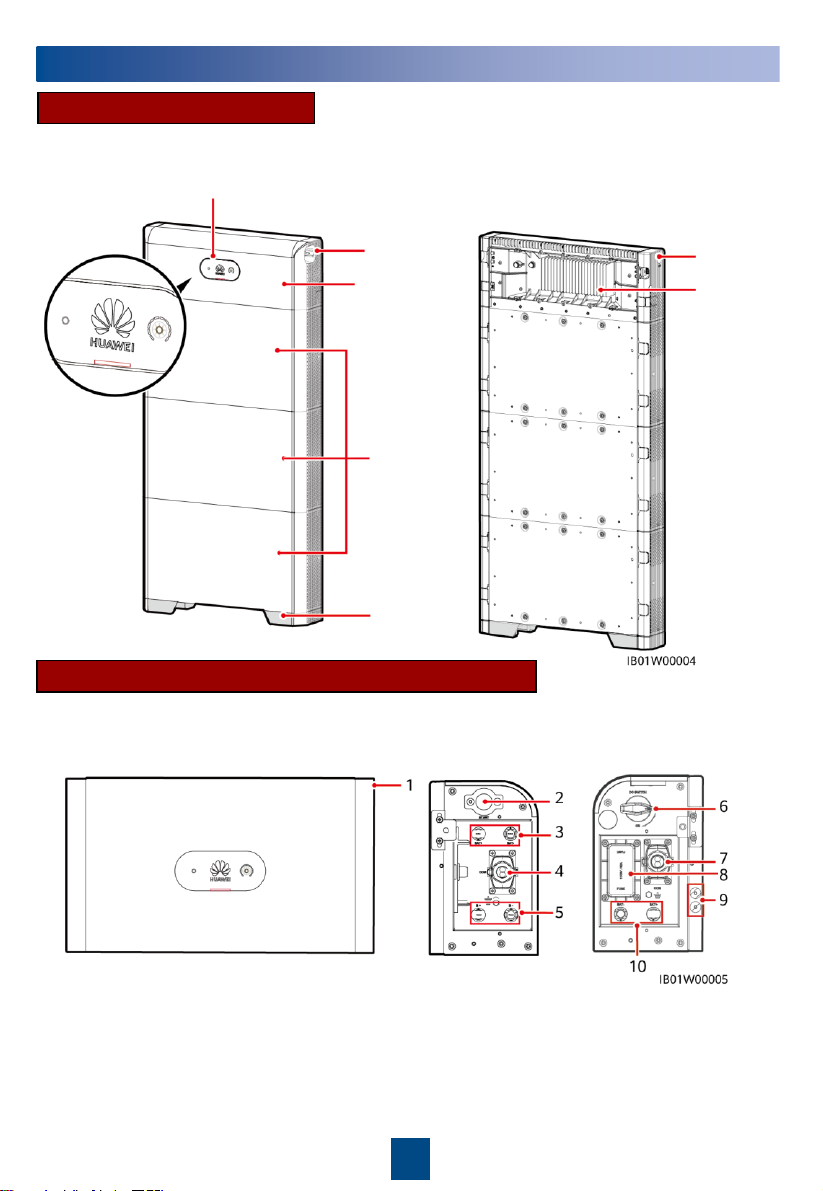

LUNA2000 Battery Appearance
Floor-
mounted
base
Power
control
module
Battery
expansion
modules
DC switch Black start
switch
Heat sink
Indicator
Note: The 15 kWh model is used as an example.
Power Control Module and Battery Expansion Modules
The LUNA2000 battery consists of a power control module and battery expansion modules. The
power control module is 5 kW, and a battery expansion module has a standard capacity of 5
kWh.
(1) Power control
module
(DCDC)
(2) Black start switch
(3) Battery terminals
(BAT+/BAT
–)
(4) COM port (COM)
(5) Battery cascading terminals
(B+/B
–)
(6) DC switch (DC SWITCH)
(7) COM port (COM)
(8) Fuse (9) Ground point
(10) Battery terminals (
BAT-
/BAT
+)
Front view Left view Right view
Copyright © Huawei Technologies Co., Ltd. 2021.
All rights reserved.
The LUNA2000 battery is applicable to the grid-tied or off-grid systems of residential rooftop PV
plants. It can store and release electric energy based on service requirements.
2
Battery Capacity Description
The battery supports power and capacity expansion. Two power control modules can be connected
in parallel. One power control module supports a maximum of three battery expansion modules.

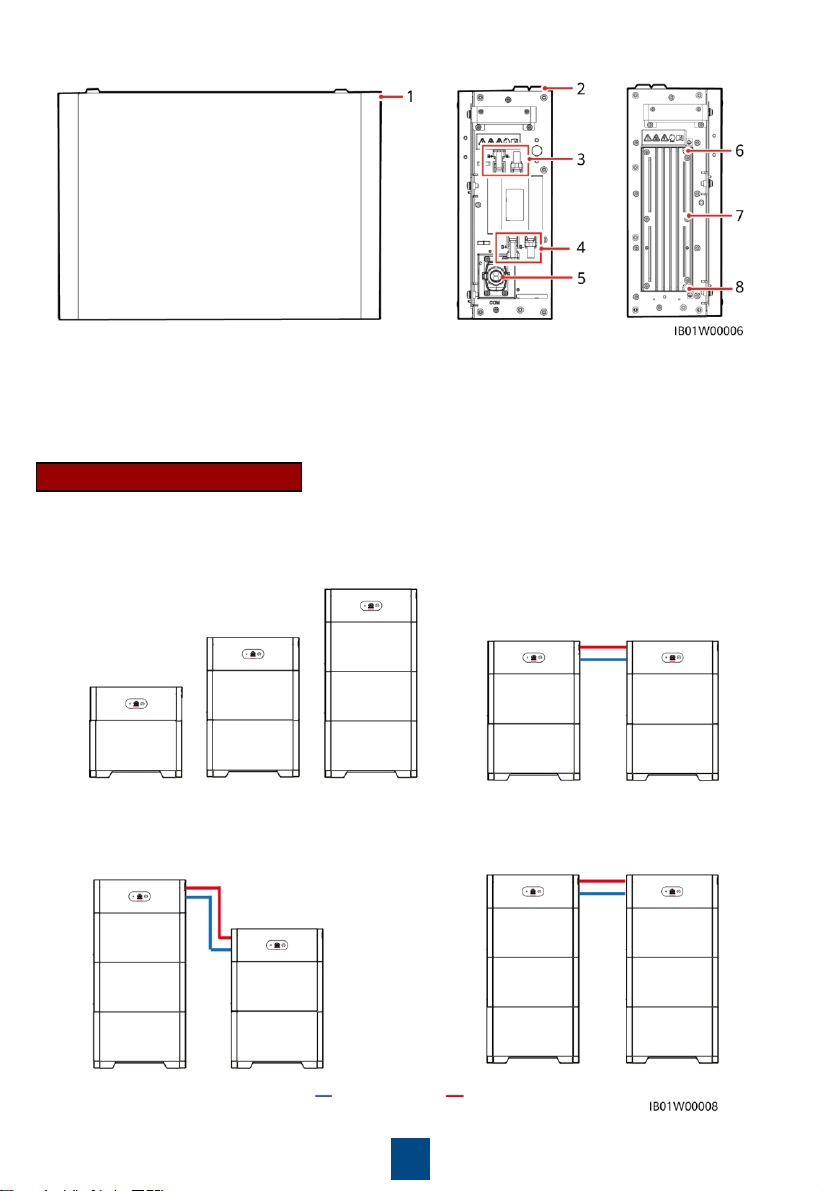

(1) Battery expansion module
(2) Boss for alignment
(3) Battery cascading
terminals (B+/B
–)
(4) Battery cascading terminals (B+/B
–)
(5) COM port (COM)
(6) Ground point
(7) Heat sink
(8) Ground point
Front view Left view Right view
Signal cable DC input cable
5 kWh
10 kWh
15 kWh 20 kWh
25 kWh 30 kWh
*
A maximum of three battery expansion modules are supported for the JET/S-JET certification.
3
2Device Installation

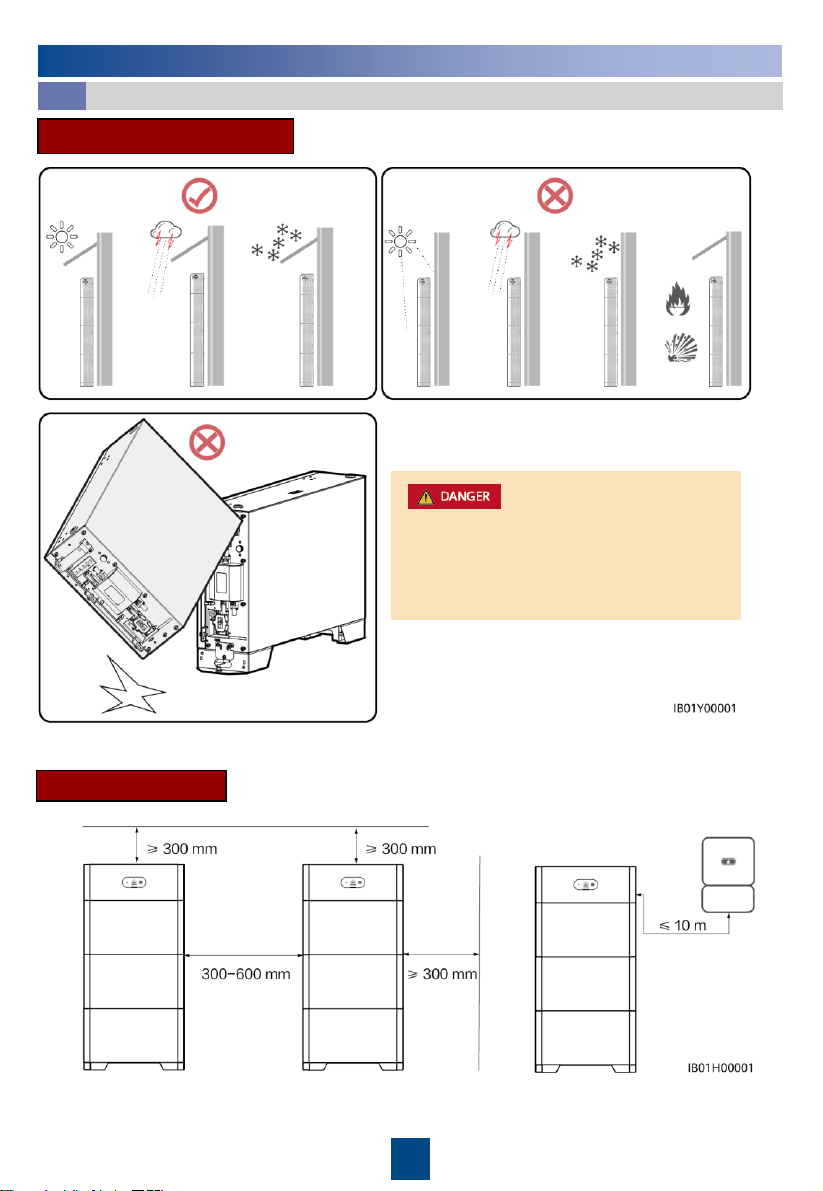

Installation Requirements
2.1
Installation Environment
Installation Space
INVERTER
Do not use a dropped battery module or a
battery module that has been subjected to a
strong impact force. Otherwise, safety risks
(such as cell leakage and electric shock) may
arise.
4
Installing the Floor Support
2.2
•Avoid drilling holes in the water pipes and cables buried in the wall.
•The installation position must be far away from water sources such as taps, sewer pipes, and
sprinklers to prevent water seepage.

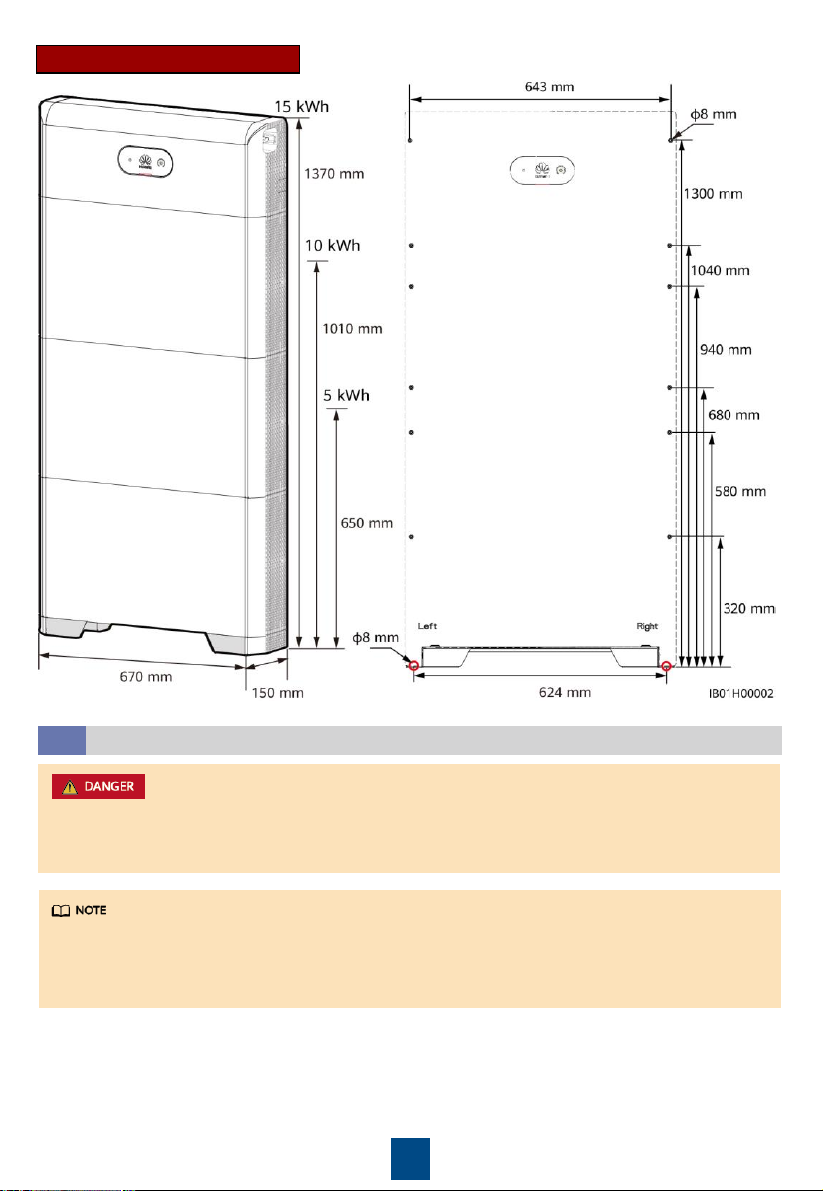

Mounting Hole Dimensions
First Battery PACK
DCDC (one PACK used)
DCDC (two PACKs used)
Second Battery PACK
Third Battery PACK
DCDC (three PACKs used)
The M6x60 expansion bolts delivered with the battery are mainly used for solid concrete walls and
concrete floors. If other types of walls and floors are used, ensure that the walls and floors meet
the load-bearing requirements (one battery expansion module weighs 50 kg) and select the bolts
by yourself.
5
Keep a distance of
10 mm to 15 mm
between the support
and the wall surface.
Align the
marking-off
template with the
upper surface of
the floor support.
Ground
Level Mounting holes for the
15 kWh module
Mounting holes for the
10 kWh module
Mounting holes for the
5 kWh module
Wall
Baseboard
Marking line
Pack
mounting
holes
6
Installing Battery Expansion Modules
2.3
•The following describes how to install the battery expansion modules for a 15 kWh model.
•The installation of battery expansion modules for 5 kWh and 10 kWh models is the same.
One battery expansion module is installed for a 5 kWh model, and two battery expansion
modules are installed for a 10 kWh model.

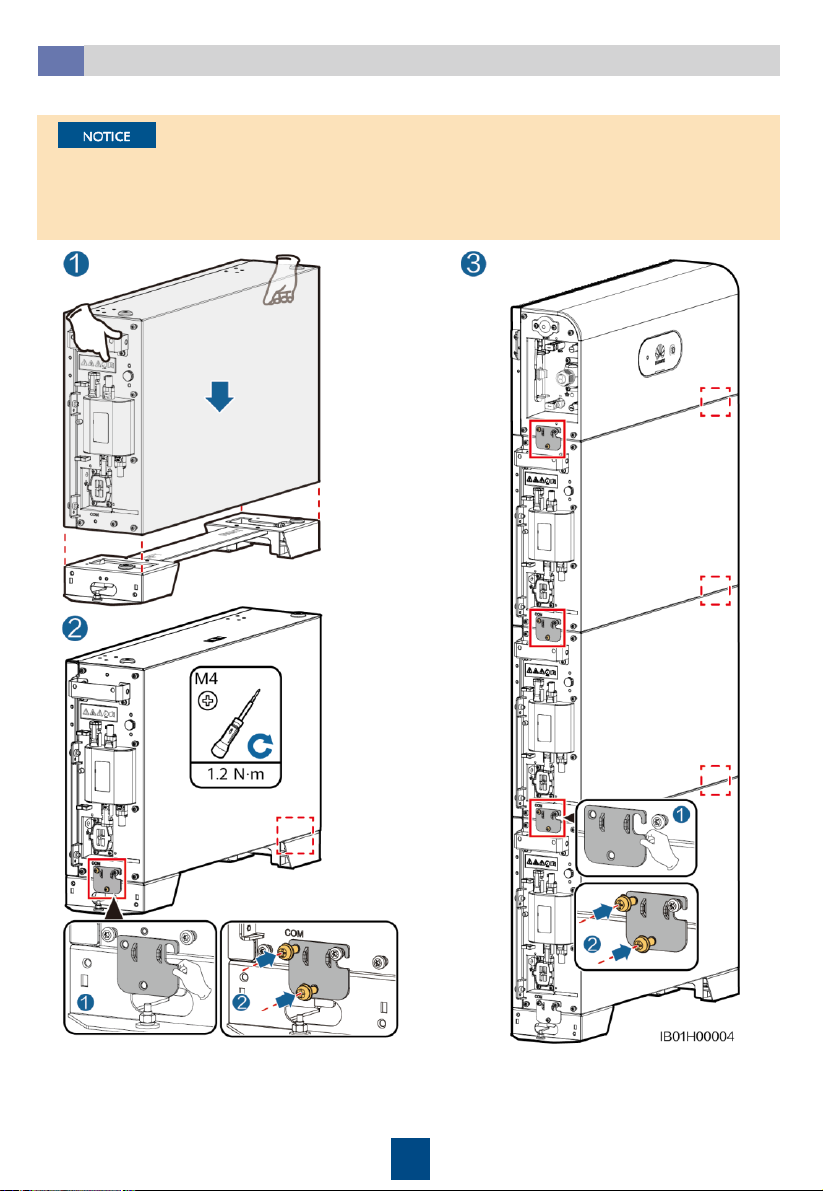

1. Install the battery expansion modules and power control module on the support.
Align the first battery
expansion module with
the support on the floor
support.
Install the connecting
pieces on both sides
and tighten the four
screws.
Install the remaining battery modules and power module from bottom to top. After
installing a module, secure the left and right connecting pieces, and then install the
next module.
7

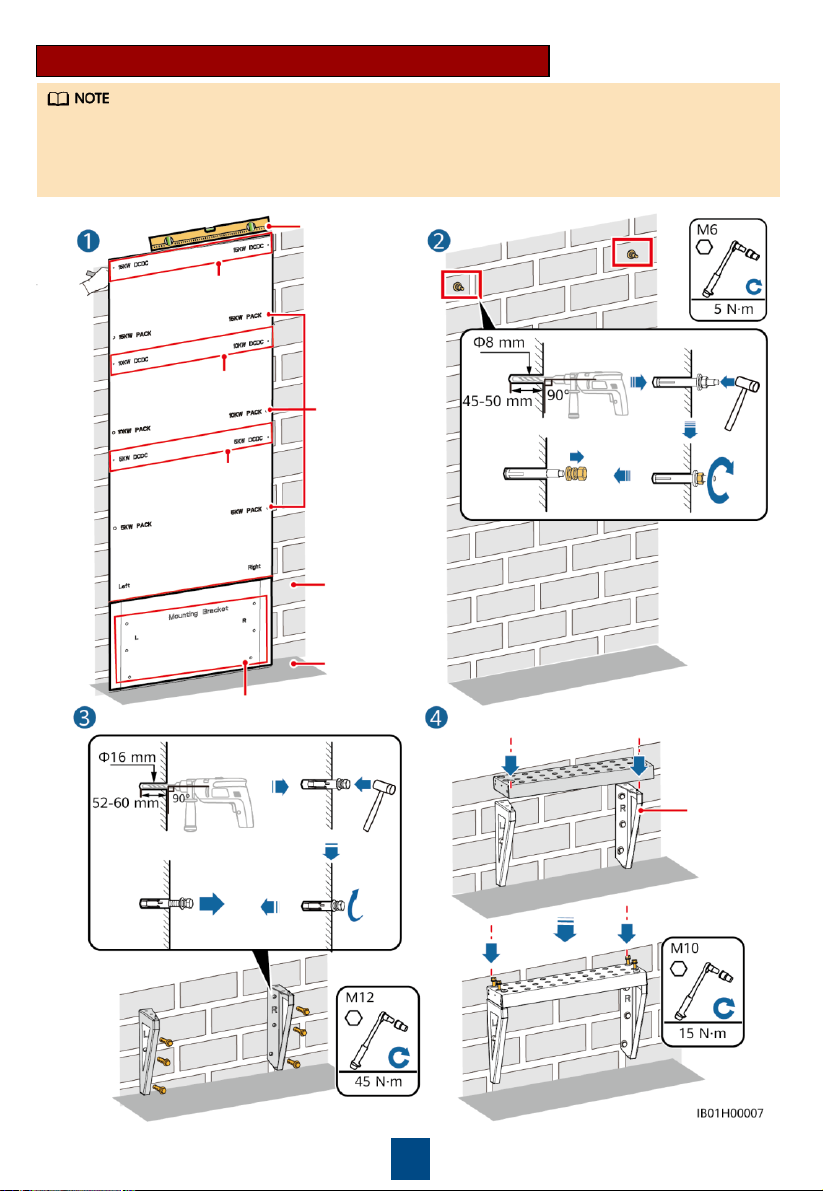

2. Secure the power control module to the wall.
Wall-mounted Installation
2.4

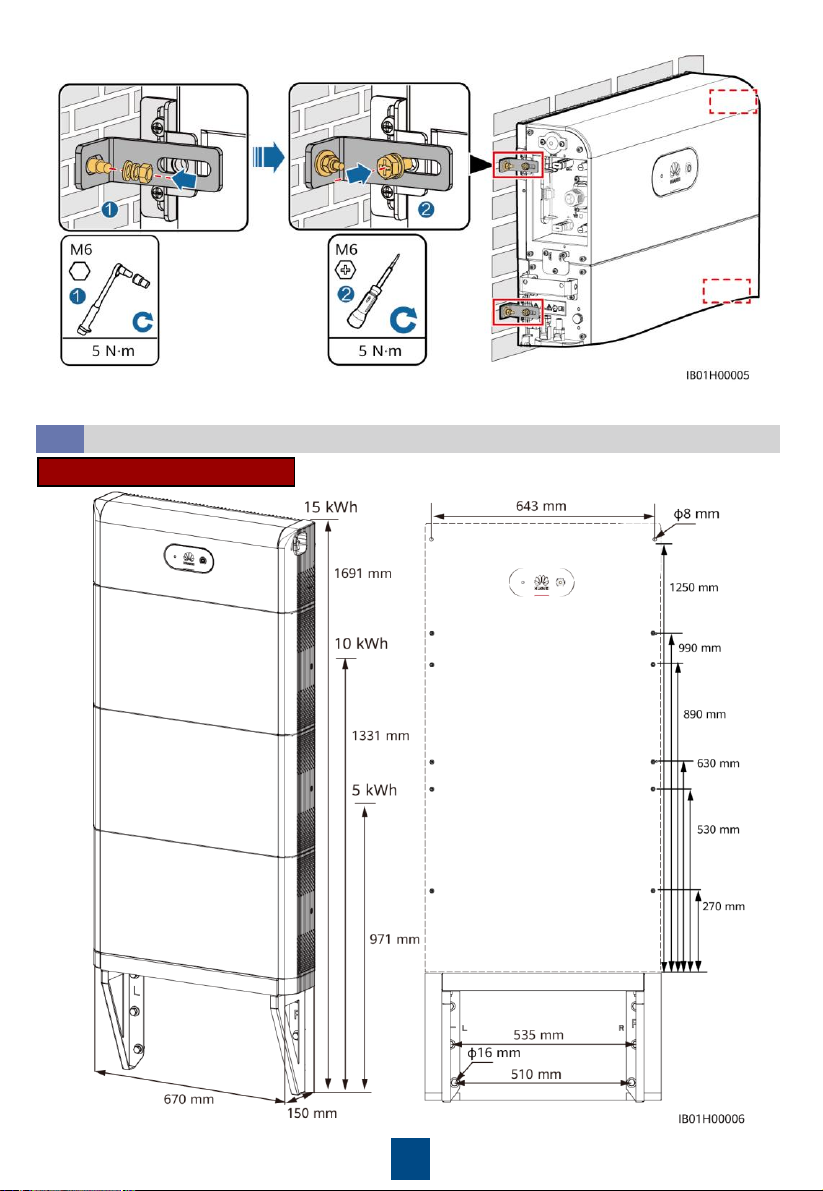

Mounting Hole Dimensions
You can adjust the
connecting piece
vertically to align
with the screw holes.
3. Secure the battery expansion modules to the wall by referring to step 2.
First Battery PACK
DCDC (one PACK used)
DCDC (two PACKs used)
Second Battery PACK
Third Battery PACK
DCDC (three PACKs used)
8
Level
Wall
Ground
Mounting holes
for the 15 kWh
module
Mounting holes
for the 5 kWh
module
Mounting holes
for the 10 kWh
module
Support
For floor-mounted installation, the base is 50 mm high. If waterproofing requirements cannot be
met, the battery can be installed on a wall. The mounting kits need to be purchased separately.
For wall- and floor-mounted installation, ensure that the load-bearing capacity meets the
requirements (one battery expansion module weighs 50 kg).

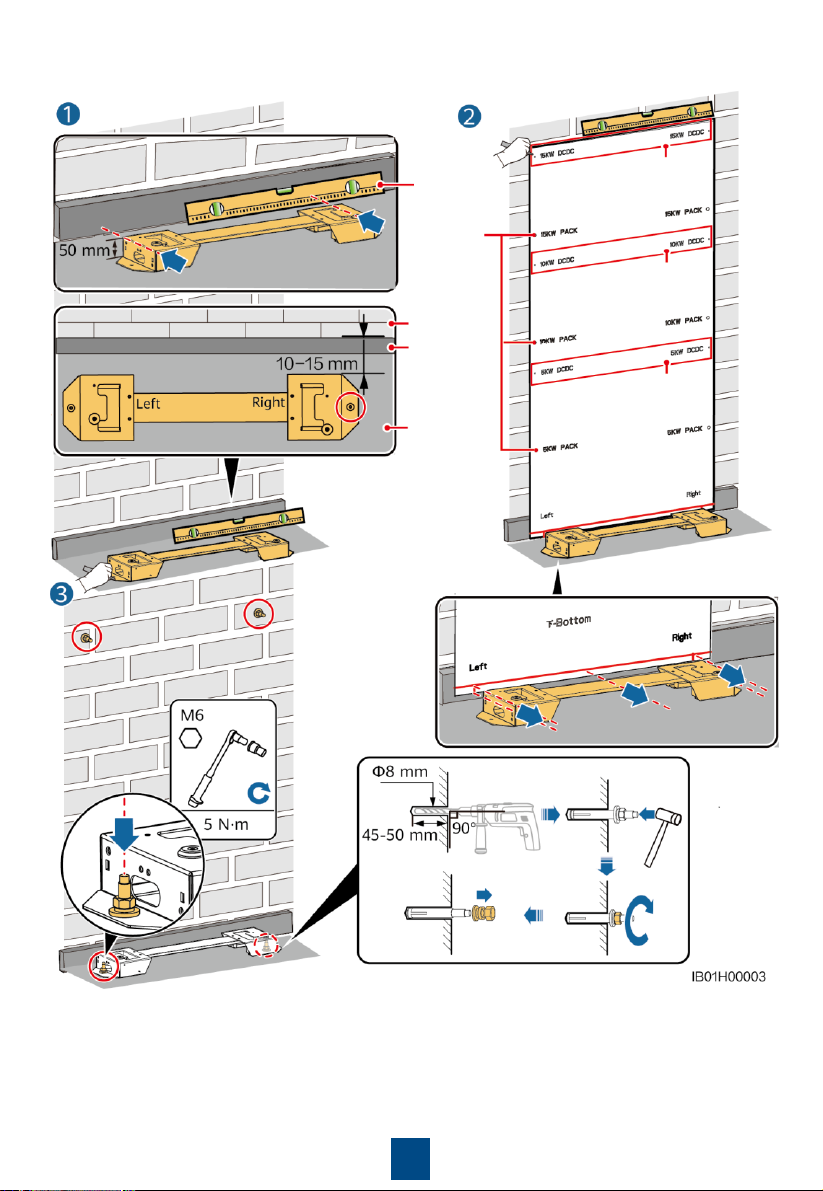

Installing the Support for Wall-mounted Installation
Mounting holes for support
Pack
mounting
holes
9
18
2

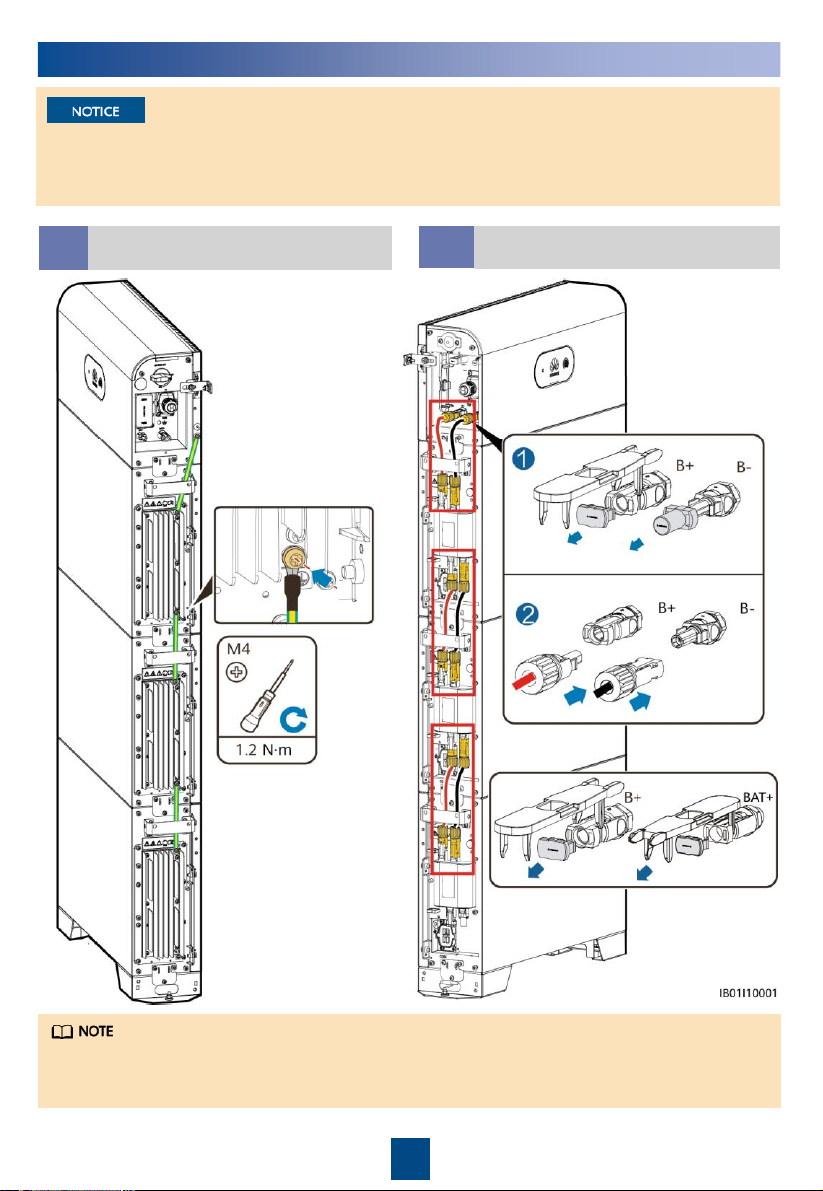

Installing an Internal Ground
Cable
3.1 Installing Internal DC
Terminals
3.2
Connect the ground
points of modules in
sequence, and secure
the ground cable using
a ground screw.
•Connect cables in accordance with local installation laws and regulations.
•Before connecting cables, ensure that the DC switch on the battery and all the switches
connected to the battery are set to OFF. Otherwise, the high voltage of the battery may result
in electric shocks.
3Internal Electrical Connections of the Battery
•Internal electrical cables are delivered with the battery, see the
Packing List
in the packing case.
•The Amphenol terminal is used as the DC terminal between the power control module and the
battery expansion modules.
