HUANUO HNCM9 Manuel utilisateur

English ------------------------------- 01-05

Deutsch ------------------------------- 06-10

Français ------------------------------- 11-15

Español ------------------------------- 16-20

Italiano ------------------------------- 21-25

Model: HNCM9

Thank you for choosing this HUANUO product! At HUANUO we strive to

provide you with the best quality products and services in the industry.

Should you have any issues, please don't hesitate to contact us at

Technical Support:

44-808-196-3874 Mon-Fri 2pm - 10pm (UTC)

Other Info:

[email protected] (DE/UK/FR/IT/ES/NL/SE/AU/PL)

V3.0

Monitor Stand Instruction Manual

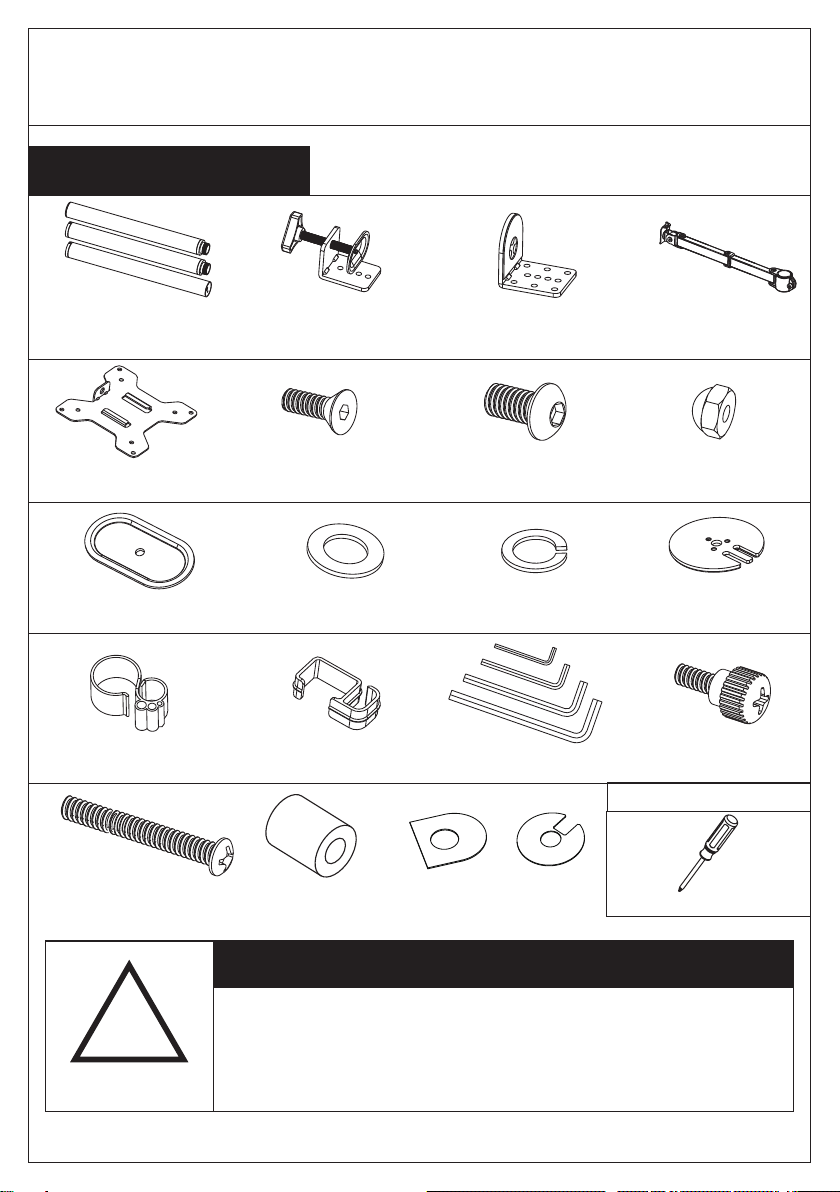

Supplied Par ts List

CAUTION!

DO not install on a structure that is prone to vibration, movement or chance of impact. Reinforce

the structure as required before installation. Don't use the product on particle board.

Pole Set

a (x1)

VESA Plate

e (x1)

Grommet Base

m (x1)

WARNING

M4x12 Thumb Bolt

q (x4)

M4x30 Bolt

r (x4) M4 Spacer

s (x4)

Wire Clip

n1 (x3) Wire Clip

n2 (x2) Allen Key

o (x1)

Support Plate

j (x1) M10 Washer

k (x1) Spring Washer

l (x1)

M5x14 Bolt

f (x3) M8x12 Bolt

g (x2) Nut

h (x1)

“C” Clamp

b (x1) “C” Clamp Brace

c (x1) Swivel Arm

d (x1)

This monitor desktop mount must be securely

attached to the horizontal desk. If the mount is

not properly installed it may fall, resulting in

possible injury and/or damage.

Not Included

Phillips Screwdriver

Soft Pad

w1(x1) Soft Pad

w2(x1)

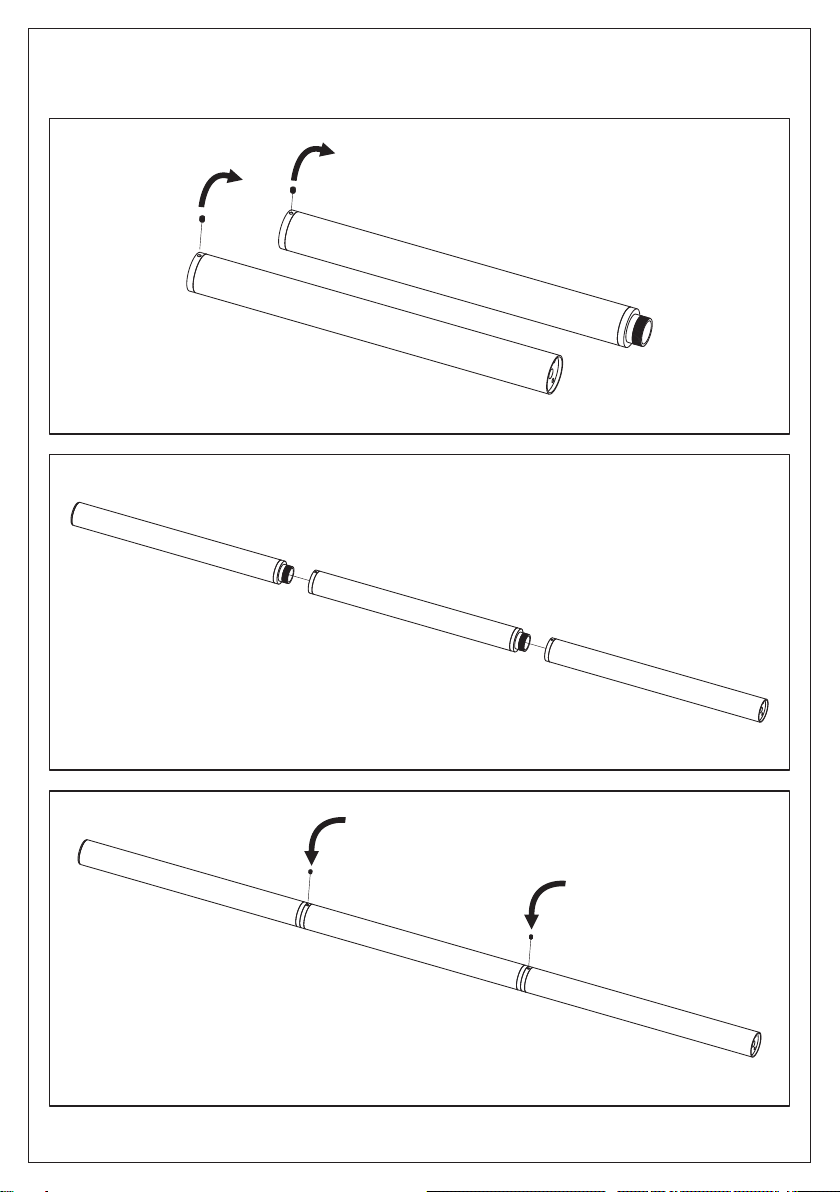

Pre-Assembly the Pole Set

Remove the grub screws by provided

Allen Key (o).

Connect the poles by threads as below

diagram.

Install the grub screws and fasten them by

provided Allen Key(o).

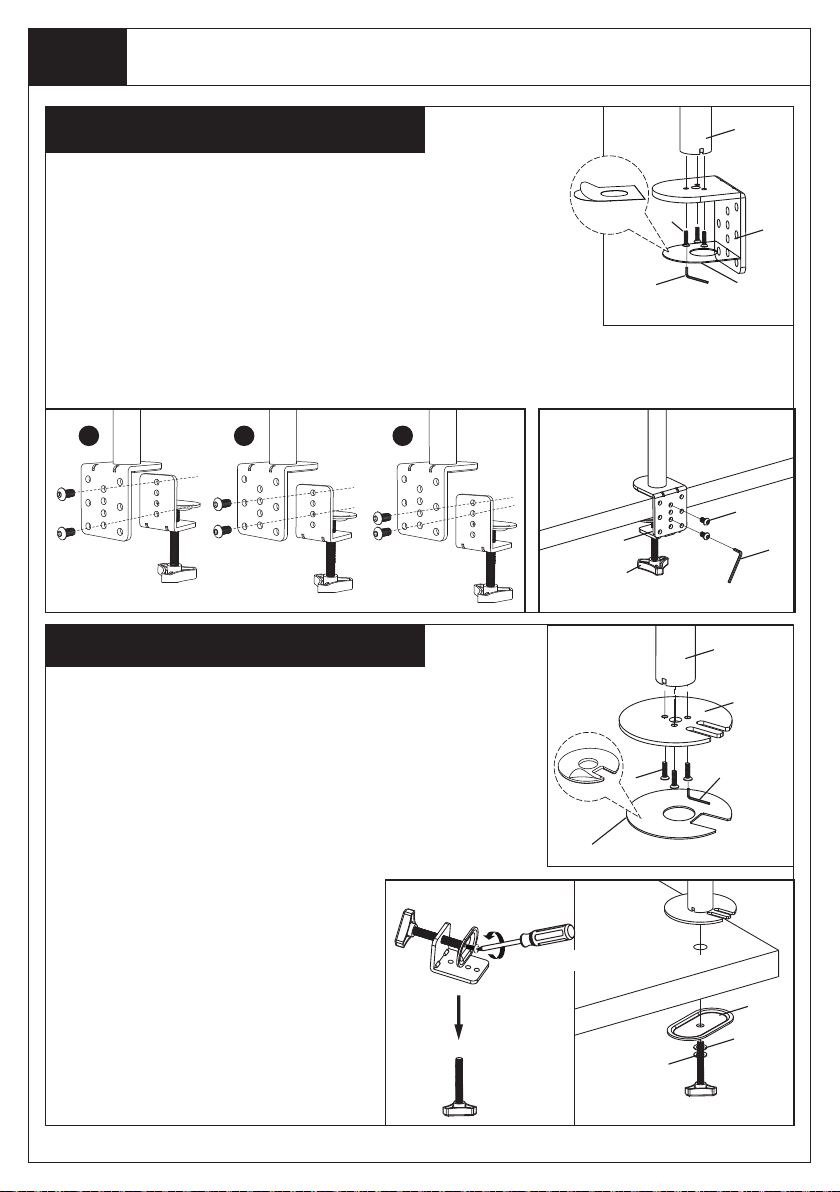

Step 1

Option A: Desk Clamp Install

Figure 1

Figure 3Figure 2

Option B: Grommet Base Install

Figure 4

Figure 5

Plastic Knob

1. Install the “C”-Clamp Brace(c) to the Pole (a) using 3pcs M5x14

Bolts(f), and tighten using the Allen Key(o), see Figure 1.

2. C-clamp (b) was mounted on the Clamp assembly according to the

thickness of the table top. Thickness can be changed to three

positions. Respectively,1: 11-74 mm(0.43"-2.95");2: 26-89

mm(1"-3.5");

3: 41-104 mm(1.6"-4").

Use 2 M8x12 bolts (g) and tighten them with an Allen wrench (o), see

Figure 2.

3. Use plastic knob to tighten C-clamp to the table, see Figure 3.

1 2 3

Install the Pole to the Desktop

If the existing grommet hole comes with

a plastic protector, remove it to ensure a

ﬂat surface before installing the desk

mount.

1. Install the Grommet Base Plate(m) to

the Pole(a) using 3pcs M5x14 Bolts(f),

and tighten using the Allen Key(o), see

Figure 4.

2. Position the Pole(a) on the mounting

surface and secure using the Support

Plate (j), M10 Washer(k), Spring

Washer(l) and plastic knob. Fasten the

plastic knob using provided Wrench(p),

see Figure 5.

Existing Grommet Hole Installation

Phillips Screwdriver

ow1

Step 2

on1

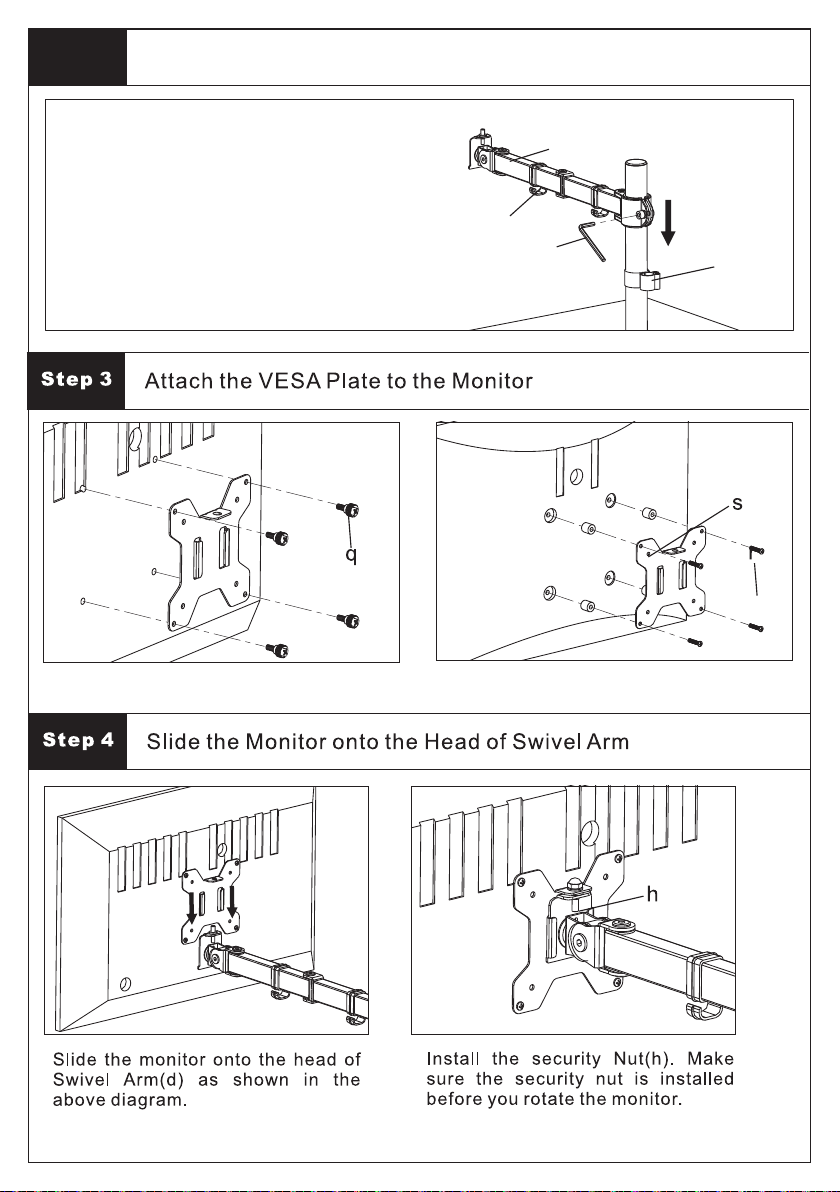

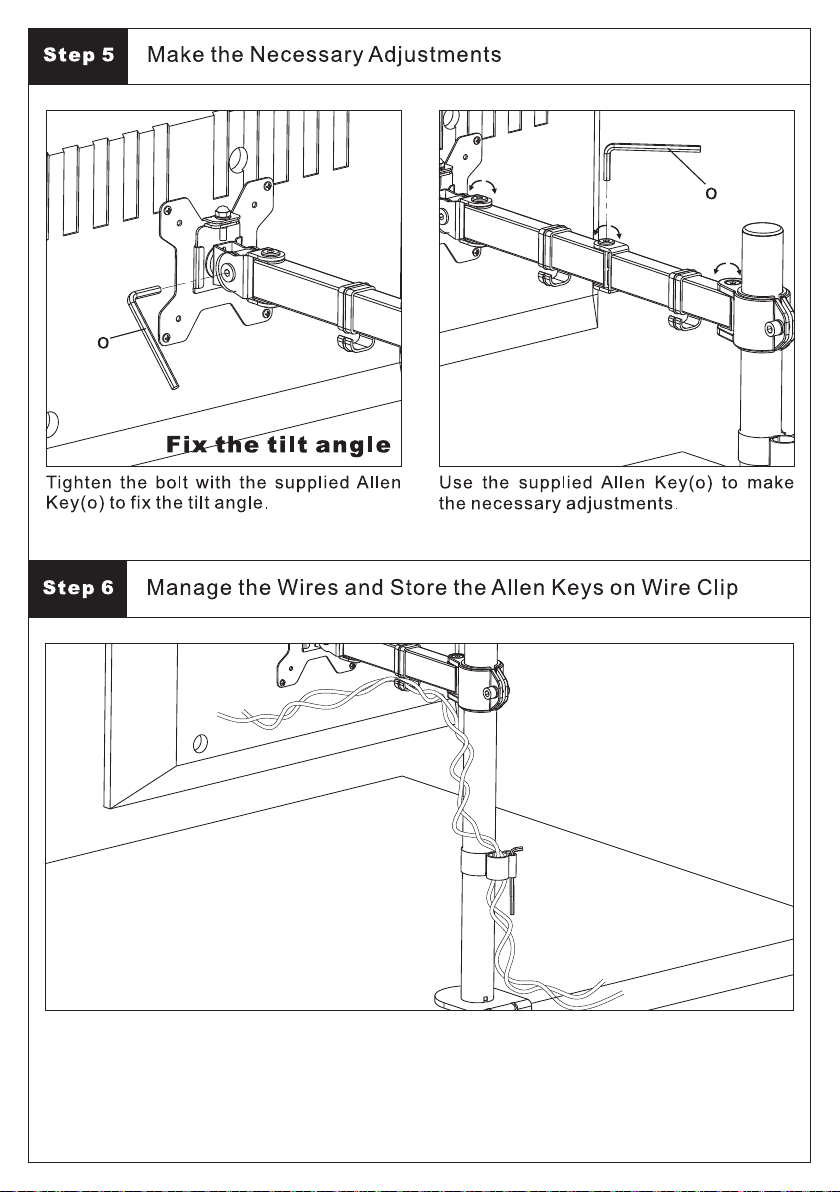

Install Swivel Arm(d) to the

Pole(a). Fasten the bolt with

supplied Allen Key(o). Attach

the Wire Clip(n1,n2) to the

Pole(a) and Swivel Arm(d).

For Monitor with Flat Back For Monitor with Curved or Recessed Back

Install Arm to the Pole
