Paper shredder HSM 105.3
1. Proper use, warranty
The shredder is designed exclusively for
destroying paper.
Depending on the cutting type, it can also
handle small quantities of the following mate-
rials:
Credit and charge cards:
1.9 / 3.9 / 5.8 / 3.9 x 30 mm only
Thermotransfer films: 3.9 x 30 mm only
Its sturdy drive mechanism is not damaged
by paper clips and staples.
We provide a warranty for the device in ac-
cordance with our general sales and delivery
terms. This warranty excludes wear, damage
due to improper handling, natural deprecia-
tion, and actions taken by third parties.

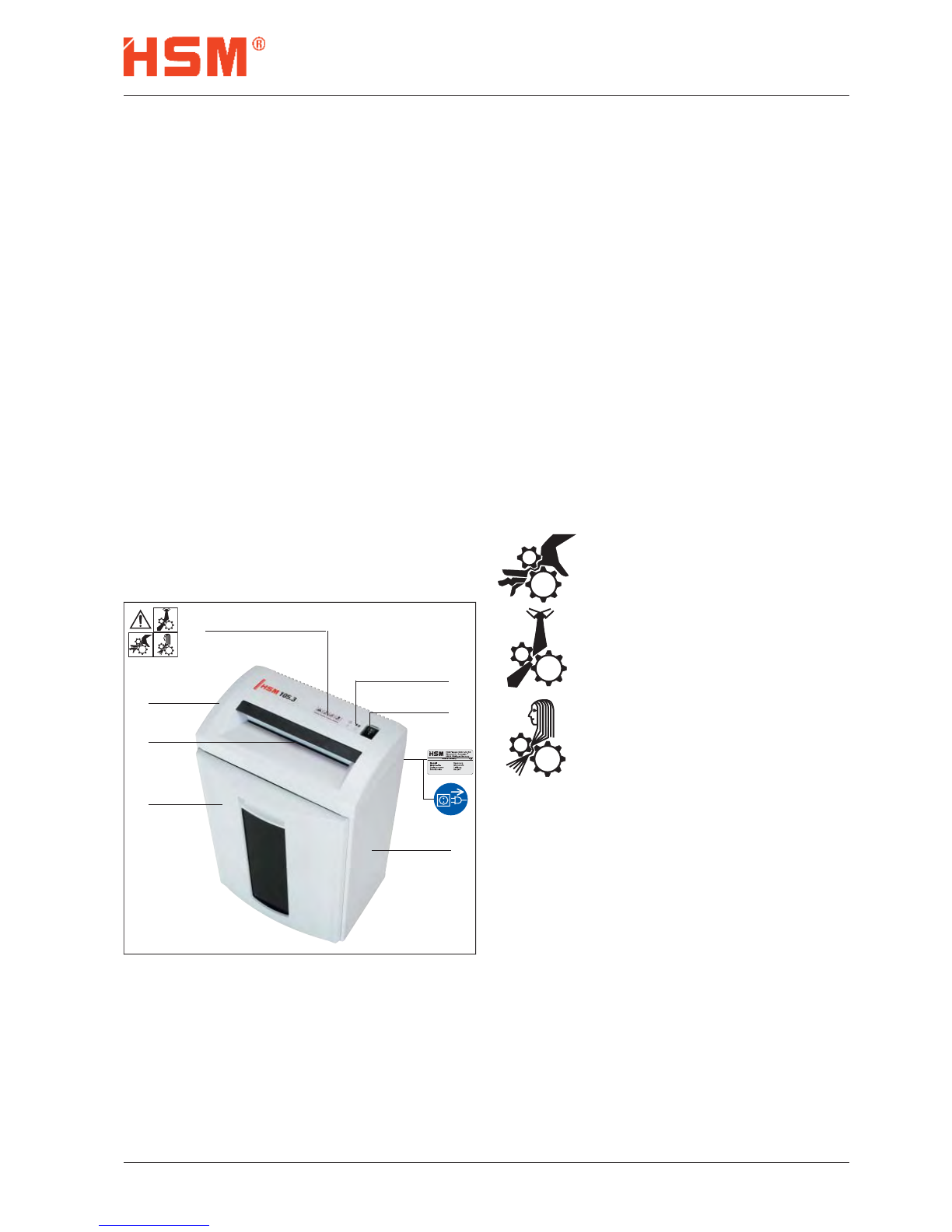

2. Machine components
4
9
3
1
5
6
8
7
2
1
2
3
4
5
6
7
8
9
Warning advice
LEDs
Rocker switch
Cover
Name plate
Caution label
Bottom frame
Shredded material container
Paper feed opening
0511 english 7
3. Safety instructions
• Read all instructions before start-up of the
paper shredder. Save these instructions
for later use.
• Follow all warnings and instructions
marked on the product!
• Make sure no liquid is spilled on or in the
paper shredder.
• If the shredder is damaged or does not
function properly, switch the device off,
pull out the mains plug and inform our
service engineers.
• Keep paper shredder out of the reach of
children.
• This shredder should be operated only
with an operator in attendance.
Risk of injury!
Do not reach into the paper
feed slot.
Risk of injury from slivers!
Wear protective goggles when
destroying hard credit cards.
Risk of injury by pulling in!
Keep long hair, loose articles of
clothing, ties, scarves, jewellery
etc. away from feed opening.
Material with the tendency to
form loops, e.g. tapes, strap-
ping material, etc. must not be
shredded.
http://www.monomachines.com/
http://www.monomachines.com/
HSM 105.3 Paper shredder
Before changing the location,
cleaning or anything else other
than normal operation
turn off and unplug the paper
shredder!
Maintenance and service work
may be performed only by:
• HSM customer service
• specially trained staff
(e.g. qualified electricians)
• service technicians from our
contracting partners
4. Scope of delivery
• Paper shredder, ready for connection, in
carton packing
• 5 Bags for shredded material
• Special cutting block oil 50 ml (cross cut)
• Operating instructions
Accessories:
• Bag for shredded material,
order No.: 1.661.995.050
• Special cutting block oil 250 ml,
order No.: 1.235.997.401
5. Installation
• This paper shredder should never be
placed near or over a radiator or heat
source.
• The ventilation slots must not be blocked
or covered and they must be at a distance
of at least 10 cm away from walls or furni-
ture.
• Make sure the mains plug is easily acces-
sible.
• Before plugging in the mains plug, check
that the voltage and frequency of your
local mains supply correspond to those
stated on the type plate.

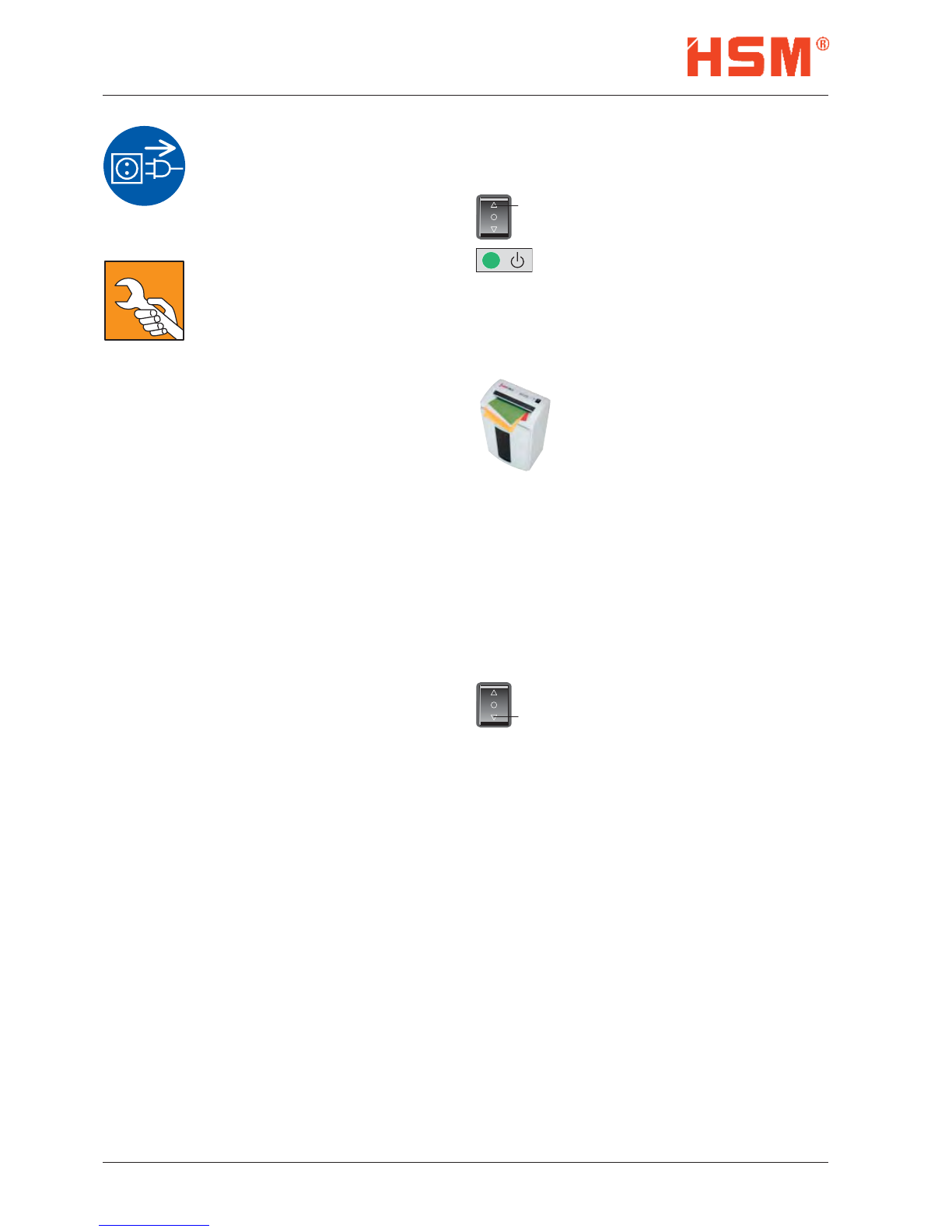

6. Putting into operation
Switching the paper shredder on
1
• Press rocker switch pos. 1.
• Rocker switch locks in.
• Green LED lights.
• Paper shredder is ready for ope-
ration (standby).
Feed paper
See „Technical data“ for sheet
capacity.
• The shredding process is started
by a photo–cell in the paper fee-
ding opening.
• When the paper feeding opening
is free again, the cutting system
automatically switches off after
approx. 3 sec. and returns to
standby.
Switching paper shredder off
• Tap rocker switch pos. 2.
2
• Rocker switch resets to zero
position.
8 english 0511
http://www.monomachines.com/
http://www.monomachines.com/
Paper shredder HSM 105.3
7. Troubleshooting
Paper jam
You have fed in too much paper.
Caution!
1
Do not press rocker switch alter-
2
nately forwards/backwards
(pos. 1 / pos. 2):
Cutting unit can be damaged.
• Press and hold down rocker
2
switch pos. 2.
• Paper is pushed out.
• Separate paper stack.
1
• Press rocker switch pos. 1.
• Feed paper successively.
Cut material container full
• Red LED on control panel lights.
• Paper shredder switches off
Empty the cut material container,
because if it is too full, malfunc-
tions can occur in the cutting sys-
tem
• Tap rocker switch pos. 2.
2
• Empty full shredded material
container.
Shredded material container con-
tact interrupted
• Red LED on control panel lights.
• Paper shredder switches off.
• Check whether shredded
material container is correctly
inserted in bottom frame.
If other faults occur, please check the follo-
wing before calling our customer service:
• Is mains plug inserted?
• Is rocker switch turned on?
• Is the motor overloaded?
allow motor to cool down for 15 - 20 min.
8. Maintenance and care
Cleaning:
• Switch off the shredder, pull out the mains
plug.
• When cleaning only use a soft cloth and a
mild soap-water solution. Never use scou-
ring agents, cleaning fluid, petroleum or
thinners.
When the cutting capacity drops or
the noise increases (Cross cut):
• Switch paper shredder off:
Tap rocker switch pos. 2.
2
• Spray special cutting block oil th-
rough paper feed opening across
the whole width of the cutting
system blades.
• Run cutting system backwards
2
(pos. 2) without feeding paper.
• Paper dust and particles are
shaken off.
0511 english 9
http://www.monomachines.com/
http://www.monomachines.com/
HSM 105.3 Paper shredder
9. Technical Data
Cutting type Strip cut Cross cut
Shred size (mm) 5.8 3.9 1.9 3.9 x 30 1.9 x 15 0.78x11
Safety rating DIN 32757 – 1 2 2 3 3 4 5
Cutting capacity (sheets), DIN A4 70 g/m2
80 g/m2
22 - 24
17 - 19
16 - 18
13 - 15
12 - 14
9 - 11
12 - 14
9 - 11
9 - 11
7 - 9
5 - 6
4 - 5
Weight 11.5 kg 12.5 kg
Cutting speed 80 mm/s 90 mm/s
Noise level (Idle running/ load) 58 dB(A) / 59 - 63 dB(A)
Loading width 240 mm
Voltage 230 V, 50 Hz
100 V, 50/60 Hz – 115 V, 60 Hz
Power for the maximum number of sheets 440 W
Dimensions W x D x H (mm) 375 x 279 x 583
Volume of shredded material bag 33 l
Technical and optical modifications reserved.
Declaration of Conformity
Machinery directive 98 / 37 / EG
EMC directive 89 / 336 / EWG
Low voltage directive 73 / 23 / EWG
The manufacturer HSM Pressen GmbH + Co. KG, Bahnhofstraße 115, D-88682 Salem
declares herewith, that the paper shredders HSM 105.3 aboved mentioned correspond with the EC Machine Directive inclu-
ding all relevant modifications.
Applied standards and technical specifications:
• EN 55014-1:2000 + A1:2001 + A2:2002 • EN 61000-4-4:1995 + A1:2001 + A2:2001
• EN 55014-2:1997 + A1:2001 • EN 61000-4-5:1995 + A1:2001
• EN 61000-3-2:2000 • EN 61000-4-6:1996 + A1:2001
• EN 61000-3-3:1995 + A1:2001 • EN 61000-4-11:1994 + A1:2001
• EN 61000-4-2:1995 + A1:1998 + A2:2001 • EN 60950-1:2001
• EN 294:1992
Salem, 02.11.2005
Rolf Gasteier - Technical Director
Machine type inspection for compliance with the requirements of the EC Machine Directive was carried out by the „Admi-
nistration“/Inspection Authority Committee of Experts, Subject Area „Office Machines and Devices“, on the premises of the
Verwaltungs-Berufsgenossenschaft, Deelbögenkamp 4, D-22297 Hamburg. This inspection authority is the authority respon-
sible in accordance with Annex V of the EC Machine Directive.
10 english 0511
