HP ProCurve 6600-24XG Instructions de montage

Product End-of-Life Disassembly Instructions

Product Category: Networking Equipment

Marketing Name / Model

[List multiple models if applicable.]

HP ProCurve Switch 6600-24XG (J9265A)

Name / Model #2

Name / Model #3

Name / Model #4

Name / Model #5

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Notes

Quantity

of items

included

in product

Item Description

With a surface greater than 10 sq cm

1Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

Batteries All types including standard alkaline and lithium coin

or button style batteries 1

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries 0Mercury-containing components

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm Includes background illuminated displays with gas

discharge lamps 0

Cathode Ray Tubes (CRT) 0

Capacitors / condensers (Containing PCB/PCT) 0

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height 0

External electrical cables and cords 0

0Gas Discharge Lamps

Plastics containing Brominated Flame Retardants 0

Include the cartridges, print heads, tubes, vent

chambers, and service stations. 0Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Components and waste containing asbestos 0

Components, parts and materials containing

refractory ceramic fibers 0

Components, parts and materials containing

radioactive substances

EL-MF877-00 Page 1

Template Revision A

EL-MF877-00 Page 2

Template Revision A

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description Tool Size (if

applicable)

Phillips (Cross-slot) screwdriver

Torx T-10 Screwdriver

Torx T-15 Screwdriver

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

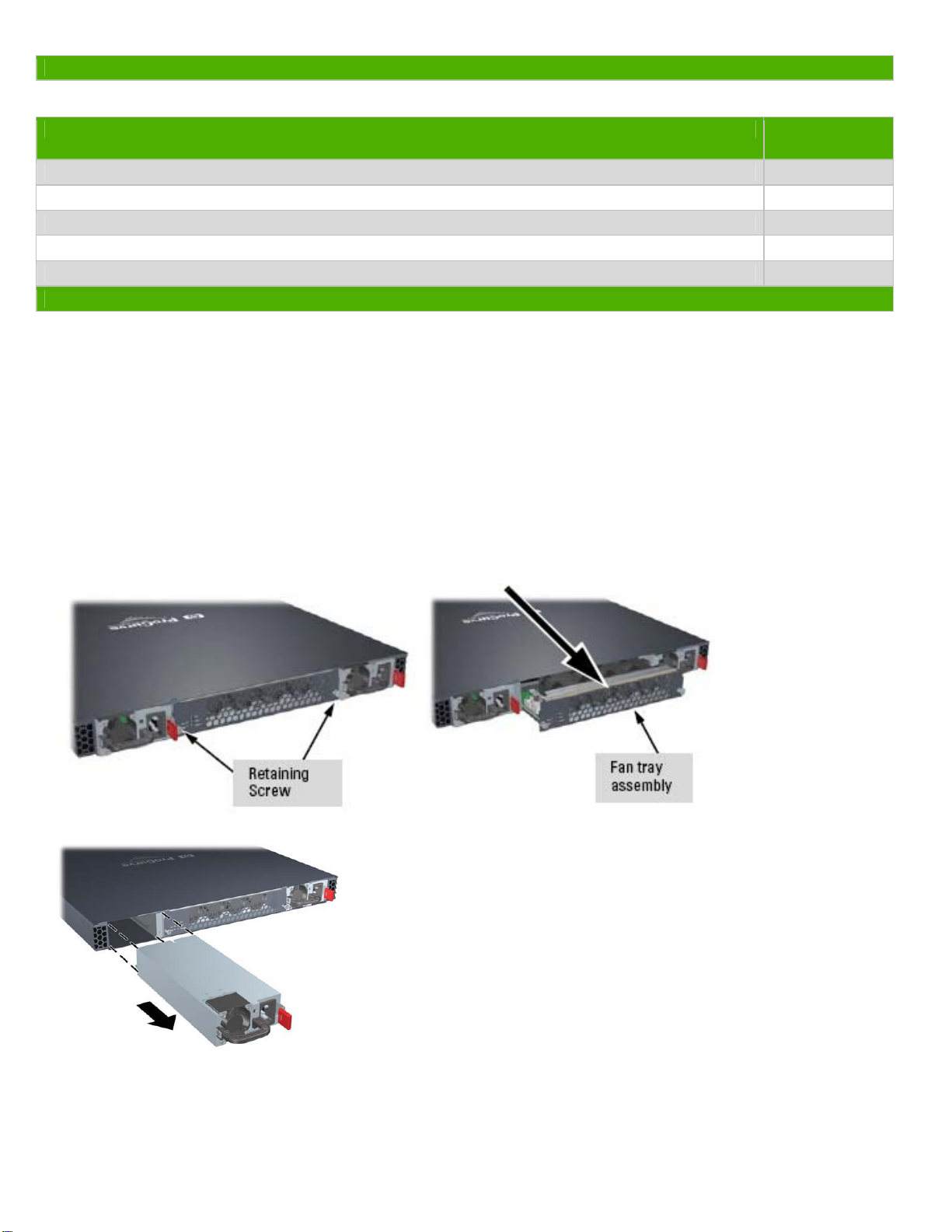

1. Remove Power Supply - Qty 1 or 2 - see illustration below

2. Remove Fan Tray - see illustration below

3. Remove top cover - 12 screws on top

4. Remove BR2032 battery - Qty 1

5. Remove PCA mounting screws

6. Remove PCA from chassis

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).
