HP FlexFabric 5900CP Series Manuel utilisateur

HP FlexFabric 5900CP Solutions

Configuration Guide

Abstract

This document describes HP FlexFabric 5900CP switch usage in converged Ethernet and storage network configurations. It

provides information about switch features and storage configurations, including the device support.

HP Part Number: 5697-3065

Published: March 2014

Edition: 1

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial

Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under

vendor's standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall

not be liable for technical or editorial errors or omissions contained herein.

Contents

1 HP FlexFabric 5900CP switch overview.........................................................4

Features and benefits................................................................................................................4

HP FlexFabric 5900CP network architectures................................................................................5

2 Port types and switch modes........................................................................6

Port types................................................................................................................................6

Switch modes...........................................................................................................................6

3 Storage use-cases.......................................................................................8

4 IRF usage with storage..............................................................................14

5 c-Class BladeSystem interconnects...............................................................17

6 HP FlexFabric 5900CP Storage Network Support.........................................18

HP FlexFabric 5900CP Operating System Support with Storage....................................................18

HP FlexFabric 5900CP CNA/HBA Support................................................................................18

HP FlexFabric NPV Switch Support............................................................................................19

HP FlexFabric HP Storage System Support..................................................................................19

7 Software and Firmware update process (Non-ISSU and ISSU).........................20

8 Management Software..............................................................................21

Using the CLI.........................................................................................................................21

IMC Management software......................................................................................................22

A HP FlexFabric 5900CP system architecture considerations..............................23

B Support information..................................................................................26

C HP FlexFabric 5900CP switch configuration file............................................28

Contents 3

1 HP FlexFabric 5900CP switch overview

The HP FlexFabric 5900CP switch is a ToR (Top of Rack) converged L2/L3 switch with 48 converged

ports and four 40GbE QSFP ports. This switch provides seamless integration of 10GbE networks

into existing server-edge environments, such as FCoE DCB and Fibre Channel. It is a full featured

switch and a software license is not required. When coupled with the HP StoreFabric converged

optical transceiver, it provides wire-once capability for 10GbE/FCoE and 8 Gb or 4 Gb Fibre

Channel.

Figure 1 HP FlexFabric 5900CP front (port) and rear (power) view

The switch is supported as a standard Ethernet switch in HPN Ethernet networks and as a DCB

Ethernet switch for converged environments with Ethernet/FCoE. It provides native Fibre Channel

connectivity and can be used as a gateway to other HP Fibre Channel switch series fabrics using

NPV.

It can be added in an HP 5900 series IRF (Intelligent Resilient Framework) to simplify management

by combining multiple physical switches into one virtual switch. An IRF fabric appears as one node

or virtual switch and is accessible as a single IP address on the network. You can use this IP address

to log in at any member device to manage all the members of the IRF fabric.

Features and benefits

The HP FlexFabric 5900CP switch provides the following features:

•Ethernet/FCoE support on 10GbE converged ports and 40GbE ports

•Fibre Channel 8Gb/4Gb/2Gb support on converged ports

•DCB/FCoE-FCF/NPV/TRILL/IPv6 support (QCN ready)

•Forty-eight converged ports that can use a single transceiver which supports 10GbE/FCoE or

8Gb/4Gb Fibre Channel

•FCoE/FC NPV gateway support

•Dual-hop support with Virtual Connect blade switches and the HP 6125-XLG

•5900 Series IRF support (up to nine switches with Ethernet, two switches with storage)

•iSCSI support

•Front-to-back and back-to-front airflow

•Comware OS version 7.1

•No additional feature licenses. The following four switch modes are available:

Standard—Configurable DCB switch◦

◦FCF—FC/FCoE initiator; storage; FlexFabric SAN switch; F, VF, VE, and E port connectivity

(4K zones); FSPF

4 HP FlexFabric 5900CP switch overview

◦NPV—Gateway for FC/FCoE multi-vendor connectivity

◦Transit—FIP-snooping DCB aggregation switch

•1.28 Tb/s switching capacity

•952.32 Million PPS throughput, integrated 9 MB packet buffer

•10GbE cut-through latency < 1.5 µs (64Byte packets)

•CLI and iMC/VAN/VFM (Intelligent Management Center) fabric management

•HP IIIAS (Intelligent Infrastructure Analyzer Software) support

•L2/L3, IPv4/IPv6 dual stack, TRILL, VEPA

•Cloud and SDN ready (OpenFlow 1.3.1 support)

Figure 2 (page 5) describes the major components and the ports of the HP FlexFabric 5900CP

switch. The front view shows 48 converged ports, which can be configured as 1 or 10GbE, or 8,

4 or 2 Gb Fibre Channel. The four 40GbE ports can be configured as four individual 40GbE

ports, or 16 10GbE ports when used with a splitter cable.

The switch supports two pluggable fan trays and two AC power supplies for redundancy. Two

options are available for fan trays, front-to-back airflow or back-to-front airflow.

Figure 2 HP FlexFabric 5900CP components and ports

HP FlexFabric 5900CP network architectures

The HP FlexFabric 5900CP switch can be utilized in the following environments:

•A traditional Ethernet network for Ethernet data

•A converged network switch in environments that support Ethernet and FCoE for Ethernet and

storage data

•A native Fibre Channel fabric switch for storage data

In a converged environment, the HP FlexFabric 5900CP switch is configured as a ToR switch

connecting to a LAN and a SAN.

LAN connectivity is made through any of the 48 converged ports configured as 10GbE ports or

the 40GbE ports for a total of up to 64 10GbE ports.

SAN connectivity is made through any of the 48 converged ports configured as 10GbE/FCoE

ports or configured as 8/4/2 Gb Fibre Channel ports. When configured as Fibre Channel ports,

the converged ports support device connectivity (F_Port) or switch connectivity via NPV (NP_Ports)

to other HP Fibre Channel switches that support NPIV.

HP FlexFabric 5900CP network architectures 5

2 Port types and switch modes

To support LAN and SAN environments, the HP FlexFabric 5900CP switch utilizes multiple port

types and switch modes.

Port types

The HP FlexFabric 5900CP switch supports multiple port types. Table 1 (page 6) lists the port

types supported.

Table 1 Supported HP FlexFabric 5900CP port types

Ethernet Port Types

•Access/Tagged-trunk 10GbE/40GbE ports used for Ethernet data

FCoE Port Types

•VF_Port: Virtual F_Port (FCoE switch to FCoE target/initiator)

•VE_Port: Virtual E_Port (FCoE switch to FCoE switch) (future use-case support)

•VNP_Port: FCoE NPV switch port (FCoE switch to FCoE switch as a proxy)

FC Port Types

•F_Port: Fabric port (switch to FC target/initiator)

•E_Port: Expansion port (switch to switch ISL) (future use-case support)

•NP_Port: NPV switch port (FC switch to FC switch as a proxy)

Switch modes

The HP FlexFabric 5900CP switch supports four operating modes. Standard mode is the default

mode. FCF, NPV, and Transit modes are advanced modes.

1. Standard (Non-FCoE) Mode—When a switch operates in this mode, it is a standard/DCB

Ethernet switch and does not provide any FCoE/FC capabilities.

2. FCF (Fibre Channel Forwarder)—When a switch operates in this mode, it is called as an FCF

switch. In this mode, the following HP FlexFabric 5900CP converged port connections are

available:

Fibre Channel

•HP FlexFabric 5900CP F_Port to an N_Port on a node.

•HP FlexFabric 5900CP (NPIV) F_Port to an NP_Port on an NPV switch.

•HP FlexFabric 5900CP E_Port to an E_Port on another HP FlexFabric 5900CP FCF switch.

FCoE

•HP FlexFabric 5900CP VF_Port to a VN_Port on a node.

•HP FlexFabric 5900CP (NPIV) VF_Port to a VNP_Port on an NPV switch.

•HP FlexFabric 5900CP VE_Port to the VE_Port on another HP FlexFabric 5900CP FCF

switch.

If the primary mode of the HP FlexFabric 5900CP switch is set to FCF, the converged ports

can be set to F_Port or E_Port, but cannot be set to NP_Port. For FCoE, the ports can be set

to VF_Port or VE_Port, but cannot be set to VNP_Port.

NOTE: At present, no E_Port connectivity use-cases are supported.

6 Port types and switch modes

3. NPV/Gateway Mode—When a switch operates in this mode, it is called as an NPV (N_Port

Virtualizer) switch. In this mode, the following HP FlexFabric 5900CP converged port

connections are available:

Fibre Channel

•HP FlexFabric 5900CP F_Port to an N_Port on a node.

•HP FlexFabric 5900CP NP_Port to an F_Port on an FCF (NPIV) switch.

FCoE

•HP FlexFabric 5900CP VF_Port to a VN_Port on a node.

•HP FlexFabric 5900CP VNP_Port to a VF_Port on an FCF (NPIV) switch.

If the primary mode of the HP FlexFabric 5900CP switch is set to NPV, the converged ports

can be set to F_Port or NP_Port, but cannot be set to E_Port. For FCoE, the ports can be set

to VF_Port or VNP_Port, but cannot be set to VE_Port.

4. Transit Mode—When a switch operates in this mode, it is called as a Transit switch. A switch

operating in this mode can restrict its Ethernet interface only to receiving traffic from an eNode

or FCF switch. This is achieved by configuring the interface to operate in eNode mode or FCF

mode. Fibre Channel is not supported in this mode. When a switch is configured in Transit

mode, it always enables FIP snooping. VF_Port traffic is allowed. However, VE_Port traffic is

blocked.

NOTE: After changing to any one of the advanced modes and saving the configuration,

you must reboot the switch.

<HP>system-working-mode {advance standard}

<HP>fcoe-mode {fcf npv transit}

[confirmation]

[mode changed]

<HP>Save

<HP>reboot

Switch modes 7

3 Storage use-cases

The HP FlexFabric 5900CP switch supports several converged Ethernet/FCoE and Fibre Channel

storage configurations. To simplify understanding and implementation of these configurations, a

set of use-case topology designs are defined. The use-cases describe recommended ways to use

the HP FlexFabric 5900CP switch, switch modes, and port types in different server-storage

deployment scenarios. Some of the use-cases show multiple types of connectivity within the same

configuration. This is meant to show the different connection options available. Your design might

use one or more of these options, but not necessarily all as shown.

HP recommends that all storage configurations implement dual-redundant fabrics for high availability.

All HP FlexFabric 5900CP switch use-cases for storage described here implement dual-redundant

fabrics for high availability.

NOTE: The IRF feature of the HP FlexFabric 5900CP switch can be implemented in dual-redundant

fabric designs with storage, but has implications that must be considered. For more information

about using IRF in a storage configuration, see “IRF usage with storage” (page 14)

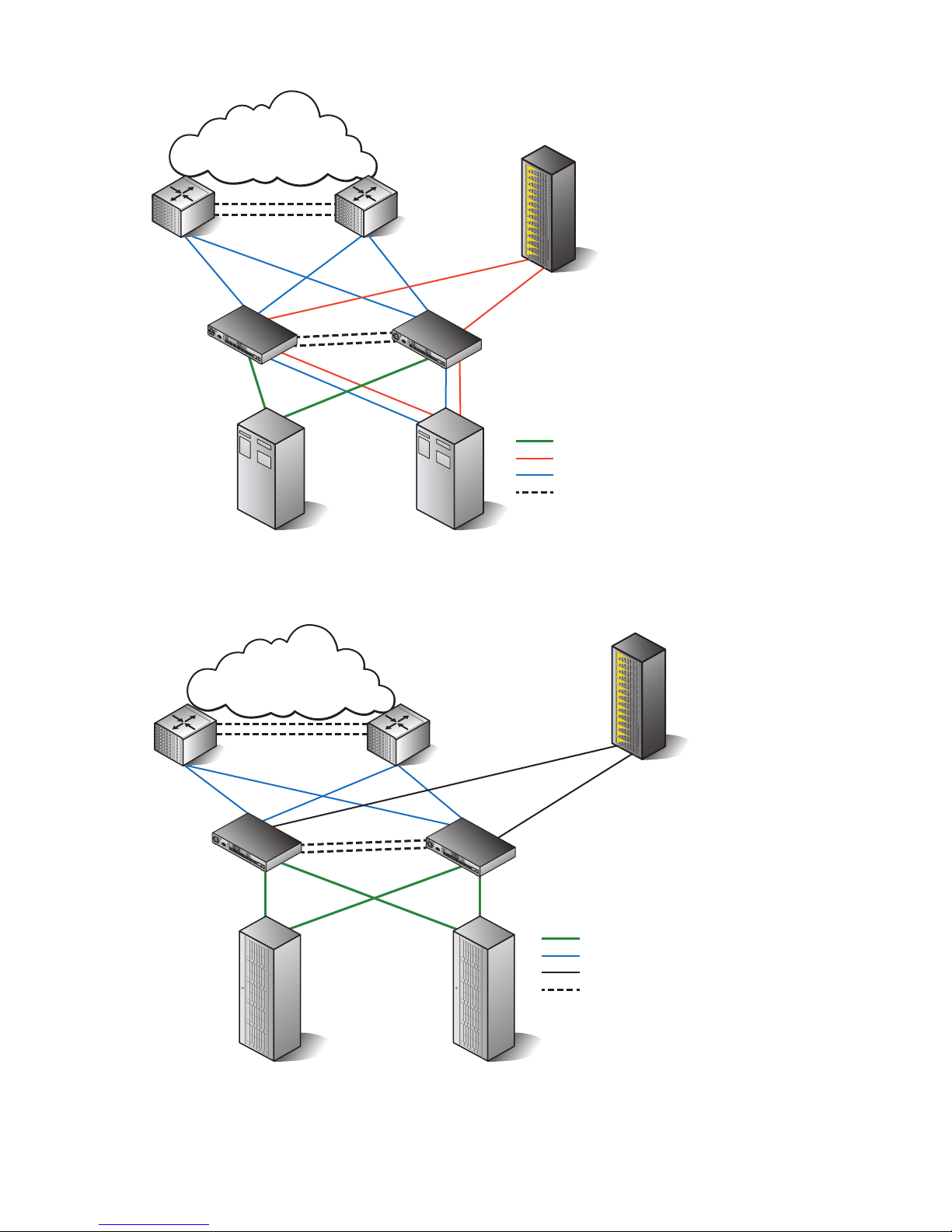

Figure 3 (page 8) provides three major use-case scenarios, each describing a different

implementation based on the hardware being utilized for servers and storage. All use-cases show

a single layer or single tier of HP FlexFabric 5900CP switches, also referred as East-West fabric

topology, with variations for use-case 2 and use-case 3. Use-case 2 shows dual-hop on the server

side and use-case 3 shows additional fabric connectivity on the storage side to other HP Fibre

Channel/FCoE switch series fabrics via 5900CP NPV gateway mode.

Figure 3 HP FlexFabric 5900CP major use-case scenarios

Table 2 (page 9) describes the HP FlexFabric 5900CP use-cases in detail. The items listed in the

variant column are links to the figures which describe the variant connectivity options in detail.

8 Storage use-cases

Table 2 HP FlexFabric 5900CP use-cases

5900CP

Switch ModeStorage ConnectServer ConnectVariant

Major SAN Fabric

Use-Case

FCFNative FCoERack/CNA1A: Rack Server, FCoE Storage#1 Single-Tier

Fabric, Rack

Servers Native FCRack/CNA/HBA1B: Rack Server, FC Storage

Native FCoEBlade/VC2A: BladeSystem Dual-hop, FCoE Storage#2 Single-Tier

Fabric, Blade

System Native FCBlade/FC2B: BladeSystem FC/FCoE, FC Storage

NPV

Gateway

FC via B/C/H

FC Switch

Rack/CNA/HBA3A: Rack Server, FC NPV Gateway, FC Storage#3 Single-Tier

Fabric, NPV

Gateway Blade/VC3B: BladeSystem, FC NPV Gateway, FC Storage

FC/FCoE via

Cisco Nexus

Rack/CNA/HBA

Blade/VC/FC

3C: Rack/BladeSystem, FCoE NPV Gateway

55xx FCoE

Switch

FCF, NPVNative FCoE,

Rack/CNA/HBA

Blade/VC/FC

Applies to all Use-Cases aboveStorage Fabric

IRF

Configurations

Figure 4 HP FlexFabric 5900CP FCF Use-Case 1A

LAN

FCoE Storage

IRF

IRF*

VF_Port VF_Port

VN_Port

Expand

switches

horizontally

as required 5900CP FCF

FCoE

Converged Ethernet/FCoE

Native Ethernet

FCoE

IRF* between 5900CP’s

(optional)

5900CP1A

Server/CNA

Figure 5 HP FlexFabric 5900CP FCF Use-Case 1B

LAN FC Storage

IRF

IRF*

F_Port F_Port

N_Port

Expand

switches

horizontally

as required

Server/CNA Server/HBA

5900CP FCF

FCoE/FC

Converged Ethernet/FCoE

Native FC

Native Ethernet

IRF* between 5900CP’s

(optional)

5900CP1b

Figure 6 HP FlexFabric 5900CP FCF Use-Case 2A

FCoE Storage

IRF

IRF*

VF_Port VF_Port

VN_Port

Expand

switches

horizontally

as required 5900CP FCF

FCoE

Converged Ethernet/FCoE

Native Ethernet

FCoE

IRF* between 5900CP’s

(optional)

5900CP2A

LAN

10 Storage use-cases

Autres manuels pour FlexFabric 5900CP Series

Table des matières

Autres manuels HP Changer

HP 6125XLG Manuel d'installation

HP 6125G Manuel d'installation

HP SN8000B Manuel utilisateur

HP 5920 Manuel d'installation

HP STORAGEWORKS ALL-IN-ONE STORAGE SYSTEM Manuel utilisateur

HP SN3000B Instructions d'utilisation

HP AdvanceStack 100Base-T Hub-8TXE Manuel d'installation et d'exploitation

HP A7340A - Surestore FC 1Gb/2Gb Switch 16B Manuel utilisateur

HP HP 2100 Series Manuel utilisateur

HP 1810 series Instructions d'utilisation

HP StorageWorks 8/24 - SAN Switch Guide rapide de l'utilisateur

HP V1910 Manuel utilisateur

HP ProCurve 1600M Manuel utilisateur

HP SAN Switch Manuel utilisateur

HP E2620 Manuel utilisateur

HP 316095-B21 - StorageWorks Edge Switch 2/24 Mode d’emploi

HP 5120 SI Series Manuel utilisateur

HP StorageWorks 2/32 - SAN Switch Mode d’emploi

HP StorageWorks 4/32B SAN Switch Manuel utilisateur

HP AA-RWF3A-TE Manuel utilisateur

HP A7533A - Brocade 4Gb SAN Switch Base Manuel de service

HP HP ProCurve Series 6600 Manuel utilisateur

HP ProCurve 8108fl Manuel utilisateur

HP 3235 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
