HP Aruba Instant On 1430 5G Instructions de montage

MF877-00 Page 1

Template Revision C, 30-July-2018

HPE instructions for this template are available at MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Networking

Marketing Name / Model

[List multiple models if applicable.]

HPE Aruba Instant On 1430 5G Switch

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic

instructions for the disassembly of HPE products to remove components and materials requiring selective treatment,

as defined by Directive 2012/19/EU of the European Parliament and of the Council on Waste Electrical and Electronic

Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description

Notes

Quantity

of items

included

product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium

coin or button style batteries

Mercury-containing components

For example, mercury in lamps, display

backlights, scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface

greater than 100 sq cm

Includes background illuminated displays with

gas discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Power Adapter

Gas Discharge Lamps

Plastics containing Brominated Flame

Retardants

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and

toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

MF877-00 Page 2

Template Revision C, 30-July-2018

HPE instructions for this template are available at MF877-01

Item Description

Notes

Quantity

of items

included

product

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where

components and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Phillips Screw Driver

P1 ,P2

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective

treatment:

1. Using a P1 Phillips Screw Driver, remove all 4 screws securing top cover to chassis. Remove Cover. (see 3.2.1)

2. Using a P2 Phillips Screw Driver, remove 4 screws to chassis, remove main board (1pcs) and light-pipe (1pcs).

(see 3.2.2)

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

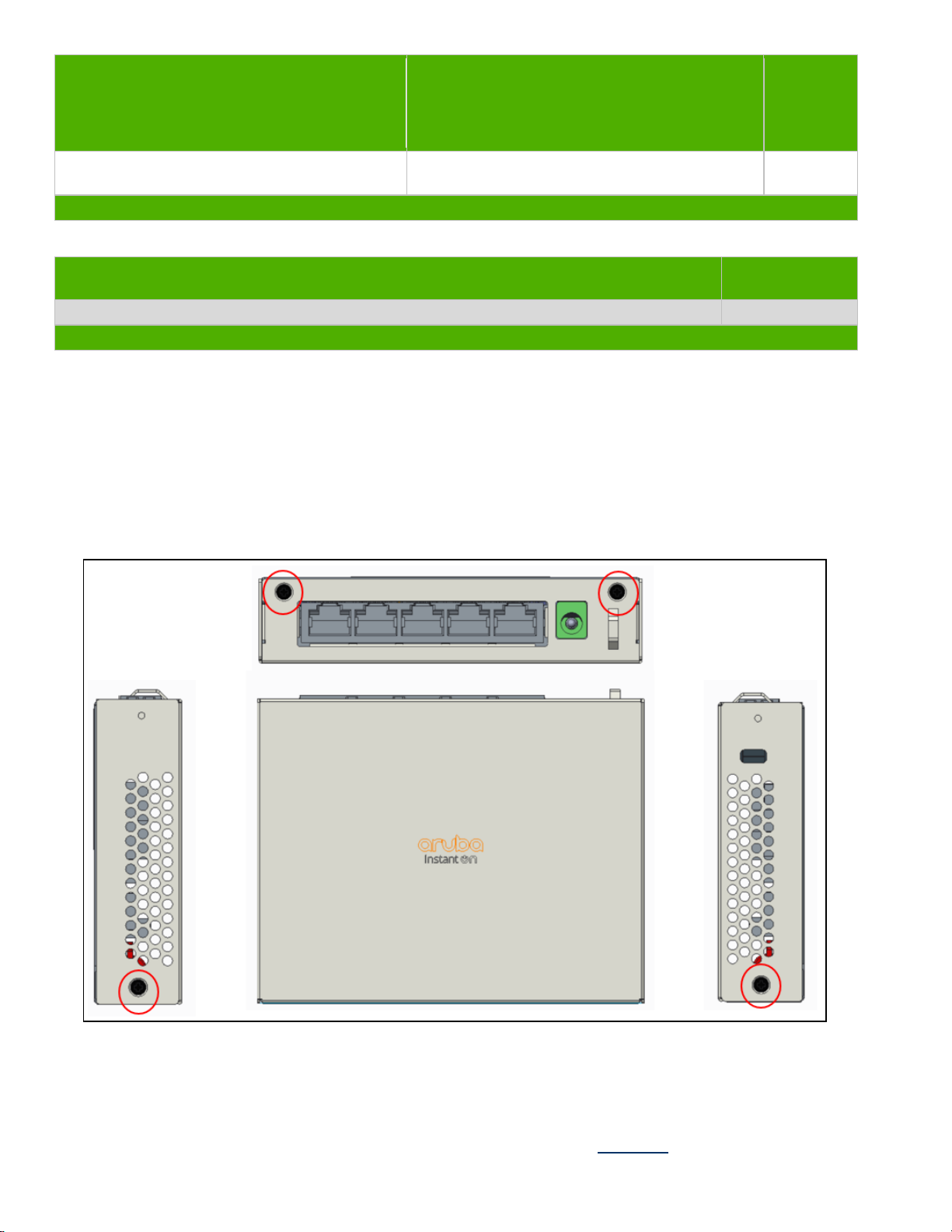

3.2.1

MF877-00 Page 3

Template Revision C, 30-July-2018

HPE instructions for this template are available at MF877-01

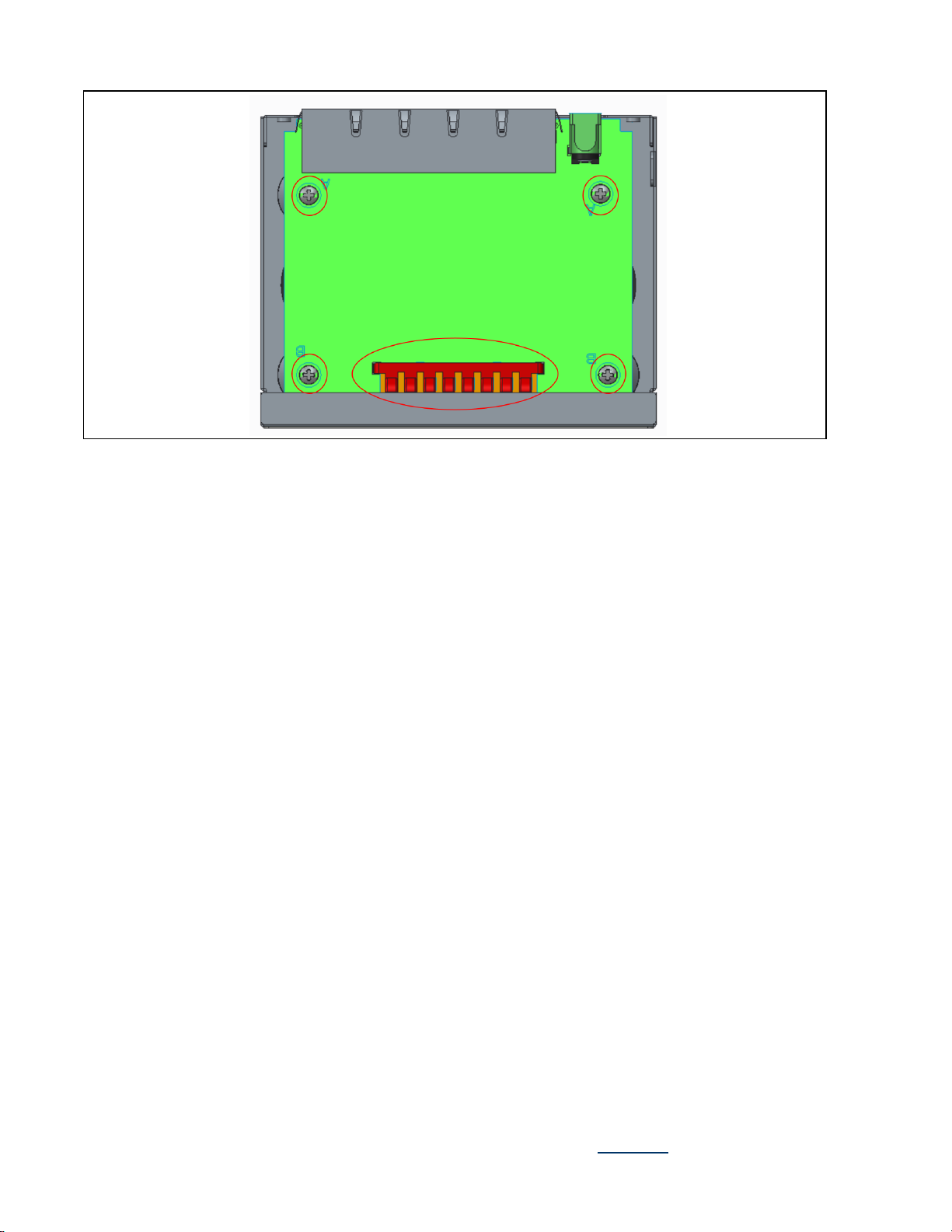

3.2.2
