Instructions for the HP SureStore VA7100

Deskside Assembly Conversion Kit

NOTE: Install the HP SureStore Virtual Array 7100 into the Deskside Assembly before installing the

disk drives and power modules, cabling it up, connecting the array to power, and connecting to the host.

For more information, see the Quick Start Guide (customer order part no. A6183-90901).

NOTE: If you are converting a field-rackable unit that is already racked, please see the Quick Start Guide.

(To uninstall, reverse the rack installation instructions given in the Quick Start Guide.)

1. Check the following conversion kit contents

(Figure 1). If any parts are missing, call your

nearest HP sales office.

Deskside Conversion Kit:

•Quick Start Guide (A6183-90901)

•Installation Guide (A6196-96001)

•Deskside Assembly (A6196-60001)

-Cover

-End-cap

-Base

•Hardware Kit (A6196-60002)

-10 x M5 Screws

Tools required:

•Torx T10 driver

•Torx T25 driver

Figure 1

2. Follow the instructions provided in the Quick Start

Guide to unpack and disassemble the array.

WA R N I N G ! Be sure to remove the drives and the power modules from the array chassis before installing

the array chassis in the deskside assembly. DONOT REMOVE THE CONTROLLERS.

To avoid damage to the modules and possible injury to the persons installing the deskside assembly,

the array chassis must be empty of everything except the controllers before converting to a deskside

configuration.

Quick Start Guide

Installation Guide

10 x M5 Screws

Deskside Assembly

3. Unpack the deskside assembly and remove the

packing material.

NOTE: The inside of the cover comes with a

structural foam lining. It is part of the cover and

is not to be removed.

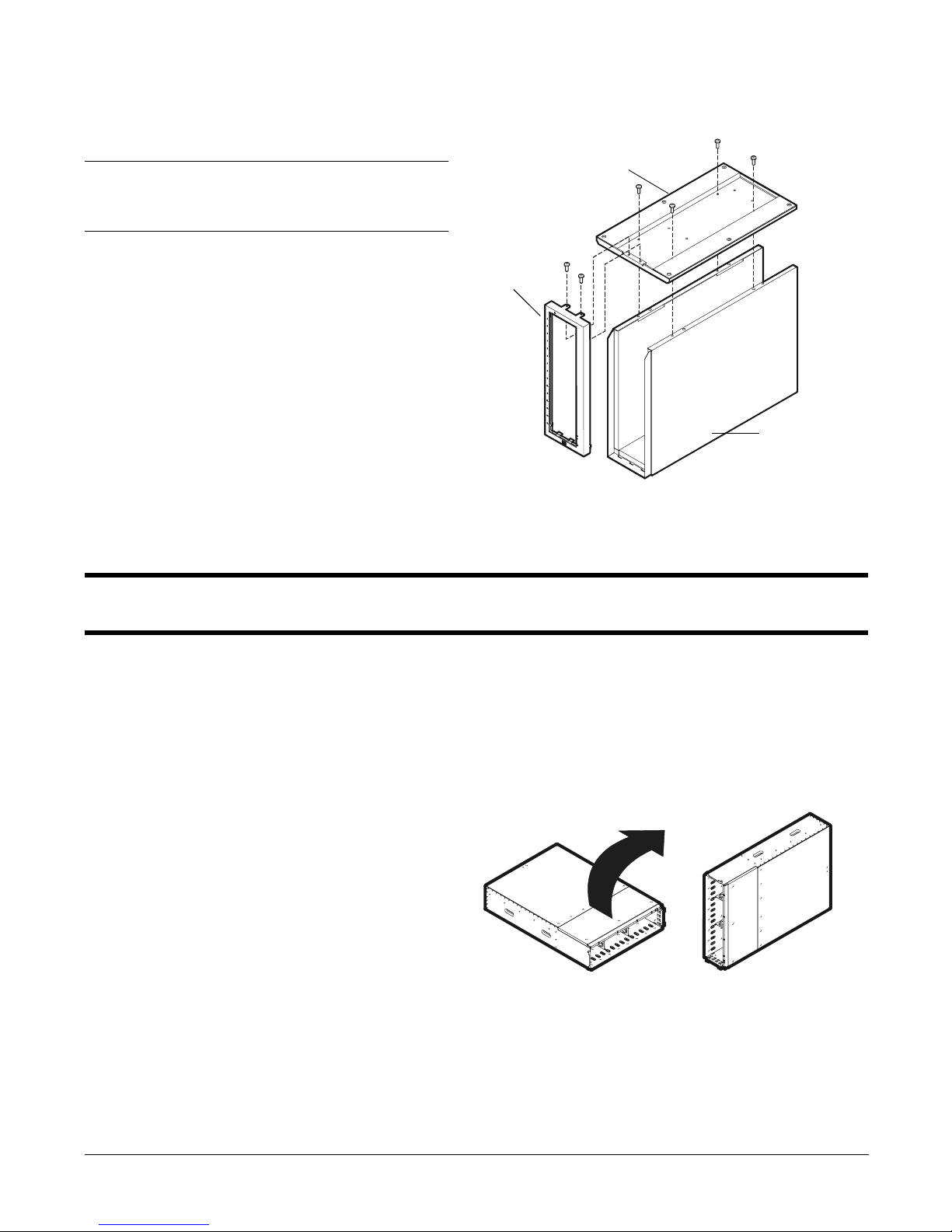

4. Remove the base and end cap from the deskside

assembly.

a. Turn the deskside assembly upside down.

b. Using a Torx T25 driver, remove the 4-screws from

the base and set the screws and the base aside.

c. Using the Torx T25 driver, remove the 2-screws

from the end cap and set the screws and the end cap

aside.

5. Set the deskside cover on the floor with the long

opening facing up (see cover position in Figure 2).

Figure 2

WA R N I N G ! An empty array with controllers may weigh in excess of 60 pounds. To avoid serious injury,

it is recommended that at least two people lift the array chassis into the deskside cover.

6. Turn the empty array chassis on its side (Figure 3) in

preparation for inserting into the deskside cover.

Figure 3

Base

End-cap

Cover

NOTE: Before proceeding, notice that there are two

locating pins inside the bottom of the cover. See

locating pins in Figure 4.

7. With the power button down, lower the array chassis

into the cover.

8. Be sure that the rear of the array chassis is flush with

the rear side of the cover, then slide it down and over

the two locating pins (Figure 4).

Figure 4

9. With the cutout on the base facing the front, lower the

base onto the array chassis. Then slide the four locator

pins on the base into the four holes on the outside of

the array chassis (Figure 5).

10. Using the Torx T25 driver, install and tighten the eight

M5 screws on the base (Figure 5).

a. Secure the base to the cover with four of the M5

screws.

b. Secure the base to the array chassis with four of the

M5 screws.

Figure 5

Power Button

Locating pins

Front slots

on base

Customer Order Part No.

A6196-90901

E0201

Manufacturing Part No.

A6196-96001

*A6196-96001*

11. Turn the deskside unit on end with the opening for the

disk drives facing up.

12. Install the end cap (Figure 6).

a. Insert the end cap into the tabs located at the top

front of the cover.

b. Rotate the end cap down over the base.

c. Using the T25 driver, install the remaining two M5

screws into the end cap and tighten the screws.

Figure 6

13. Rotate the cabinet to an upright position with the

front facing outward (Figure 7).

14. Position the unit on the floor in preparation for

installing the disk drives and power modules.

15. Using the Quick Start Guide, complete the array

installation.

a. Install the disk drives and power modules.

b. Cable up the array.

c. Turn it on.

d. Change the FC loop IDs.

e. Observe the power-on status.

Figure 7
