HP Mt40 Instructions de montage

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Notebooks and Tablet PCs

Marketing Name / Model

[List multiple models if applicable.]

HP mt40 mobile thin client

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

refractory ceramic fibers 0

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Description #1 Cross head

of screwdriver

Description #2

TORX T8

(2.31mm)

Description #3

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Follow steps described in Disassembly instruction (file attached)

2. If parts can be removed without using a tool, remove it first.

3. Use correct screwdriver and torque value before unlock the screw.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

Standard Operation Procedure

Document No. : NAIROBI FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Step：

：：

：

Disassemble Battery

1. Slide the battery knob to the left, then remove

the battery. (Fig.1)

1(1/1)

Battery knob

0.1 2012/10/30

Before

After

Fig.1

Notes : If finding anything uncommon, notice foreman or assistant at once.

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Tabulator：Issue department：

Alicia Chien NPSU-SE

Fig.2

Standard Operation Procedure

Document No. : NAIROBI FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Step：

：：

：

Disassemble Cover

1. Slide the cover knob to the left, then remove

the cover. (Fig.1)

2(1/1)

0.1 2012/10/30

Before

After

Fig.1

Notes : If finding anything uncommon, notice foreman or assistant at once.

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Tabulator：Issue department：

Alicia Chien NPSU-SE

Fig.2

Standard Operation Procedure

Document No. : NAIROBI FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Step：

：：

：

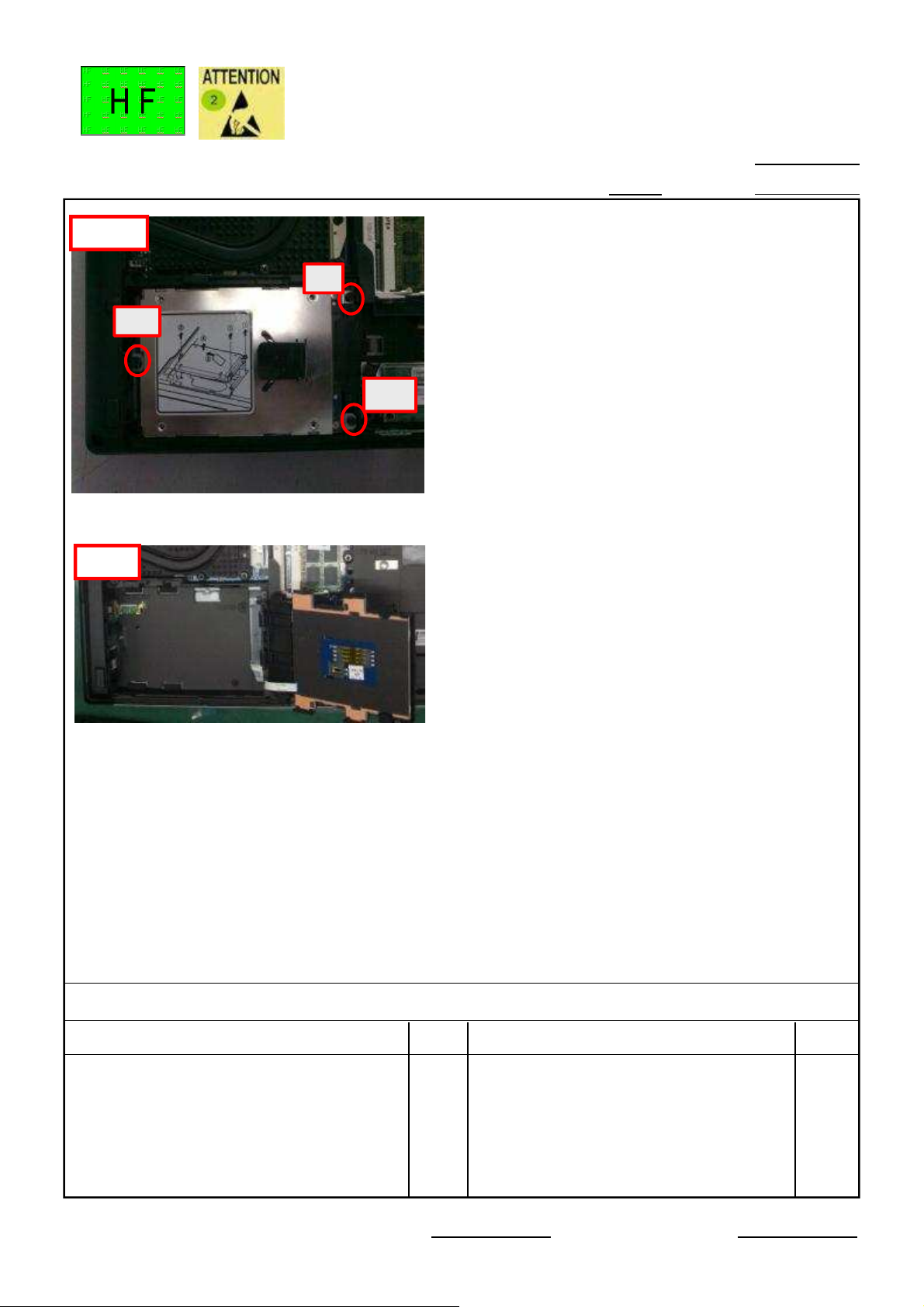

Disassemble HDD

1. Loosen HDD set screw * 3. (Fig.1)

2. Remove the HDD.

3(1/1)

0.1 2012/10/30

Before

After

Fig.1

Notes : If finding anything uncommon, notice foreman or assistant at once.

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Tabulator：Issue department：

Alicia Chien NPSU-SE

Fig.2

Electric cross screwdriver (0#) 1

HDD assistant fixture 1

Standard Operation Procedure

Document No. : NAIROBI FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Step：

：：

：

Disassemble FAN

1. Loosen FAN set screw * 2, then remove the

FAN. (Fig.1)

4(1/1)

0.1 2012/10/30

Before

Fig.1

After

Notes : If finding anything uncommon, notice foreman or assistant at once.

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Tabulator：Issue department：

Alicia Chien NPSU-SE

Fig.2

Electric cross screwdriver (1#) 1

Standard Operation Procedure

Document No. : NAIROBI FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Step：

：：

：

Loosen Keyboard Set Screws

1. Loosen keyboard set screw * 3. (Fig.1)

5(1/1)

0.1

2012/10/30

Fig.1

Notes : If finding anything uncommon, notice foreman or assistant at once.

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Tabulator：Issue department：

Alicia Chien NPSU-SE

Electric cross screwdriver (#1) 1

Standard Operation Procedure

Document No. : NAIROBI FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Step：

：：

：

Disassemble Keyboard

6(1/1)

0.1

Fig.1

2012/10/30

1. Disassemble the K/B FPC. (Fig.2)

2. Turn the computer over.

Fig.1

Notes : If finding anything uncommon, notice foreman or assistant at once.

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Tabulator：Issue department：

Alicia Chien NPSU-SE

Fig.2

Standard Operation Procedure

Document No. : NAIROBI FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Step：

：：

：

Disassemble Thermal

7(1/1)

0.1 2012/10/30

Intel DIS

1. Loosen thermal screw *6.

2. Remove the thermal.

Notes : If finding anything uncommon, notice foreman or assistant at once.

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Tabulator：Issue department：

Alicia Chien NPSU-SE

Electric cross screwdriver (1#) 1

Standard Operation Procedure

Document No. : NAIROBI FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Step：

：：

：

Disassemble CPU

1. Disassemble the CPU by slot screwdriver and

vacuum pen.

8(1/1)

0.1 2012/10/30

Before

Fig.1

After

Notes : If finding anything uncommon, notice foreman or assistant at once.

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Tabulator：Issue department：

Alicia Chien NPSU-SE

Fig.2

Slot screwdriver 1

Vacuum Pen 1
