QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Overview

DA - 10908 North America — Version 29 — April 27, 2004

Page 1

MR0049

At A Glance

AlphaServer/AlphaStation DS10 3U Systems include:

Alpha 600-MHz CPU with 2-MB onboard ECC cache

512-MB or 1-GB SDRAM memory - expandable to 2-GB maximum memory capacity

Onboard dual 10/100 BaseT Ethernet ports

Four PCI expansion slots - three 64-bit PCI slots and one 32-bit PCI slot

Onboard dual IDE controller

1.44-MB diskette drive

600-MB CD-ROM drive

Two storage cage subsystems: Internal Storage Cage for IDE/SCSI tapes/drives; Front Access Storage Cage for SCSI drives

DS10 Internal Storage Cage Systems can be configured with: three internal 3.5-inch x 1-inch hard disk drives or two internal 3.5-inch x 1-

inch hard disk drives and one 5.25-inch x 1.6-inch removable media device

DS10 Front Access Storage Cage Systems can be configured with: two front access 3.5-inch x 1-inch hard disk drives and two internal 3.5-

inch x 1-inch hard disk drives) or one Front Access Universal tape drive (DAT) and two internal disk drives

Maximum Internal storage capacity: Internal Storage Cage 218-GB SCSI or 120-GB IDE; Front Access Storage Cage-437-GB SCSI

Two serial ports: COM1 port is both an RMC port with modem control and a full-duplex asynchronous communications port; COM2 port is a

full-duplex asynchronous communications port

Bi-directional enhanced parallel port

PS/2-style keyboard port and mouse port

300W (88-260V, 47-63Hz) power supply

U.S. English documentation

Tru64 UNIX or OpenVMS Factory Installed Software

90-day software product warranty

Protected by HP Services, including three-year, on-site hardware with next business day response

QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Overview

DA - 10908 North America — Version 29 — April 27, 2004

Page 2

Processor

Alpha 21264A 600-MHz processor

Cache Memory

2-MB onboard cache

Upgradability

Supports upgrades of memory and hard drives

Standard

One CPU

Memory

Standard

512 MB or 1 GB (one memory kit)

Maximum

2 GB (two memory kits, kits include two industry-standard DIMMs with

ECC support)

Network Controller

Onboard dual 10/100 BaseT Ethernet ports

Expansion

Storage bays

Internal Storage Cage Systems: Five total - CD-ROM, FDD, and three storage bays: Three internal

3.5-inch x 1-inch hard disk drives or two internal 3.5-inch x 1-inch hard disk drives and one

5.25-inch x 1.6-inch removable media device

Front Access Storage Cage Systems: Six Total - CD-ROM, FDD, and Four Storage bays (two

front access 3.5-inch x 1-inch hard disk drives and two internal 3.5-inch x 1-inch hard disk

drives)

PCI slots

Four full-length slots (three 64-bit, one 32-bit)

Storage

Diskette Drive

1.44-MB diskette drive

CD-ROM

Internal Storage Cage Systems: 5.25-inch half height 48X CD-ROM drive

Front Access Storage Cage Systems 24X slim-line CD-ROM drive

Hard Drives

40-GB and 80-GB IDE disk drives or 36.4-GB and 72.8-GB Wide Ultra3 available with the Internal

Storage Cage, and 18.2-GB, 36.4-GB, 72.8-GB, or 146-GB Universal SCSI drives available with

Front Access Storage Cage. SCSI disk drives require optional SCSI adapter. IDE drives not

supported in Front Access Cage systems.

Storage Adapter/

Controller

Onboard IDE controller for internal storage, choice of optional storage adapters/controllers

Expansion Ports

Parallel

One bi-directional enhanced port

Serial

Two ports, one serial port with full-duplex asynchronous modem control and one RMS dedicated

serial port with full-duplex asynchronous modem control

Keyboard

One PS/2-style port

Mouse

One port

Power Supply

300W (88-260V, 47-63 Hz)

Manageability

Insight Manager

QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Standard Features

DA - 10908 North America — Version 29 — April 27, 2004

Page 3

Supported Options

A detailed summary of options supported on the AlphaServer/AlphaStation DS10 is available at

http://www.compaq.com/alphaserver/options/asds10/asds10_options.html

OS Support

AlphaServer DS10 Tru64 UNIX systems include pre-installed software (V5.1B PK3/NHD7), Base license, Unlimited

User license, Server Extension license, Internet Express and Secure Web Server

AlphaStation DS10 Tru64 UNIX systems include pre-installed software (V5.1B PK3/NHD7), 2-user Base license

AlphaServer DS10 OpenVMS systems include pre-installed software (V7.3-2), Base license with System Manager

license and Enterprise Integration Server License Package for OpenVMS V3.0A.

AlphaStation DS10 OpenVMS systems include pre-installed software (V7.3-2), Base license, Concurrent Use 1-user

license, and NAS 150 Client license

Minimum OS support: Tru64 UNIX V4.0F or OpenVMS V7.1 -2

Service and Support

Protected by HP Services, including a three-year, on-site hardware warranty with next business day response.

Software warranty is a 90-day telephone advisory. Training, consulting, network integration, software support,

comprehensive system maintenance and guaranteed uptime services are also available for customers requiring

higher levels of service and support.

QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Standard Features

DA - 10908 North America — Version 29 — April 27, 2004

Page 4

Step 1 – Select system

AlphaServer/AlphaStation DS10 600-MHz systems require the

mandatory

selection of the following items:

One Storage Cage

(either Internal Storage Cage or Front Access Storage Cage)

and one system disk

If Internal Storage Cage is selected:

Mandatory selection of one IDE or one internal SCSI system disk drive

Mandatory selection of SCSI adapter and SCSI cable kit required for internal SCSI disks and tape

If Front Access Storage Cage is selected:

Mandatory selection of one Universal SCSI system disk drive

Mandatory selection of SCSI adapter is required for Front Access Storage Cage (cable is included)

Front Access Storage Cage based system is SCSI only. (IDE drives cannot be used.)

Country-specific power cord

Software media and documentation for first system on site

Rackmount kit for rackmount systems (See Step 5 – M-Series Cabinet Enclosures)

Minimum OS support: Tru64 UNIX V4.0F or OpenVMS V7.1-2

NOTE:

Country-specific keyboard and mouse are recommended. See Step 11.

AlphaServer DS10 600-MHz Base Systems

CPU

Memory

PCI

2-10/100t Ports

Hard Drive

Storage Cage

Order Number

Tru64 UNIX

600 MHz

512 MB

Onboard

Mandatory Mandatory

DA-74BAA-EA

Tru64 UNIX

600 MHz

1 GB

Onboard

Mandatory Mandatory

DA-74BAA-FA

OpenVMS

600 MHz

512 MB

Onboard

Mandatory Mandatory

DY-74BAA-EA

OpenVMS

600 MHz

1 GB

Onboard

Mandatory Mandatory

DY-74BAA-FA

Linux-Ready

600 MHz

512 MB

Onboard

Mandatory Mandatory

DJ-74BAA-EA

Linux-Ready

600 MHz

1 GB

Onboard

Mandatory Mandatory

DJ-74BAA-FA

AlphaStation DS10 600-MHz Base Systems

CPU

Memory

PCI

2-10/100t Ports

Hard Drive

Storage Cage

Order Number

Tru64 UNIX

600 MHz

512 MB

Onboard

Mandatory Mandatory

DA-74BAA-EW

Tru64 UNIX

600 MHz

1 GB

Onboard

Mandatory Mandatory

DA-74BAA-FW

OpenVMS

600 MHz

512 MB

Onboard

Mandatory Mandatory

DY-74BAA-EW

OpenVMS

600 MHz

1 GB

Onboard

Mandatory Mandatory

DY-74BAA-FW

Linux-Ready

600 MHz

512 MB

Onboard

Mandatory Mandatory

DJ-74BAA-EW

Linux-Ready

600 MHz

1 GB

Onboard

Mandatory Mandatory

DJ-74BAA-FW

QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Systems

DA - 10908 North America — Version 29 — April 27, 2004

Page 5

Step 2 – Select Mandatory Options (Storage Cage, System Disk, SCSI Controller, Power Cord)

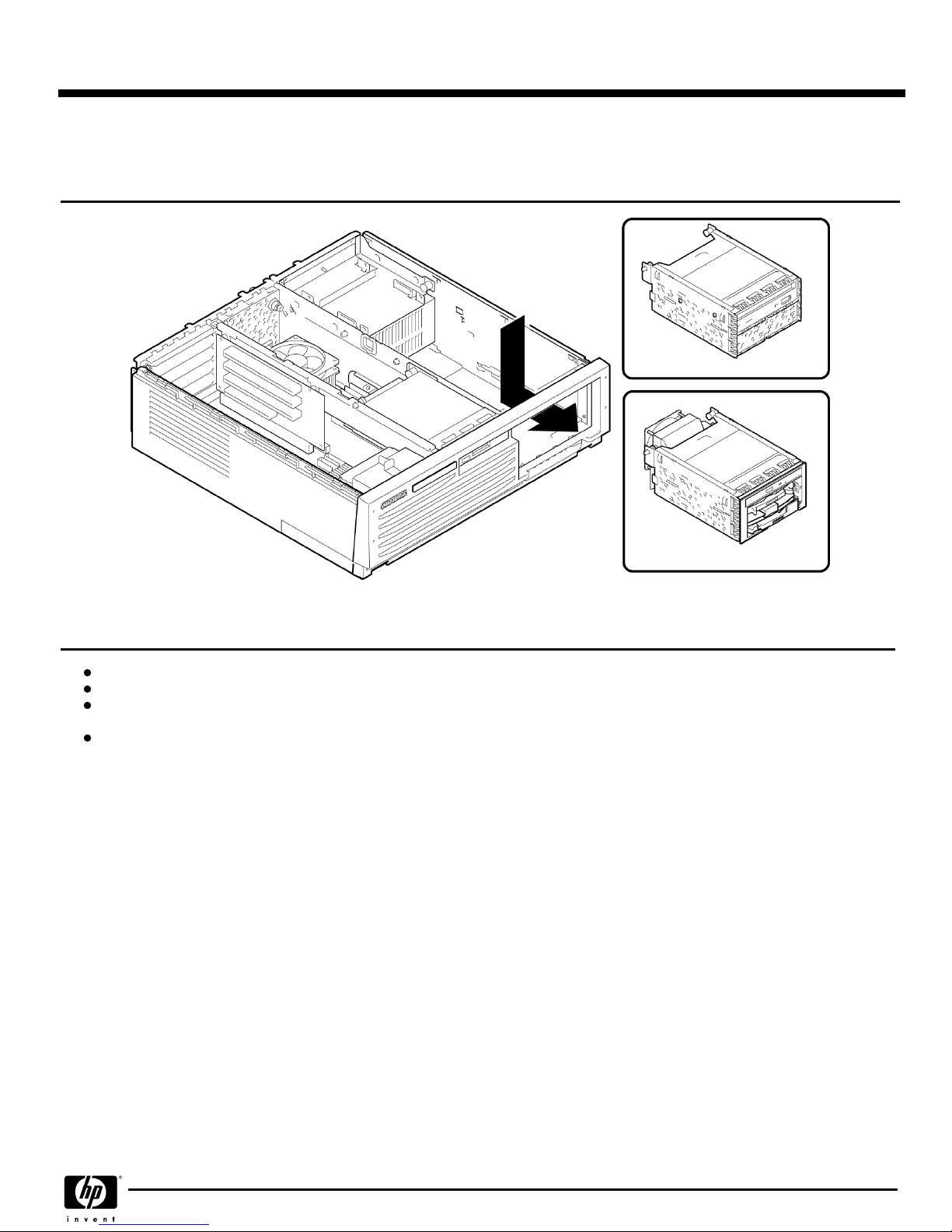

MR0051

Step 2a – Mandatory Selection of Storage Cage

DS10 Systems support

one

Storage Cage

Selection of one Storage Cage is

mandatory (no exceptions)

DS10 Internal Storage Cage: DS10 System with Internal Cage supports three storage devices:

- Either three internal hard disk drives or one 5.25-inch half height backup tape and two internal hard disk drives

DS10 Front Access Storage Cage: DS10 System with Front Access Cage supports up to four storage devices:

- Two Universal disk drives plus two internal disk drives, or

- One Front Access Universal Tape Drive (DAT) and two internal disk drives

3X-BA10A-AA

3X-BA10B-AA

QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Systems

DA - 10908 North America — Version 29 — April 27, 2004

Page 6

Step 2b – Internal Storage Cage - System Disk Drive -

Mandatory

Selection of one system disk drive is mandatory for the Internal Storage Cage (3X-BA10A-AA)

- Mandatory selection of one IDE or one internal SCSI system disk drive

- Mandatory selection of SCSI adapter and SCSI cable kit required for internal SCSI disks and tape

Floppy Disk Drive

Internal Drive Bay

CD-ROM

Internal Drive/Tape Bay

Internal Drive Bay

MR0052

DS10 Storage Configuration Rules with Selection of Internal Storage Cage:

DS10 Systems configured with the Internal Storage Cage include a 600-MB 48X half height CD-ROM and 1.44-MB diskette in

dedicated drive slots

DS10 Systems configured with the Internal Storage Cage include three internal storage bays (two in the Storage cage plus

one in the system box) that can be configured as follows:

Maximum of three internal disk drives (3.5-inch x 1-inch drives) or two internal disk drives

(3.5-inch x 1-inch) and one 5.25-inch half height removable media device

Mandatory selection of SCSI adapter and SCSI cable kit is required for internal SCSI disks or tapes

IDE Disk drive cable kits are included with the system

NOTE:

When a tape drive is ordered, it will be installed in the top slot (Slot 3) and the CD will be installed in

Slot 4.

Internal IDE Disk Drives

20 GB 7,200 rpm IDE (UDMA) drive

3X-RE58A-AA

40-GB 7,200 rpm IDE (UDMA) disk drive

3X-RE58A-BA

NOTE:

Requires minimum console firmware V5.9-6 or higher. Updates available at

http://ftp.digital.com/pub/Digital/Alpha/firmware

80-GB 7,200 rpm IDE (UDMA) disk drive

3X-RE58A-CA

NOTE:

Requires minimum console firmware V6.0 or higher. Updates available at

http://ftp.digital.com/pub/Digital/Alpha/firmware

QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Systems

DA - 10908 North America — Version 29 — April 27, 2004

Page 7

Internal SCSI Disk Drives

36.4-GB Ultra3 SCSI 10,000 rpm drive

DS-RZ3FD-WA

72.8-GB Ultra3 SCSI 10,000 rpm drive

DS-RZ3GA-WA

Internal Tape Drives

DAT 12/24-GB 4-mm 5.25-inch half-height SCSI tape drive, top gun blue; requires single-ended

UltraSCSI or Ultra2/Ultra3 adapter (3X-DEPVZ-AA, 3X-KZPCA-AA, 3X-KZPEA-DB, or KZPCM-

DA) and SCSI cable (SCSI adapter, SN-PBXKP-BA required)

TLZ10-LB

DAT 20/40-GB tape drive, LVD, carbon black (C5686B)

See Supported Options List --

http://www.compaq.com/alphaserver/options/asds10/asds10_options.html

-- for complete listing

of supported options and configuration details. See option specific QuickSpecs for complete list

of country specific SKUs.

3R-A4752-AA

DAT 36/72-GB 4-mm 5.25-inch half-height LVD SCSI tape drive, carbon black (Q1522A)

3R-A4544-AA

DS10 SCSI cable kit (with connections for three internal drives)

3X-BN51A-SE

NOTE:

The DS10 SCSI cable kit is included with the Front Access Storage Cage. The DS10 SCSI

cable kit is required for Internal Storage Cage systems with SCSI disks or tapes

DLT 40/80-GB VS 80 half-height tape drive (337699-B21)

3R-A5071-AA

QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Systems

DA - 10908 North America — Version 29 — April 27, 2004

Page 8

Step 2c – Front Access Storage Cage - System Disk or Tape Drive -

Mandatory

Floppy Disk Drive

Internal Drive Bay

CD-ROM

Compaq Universal Drive Bay

Internal Drive Bay

MR0053

Front Access Storage Cage System Disk Drive Selection

- Mandatory

Selection of one system disk drive is mandatory for each Front Access Storage Cage

Mandatory selection of SCSI adapter is required for Front Access Storage Cage

SCSI cable with connections to the four disk drives is included with the Front Access Storage Cage

DS10 Storage Configuration Rules with Selection of Front Access Storage Cage:

DS10 Systems configured with Front Access Storage Cage include a 600-MB 24X slim-line CD-ROM and 1.44-MB drive in

dedicated drive slots

DS10 Systems configured with the Front Access Storage Cage include four storage bays (two Universal SCSI disk drives

and two internal SCSI drives) which can be configured as follows:

- Maximum of two internal disk drives (3.5-inch x 1-inch drives) and two Universal disk drives

(3.5-inch x 1-inch) or one Front Access Universal tape drive (DAT) and two internal disk drives.

Mandatory selection of SCSI adapter for Front Access Cage Systems

SCSI cable included with Front Access Cage

NOTE:

IDE drives may not be used in Front Access Cage systems

Internal SCSI Disk Drives

(For Drives

Internal to System Enclosure)

36.4-GB Ultra3 SCSI 10,000 rpm drive

DS-RZ3FD-WA

72.8-GB Ultra3 SCSI 10,000 rpm drive

DS-RZ3GA-WA

QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Systems

DA - 10908 North America — Version 29 — April 27, 2004

Page 9

Universal Disk Drives

(For Front Access Storage

Cage)

18.2-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A3848-AA

36.4-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive

3R-A3838-AA

36.4-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A3849-AA

72.8-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive

3R-A3839-AA

72.8-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A3851-AA

146-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive

3R-A3841-AA

Optional Universal Tape

Drives

(For Front Access Storage

Cage)

DAT 20/40-GB Universal tape drive, LVD, uses two slots. (Q1546A)

See Supported Options List -

http://www.compaq.com/alphaserver/options/asds10/asds10_options.html

-- for complete listing

of supported options and configuration details. See option specific QuickSpecs for complete list

of country specific SKUs.

3R-A4745-AA

DAT 36/72-GB LVD Universal tape drive, carbon black; uses two slots in

3X-BA10B-AA or DS-SL13R-xx storage shelves (Q1529A)

3R-A4547-AA

Step 2d – Internal SCSI Adapters and Cable Kits

Front Access Storage Cage

- Mandatory selection of SCSI adapter is required for Front Access Storage Cage

- Front Access Storage Cage includes SCSI cable kit for connection to four disks

Internal Storage Cage

- Mandatory selection of SCSI adapter and SCSI cable kit are required for Standard Storage Cage systems with SCSI

disk or tapes

QuickSpecs

Compaq AlphaServer DS10

Compaq AlphaStation DS10

Systems

DA - 10908 North America — Version 29 — April 27, 2004

Page 10

Table des matières

Autres manuels HP Serveur

HP J class 3 Manuel

HP Cluster Platform Hardware Kits v2010 Manuel utilisateur

HP D7171A - NetServer - LPr Manuel utilisateur

HP ProLiant TM200 Manuel

HP D7171A - NetServer - LPr Manuel

HP Performance Optimized Datacenter 40c North... Manuel

HP Pavilion t100 - Desktop PC Manuel d'utilisation et d'entretien

HP LC2000r - NetServer - 128 MB RAM Manuel utilisateur

HP BL680c - ProLiant - G5 Manuel utilisateur

HP RDX REMOVABLE DL380 Instructions d'utilisation

HP ProLiant DL380e Gen8 Manuel

HP ProLiant DL585 Generation 2 Manuel utilisateur

HP ProLiant DL180 Gen9 Manuel utilisateur

HP BL685c - ProLiant - 4 GB RAM Manuel technique

HP ProLiant ML310e Manuel utilisateur

HP NetServer e 800 Manuel utilisateur

HP BL30p - ProLiant - 1 GB RAM Manuel utilisateur

HP D7171A - NetServer - LPr Manuel de référence

HP ProLiant DL180 Gen9 Manuel utilisateur

HP Compaq GT7720 Manuel d'utilisation et d'entretien

HP ProLiant xw25p Manuel utilisateur

HP ProLiant DL180 Generation 6 (G6) Instructions d'utilisation

HP ProLiant DL20 Gen10 Plus Manuel

HP ProLiant BL20p Generation 3 Manuel utilisateur

Manuels Serveur populaires d'autres marques

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur

Lenovo

Lenovo ThinkSystem SR635 V3 Manuel utilisateur

Dell

Dell PowerEdge HS5610 Manuel
