HP Cluster Platform Hardware Kits v2010 Manuel utilisateur

HP DL1000 Cable Management Kit

Installation Guide

HP Part Number: 580771-doc

Published: September 2009

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP

shall not be liable for technical or editorial errors or omissions contained herein.

InfiniBand™ is a trademark of the InfiniBand® Trade Association.

Table of Contents

1 Preparing for Installation................................................................................................6

1.1 Audience...........................................................................................................................................6

1.2 Documentation Resources.................................................................................................................6

1.3 Kit Description..................................................................................................................................6

1.4 Kit Contents.......................................................................................................................................6

1.5 Required Resources...........................................................................................................................7

1.6 Prerequisites......................................................................................................................................8

2 Installing the Cable Management Kit...........................................................................9

2.1 Installing the Cable Management Kit...............................................................................................9

2.2 Securing the InfiniBand Cables.........................................................................................................9

Table of Contents 3

List of Figures

1-1 Bracket Hardware...........................................................................................................................7

2-1 Installing the Cable Management Brackets.....................................................................................9

2-2 Securing an InfiniBand Cable Using a Velcro Strap......................................................................10

4 List of Figures

List of Tables

1-1 Fasteners (Supplied with Cabinet Mounting Hardware)...............................................................7

1 Preparing for Installation

1.1 Audience

This guide is intended for HP service representatives and other persons trained to install hardware

options in HP 10000 series racks. Such persons are expected to understand the hazards of working

in this environment and to take suitable precautions to minimize danger to themselves and

others.

1.2 Documentation Resources

You can download the documentation for components referenced in this installation guide from

the following locations:

• HP 10000 Series Rack (Documentation option):

http://h18004.www1.hp.com/products/servers/proliantstorage/racks

• HP Cluster Platform:

http://docs.hp.com/en/highperfcomp.html

1.3 Kit Description

The HP DL1000 series cable management kit described in this manual is designed to align and

support the InfiniBand cables that lead from the server to another InfiniBand switch in the rack

or to an adjacent rack. The kit provides strain relief for the cables connected to the individual

InfiniBand connector ports and ensures a good connection. It also ensures the correct bend radius

for the InfiniBand cable and provides channels for cable routing and cable management. One

cable management kit is required for each HP ProLiant DL4x170h G6 server.

NOTE: The cable management kit is designed to support 24 AWG (0.41 inch) diameter, 26 AWG

(0.37 inch) diameter, and 28 AWG (0.33 inch) diameter InfiniBand cables. Consult the

documentation supplied with your cluster before installing the brackets and routing the cables.

1.4 Kit Contents

Verify that the cable management bracket kit contains the following components:

• Packaging and documentation.

• Four 3.5-inch Velcro straps

• The bracket hardware shown in Figure 1-1.

6 Preparing for Installation

Figure 1-1 Bracket Hardware

• The fasteners that are specified in Table 1-1.

Table 1-1 Fasteners (Supplied with Cabinet Mounting Hardware)

DescriptionTorqueFormatSizeQty.

Cage nut for M6 screwN/ASquare nutM6 cage nuts4

Machine screw25-30

in/lb

PosidriveM6 x 16mm pan

head screws

Cage nut for 10-32 screwN/ASquare nut10-32 cage nuts4

Machine screw25-30

in/lb

Posidrive10-32 x 0.625

cap screws

To prevent screws from becoming loose because of vibration, HP recommends that you use

an adjustable torque drive, set to the torque specifications given in the table above. Contact

your HP sales representative if any parts are missing.

Note:

This cable management bracket might also be adaptable for other cable management solutions

(consult your hardware installation documentation).

1.5 Required Resources

To install the HP cable management kit, you require the following resources:

• Tools:

— Screwdriver, #2 (medium) Phillips

— Cage-nut insertion tool (shipped with the rack)

— Marker pen or masking tape

• Other resources: InfiniBand cables (not included in this kit)

1.5 Required Resources 7

1.6 Prerequisites

Before you begin to mount the bracket:

•Follow the usual cable-handling precautions for InfiniBand cables, see the HP Cluster Platform

InfiniBand Interconnect Installation and User's Guide.

•Ensure that you know how to plug in the InfiniBand cables, as described in the documentation

that came with your InfiniBand device.

• Obtain the set of cabling tables required for your HP Cluster Platform solution.

8 Preparing for Installation

2 Installing the Cable Management Kit

The location of the cable management kit depends on the rack position occupied by the server

chassis. Align each bracket with the InfiniBand connector ports on the server so that the bracket's

mounting flange is level with the InfiniBand ports.

2.1 Installing the Cable Management Kit

To install the cable management kit, follow these steps:

1. Identify and mark the two holes in the rack's rear mounting rails (callouts 1 and 3 in

Figure 2-1) and clip the 10-32 cage nuts (callout 4 in Figure 2-1) into the square holes.

2. Fasten the top and bottom brackets (callouts 2 and 6 in Figure 2-1) using the four 10-32

screws (callout 5 in Figure 2-1).

Figure 2-1 Installing the Cable Management Brackets

2.2 Securing the InfiniBand Cables

After installing the cable management brackets (callouts 1 and 2 in Figure 2-2) you must install

the Infiniband cables. Once the InfiniBand cables (callout 3 in Figure 2-2) are installed, you can

secure them to the cable management brackets using the 3.5-inch Velcro straps (see detailed view

in Figure 2-2).

2.1 Installing the Cable Management Kit 9

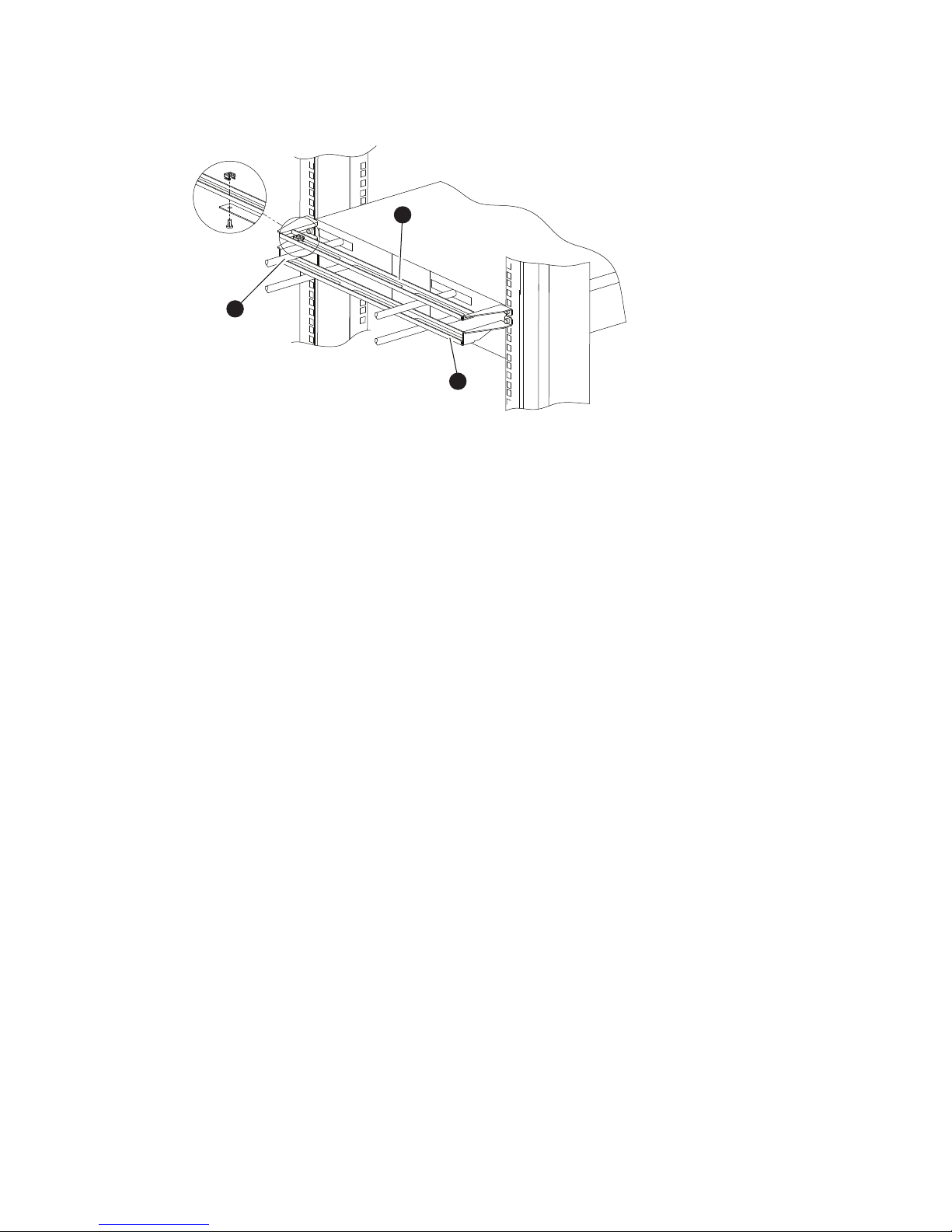

Figure 2-2 Securing an InfiniBand Cable Using a Velcro Strap

Properly installed, this cable management kit provides the necessary strain relief for the InfiniBand

connections and maintains a minimum 4-inch bend radius for the InfiniBand cables.

10 Installing the Cable Management Kit
