HP 2533t - Compaq Mobile Thin Client Manuel utilisateur

Getting Started

HP 2533t Mobile Thin Client

Document Part Number: 462939-001

May 2008

This guide explains how to set up your hardware and begin using

the computer in Windows® XPe.

462939-001.book Page i Thursday, March 20, 2008 9:03 AM

Windows is a U.S. registered trademark of Microsoft Corporation.

ENERGY STAR is a registered mark owned by the U.S. government. Intel

is a trademark of Intel Corporation in the U.S. and other countries. Java is a

U.S. trademark of Sun Microsystems, Inc.

The information contained herein is subject to change without notice. The

only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing

herein should be construed as constituting an additional warranty. HP shall

not be liable for technical or editorial errors or omissions contained herein.

Getting Started

HP 2533t Mobile Thin Client

First Edition: May 2008

Document Part Number: 462939-001

Product notice

This user guide describes features that are common to most models. Some

features may not be available on your computer.

462939-001.book Page ii Thursday, March 20, 2008 9:03 AM

Getting Started iii

Contents

Basic setup

Unpack the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Insert the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Connect the computer to external power. . . . . . . . . . . . . . . . . . . . . . 2

Open the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Turn on the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Enter your logon information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connect to a computer network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Begin managing your network (network administrators only) . . . . . 6

Quick tour

Identifying the hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Troubleshooting

Quick troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Product information

Safe operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Important display information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Regulatory, safety, and environmental notices . . . . . . . . . . . . . . . . 22

Operating environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Rated input power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

462939-001.book Page iii Thursday, March 20, 2008 9:03 AM

462939-001.book Page iv Thursday, March 20, 2008 9:03 AM

Getting Started 1

Basic setup

Your computer is designed for use in a business setting. The instructions provided

here are general guidelines. Contact your network administrator if you have

additional questions about your computer or your company network.

✎If you have already unpacked the box and set up your computer, go to step 6,

“Enter your logon information,” to begin using your computer.

✎Computer color, features, and options may vary by computer model.

1Unpack the box

Component Component

1Power cord* 3Battery*

2AC adapter

*Batteries and power cords vary in appearance by region and country.

462939-001.book Page 1 Thursday, March 20, 2008 9:03 AM

2Getting Started

Basic setup

ÅWARNING: To reduce potential safety issues, use only the AC adapter or battery

provided with the computer, a replacement AC adapter or battery provided by HP, or

a compatible AC adapter or battery purchased separately as an accessory from HP.

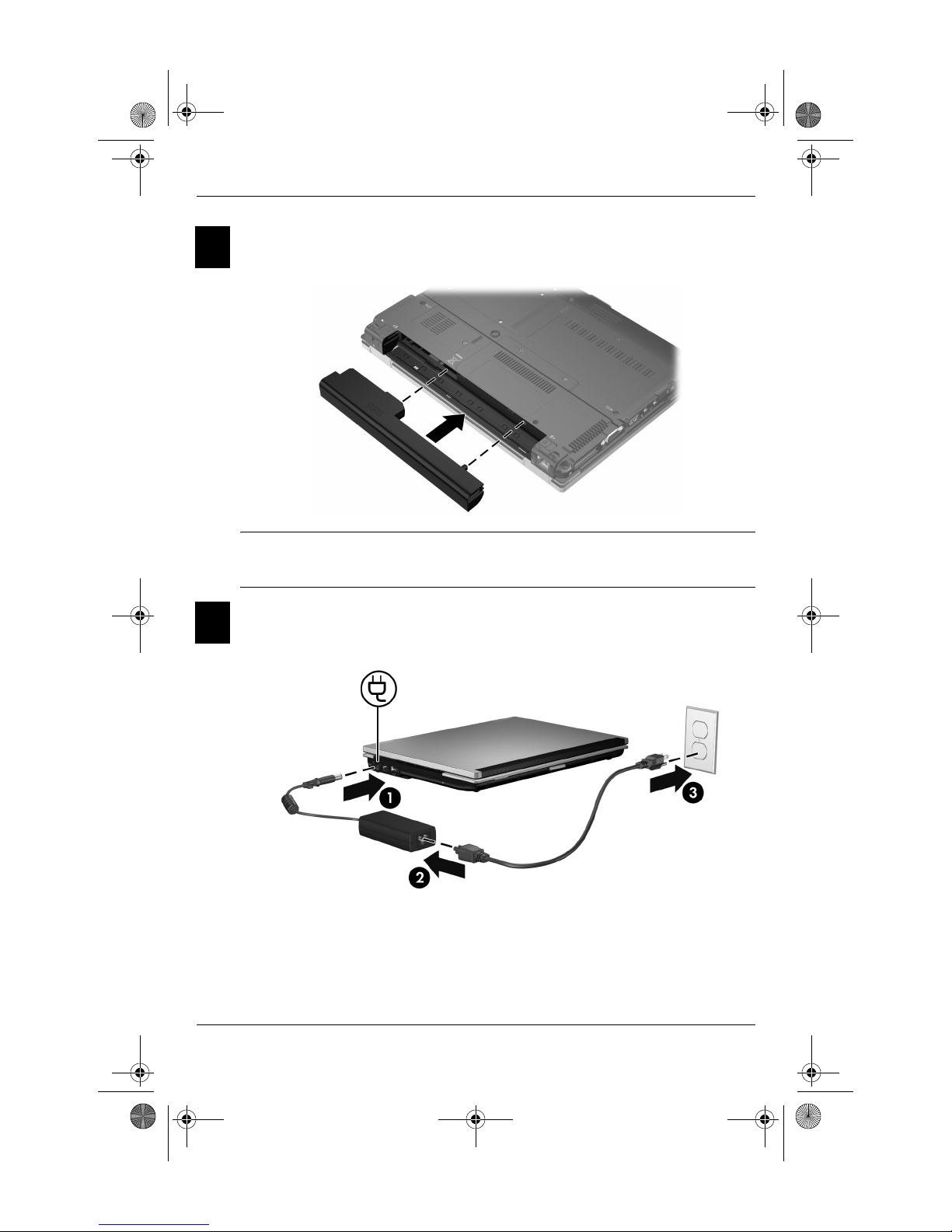

2Insert the battery

3Connect the computer to external power

462939-001.book Page 2 Thursday, March 20, 2008 9:03 AM

Basic setup

Getting Started 3

ÅWARNING: To reduce the risk of electric shock or damage to your equipment,

observe these practices:

■Plug the power cord into an AC outlet that is easily accessible at all times.

■Disconnect power from the computer by unplugging the power cord from the AC

outlet (not by unplugging the power cord from the computer).

■If provided with a 3-pin attachment plug on your power cord, plug the cord into

a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin,

for example, by attaching a 2-pin adapter. The grounding pin is an important

safety feature.

Leave the computer connected to external power until the battery is fully charged

and the battery light turns off.

4Open the computer

462939-001.book Page 3 Thursday, March 20, 2008 9:03 AM

4Getting Started

Basic setup

✎If the computer will not start up, plug the computer into AC power and be sure

that the power cord and AC adapter connections are secure.

To turn off the computer:

1. Save your work, and close all programs.

2. Click Start, click Turn Off Computer, and then click Turn Off.

If you have been registered to a network domain, the button you click will be called

Shut Down instead of Turn Off Computer.

End users will typically follow the manual logon steps. Consult your network

administrator for instructions.

✎For additional security, network administrators can use HP Logon Manager to

disable and reenable automatic logon and to change the automatic logon user

name, password, and domain. For details, refer to the HP Mobile Thin Client

reference guides on the Web.

5Turn on the computer

6Enter your logon information

462939-001.book Page 4 Thursday, March 20, 2008 9:03 AM

Basic setup

Getting Started 5

Automatic logon

The factory setting for the computer is automatic logon.

✎Only the network administrator can change automatic logon properties.

With automatic logon, the Log On to Windows dialog box is bypassed, which

brings you directly to the Windows desktop. So, to log on as a different user, follow

these steps:

1. Press and hold down the left Shift key, and then click Start.

2. Click Shut Down, and then click Log Off.

The Log On to Windows dialog box opens, allowing you to manually enter

the logon information.

Manual logon

If the automatic logon is disabled by the network administrator, log on as follows:

1. In the Log On to Windows dialog box, type your information in the User

Name and Password boxes.

❏For a user, the initial user name and password are both User.

❏For an administrator, the initial user name and password are both

Administrator.

2. Click OK.

Note the following considerations:

■To prevent unauthorized access to your information, change your password as

soon as possible after setup.

■Passwords are case sensitive, but user names are not.

Administrator logon

To access the administrator logon screen in either automatic or manual logon mode:

1. Hold down the left Shift key, and then click Start.

2. Click Shut Down, and then click Log Off.

The Administrator logon screen is displayed.

You can use the HP Logon Manager to permanently modify the default user mode.

For details, refer to the administrator’s guide on the Web.

462939-001.book Page 5 Thursday, March 20, 2008 9:03 AM

6Getting Started

Basic setup

The computer may have the following networking features:

■Modem

■Local area network (LAN)

■Wireless local area network (WLAN)

If you plan to connect the computer to a home office LAN or WLAN, refer to the

HP Mobile Thin Client reference guides on the Web for information on

networking. If you need assistance to connect to a company LAN or WLAN, or

information on remote access, contact your network administrator.

✎The computer display must be open, and the antennae free from obstruction,

before you can connect to a wireless network.

Your computer ships with a current release of Altiris Deployment Solution, a

leading-edge tool to assist you with quick deployment and on-going management

of computers in your organization. Altiris Deployment Solution provides the

capability of deploying new images by HP or created by you, updating drivers, and

managing patches. For more information on Altiris Deployment Solution, go to

http://www.Altiris.com/products/developmentsol.

To begin managing the computer, follow these steps:

1. Register the software at the Altiris registration Web site:

http://www.altiris.com/hptc

✎Links to the software, user guides, and online training are provided

when you register on the Altiris Web site.

2. Download the Deployment Solution console.

3. Follow the instructions in the Deployment Solution product guide from Altiris

to install and configure the Deployment Solution on a server:

http://www.altiris.com/support/documentation

7Connect to a computer network

8Begin managing your network

(network administrators only)

462939-001.book Page 6 Thursday, March 20, 2008 9:03 AM
