HP Designjet L65500 Manuel utilisateur

HP 104-in Dual Roll Kit

User’s guide

Company, L.P.

First edition

Legal notices

The information contained herein is subject

to change without notice.

The only warranties for HP Products and

services are set forth in the express

warranty statement accompanying such

products and services. Nothing herein

should be construed as constituting an

additional warranty. HP shall not be liable

for technical or editorial errors or omissions

contained herein.

Table of contents

1 Introduction ..................................................................................................................................................... 1

Purpose ................................................................................................................................................ 1

Main components ................................................................................................................................. 1

Requirements ....................................................................................................................................... 1

2 Use of the dual-roll spindle ............................................................................................................................ 2

Load rolls onto the spindle ................................................................................................................... 2

Load rolls into the printer ...................................................................................................................... 5

3 Troubleshooting ............................................................................................................................................ 10

4 Specifications ................................................................................................................................................ 11

Appendix A Changes to roll loading and unloading .................................................................................... 12

ENWW iii

iv ENWW

1Introduction

Purpose

The Dual Roll Kit enables you to print on two rolls of substrate simultaneously.

Main components

The Dual Roll Kit includes the following components.

●Two dual-roll spindles, each including one differential hub

●One pair of substrate edge holders

●One Allen key 4

●One Allen key 6

●Spindle supports on which to rest the spindle when it is not in use

Requirements

Before using the Dual Roll Kit with an HP Designjet L65500 printer, you must check that the printer's

firmware and HP Internal Print Server software are up to date.

Go to http://www.hp.com/ and click Support & Drivers > Download drivers and software (and

firmware), enter the product name L65500, click the name of your operating system, and download

the latest firmware and the latest Internal Print Server, if you do not already have them.

If the firmware and software versions on HP's Web site are still dated 2009, try the following FTP site.

FTP System ftp://ftp.usa.hp.com/ (15.192.32.78)

Password (case-sensitive) Milieux2

Access type read-only

FTP Access ftp://dualroll:[email protected]/

or ftp://dualroll:[email protected]/

ENWW Purpose 1

Introduction

2 Use of the dual-roll spindle

Load rolls onto the spindle

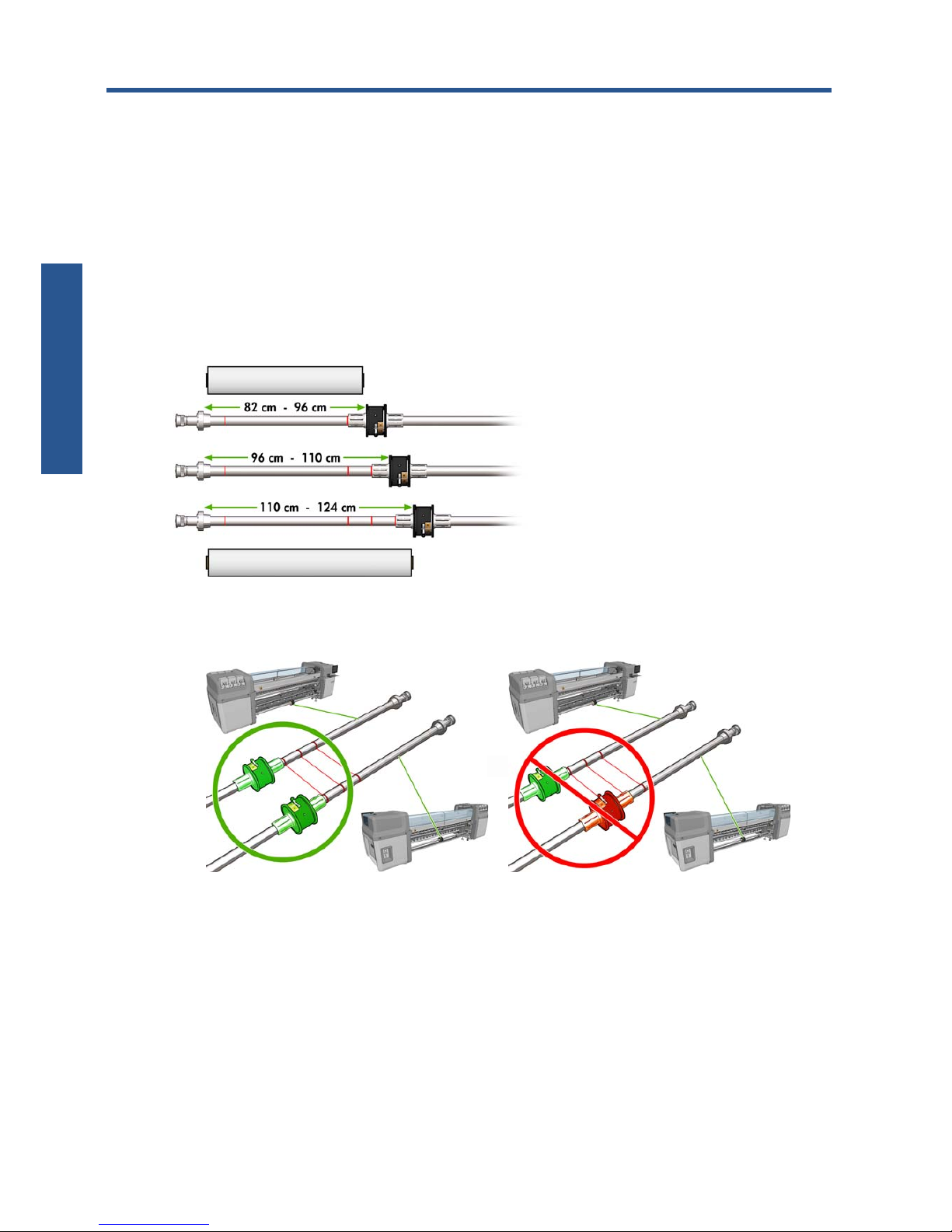

The dual-roll spindle is marked to assist you in positioning the differential hub.

Loading the dual-roll spindles

1. Ensure that the differential hubs on the input and output spindles are aligned with each other.

2 Chapter 2 Use of the dual-roll spindle ENWW

Dual-roll spindle

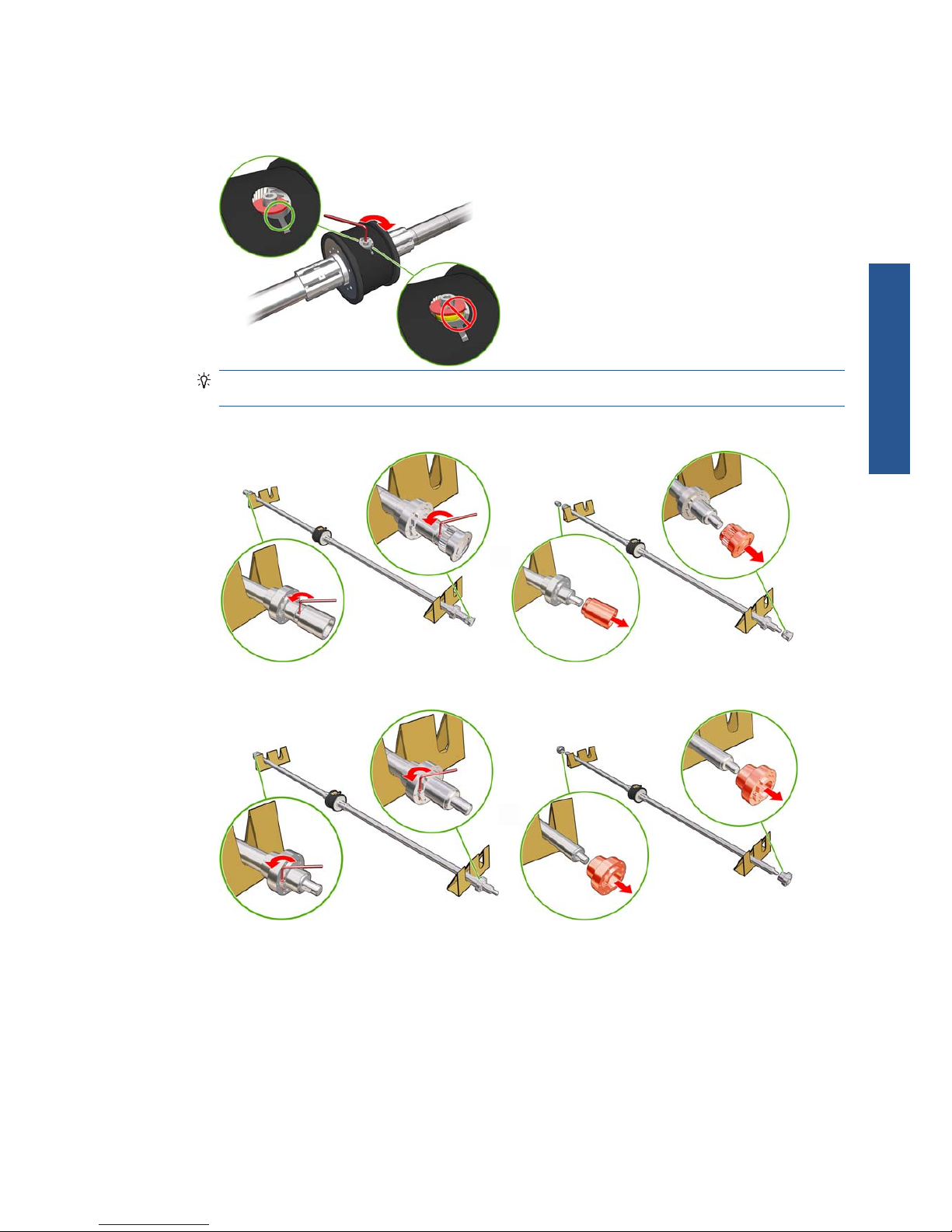

2. When both differential hubs are correctly positioned, use an Allen key 6 to tighten the screws

and secure them in place. If a differential hub is loose, the substrate could become skewed

during printing.

TIP: You should tighten the screw until the washer touches the bolt. If you can still see the

yellow spring, tighten the screw further.

3. At each end of the spindle, unscrew and remove the outer parts of the hub, using an Allen key 4.

4. Unscrew and remove the inner part of each hub.

ENWW Load rolls onto the spindle 3

Dual-roll spindle

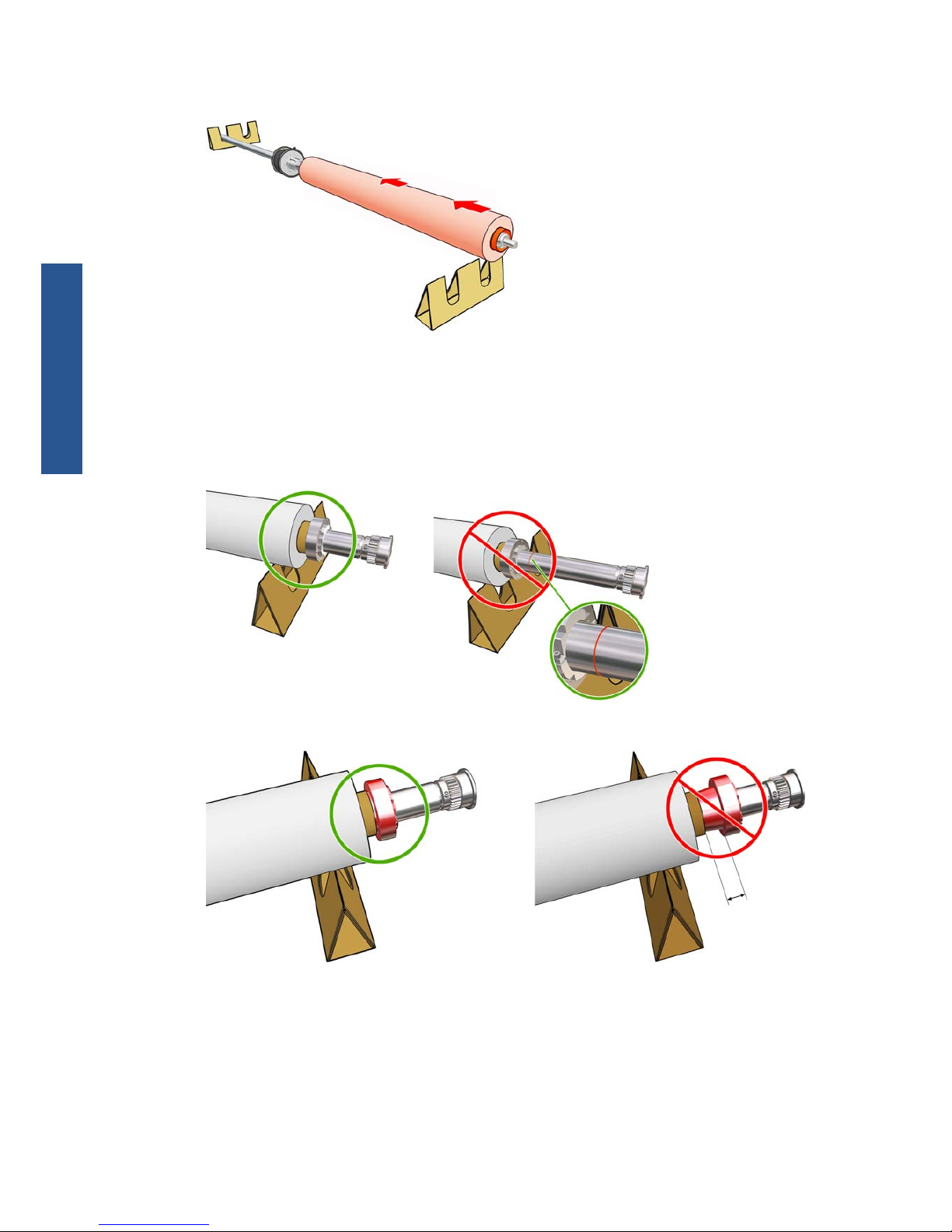

5. Insert the first roll on the spindle.

6. Replace the hub, and secure it with the Allen key.

7. Insert the second roll on the spindle.

8. Replace the hub, and secure it with the Allen key.

9. Ensure that the end of the right-hand roll is located within the maximum allowed distance from

the right-hand end of the spindle: it should be between the gear and the dashed line.

10. Ensure that the roll core fits tightly on the hub.

4 Chapter 2 Use of the dual-roll spindle ENWW

Dual-roll spindle

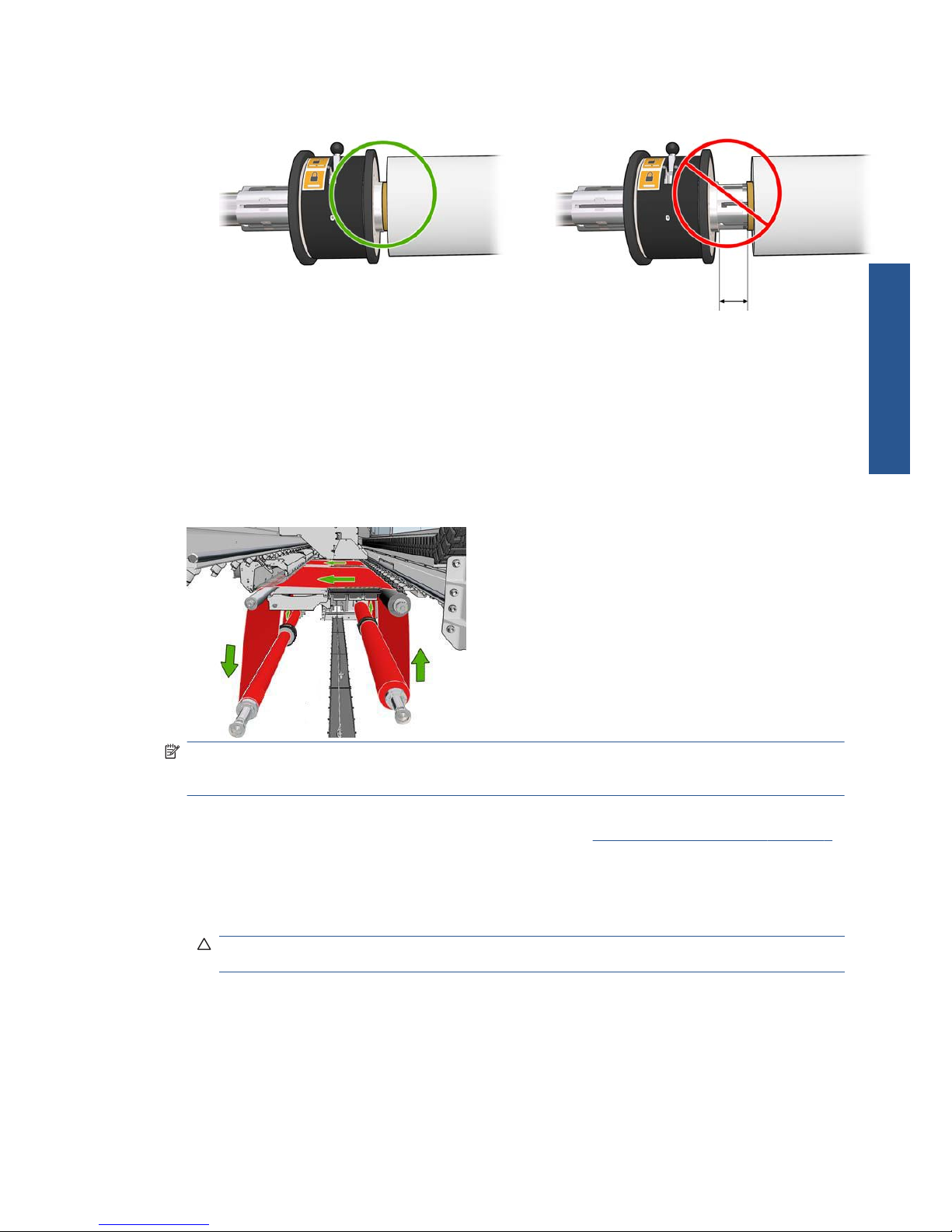

11. Ensure that the roll core fits tightly on the differential hub.

12. Load the spindle at the rear of the printer, and secure the spindle latches.

13. Use the same process to load the output spindle at the front of the printer, but load the spindle

with two empty cores to receive the printed substrate.

Load rolls into the printer

The two substrate rolls are mounted on the rear dual-roll spindle and will be collected on the front

dual-roll spindle. The substrate goes from the rear spindle over the main roller, over the platen, over

the front roller and then to the front spindle.

NOTE: You can load substrate with the printed face inwards or outwards on the spindle, in which

case the spindle will turn in the opposite direction. The printer asks you for the winding direction if it

cannot detect it automatically.

Before loading two rolls into the printer, you must have both rolls loaded on the rear dual-roll spindle

and two empty cores loaded on the front dual-roll spindle. See Load rolls onto the spindle on page 2.

1. Tell the printer that you are going to begin loading for dual-roll printing.

2. Remove the substrate edge holders in the print platen, or move them aside, so that they do not

get in the way while loading the substrate.

CAUTION: Loading the substrate on top of the edge holders could severely damage the

printheads and carriage.

3. Lift the substrate pressure handles at the rear of the printer.

ENWW Load rolls into the printer 5

Dual-roll spindle

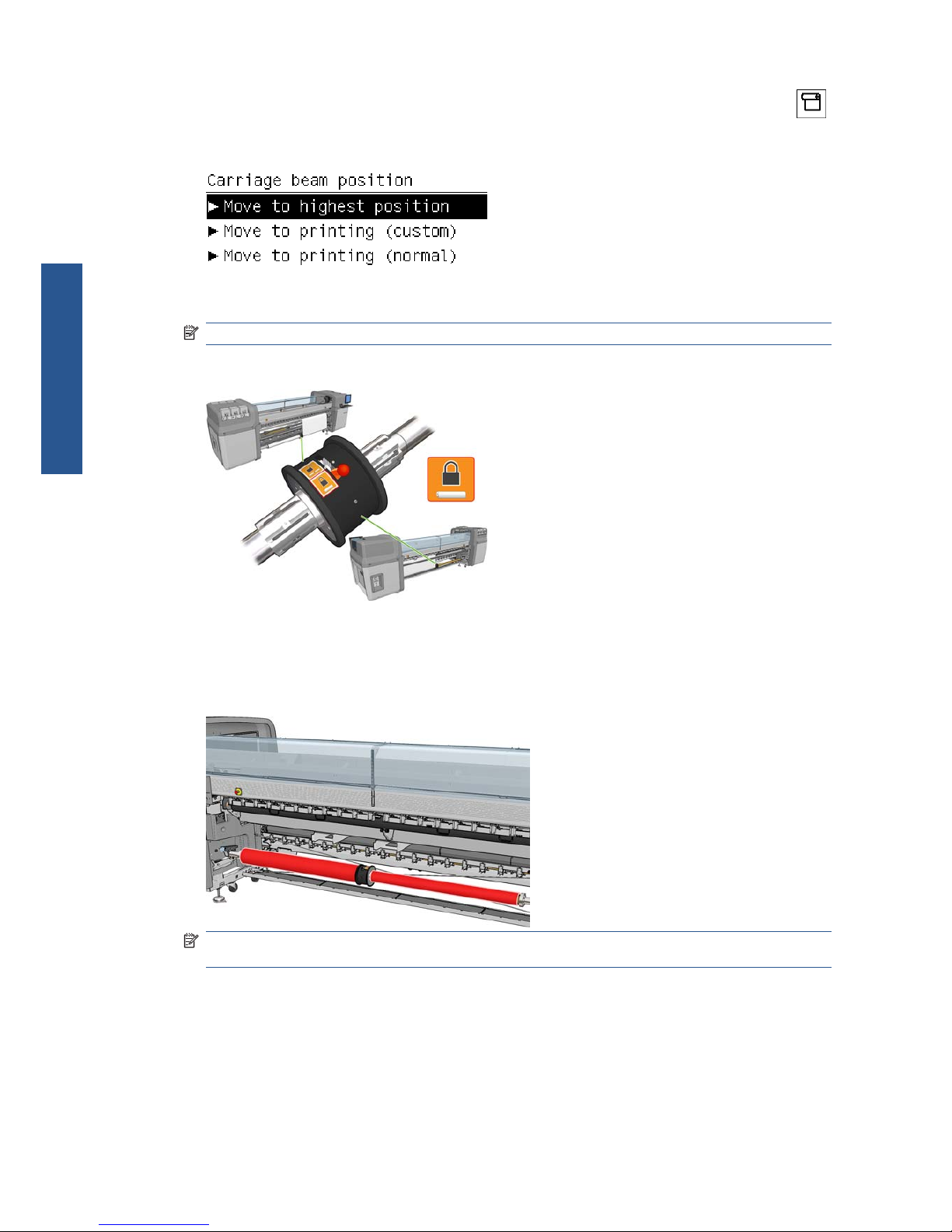

4. If you need to raise the carriage beam, go to the front panel and select the Substrate menu ,

then Substrate management, and press OK. Select Carriage beam position > Move to

highest position. This process takes about 2 minutes to complete.

The printer raises the carriage beam, making it easy to insert the substrate. This process takes

about 2 minutes to complete. During this period, you can load the input and output rolls.

NOTE: While the carriage beam is rising, you can stop it by pressing the Cancel key.

5. You may find it helpful to lock the differentials on the input and output spindles while loading.

6. Bring the new rolls on their spindle to the rear of the printer, with the geared end of the spindle

on the left.

7. If the two rolls are of unequal lengths, the longer roll should be on the right as seen from the

front of the printer; on the left as seen from the rear.

NOTE: When the shorter roll comes to an end, you should lock the differential hub if you intend

to continue printing on the longer roll.

8. Rest the ends of the spindle on the platforms provided at the rear of the printer; plastic pads are

provided to absorb the impacts.

6 Chapter 2 Use of the dual-roll spindle ENWW

Dual-roll spindle
