hp L1725 LCD Monitor

Notice

The information contained in the documents accompanying this

product is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to

this material, including, but not limited to, the implied warranties

of merchantability and fitness for a particular purpose.

HP shall not be liable for errors contained herein or for incidental

or consequential damages in connection with the furnishing,

performance, or use of this material.

HP assumes no responsibility for the use or reliability of its software

on equipment that is not furnished by HP.

These documents contain proprietary information that is protected

by copyright. All rights are reserved. No part of these documents

may be photocopied, reproduced, or translated to another language

without the prior written consent of HP.

Hewlett-Packard France

BusinessDesktops Division

Grenoble

Cedex 9

France

Hewlett-Packard is a registered trademark of Hewlett-Packard

Company in the United States of America and other countries. Other

brand or product names are trademarks of their respective holders.

2 English

l1725.fm Page 3 Friday, March 1,2002 :11 AM11

hp L1725 LCD Monitor

Important Safety Instructions

WARNING: The lightning flash with arrowhead symbol inside an

equilateral triangle is intended toalert the user to the

presence of uninsulated, dangerousvoltage which

may be of sufficient magnitude to constitute a risk of

electric shock.

WARNING: The exclamation point within an equilateral triangle

is intended toalert the userto the presence of

important operating and servicing instructions in the

literature accompanying the appliance.

WARNING: If you are unsure that you can lift the equipment

safely, do not try to move it without help.

Before you connect any cables or install the HP

monitor, refer to the above safety instructions. Also,

refer to the set up poster and the documentation

included with the PC and the video adapter to ensure

this equipment is correctly installed.

For your safety, always connect equipment to a

groundedwalloutlet. Always use a power cord with

a properly grounded plug, such as the one provided

with the equipment, or one in compliance with your

national safety standards. This equipment can be

disconnected from the powerby removing the power

cord from the power outlet. This means the

equipment must be located close to an easily

accessible power outlet.

WARNING: Use the monitor with the power adapter supplied

with your HP monitor only.

To avoid electrical shock, do not open the monitor

cover or the power adapter. There are no user-

English 3

l1725.fm Page 4 Friday, March 1,2002 :11 AM11

hp L1725 LCD Monitor

Important Safety Instructions

serviceable parts inside. Only qualified service

personnel should service these parts.

Make sure the computer is turned off before

connecting or disconnecting a display peripheral.

Working inComfort

To optimize your comfort and productivity, it’s important that you set

up yourwork area correctly and use your HP equipment properly.

With that in mind, we have developed some setup and use

recommendations based on established ergonomic principles for you

to follow.

These recommendations can be found in the online version of the

Working in Comfort guide, which is preloaded on the hard disk of

your HP computer. They can also befound on the HP Working in

Comfort Web site at www.hp.com/ergo along with other

information.

Before contacting customer services, please refer to the following HP

web sites:

www.hp.com/go/monitorsupport

www.hp.com/go/pcaccessories

4 English

l1725.fm Page 5 Friday, March 1,2002 :11 AM11

hp L1725 LCD Monitor

What the hp L1725 Monitor Offers

Full scan TFT screen that

gives edge-to-edge image

Right Browse/Contrast

Auto/Select

Anti-glare surface

On/Off

Status LED indicator

Left Browse/Brightness

Slim and space-saving

The HP L1725 monitor is a liquid crystal display (LCD) 17-inch, high

resolution, multi-synchronous color monitor. Multi-synchronous means

that the monitor can be used with a range of video modes. It is

optimized for use with all HP computers.

English 5

l1725.fm Page 6 Friday, March 1,2002 :11 AM11

hp L1725 LCD Monitor

Whatthe hp L1725 Monitor Offers

The HP L1725 monitor has the following features:

• A 17-inch LCD; thin film transistor (TFT) with an anti-glare, hard

coated surface

• Support of video modes up to 1280 x 1024 at a 75 Hz refresh

rate

• Analog/Digital interface: a VGA (analog) and a DVI-D (digital)

connector enables connection to up to two computers at the same

time.

• True color (16.7 million colors)

• Auto-adjustment of image position, clock,and phase for the VGA

interface

• An onscreen display (OSD) manager that allows you to adjust all

settings through onscreen menus.

• The monitor has VESA compliant mounting to allow for simple wall

or arm mounting (refer to “Removing yourmonitor’s pedestal” on

page 18).

• Power-management system (VESA1 standard) controlled from

suitably equipped HP computers to automatically reduce the

power consumption of the monitor

1.VESA is the Video Electronics Standards Association.

6 English

l1725.fm Page 7 Friday, March 1,2002 :11 AM11

hp L1725 LCD Monitor

What the hp L1725 Monitor Offers

NOTE: As an ENERGYSTAR partner, HP has determined that this

product meets ENERGY STARguidelines for energy

efficiency.

• Compliance with stringent Swedish Low Emissions guidelines

TCO '99

• Plug and Play capability (compliant with VESADDC standard,

version 3, revision 1 at level, DDC/2B, version 1) that enables the

monitor to identify itself to suitably equipped HP computers

• Slot for security lock

• Monitor base is designedto accommodate HP’s wireless satellite

accessory, to provide a wireless office solution

• Height adjustment facility

• Pivot enabled to provide portrait-landscape option

• 180o(+/-) screen swivel angle

• Monitor base designed to accommodate up to 4 USB accessories

(refer to “Connecting additional devices to your monitor” on page

17)

• Audio jacks

• Cable management system.

English 7

l1725.fm Page 8 Friday, March 1,2002 :11 AM11

hp L1725 LCD Monitor

Unpackingthe Monitor

Unpacking the Monitor

Check for the following items. If they are missing or damaged,

consult your retailer immediately.

• 1 liquid crystal display (LCD)

• 1 power cord

• 1 DC adapter with an attached DC cable

• 1 video cable (VGA)

• 2 audio cables

• 1 USB cable

• 1 Quick User’s Guide

• 1 warranty booklet

• 1 CD-ROM disc.

8 English

l1725.fm Page 9 Friday, March 1,2002 :11 AM11

hp L1725 LCD Monitor

Setting Up the Monitor

Where to place the monitor

Place the monitor on a flat, sturdy surface. Ensure that the operating

site is free from excessive heat and moisture. For best performance,

make sure nothing is resting on the monitor.

WARNING: Before you connect any cables or install the HP

monitor, refer to the safety instructions at the

beginning of this manual. Refer also to the

documentation that came with the computer to

ensure this equipment iscorrectly installed.

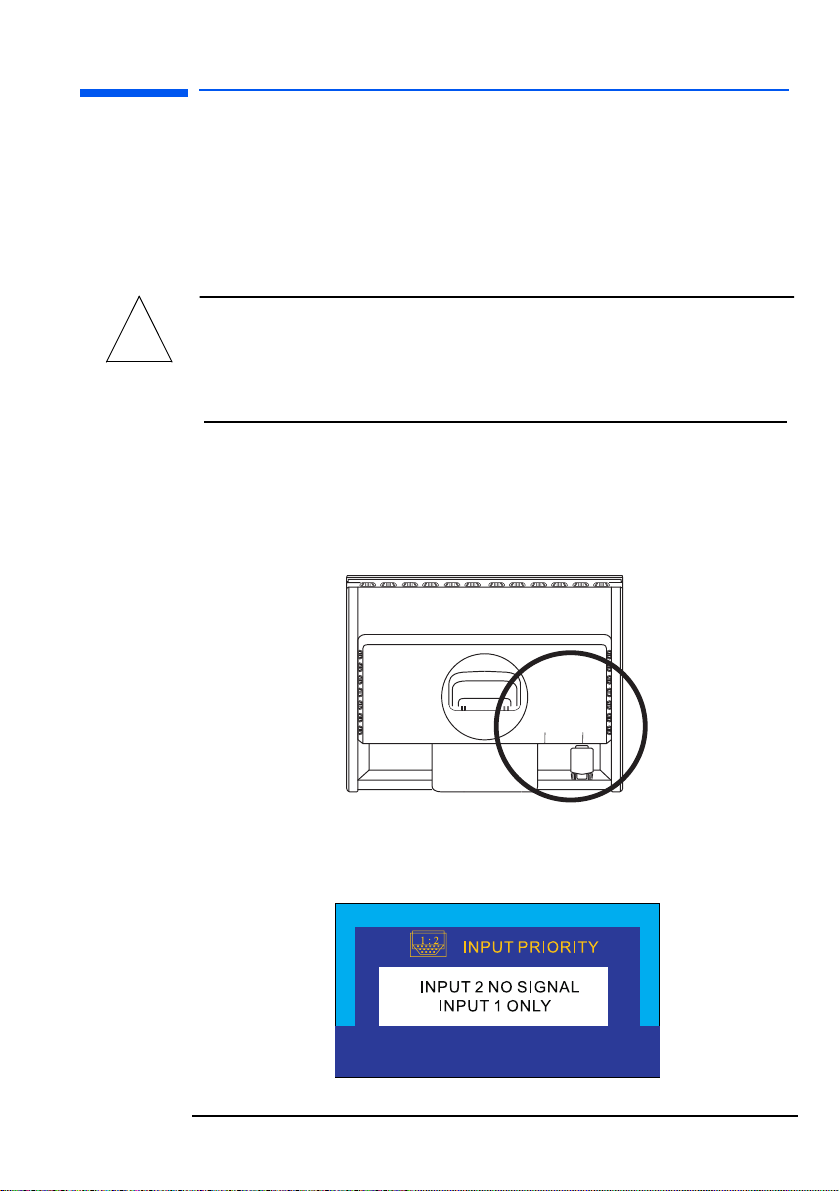

Connecting two computers to the monitor

The LCD monitor has two video signal connectors on the rear panel:

one analog (VGA) and one digital (DVI-D). This allows you to

connect the monitor to up to two computers at the same time.

DVI VGA

Video

connectors

When two computers are connected, you need to use the Input

Priority setting on the onscreen display (OSD) to specify which

monitor input has priority. See “InputPriority” on page 34.

English 9
