HP 64780A Manuel utilisateur

Installation/Service/Terminal Interface Guide

MC68360 Emulator/Analyzer

(HP 64780A)

Notice

Hewlett-Packard makes no warranty of any kind with regard to this material,

including, but not limited to, the implied warranties of merchantability and

fitness for a particular purpose. Hewlett-Packard shall not be liable for errors

contained herein or for incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its software

on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information, which is protected by copyright.

All rights are reserved. No part of this document may be photocopied, reproduced

or translated to another language without the prior written consent of

Hewlett-Packard Company. The information contained in this document is subject

to change without notice.

MS-DOS(R) is a U.S. registered trademark of Microsoft Corporation.

UNIX(R) is a registered trademark in the United States and other countries,

licensed exclusively through X/Open Company Limited.

Hewlett-Packard Company

P.O. Box 2197

1900 Garden of the Gods Road

Colorado Springs, CO 80901-2197, U.S.A.

RESTRICTED RIGHTS LEGEND. Use, duplication, or disclosure by the U.S.

Government is subject to restrictions set forth in subparagraph (C) (1) (ii) of the

Rights in Technical Data and Computer Software Clause at DFARS 252.227-7013.

Hewlett-Packard Company, 3000 Hanover Street, Palo Alto, CA 94304 U.S.A.

Rights for non-DOD U.S. Government Departments and Agencies are as set forth

in FAR 52.227-19(c)(1,2).

Printing History

New editions are complete revisions of the manual. Many product updates and

fixes do not require manual changes, and manual corrections may be done without

accompanying product changes. Therefore, do not expect a one-to-one

correspondence between product updates and manual revisions.

Edition 1

Edition 2 64780-97000, December 1993

64780-97001, March 1996

Edition 3 64780-97002, September 1996

Safety and Certification and Warranty

Safety information, and certification and warranty information can be found at the

end of this manual on the pages before the back cover.

iii

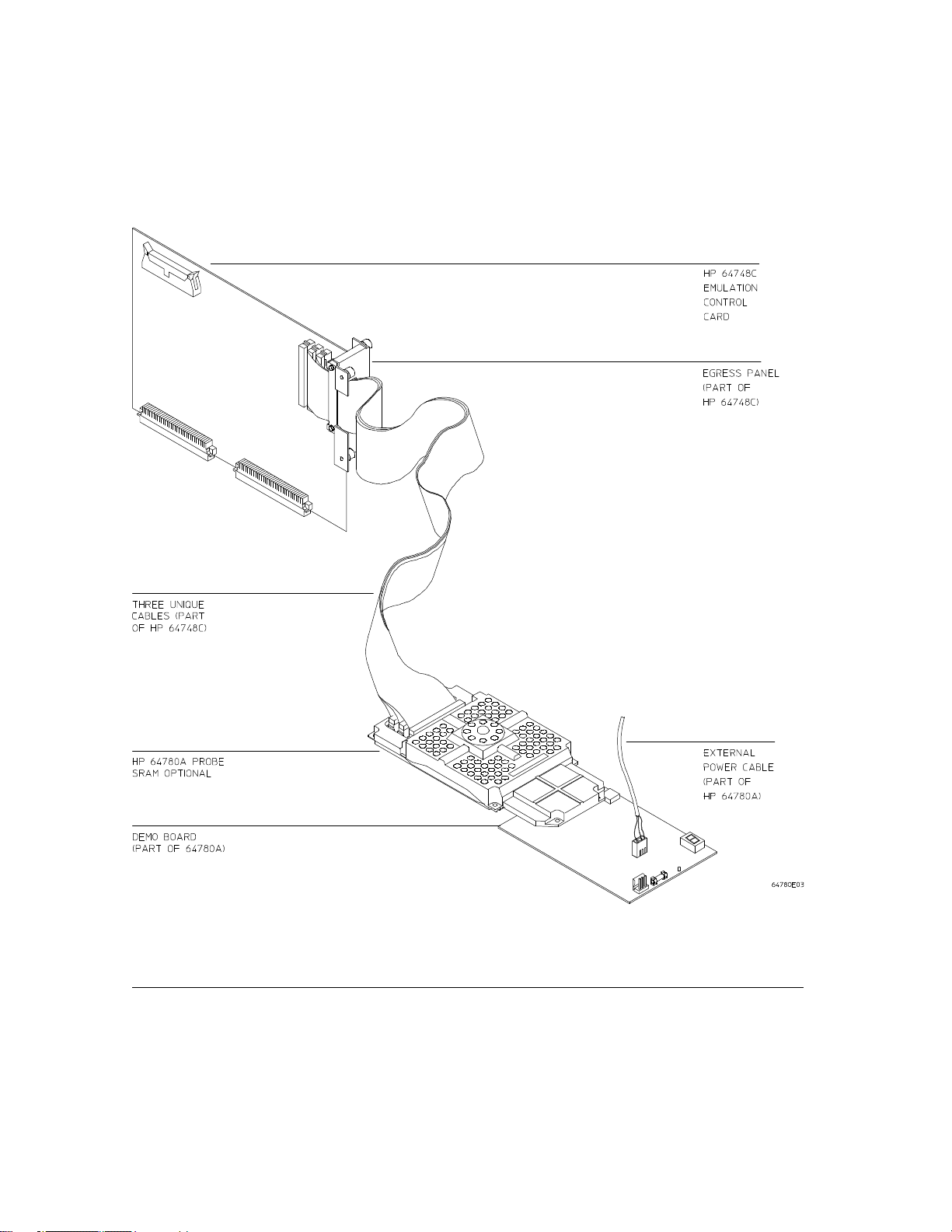

The HP 64780A Emulator

Description

The HP 64780A emulator supports the Motorola 68360 and 68EN360

microprocessor operating at clock speeds up to 33 MHz. The emulator supports

both 5V and 3.3V operation. The emulator plugs directly into a PGA socket, and it

can be plugged into a PQFP target system using optional accessories.

In this manual, the emulator is referred to by Model Number 64780A, and the

Motorola microprocessor is referred to by MC68360.

The emulator plugs into the modular HP 64700 instrumentation card cage and

offers 80 channels of processor bus analysis with the HP 64794A or HP 64704A

emulation-bus analyzer. Up to eight megabytes of emulation memory may be

installed on the probe. High performance download is achieved through the use of

a LAN (standard in the HP 64700B; optional in HP 64700A) or RS-422 interface.

An RS-232 port and a firmware-resident interface allow debugging of a target

system at remote locations.

For software development, the HP AxCASE environment is available on SUN

SPARCsystems and on HP workstations. This environment includes an ANSI

standard C compiler, assembler/linker, a debugger, the HP Software Performance

Analyzer that allows you to optimize your product software, and the HP Branch

Validator for test suite verification. The C compiler, assembler/linker, and

debugger are also available for MS-DOS systems.

Language support is also available from several third-party vendors. This capability

is provided through the HP 64700’s ability to consume several industry standard

output file formats.

Ada language support is provided on HP 9000 workstations by third-party vendors

such as Alsys and Verdix. An Ada application developer can use the HP emulator

and any compiler that generates HP/MRI IEEE-695 to do exhaustive, real-time

debugging in-circuit or out-of-circuit.

Motorola’s initial release of the MC68360 was "Revision A1". HP used that

original version in its first emulator shipments. Since that time, Motorola has

released follow-on versions "B1," "B2," "C," and "MC68MH360". Each

subsequent version fixed errata from the previous version. HP is currently using

33-MHz Revision C in its HP 64780A emulator.

Motorola continues to ship prior revisions of the MC68360, and the MC68MH360.

If you would like to use one of the non-Revision C parts in your HP 64780A

emulator, HP offers an upgrade kit. Contact your local HP field engineer for

ordering information.

Along with the upgrade kit, you will have to supply your own non-Revision C part

(order separately). You will install your non-Revision C part in the processor

socket on the emulator probe by following instructions supplied with the upgrade

kit.

Features

HP 64780A Emulator

•33 MHz active probe emulator

•5V and 3.3V operation

•No wait states required to access target memory for processor speeds up to

33 MHz

•Fast termination cycles to target memory up to 33 MHz

•Unlimited software breakpoints

•Symbolic support

•36 inch cable and 219 mm (8.8") x 102 mm (4") probe, terminating in PGA

package

•Background and foreground monitors

•Simulated I/O with workstation interfaces

•Consumes IEEE-695, HP-OMF, Motorola S-Records, and Extended Tek Hex

File formats directly. (Symbols are available with IEEE-695 and HP-OMF

formats.)

•Multiprocessor emulation

–synchronous start of 32 emulation sessions

–cross triggerable from another emulator, logic analyzer, or oscilloscope

•Demo board and self test module included

Emulation-bus analyzer

•80-channel emulation-bus analyzer

•Post-processed dequeued trace with symbols

•Eight events, each consisting of address, status, and data comparators

•Events may be sequenced eight levels deep and can be used for complex

trigger qualification and selective store

Emulation memory

•Up to 8 Mbytes of emulation memory

•All emulation memory is dual-ported

•Mapping resolution is 256 bytes

•No wait states required to access emulation memory for processor speeds up to

33 MHz when using 20ns SIMM memories, and

25 MHz when using 25 ns SIMM memories

(1 wait state required above 25 MHz with 25 ns SIMMs)

•Fast termination cycles to emulation memory supported up to 10 MHz

vii

In This Book

This manual covers the HP 64780A emulator for the MC68360 microprocessor. It

is divided into the following parts:

Part 1, “Installation,” shows you how to install and connect all of the

emulator/analyzer hardware in the card cage, connect the card cage to a host

computer in several typical configurations, and connect the emulator probe into the

demo board and into your target system.

Part 2, “Service,” shows you how to install and update emulator/analyzer firmware,

solve problems you may encounter while using the emulator/analyzer, and obtain

replacement parts for the emulator/analyzer from Hewlett-Packard.

Part 3, “Terminal Interface Reference,” introduces the interfaces available to use

with the emulator/analyzer, and shows you how to use the terminal interface for the

emulator/analyzer.

This manual replaces the Terminal Interface Reference which accompanied earlier

HP emulators. For information on the Terminal Interface, see Part 3.

You should read the book Concepts of Emulation and Analysis when you have the

chance to do so; it contains a good conceptual introduction to the emulation

process, and also describes how an emulation monitor works. Another book, the

HP 64700 Card Cage Installation/Service Guide, tells you more about installation

and configuration of the HP 64700 Card Cage. If you have a problem with the

emulator and don’t understand how to fix it, a listing of HP Sales and Service

offices is in the Support Services Guide in the back of this binder.

viii

Contents

Part 1 Installation Guide

1 Preparing the Emulator

Preparing the Emulator 4

What you need 5

Antistatic precautions 6

Step 1. Install optional memory modules on Deep Analyzer card (if using the deep

analyzer) 7

Step 2. Connect the Emulator Probe Cables 9

Step 3. Install Boards into the HP 64700 Card Cage 11

Step 4. Install emulation memory modules and system clock modules on emulator

probe 24

Step 5. Connect the power cord 30

2 Connecting to a Host Computer

Step 1: Choose a system configuration 34

Step 2: Connect the LAN cable 34

Step 3: Install host software 35

Step 4: Configure the LAN parameters 36

To configure LAN parameters using "ipconfig700" 37

To configure LAN parameters using the terminal interface 40

If "telnet" does not access the emulator 43

3 Connecting to the Demo Board

Installation 46

Step 1. Connect the emulator probe to the demo target system 47

Step 2. Apply power to the HP 64700 49

Step 3. Verify the performance of the emulator 50

4 Connecting the Emulator to a Target System

Plugging The Emulator Into A Target System 52

Understanding an emulator 52

Target system design 52

Buffering and AC specifications 53

DC specifications 53

Clocks 53

Target power 54

Equivalent circuits 55

Connecting the emulator to the target system 58

Verifying Operation Of The Emulator In Your Target System 59

Additional equipment 59

Probing 59

Selecting a clock module 60

Clock module information 61

Clock module circuits 63

If you have problems working with a target oscillator 64

If you have problems working with a target crystal 64

If a different clock frequency is required 65

Running the emulator configured like the processor 67

To verify operation of the target system 69

Interpreting the trace list 75

Fixing timing problems 77

Installing the emulator in a target system without known good software 78

Contents
