HP Compaq nc2400 Manuel utilisateur

Memory Modules

User Guide

© Copyright 2006 Hewlett-Packard

Development Company, L.P.

The information contained herein is subject

to change without notice. The only

warranties for HP products and services are

set forth in the express warranty statements

accompanying such products and services.

Nothing herein should be construed as

constituting an additional warranty. HP shall

not be liable for technical or editorial errors

or omissions contained herein.

First Edition: March 2006

Document Part Number: 406621-001

Table of contents

1 Replacing the memory module

2 Effects of increasing memory

Index ..................................................................................................................................................................... 9

ENWW iii

iv ENWW

1 Replacing the memory module

The computer has one memory module compartment, which is located on the bottom of the computer.

The memory capacity of the computer can be upgraded by upgrading the existing memory module in

the memory module slot.

WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the

power cord and remove all battery packs before installing a memory module.

CAUTION Electrostatic discharge (ESD) can damage electronic components. Before

beginning any procedure, ensure that you are discharged of static electricity by touching a

grounded metal object.

To replace a memory module:

1. Save your work.

2. Shut down the computer and close the display.

If you are not sure whether the computer is off or in hibernation, turn the computer on by pressing

the power button. Then shut down the computer through the operating system.

3. Disconnect all external devices connected to the computer.

4. Unplug the power cord from the AC outlet.

5. Turn the computer upside down on a flat surface.

6. Remove the battery pack from the computer.

7. Loosen the memory module compartment cover screw (1).

ENWW 1

8. Lift the memory module compartment cover (2) away from the computer.

9. Remove the memory module:

a. Pull away the retention clips (1) on each side of the memory module .

The memory module tilts up.

CAUTION To prevent damage to the memory module, hold the memory module by

the edges only. Do not touch the components on the memory module.

2 Chapter 1 Replacing the memory module ENWW

b. Grasp the edge of the memory module (2), and gently pull the module out of the memory

module slot.

To protect a memory module after removal, place it in an electrostatic-safe container.

10. Insert a new memory module:

a. Align the notched edge (1) of the memory module with the tab in the memory module slot.

CAUTION To prevent damage to the memory module, hold the memory module by

the edges only. Do not touch the components on the memory module.

b. With the memory module at a 45-degree angle from the surface of the memory module

compartment, press the module (2) into the memory module slot until it is seated.

ENWW 3

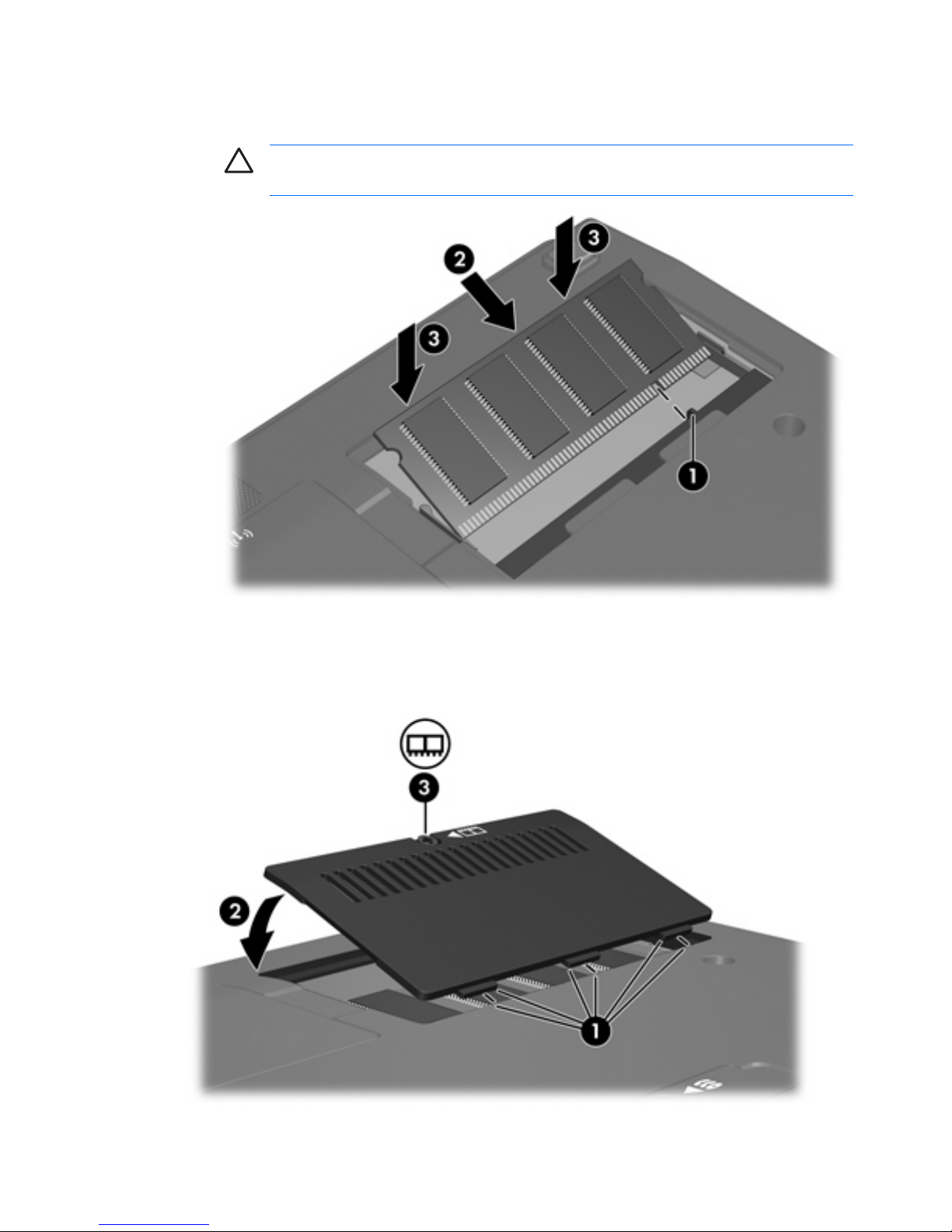

c. Gently press the memory module (3) down, applying pressure to both the left and right edges

of the memory module, until the retention clips snap into place.

CAUTION To prevent damage to the memory module, be sure that you do not bend

the memory module.

11. Align the tabs (1) on the memory module compartment cover with the notches on the computer.

12. Close the cover (2).

13. Tighten the memory module compartment cover screw (3).

4 Chapter 1 Replacing the memory module ENWW

14. Replace the battery pack.

15. Reconnect external power and external devices.

16. Turn on the computer.

ENWW 5

6 Chapter 1 Replacing the memory module ENWW
