HP Compaq Business nx9110 Manuel utilisateur

Modem and Networking

Compaq Notebook Series

Document Part Number: 267639-001

April 2002

This guide describes the modem and networking features on the

notebook and explains how to connect a modem cable and a

network cable. It also provides instructions for using the modem

when travelling internationally.

267639-001.book Page i Friday, January 18, 2002 8:31 AM

Compaq, the Compaq logo, Evo, and Presario are trademarks of Compaq

Information Technologies Group, L.P. in the U.S. and/or other countries.

Microsoft and Windows are trademarks of Microsoft Corporation in the

U.S. and/or other countries.

All other product names mentioned herein may be trademarks of their

respective companies.

Compaq shall not be liable for technical or editorial errors or omissions

contained herein. The information is provided “as is” without warranty of

any kind and is subject to change without notice. The warranties for

Compaq products are set forth in the express limited warranty statements

accompanying such products. Nothing herein should be construed as

constituting an additional warranty.

Modem and Networking Guide

First Edition April 2002

Document Part Number: 267639-001

267639-001.book Page ii Friday, January 18, 2002 8:31 AM

Modem & Networking iii

Contents

1 Using an Internal Modem

Connecting the Modem Cable . . . . . . . . . . . . . . . . . . . . . 1–2

Using the RJ-11 Cable. . . . . . . . . . . . . . . . . . . . . . . . 1–2

Using a Country-Specific Modem Cable Adapter. . . 1–4

Adding New Locations When Travelling . . . . . . . . . 1–6

Solving Travel Connection Problems . . . . . . . . . . . . 1–7

Accessing Preinstalled Communication Software . . . . . 1–12

2 Connecting to a Network

Connecting a Network Cable . . . . . . . . . . . . . . . . . . . . . . 2–2

267639-001.book Page iii Friday, January 18, 2002 8:31 AM

Modem & Networking 1–1

Using an Internal Modem

Your notebook has an internal modem, an RJ-11 telephone jack,

preinstalled modem drivers, and a modem cable. The internal

modem:

■Supports applications running under Microsoft Windows 98,

Windows 2000 Professional, Windows XP Home, and

Windows XP Professional operating systems.

■Supports V.34 ITU (International Telecommunications

Union) analog modem recommendations for speeds up to

33.6 Kbps. Supports V.44 data compression algorithm.

■Supports V.90/V.92 ITU digital/analog modem pair

recommendations for speeds up to 56 Kbps.

The digital/analog modem pair rates allow faster downloads

only from compliant digital sources. Maximum achievable

download rates are currently unknown, may not reach

56 Kbps, and will vary with line conditions. Maximum

achievable upload rates are limited to 31.2 Kbps, may not

reach 31.2 Kbps, and will vary with line conditions.

■Uses a universal Direct Access Arrangement (DAA) that

supports multiple countries. An adapter may be required to

connect the modem to the standard telephone jack in some

countries.

■Does not support the modem pass-through connection

available on some optional port replicators.

267639-001.book Page 1 Friday, January 18, 2002 8:31 AM

1–2 Modem & Networking

Using an Internal Modem

Connecting the Modem Cable

Using the RJ-11 Cable

The modem cable may have noise suppression circuity that

prevents interference with TV and radio reception. The modem

cable must be connected to an analog telephone line.

ÄCAUTION: Jacks for digital PBX systems may resemble analog

telephone jacks, but are not compatible with the modem.

1. If the modem cable has noise suppression circuitry 1, orient

the circuitry end of the cable toward the computer.

2. Plug the cable into the RJ-11 telephone jack 2on the

notebook.

ÅWARNING: To reduce the risk of electrical shock, fire, or damage to

the equipment, do not plug a telephone cable into the RJ-45 jack.

267639-001.book Page 2 Friday, January 18, 2002 8:31 AM

Using an Internal Modem

Modem & Networking 1–3

3. Plug the modem cable into the RJ-11 telephone jack 3.

Connecting the modem using an RJ-11 jack

ÅWARNING: To reduce the risk of electrical shock, always ensure

that the modem line is disconnected from the telephone network

when opening the notebook’s enclosure.

267639-001.book Page 3 Friday, January 18, 2002 8:31 AM

1–4 Modem & Networking

Using an Internal Modem

Using a Country-Specific Modem Cable Adapter

Software for the internal modem supports multiple countries, but

telephone jacks vary by country. To use the modem and the RJ-11

cable outside the country in which you purchased the notebook,

you must obtain a country-specific modem adapter and define

your location in Dialing Properties.

To connect the modem to an analog telephone line that does not

have an RJ-11 telephone jack:

1. If the modem cable has noise suppression circuitry 1, orient

the circuitry end of the cable toward the notebook.

2. Plug the modem cable into the RJ-11 telephone jack 2on the

notebook.

3. Plug the country-specific modem adapter 3into the

telephone jack.

4. Plug the modem cable 4into the country-specific modem

adapter.

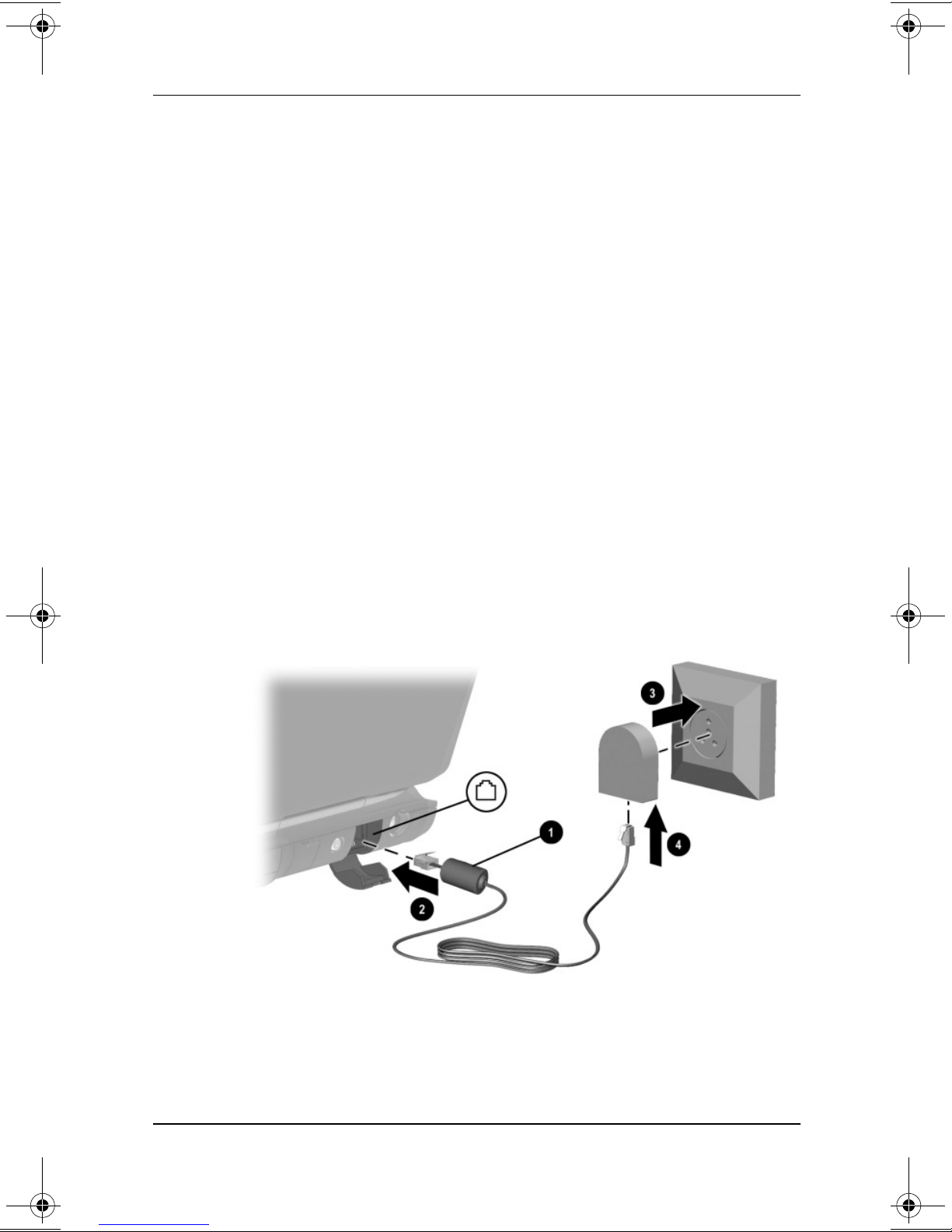

Connecting the modem using a country-specific modem

adapter

267639-001.book Page 4 Friday, January 18, 2002 8:31 AM

Using an Internal Modem

Modem & Networking 1–5

Viewing the Current Country Selection

To see the current country setting for your modem, follow

these steps:

Windows 98:

Select Start > Settings > Control Panel > Modems > Dialing

Properties. The current country selection appears in the

I Am In box.

Windows 2000 Professional:

1. Select Start > Settings > Control Panel.

2. Double-click the Regional Options icon.

3. Under Settings for the Current User, view the country that is

displayed under Your Locale.

Windows XP Home and XP Professional:

1. Select Start > Control Panel.

2. Double-click the Regional & Language Options icon.

3. Under Location, view your present location.

267639-001.book Page 5 Friday, January 18, 2002 8:31 AM

1–6 Modem & Networking

Using an Internal Modem

Adding New Locations When Travelling

The internal modem is configured to meet only the operating

standards in the country where you purchased the notebook.

When travelling internationally, you can add new location

configurations that comply with standards in other countries.

ÄCAUTION: Do not delete your current modem country settings. To

enable modem use in other countries while preserving your home

country configuration, add a new configuration for each location in

which you will use the modem.

The drop-down lists described below may include countries not

supported by the modem. Unless you select a supported country,

the country selection will default to USA or UK.

ÄCAUTION: Selecting a country other than the one in which it is

located may cause your modem to be configured in a way that

violates the telecommunications regulations/laws of that country.

In addition, your modem may not function properly if the correct

country selection is not made.

To add a new country location, follow these steps:

Windows 98:

1. Select Start > Settings > Control Panel.

2. Double-click the Modems icon > General tab > Select your

modem > Dialing Properties.

3. Assign the Location name (home, work, etc.).

4. Select the Country/Region from the drop-down list.

5. Click OK > OK.

Windows 2000 Professional:

1. Select Start > Settings > Control Panel.

2. Double-click the Phone and Modem Options icon >

Select New.

267639-001.book Page 6 Friday, January 18, 2002 8:31 AM

Using an Internal Modem

Modem & Networking 1–7

3. Assign the New Location Name (home, work, etc.).

4. Select the Country/Region from the drop-down list.

5. Click OK > OK.

Windows XP Home and XP Professional:

1. Select Start > Control Panel.

2. Double-click the Network and Internet Connections icon.

3. Select Phone and Modem Properties (menu in the left

column) > Dialing Rules tab.

4. Select the New button and assign it a name (home,

work, etc.).

5. Select the Country/Region from the drop-down list.

6. Click OK > OK.

Solving Travel Connection Problems

If you experience connection problems while using the modem

outside your home country, the following suggestions may help:

■Check the telephone line type

The modem requires an analog, not a digital, telephone line.

A line described as a PBX line is usually a digital line. A

telephone line described as a data line, fax machine line,

modem line, or standard telephone line, is probably an

analog line.

267639-001.book Page 7 Friday, January 18, 2002 8:31 AM
