HP 8730w - EliteBook Mobile Workstation Manuel utilisateur

Notebook Tour

User Guide

Development Company, L.P.

Bluetooth is a trademark owned by its

proprietor and used by Hewlett-Packard

Company under license. Java is a U.S.

trademark of Sun Microsystems, Inc. SD

Logo is a trademark of its proprietor.

Windows is a U.S. registered trademark of

Microsoft Corporation.

The information contained herein is subject

to change without notice. The only

warranties for HP products and services are

set forth in the express warranty statements

accompanying such products and services.

Nothing herein should be construed as

constituting an additional warranty. HP shall

not be liable for technical or editorial errors

or omissions contained herein.

First Edition: August 2008

Document Part Number: 485058-001

Product notice

This user guide describes features that are

common to most models. Some features

may not be available on your computer.

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a

hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft

surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact

the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the

AC adapter comply with the user-accessible surface temperature limits defined by the International

Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Identifying hardware

2 Components

Display .................................................................................................................................................. 2

Top components ................................................................................................................................... 3

Pointing devices ................................................................................................................... 3

Lights ................................................................................................................................... 4

Buttons, switches, and fingerprint reader ............................................................................ 6

Keys ..................................................................................................................................... 8

Front components ................................................................................................................................ 9

Rear components ............................................................................................................................... 11

Right-side components ....................................................................................................................... 12

Left-side components ......................................................................................................................... 13

Bottom components ........................................................................................................................... 14

Wireless antennae .............................................................................................................................. 15

Additional hardware components ....................................................................................................... 16

3 Labels

Index ................................................................................................................................................................... 19

1 Identifying hardware

To see a list of hardware installed in the computer, follow these steps:

1. Select Start >Computer >System properties.

2. In the left pane, click Device Manager.

You can also add hardware or modify device configurations using Device Manager.

NOTE: Windows® includes the User Account Control feature to improve the security of your computer.

You may be prompted for your permission or password for tasks such as installing software, running

utilities, or changing Windows settings. Refer to Help and support more information.

2 Components

Display

Component Description

(1) Internal display switch Turns off the display if the display is closed while the power is on.

(2) Internal microphones (2) Record sound.

(3) Webcam light On: The webcam is in use.

(4) Webcam Records audio and video and captures still photographs.

(5) Ambient light sensor Automatically adjusts the display brightness based on the lighting

conditions in your environment.

2 Chapter 2 Components

Top components

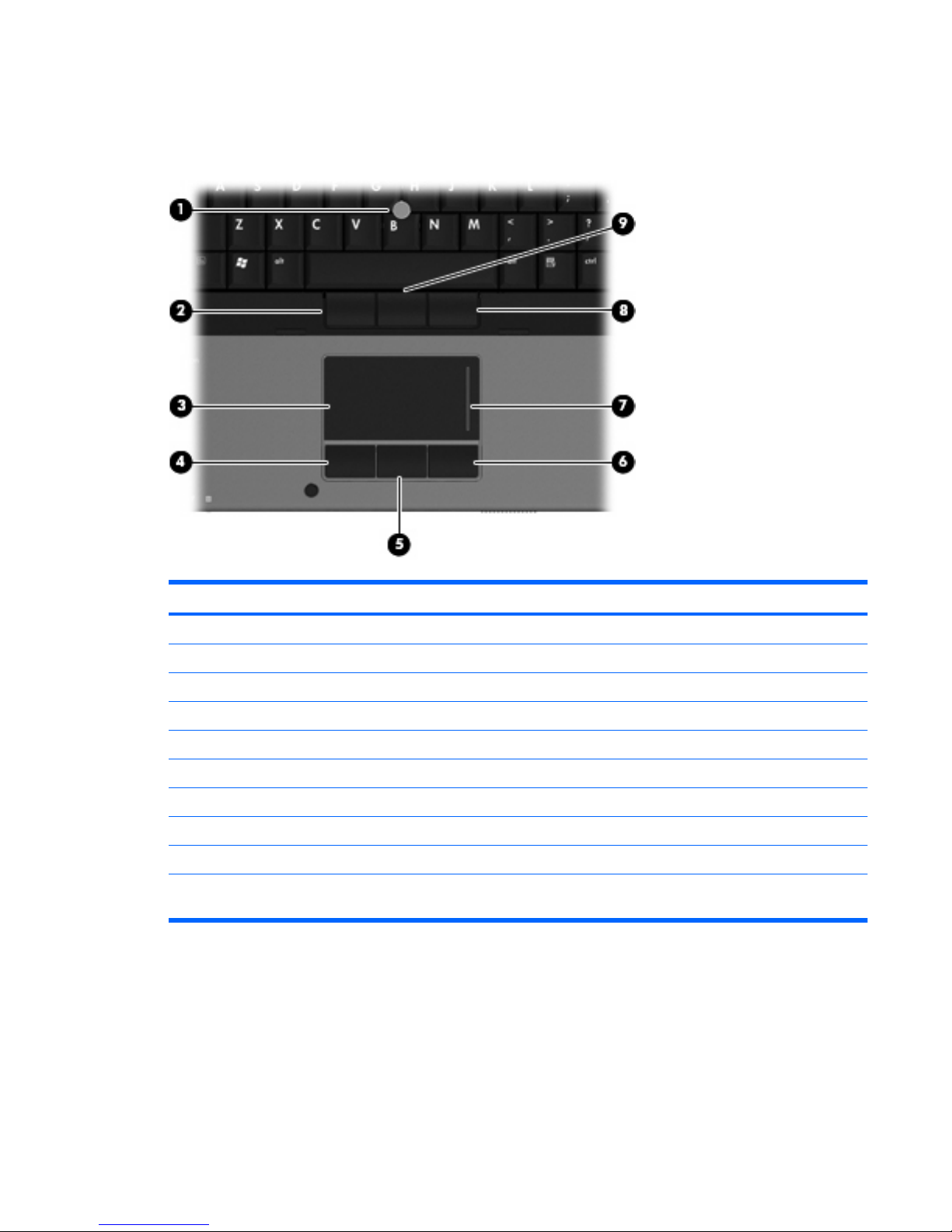

Pointing devices

Component Description

(1) Pointing stick* Moves the pointer and selects or activates items on the screen.

(2) Left pointing stick button* Functions like the left button on an external mouse.

(3) TouchPad* Moves the pointer and selects or activates items on the screen.

(4) Left TouchPad button* Functions like the left button on an external mouse.

(5) Center TouchPad button* Functions like the center button on an external mouse.

(6) Right TouchPad button* Functions like the right button on an external mouse.

(7) TouchPad scroll zone Scrolls up or down.

(8) Right pointing stick button* Functions like the right button on an external mouse.

(9) Center pointing stick button* Functions like the center button on an external mouse.

*This table describes factory settings. To view or change pointing device preferences, select Start >Control Panel >Hardware

and Sound >Mouse.

Top components 3

Lights

Component Description

(1) Power lights (2)* ●On: The computer is on.

●Blinking: The computer is in the Sleep state.

●Off: The computer is off or in Hibernation.

(2) Wireless lights (2)

†

●On: An integrated wireless device, such as a wireless local

area network (WLAN) device and/or a Bluetooth® device, is

on.

●Amber: All wireless devices are off.

(3) Caps lock light On: Caps lock is on.

(4) Num lock light On: Num lock is on.

(5) Volume mute light ●On: Computer sound is on.

●Amber: Computer sound is off.

(6) Volume down light Blinking: The volume scroll zone is being used to decrease speaker

volume.

(7) Volume up light Blinking: The volume scroll zone is being used to increase speaker

volume.

(8) Calculator light On: The Windows calculator function is on.

4 Chapter 2 Components
