HP Compaq tc1000 Manuel utilisateur

Reference Guide

Compaq Tablet PC TC1000

Docking Station

Document Part Number: 289315-001

November 2002

This guide provides information on docking and undocking

the tablet PC to the Tablet PC Docking Station, operating the

docking station with the tablet PC, and using the screen protector,

as well as tips on solving common problems.

289315-001.book Page i Friday, July 26, 2002 9:59 AM

Compaq and the Compaq logo are trademarks of Compaq Information

Technologies Group, L.P. in the U.S. and/or other countries. All other product

names mentioned herein may be trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions

contained herein. The information is provided “as is” without warranty of any

kind and is subject to change without notice. The warranties for Compaq

products are set forth in the express limited warranty statements accompanying

such products. Nothing herein should be construed as constituting an additional

warranty.

Reference Guide

Tablet PC TC1000 Docking Station

First Edition November 2002

Document Part Number: 289315-001

289315-001.book Page ii Friday, July 26, 2002 9:59 AM

Tablet PC TC1000 Docking Station Reference Guide iii

Contents

1 Getting Started

Contents of the Packing Box . . . . . . . . . . . . . . . . . . . . . . 1–1

Docking Station Components . . . . . . . . . . . . . . . . . . . . . 1–2

Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Right Side View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Left Side View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Tablet PC Components . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Keyboard Components. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

2 Docking and Undocking the Tablet PC

Connecting to a Power Source . . . . . . . . . . . . . . . . . . . . . 2–1

Docking the Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Undocking the Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

3 Using the Tablet PC Docking Station and

Screen Protector

Turning the System On and Off . . . . . . . . . . . . . . . . . . . . 3–1

Changing the Tablet PC Orientation . . . . . . . . . . . . . . . . 3–1

Changing the Orientation. . . . . . . . . . . . . . . . . . . . . . 3–2

Changing the Angle of the Tablet PC . . . . . . . . . . . . 3–4

Using MultiBay Devices . . . . . . . . . . . . . . . . . . . . . . . . . 3–5

Inserting and Removing Devices. . . . . . . . . . . . . . . . 3–6

Using External MultiBay Devices. . . . . . . . . . . . . . . 3–8

Using Security Features. . . . . . . . . . . . . . . . . . . . . . . 3–8

289315-001.book Page iii Friday, July 26, 2002 9:59 AM

iv Tablet PC TC1000 Docking Station Reference Guide

Contents

Connecting and Using External Devices . . . . . . . . . . . . 3–10

Connecting Standard External Devices . . . . . . . . . . 3–10

Connecting Monitors . . . . . . . . . . . . . . . . . . . . . . . . 3–11

Connecting USB Devices . . . . . . . . . . . . . . . . . . . . 3–11

Using Communications Devices . . . . . . . . . . . . . . . . . . 3–12

Attaching and Detaching the Screen Protector . . . . . . . 3–13

Attaching the Screen Protector to the

Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–13

Detaching the Screen Protector from the

Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

Attaching the Screen Protector to the

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–16

Detaching the Screen Protector from the

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–18

A Troubleshooting

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–1

Compaq Technical Support . . . . . . . . . . . . . . . . . . . . A–1

Compaq Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2

Compaq Authorized Reseller. . . . . . . . . . . . . . . . . . . A–2

Troubleshooting Problems, Causes and Solutions . . . . . . A–3

Docking Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3

Tablet PC Orientation Problems . . . . . . . . . . . . . . . . A–4

MultiBay Device Problems . . . . . . . . . . . . . . . . . . . . A–5

External Device Problems . . . . . . . . . . . . . . . . . . . . . A–5

B Specifications

Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

Rated Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–2

Finding More Environmental Information. . . . . . . . . . . . B–2

Index

289315-001.book Page iv Friday, July 26, 2002 9:59 AM

Tablet PC TC1000 Docking Station Reference Guide 1–1

Getting Started

Contents of the Packing Box

Before you begin, be sure that you have removed everything from

the packing box:

■Tablet PC Docking Station

■Screen protector

■AC adapter

■Warranty and service information

■Tablet PC Docking Station quick setup poster

■Documentation Library CD

289315-001.book Page 1 Friday, July 26, 2002 9:59 AM

1–2 Tablet PC TC1000 Docking Station Reference Guide

Getting Started

Docking Station Components

Front View

Front Components

Item Component Description

1Docking stand Holds the tablet PC when it is docked.

2Release handle Ejects the tablet PC from the docking stand.

3Docking connector Connects to the tablet PC.

4Docking eject pin Disconnects the tablet PC and docking

stand docking connectors when the release

handle is pulled.

5Docking restraint latch Secures the tablet PC to the docking stand.

6Docking alignment

brackets (2)

Fit into the tablet PC docking alignment slots

to align the tablet PC in the docking stand.

289315-001.book Page 2 Friday, July 26, 2002 9:59 AM

Getting Started

Tablet PC TC1000 Docking Station Reference Guide 1–3

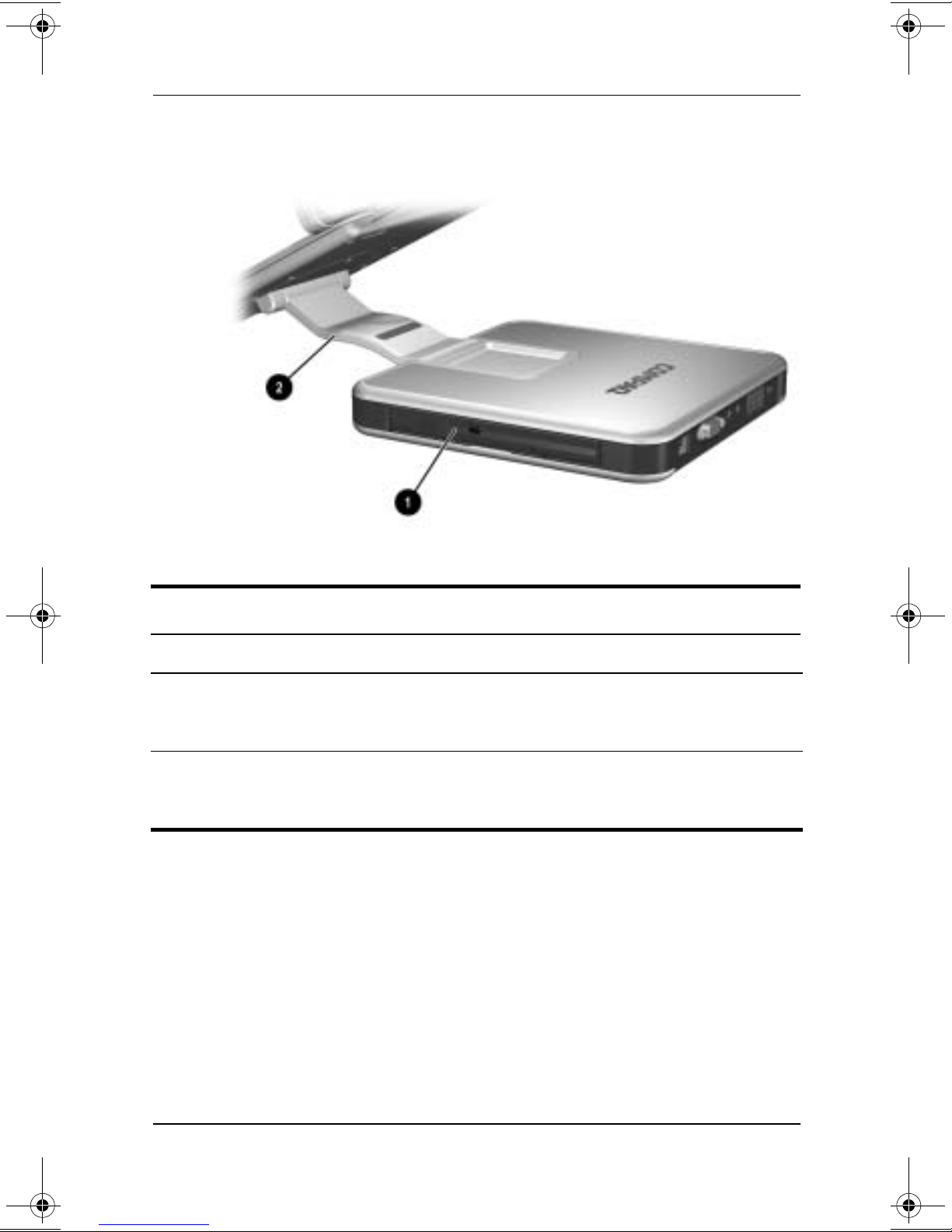

Right Side View

Right Side Components

Item Component Description

1MultiBay Supports a diskette drive, CD-ROM or

CD-RW drive, DVD drive, CD-RW/DVD

drive, or second hard drive.

2Pivot arm Tilts the docking stand forward and

backward to enable different viewing angles

and different docking modes.

289315-001.book Page 3 Friday, July 26, 2002 9:59 AM

1–4 Tablet PC TC1000 Docking Station Reference Guide

Getting Started

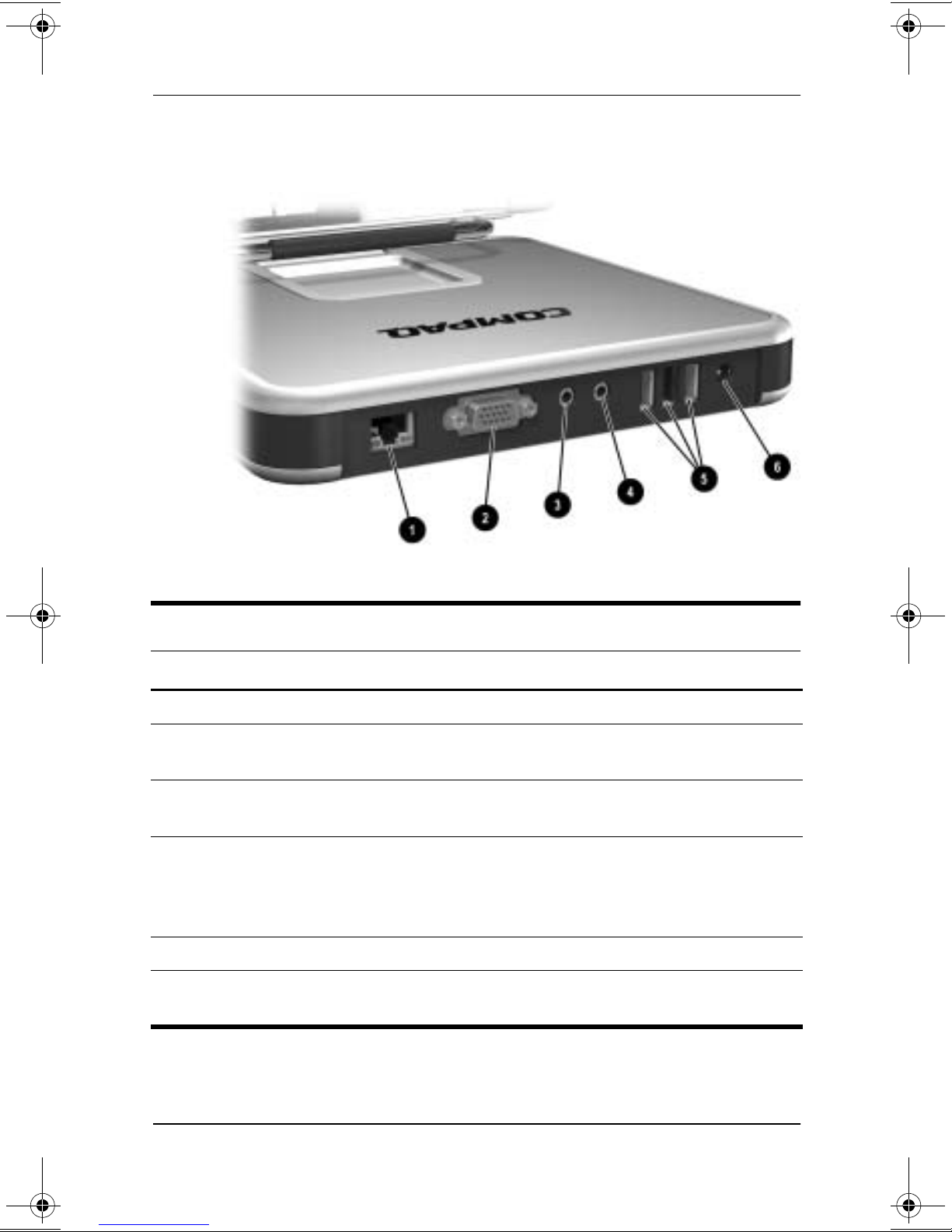

Back View

Back Components

Item Component Description

1RJ-45 network jack Connects a network cable.

2External monitor

connector

Connects an optional external monitor or

overhead projector.

3Audio line-in jack Connects the stereo audio function of

optional audio devices such as CD players.

4Audio line-out jack Connects optional stereo headphones or

powered stereo speakers and connects the

audio function of an audio/video device such

as a television or VCR.

5USB connectors (3) Connect optional USB devices.

6AC power connector Connects an AC adapter or an optional

DC cable.

289315-001.book Page 4 Friday, July 26, 2002 9:59 AM

Getting Started

Tablet PC TC1000 Docking Station Reference Guide 1–5

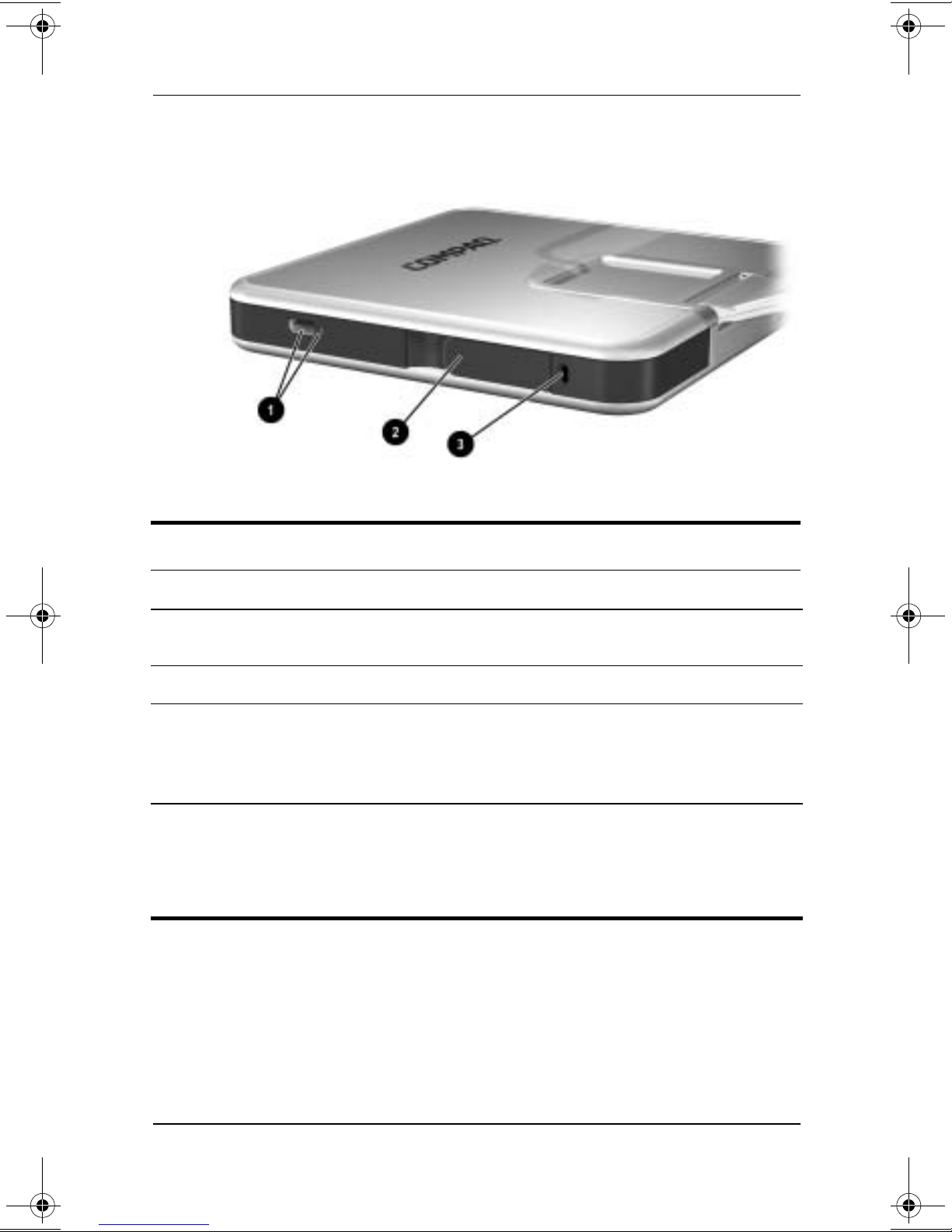

Left Side View

Left Side Components

Item Component Description

1External MultiBay

connector

Connects optional USB devices.

2MultiBay release lever Ejects a MultiBay device from the bay.

3Security cable slot Attaches an optional security cable that

secures the docking station to an immovable

object and disables the MultiBay release

lever.

✎If an optional External MultiBay device is connected to a USB

connector, the device must also be connected to AC power. Refer in

this chapter to the “Right Side View” section. If an External MultiBay

device is connected to the External MultiBay connector, it is not

necessary to connect the External MultiBay device to AC power.

289315-001.book Page 5 Friday, July 26, 2002 9:59 AM

1–6 Tablet PC TC1000 Docking Station Reference Guide

Getting Started

Tablet PC Components

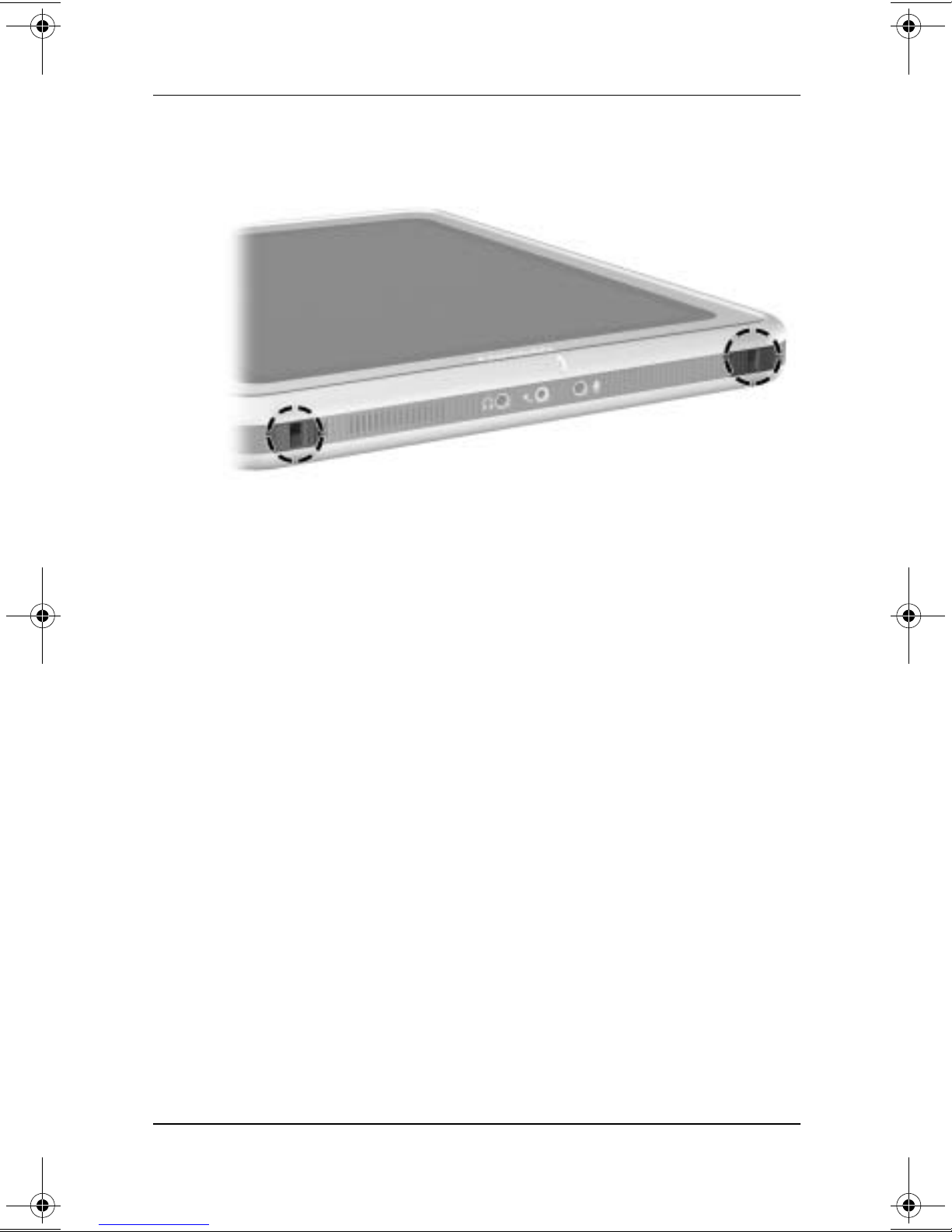

Tablet PC docking alignment slots

The tablet PC docking alignment slots fit onto the docking station

docking alignment brackets.

289315-001.book Page 6 Friday, July 26, 2002 9:59 AM
