481603-002

About this document

This document describes the procedure for installing an I/O module

into an HP StorageWorks MSA2000 3.5 12-drive enclosure.

IMPORTANT: Install this module only into an MSA2000 3.5

12- d r iv e e n c l o s u r e .

CAUTION: Parts can be damaged by electrostatic discharge.

Use proper anti-static protection.

•Keep the replacement component in the ESD bag until needed.

•Wear an ESD wrist strap grounded to an unpainted surface of

the chassis.

•If an ESD wrist strap is unavailable, touch an unpainted surface

of the chassis before handling the component.

•Never touch connector pins.

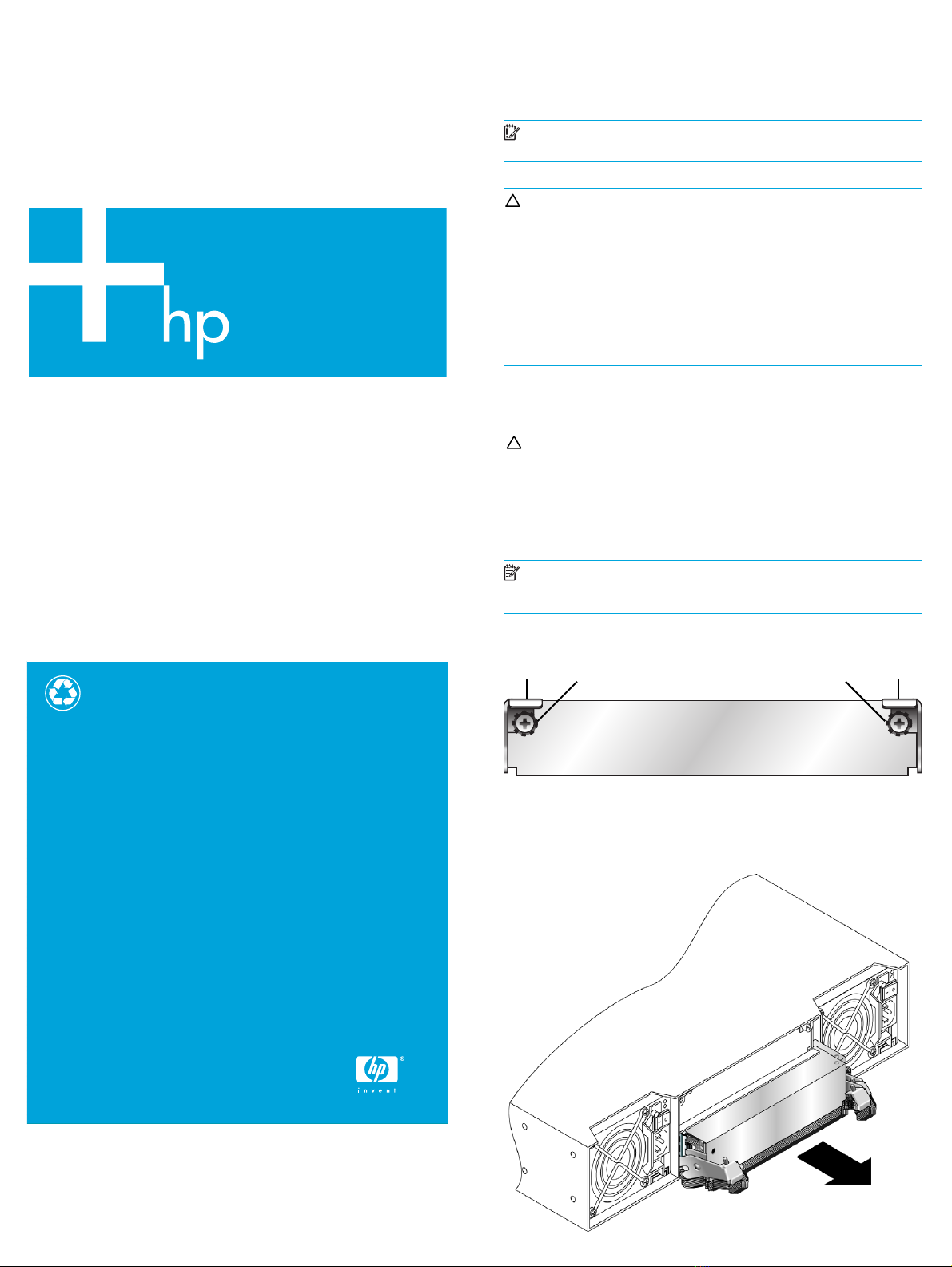

Removing the air management blank

CAUTION: When upgrading an existing operational system

with an I/O module, removing the blank impacts the airflow and

cooling ability of the device. To avoid possible overheating, insert

the I/O module as quickly as possible. If the internal temperature

exceeds acceptable limits, the enclosure may overheat and

automatically shut down or restart.

NOTE: For clarity, only relevant details are shown in these

illustrations.

1. Turn the thumbscrews until the screws disengage from the blank.

2. Press both latches downward.

3. Pull the blank straight out of the enclosure.

1Latch 2Thumbscrew

12 12

Printed on at least 50% total recycled fiber with at least 10%

post-consumer paper

© Copyright 2008 Hewlett-Packard Development Company, L.P.

Second edition: November, 2008

Product names mentioned herein may be trademarks of their

respective companies as reflected by an associated footnote. The

information in this document is subject to change without notice.

Printed in China.

www.hp.com

HP StorageWorks

MSA2000 3.5 12-Drive

Enclosure

I/O module installation

instructions

Page 2

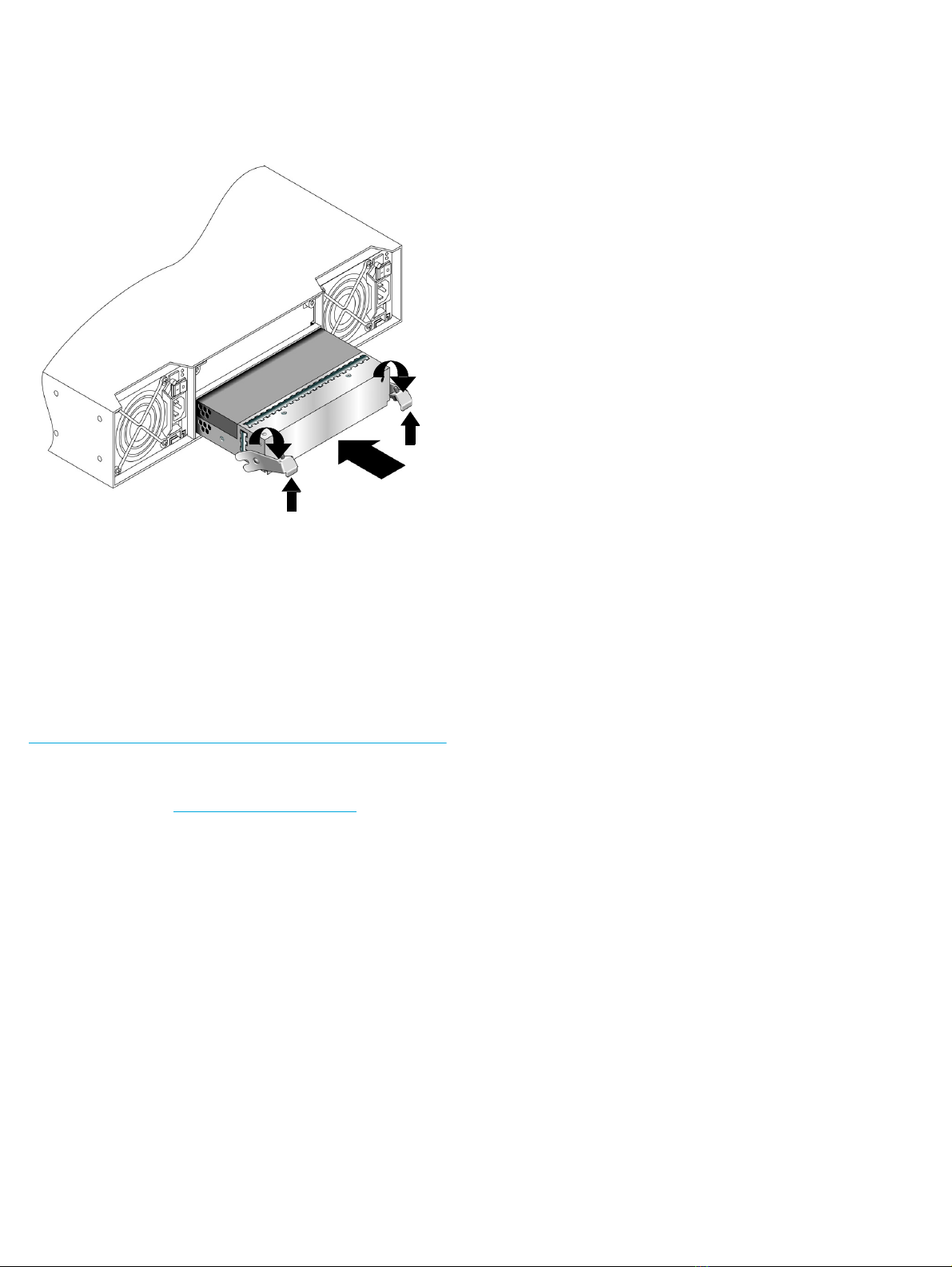

Installing the I/O module

1. Loosen the thumbscrews; press the latches downward.

2. Slide the I/O module into the enclosure as far as it will go (1).

3. Press the latches upward to engage the I/O module (2); turn the

thumbscrews finger-tight.

4. Connect cables according to a supported configuration. See the

user guide.

Verifying I/O module status

In an operational system, once the I/O module is installed and

cabled:

•Verify that the heartbeat LED on the front of the enclosure is

green.

•Verify that the OK LED on the back of the new I/O module is

green.

Additional information

See the MSA web site: http://www.hp.com/go/msa.

2

1

2
