HP CC450 Manuel utilisateur
CC450
Digital Camera
Quick Start Guide
1
For more details about the camera operation and troubleshooting, please read the
User Manual located on the CDROM disc included with your camera or visit
http://www.hp.com/support and download it for the camera support page.
1
Tour of Your HP Camera
Front View
1
4
2
3
Flash1.
Self-timer LED / AF Assist Lamp2.
Lens3.
Microphone4.
Back View
11
10
5
9
8
6
7
LCD screen5.
Zoom buttons6.
LED indicator7.
Menu button8.
Function / Delete button9.
OK button / 4-way navigation control10.
Mode Selector Switch11.
Photo Mode
Video Mode
Playback Mode
2 3
Top View
13
12
1514
Stabilizer button12.
Speaker13.
Shutter button14.
Power button15.
Bottom View
17
16
Tripod screw hole16.
Battery/Memory compartment door17.
Left/Right View
18
19
USB/TV Out18.
Strap ring19.
2 3
1. Getting Started
Attach the Camera Strap
To reduce the risk of dropping the camera, it is strongly
recommended to attach and use the provided camera strap

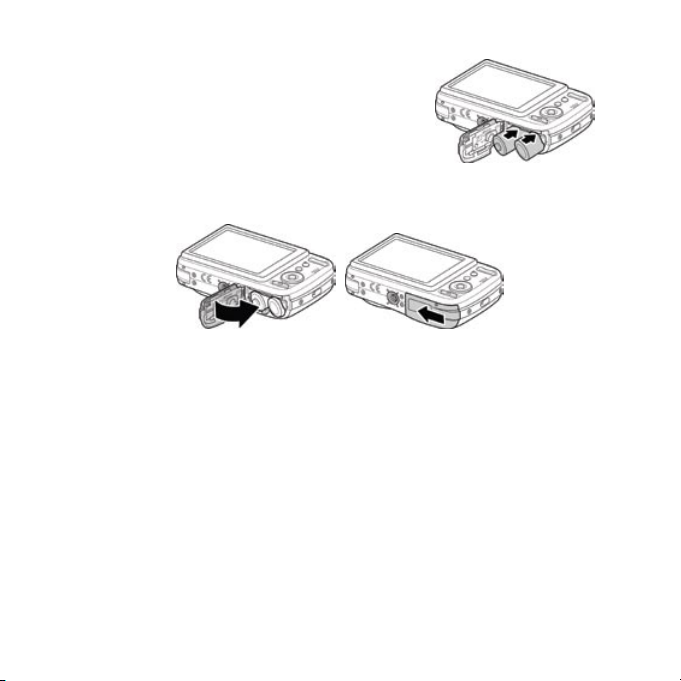

Inserting the Batteries
Follow these instructions to insert the batteries into the battery/memory card
compartment.
If the batteries are already installed, make sure to1.
power off the camera before removing and inserting
recharged or new batteries.
Open the battery/memory card compartment at2.
the bottom of the camera as illustrated.
4 5
Insert the batteries into the compartment with3.
correct orientation as illustrated.
Close and secure the battery/memory card compartment.4.
4 5
Inserting an SD/SDHC Memory Card
It is highly recommended that the camera storage is expanded by inserting a SD or SDHC
memory card. These memory cards are available at most consumer store and online
locations.
Make sure to power off the camera before proceeding.1.
Inserting the memory card while powered on may damage
the card and camera.
Open the Battery/memory card compartment at the2.
bottom of the camera.
Insert the SD/SDHC card into the memory card slot with3.
the metallic connectors facing the front side of the camera
as illustrated below.
Push the SD/SDHC card into the memory slot until it clicks into place. If the card4.
does not click into place, repeat the previous step to ensure proper orientation.
Close the Battery/memory card compartment.5.
The 720p video recording capability of this camera requires a class 6 (High Speed)
SD/SDHC memory card.
6 7
To remove the SD/SDHC card
Make sure to power off the camera before proceeding.1.
Removing the memory card while powered on may damage
the card and camera.
Open the battery/memory card compartment.2.
Gently push the card until it clicks and pushes our of3.
position.
Carefully pull out the card.4.
6 7
2. Initial Settings
When you turn on your camera for the rst time, you will be asked to do
the initial settings of your camera. First is the setup of language menu.
Specify in which language menus and messages are to be displayed on the
LCD monitor.
Setting the Language
Use the 4-Navigation control (1. , , , ) to move through the selections.
Highlight the desired language and press the OK2. button to select.
Setting the Date & Time
Use the 4-Navigation control (1. , , , ) to move through the selections
and to change the setting values.
Press2. OK button when finished. This will save your date and time settings.
If necessary, press3. Menu button to close the menu.
At this point, the camera settings are set to the default automatic mode and is ready to
take photos and videos.
8 9
Modes Selector Switch
This camera has a three mode selector switch. The different modes are:
Photo Mode
Slide the mode switch to [• ] take photos and record audio clips by selecting Voice
REC from scene modes.
Video Mode
Slide the mode switch to [• ] record videos.
Playback Mode
Slide the mode switch to [• ] view and edit captured images or playback videos
and audio clips.
The recording of voice memo attached to images is also available in this mode.
