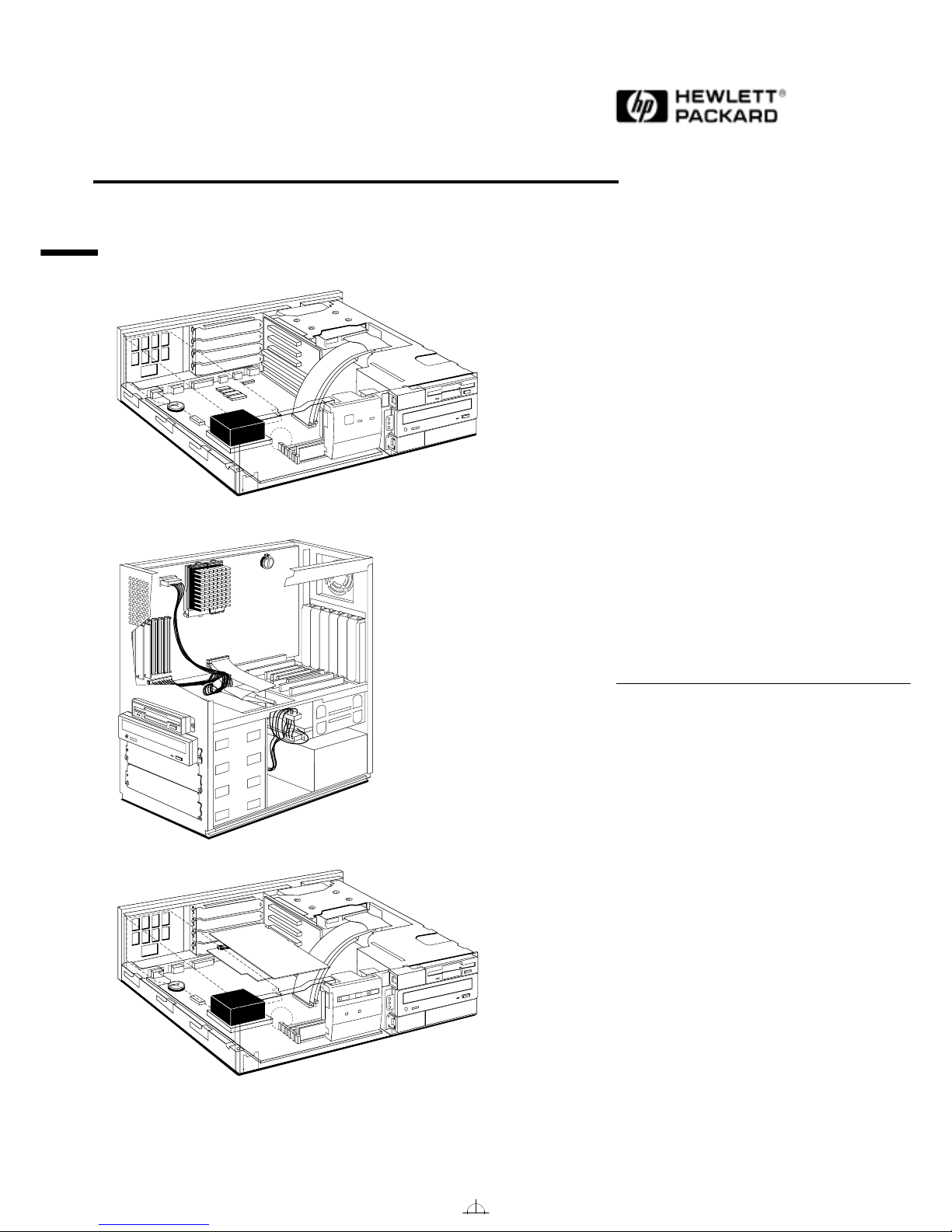

Familiarization Guide

HP Vectra VA and XA

6/xxx PCs

HP Vectra VA MT PC

HP Vectra VA PC

HP Vectra XA PC

b

ook.bk : 1bookf.fb4 Page 1 Tuesday, June 25, 1996 1:53 PM

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental

or consequential damages in connection with the furnishing, performance, or use

of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its

software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied,

reproduced, or translated to another language without the prior written consent

of Hewlett-Packard Company.

Centronics® is a registered trademark of Centronics Data Computer

Corporation.

Microsoft®, Windows® and MS-DOS® are registered trademarks of the

Microsoft Corporation.

Novell® and Netware® are registered trademarks of Novell Inc.

OS/2TM is a trademark of International Business Machines Corporation.

NextStepTM is a trademark of Next Incorporated.

PentiumTM is a trademark of Intel Corporation.

SCO UNIX® is a registered trademark of the Santa Cruz Operation.

SolarisTM is a trademark of Sun Microsystems Incorporated.

SoundBlasterTM is a trademark of Creative Technology Limited.

Hewlett-Packard France

Grenoble Personal Computer Division

Technical Marketing

38053 Grenoble Cedex 9

France

1996 Hewlett-Packard Company

b

ook.bk : 1bookf.fb4 Page 2 Tuesday, June 25, 1996 1:53 PM

Contents

iii

1 Product Contents

HP Vectra VA PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

HP Vectra VA MT PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

HP Vectra XA PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Operations

Flashing the Latest Version of the System BIOS. . . . . . . . . . . . . . . . . 6

Checking the System Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Replacing the System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Replacing the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Replacing the Processor Chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

System Board Connectors and Switches . . . . . . . . . . . . . . . . . . . . . . . 9

Backplanes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Accessory Boards that are Supplied with the PC . . . . . . . . . . . . . . . 11

A Final Test

Draw a Circle Around Each Correct Answer . . . . . . . . . . . . . . . . . . 14

Answers and Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

book.bk : 1book.toc Page iii Tuesday, June 25, 1996 1:53 PM

Contents

iv

book.bk : 1book.toc Page iv Tuesday, June 25, 1996 1:53 PM

1

1

Product Contents

This guide is for experienced technicians who have already completed the

HP Vectra PC family training course. It is a self-paced training guide

designed to train you to repair the PC. It solely contains information specific

to the repair of these PCs. For information on the installation of accessories,

see the User’s Guide and the Online documents that are supplied with the

PC.

book.bk : 1ch01.fb4 Page 1 Tuesday, June 25, 1996 1:53 PM

2

1 Product Contents

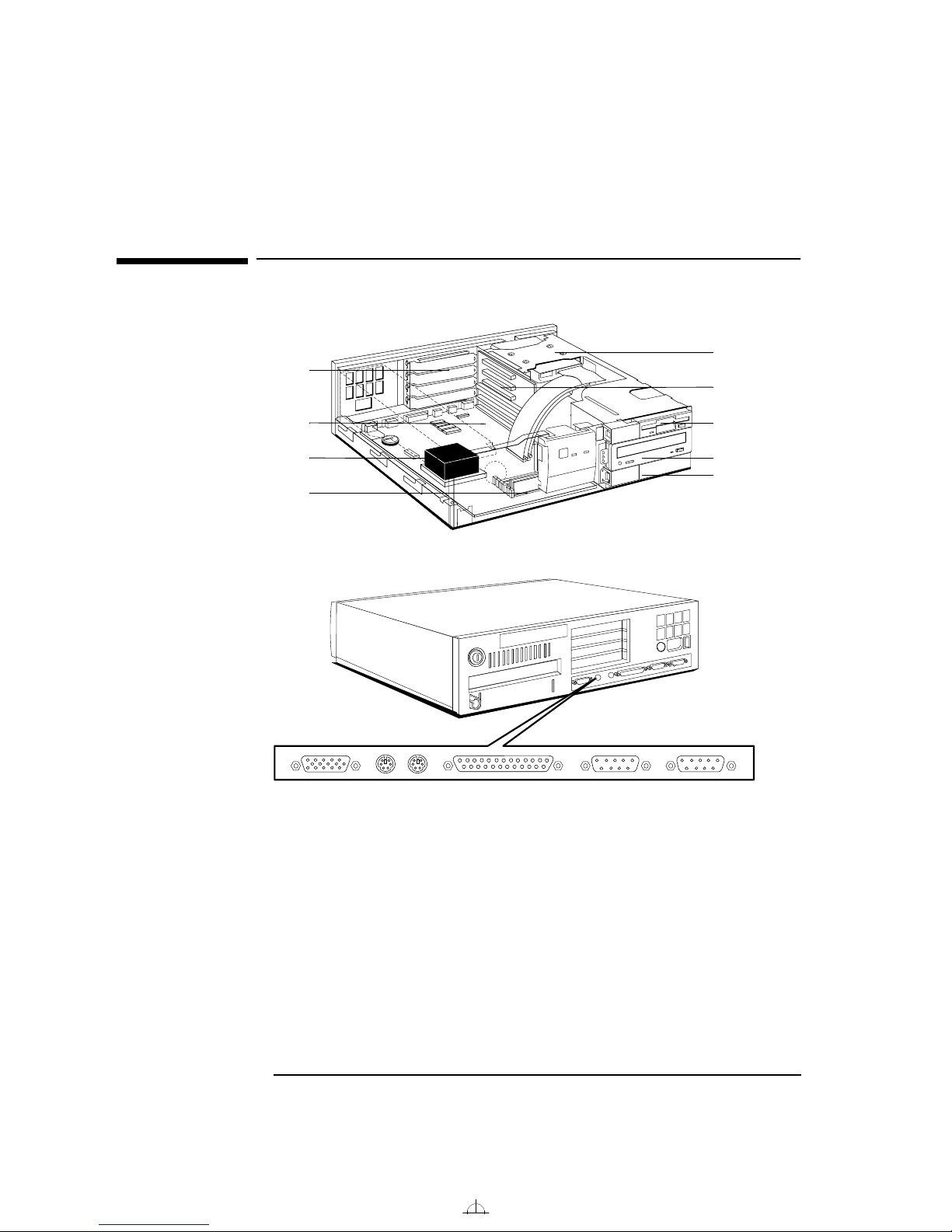

HP Vectra VA PC

HP Vectra VA PC

1 hard disk drive

Backplane

Flexible disk drive

CD-ROM drive

Vacant slim

Pentium Pro

4 accessory slots

Memory modules

System board

processor

internal shelf

3.5/5.25-inch shelf

Mouse

Keyboard Parallel Port Serial Port A Serial Port B

Display

b

ook.bk : 1ch01.fb4 Page 2 Tuesday, June 25, 1996 1:53 PM

3

1 Product Contents

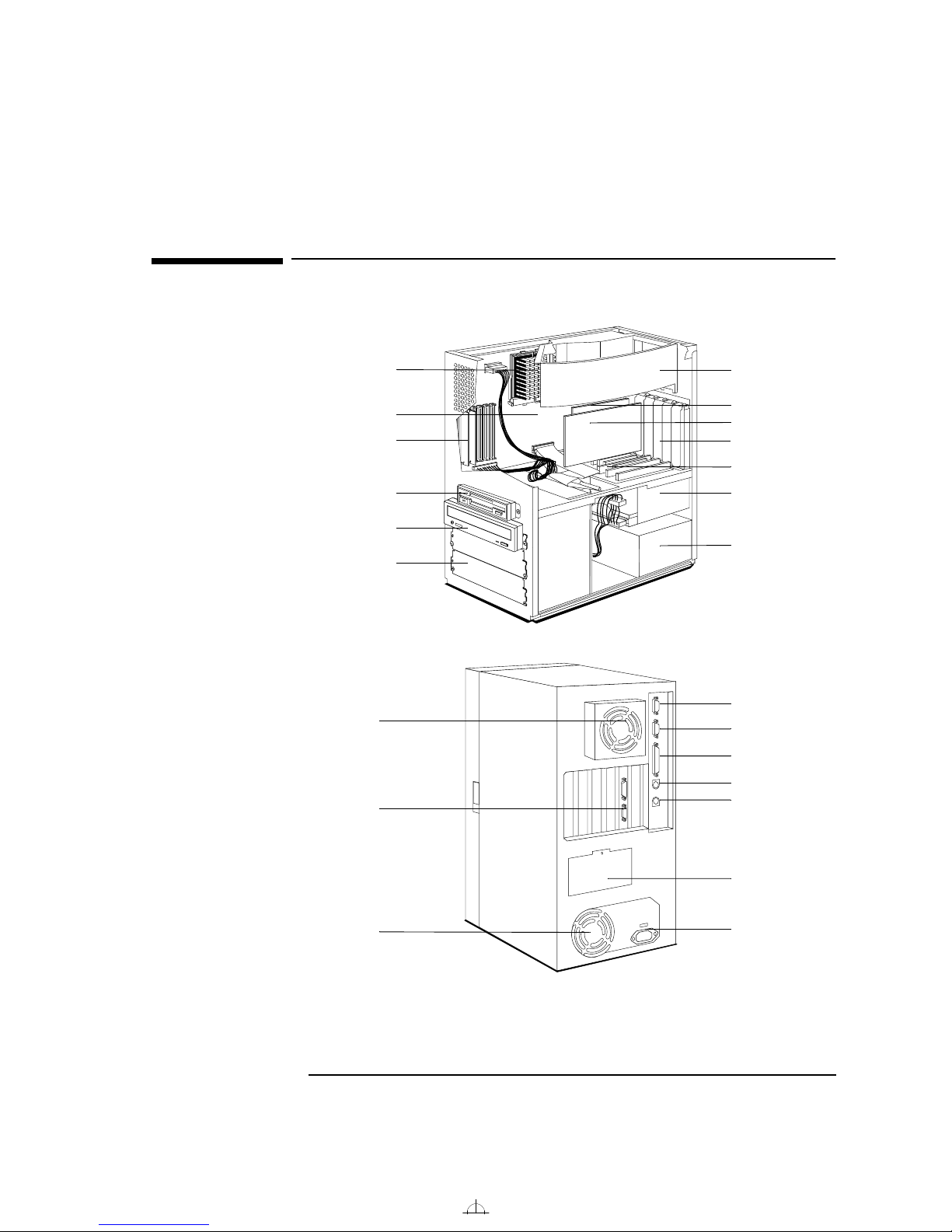

HP Vectra VA MT PC

HP Vectra VA MT PC

Pentium Pro processor

Memory modules

Flexible disk drive

CD-ROM drive

2 vacant half height

System board Video controller board

2 hard disk drive

Power supply

internal shelves

Backplane

5.25-inch shelves

Airflow guide

4 vacant accessory slots

Audio controller board

S

Serial port B

Mouse connector

Keyboard connector

Parallel port

Display connector

Processor fan Serial port A

Power supply

Hard disk compartment

and fan Voltage selection switch

b

ook.bk : 1ch01.fb4 Page 3 Tuesday, June 25, 1996 1:53 PM

4

1 Product Contents

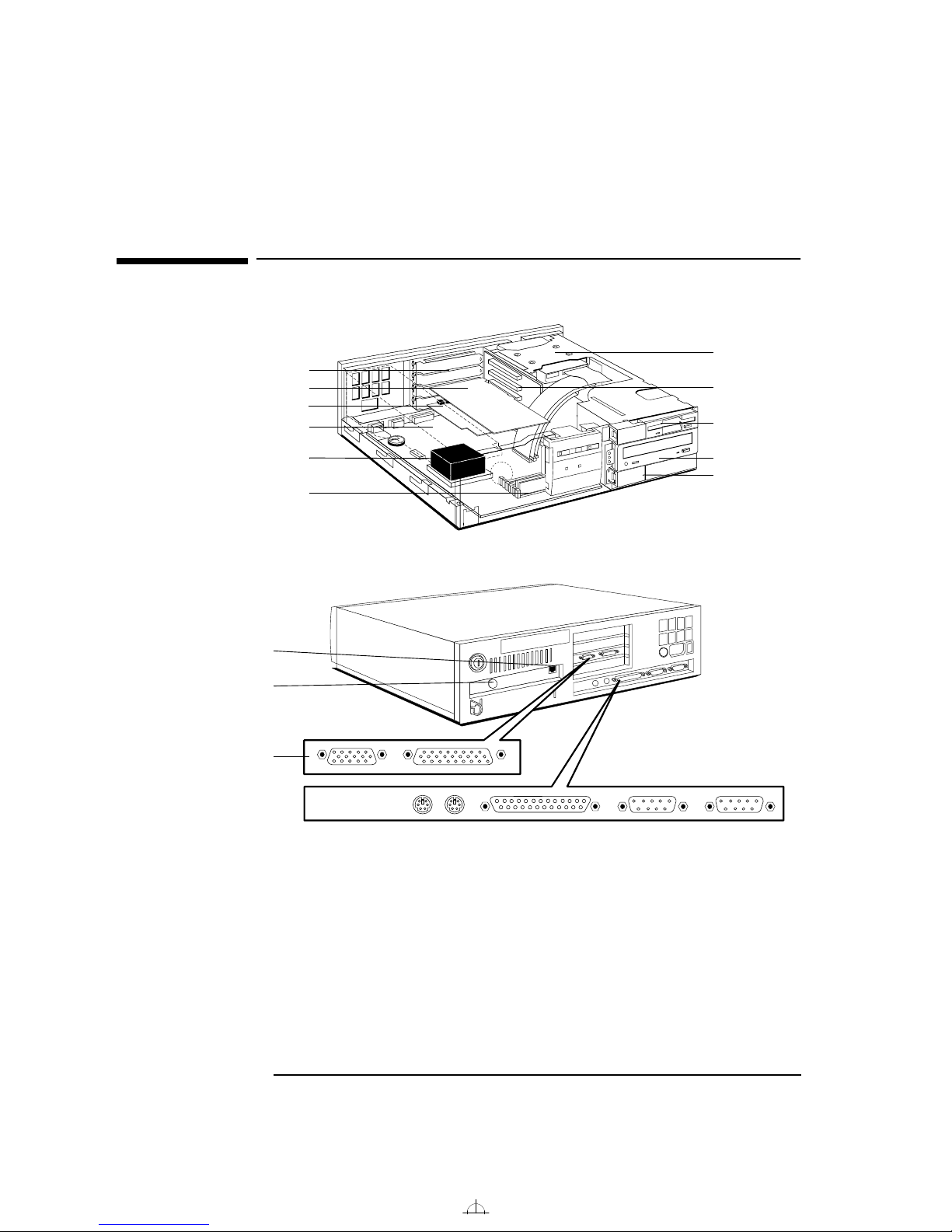

HP Vectra XA PC

HP Vectra XA PC

1 hard disk drive

Backplane

Flexible disk drive

CD-ROM drive

Vacant slim

Pentium Pro

Memory modules

System board

processor

internal shelf

3.5/5.25-inch shelf

Audio board (ISA slot)

Matrox board (PCI slot)

3 vacant accessory slots

RJ-45 network

BNC coax hole

Mouse

Keyboard Parallel Port Serial Port A Serial Port B

connector

metal plug

Display connector

b

ook.bk : 1ch01.fb4 Page 4 Tuesday, June 25, 1996 1:53 PM

5

2

Operations

• procedure for flashing the System BIOS

• procedure for checking the system configuration

• procedures for replacing the system board, power supply, and processor

• layout of the system board and backplane

• layout of the Matrox Millennium video controller board, the audio

controller board and the Enhanced Ethernet Network board.

book.bk : 1ch02.fb4 Page 5 Tuesday, June 25, 1996 1:53 PM

6

2 Operations

Flashing the Latest Version of the System BIOS

Flashing the Latest Version of the System BIOS

BIOS upgrades can be downloaded, on to flexible diskette, from the

HP World Wide Web site. Following the instructions which you are given,

you will obtain the flash utility program, PHLASH.EXE, the BIOS file,

GZxxxx.FUL, and a file called platform.bin, on a bootable flexible

diskette.

Insert the flexible diskette into drive A. Re-boot the system. Enter the

command of the form PHLASH GZxxxx.FUL (where xxxx is replaced by the

version number of the BIOS that you have downloaded).

Access HP World Wide

Web Site World-Wide Web URL http://www.hp.com/go/vectrasupport

Only use the flash utility program (PHLASH.EXE and platform.bin) that is

supplied with the GZxxxx.FUL file.

Do not switch off the computer until the System BIOS update has been

completed, otherwise irrecoverable damage to the ROM could be

incurred.
