vl400sf.book Page 1 Thursday, August 23, 2001 3:10 PM

notice

Information contained in this document is subject to change without notice.

llle

-P

d m

s n

o w

arr

rrrr

rra

y o

f a

y k

iiin

d w

iiit

h r

reg

egeg

ega

d t

o t

iiis

s m

iiia

lll,

iiin

lllu

iiin

, b

t n

t li

lili

lim

iiit

d t

, t

e i

iiim

pli

lili

lie

d w

iiie

s o

f m

iiil

llli

iiit

y a

and

ndnd

iiit

ess

ssss

ss f

r a

a p

iiic

llla

r p

... Hewlett-Packard shall not be liable for errors

contained herein or for incidental or consequential damages in connection with

the furnishing, performance, or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its

software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied,

reproduced, or translated into another language without the prior written

consent of Hewlett-Packard Company.

3Com and EtherLink are registered trademarks of 3Com Corporation.

Intel, Celeron, and Pentium are either registered trademarks or trademarks of Intel.

Microsoft, MS, MS-DOS, Windows and Windows NT are either registered trademarks or

trademarks of Microsoft Corp. in the United States and/or other countries.

contents

This chapter provides:

❒Product model numbers

❒Supported Accessories

❒System Board, BIOS, and memory information

❒Part numbers

replacement and exchange parts

The difference between a replacement and an exchange part is that when using

an exchange part you should return the replaced part to HP.

Replacement and exchange parts listed in this manual are subject to change.

However, updated part numbers are automatically cross-referenced to the old

number. This means that you will receive the correct part using the numbers

listed in this manual (even if the part’s actual number has been updated).

ordering parts

Contact your local HP Customer Care Center or an HP Authorized support

provider to get parts. Diagnostic is required in both cases, prior to any shipments.

For HP Customer Care Centers

www.hp.com/go/vectrasupport and select contact hp

vl400sf.book Page 2 Thursday, August 23, 2001 3:10 PM

medium-profile

desktop vectras

hp vectra vl410 sff pc 2-1

hp vectra vl410 sff pc

models and accessories

note

All models have:

❒Integrated Analog Devices AD1885 AC’97 stereo audio codec.

❒Integrated Intel network controller.

❒Integrated Direct AGP video controller.

Product

Number

Hard

Drive

Video Controller Std.

RAM

Multimedia OS1

1. Windows 2000 or Windows 98 operating system is preloaded on those models indicated in

the table. Models with Windows 2000 operating system come with a CD-ROM for recovering

Windows 2000 or downgrade to Windows NT 4.0 WS.

Vectra VL410 SFF PC

Models with Intel Celeron Processor,

100 MHz System Bus Speed, and 128 KB Level 2 Cache Memory

HP Vectra VL410 SFF PC 950/100 (CPL: 09/2001 )

P5921A 20 GB IDE,

5400 rpm

Direct AGP integrated in

Intel chipset.

128 MB

SDRAM

24 ✕Max IDE

Slim CD-ROM

W98

P5922A W2000

Vectra VL410 SFF PC

Models with User Defined Processor, Main Memory, and Hard Disk

HP Vectra VL410 SFF PC2(CPL: 09/2001 )

2. Channel Assembly Program (CAP) models: Processor type and speed, hard disk size,

memory and operating system is user defined.

P4392E User defined

vl400sf.book Page 1 Thursday, August 23, 2001 3:10 PM

hp vectra vl410 sff pc

2-2 hp vectra vl410 sff pc medium-profile

desktop vectras

supported accessories

Memory

64-MB SDRAM, non-ECC PC133 main memory module P1536A

64-MB SDRAM, non-ECC PC133 main memory module (pack of 10) P5100A

128-MB SDRAM, non-ECC PC133 main memory module P1537A

128-MB SDRAM, non-ECC PC133 main memory module (pack of 10) P5101A

256-MB SDRAM, non-ECC PC133 main memory module P1538A

256-MB SDRAM, non-ECC PC133 main memory module (pack of 10) P1502A

Video Cards

NVIDIA GeForce2 GTS 32MB Graphics Card D1971A

NVIDIA GeForce2 MX 32MB Graphics Card D2289A

Input Devices

HP PS2 Windows Keyboard C4735B

HP PS2 Scrolling Mouse C4736B

Monitors

All current HP Monitors (see the HP Monitors Service Handbook)

Mass Storage

20-GB 7200 rpm Ultra ATA/100 hard disk drive P1541A

HP USB external floppy disk drive D9510A

HP 250 MB Atapi II internal ZIP drive P1983A

vl400sf.book Page 2 Thursday, August 23, 2001 3:10 PM

hp vectra vl410 sff pc

medium-profile

desktop vectras

hp vectra vl410 sff pc 2-3

Multimedia

HP 24✕Max IDE Slim CD-ROM drive P1549A

HP 5✕Max Slim DVD-ROM drive P1545A

HP USB external CD-RW drive C4504/5A

HP external USB web camera P1978A

HP Multimedia Monitor Base P1535A

HP Amplified External Speaker 9.6WRMS P1534A

HP headset with microphone P1968A

HP internal speaker (bulk) P1967A

Data Communications and LAN Adapter Boards

HP 802.11b USB Wireless LAN P1980A

HP 802.11b Wireless LAN Access Point (SMB) P1981A

HP 802.11b Wireless LAN Access Point (Corporate) F2135A

HP External USB e-Modem P1979A

HP 3Com Fast Etherlink 3C905C-TX PCI NIC P7522B

Security

HP Master Pass Key System Kit D6655C

HP Spare Master Pass Key D6658B

HP Locks for Master Pass Key System, option 1 (pack of 50) D6659A

HP Locks for Master Pass Key System, option 2(pack of 50) D9528A

HP Locks for Master Pass Key System, option 3 (pack of 50) P1550A

HP Kensington Lock F1645A

I/O Interfaces

HP One Serial Kit Extension P5099A

vl400sf.book Page 3 Thursday, August 23, 2001 3:10 PM

hp vectra vl410 sff pc

2-4 hp vectra vl410 sff pc medium-profile

desktop vectras

system board, BIOS, and memory

Main Memory:

Two DIMM sockets which support up to

a maximum of 512 MB.

Install 64 MB, 128 MB or 256 MB SDRAM

modules.

System

Board Switches:

See the table on the next page.

Processor:

Intel Pentium III or

Intel Celeron FC-PGA

package with Zero

Insertion Force (ZIF)

socket.

vl400sf.book Page 4 Thursday, August 23, 2001 3:10 PM

hp vectra vl410 sff pc

medium-profile

desktop vectras

hp vectra vl410 sff pc 2-5

system board switches

BIOS history

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP’s Web site.

Switch Function Default

On Clears CMOS and passwords (to reload the Setup program

defaults) Off

Off Normal operation

2On Clears User and Administrator passwords Off

Off Normal operation

On Crash recovery mode: forces booting in the BIOS boot

block area Off

Off Normal operation

4On Normal operation (Software boot block protection) On

Off Hardware boot block protection

5On Reserved Off

Off Normal operation

http://www.hp.com/go/vectrasupport/

vl400sf.book Page 5 Thursday, August 23, 2001 3:10 PM

hp vectra vl410 sff pc

2-6 hp vectra vl410 sff pc medium-profile

desktop vectras

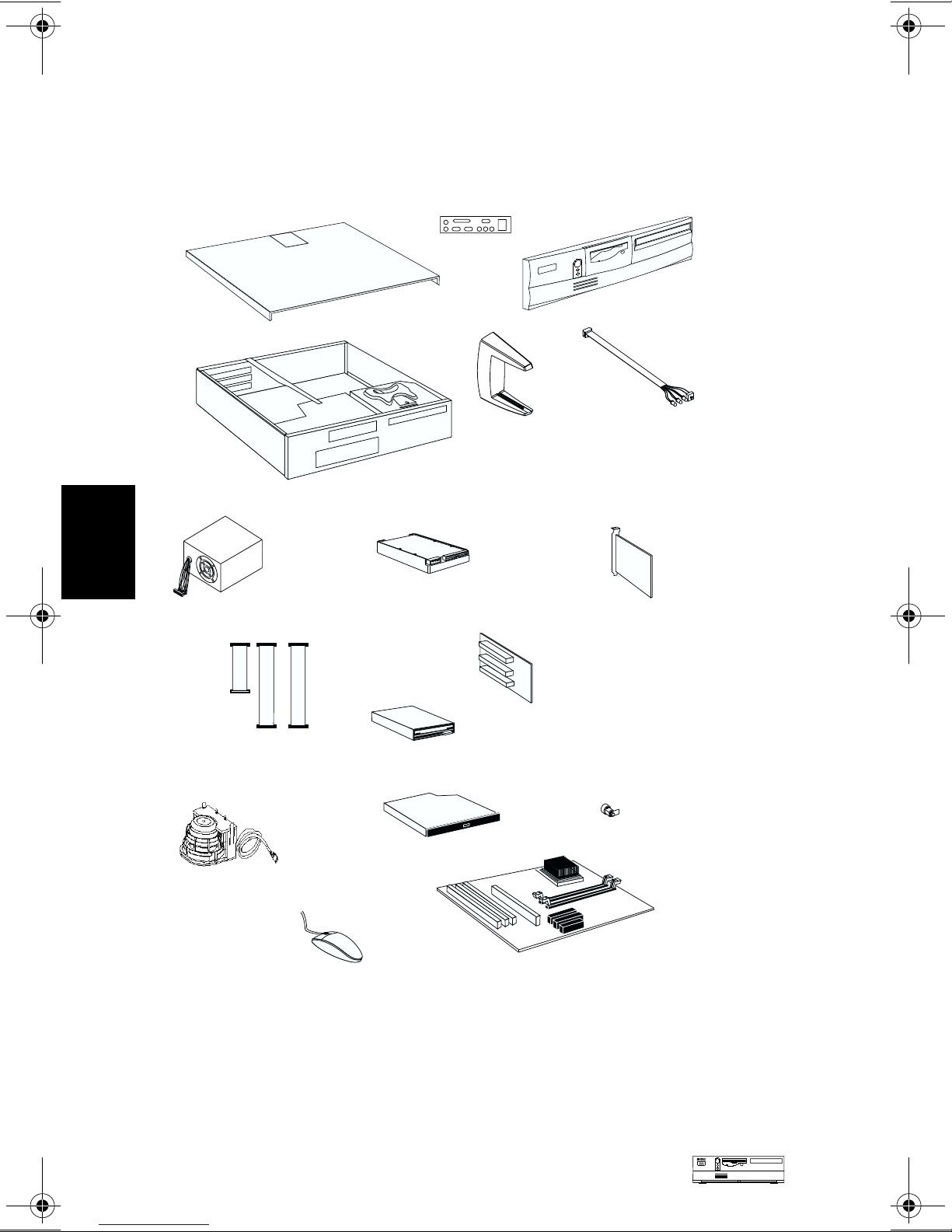

part numbers

vl400sf.book Page 6 Thursday, August 23, 2001 3:10 PM

hp vectra vl410 sff pc

medium-profile

desktop vectras

hp vectra vl410 sff pc 2-7

parts list for hp vectra vl410 sff pc

Item Description Repl.

Part Number

Exchange

Part Number

1 Box assembly (chassis assembly, FDD filler

kit, stand foot)

5065-2501 —

2 Power supply (PFC1)

1. PFC=Power Factor Correction.

0950-4100 —

3 Front bezel assembly 5065-2509 —

4 Rear bezel 5002-6282 —

5 Power switch kit 5065-2502 —

6 HDD, FDD and CD-ROM cable kit 5065-2508 —

7 1.44 Floppy disk drive D2035-60293 —

8 IDE hard disk drive2

20 GB Seagate U5 (5400 rpm)

40 GB Ericsson (7200 rpm)

40 GB Maxtor Rigel (7200 rpm)

2. For optional disk drive information, see the Accessory Service Handbook.

—

P2021-69004

P4735-69001

P3624-69001

924✕Max IDE Slim CD-ROM drive

8✕/24✕ IDE Slim DVD-ROM drive

8✕/8✕/24✕ Slim CD-RW drive

D4383-60101

D4388-60101

D4398-60301

—

D4398-69301

10 Standard mouse C3751-60201 —

USB optical mouse C4766-60101 —

Enhanced mouse with scroll/zoom wheel C4737-60101 —

Standard keyboard C4739-601xx3

3. Where “xx” is the code for your national keyboard (see the Accessory Service Handbook).

—

Internet USB keyboard C4768-60xxx2—

11 System board See PC’s system board parts list

124

4. Other localizations are available (see the Accessory Service Handbook).

HP 56K V90 PCI Internal Modem - US D7519-63001 —

or HP 56K V90 PCI Internal Modem - Europe 5184-3849 —

13 Internal speaker 5184-3847 —

14 Lock assembly 5064-9111 —

15 ATX Standard riser card (3 PCI slots) 5065-2555 —

not

shown

Power cord 8120-xxxx5

5. Where “xxxx” is the code for your national power cord.

—

Airflow guide and fan kit 5042-4474 —

External amplified speaker - 110V P1534-63001 —

External amplified speaker - 220V P1534-63002 —

Chassis Fan 5065-8904 —

One Serial Port Extension 5184-4909 —

Master Key Lock 5064-9154 —

vl400sf.book Page 7 Thursday, August 23, 2001 3:10 PM

hp vectra vl410 sff pc

2-8 hp vectra vl410 sff pc medium-profile

desktop vectras

system board parts list for hpvectra vl410 sff pc

Description Repl.

Part Number

Exchange

Part Number

System board:

Vectra VL410 system board with audio

subsystem

P4390-63001 P4390-69001

Processors (FC-PGA package):

Intel Celeron 900/100 128KB L2 cache P1843-63001 —

Intel Celeron 950/100 128KB L2 cache P1844-63001 —

Intel Celeron 1000/100 128KB L2 cache P1845-63001 —

Intel Celeron 1100/100 128KB L2 cache P1846-63001 —

Intel Pentium III 933/133 256KB L2 cache — D9486-69001

Intel Pentium III 1000/133 256KB L2 cache — P1579-69001

Active heatsink FCPGA 5065-1297 —

Active heatsink FCPGA2 5065-4277 —

Passive heatsink FCPGA 5065-2583 —

Processors (FC-PGA package):

Intel Celeron 900/100 128KB L2 cache P1843-63001 —

Main memory modules:

1 ✕64-MB non-ECC PC133 SDRAM P1536-63001 —

1 ✕128-MB non-ECC PC133 SDRAM P1537-63001 —

1 ✕256-MB non-ECC PC133 SDRAM P1538-63001 —

Video memory modules:

AIMM (AGP Inline Memory Module) 1818-8537 —

AIMM retention mechanism 5042-4456 —

software recovery CD-ROMs

Image Creation & Recovery CD-ROM (Windows NT/2000) 5970-0510-xx1

1. Where “xx” is the code for your language.

Image Creation & Recovery CD-ROM (Windows 98SE) 5970-0491-xx1

Image Library & Diagnostics CD-ROM 5970-4591

manuals and documentation for hpvectra vl410 sff pc

Quick User’s Guide 5070-5090-xx

Technical Reference Manual no number1

1. Electronic file available on HP’sWeb site.

vl400sf.book Page 8 Thursday, August 23, 2001 3:10 PM

Autres manuels pour Vectra VL410

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HP Ordinateur de bureau

HP Compaq dc7100 DT Manuel d'utilisation et d'entretien

HP Xw4200 - Workstation - 1 GB RAM Guide de référence rapide

HP Compaq dc7900 Business PC Instructions d'utilisation

HP Pavilion a1000 - Desktop PC Manuel utilisateur

HP VECTRA VA 6/XXX Manuel utilisateur

HP Pro 3330 Guide de configuration

HP A1210n - Pavilion - 512 MB RAM Manuel utilisateur

HP Sprout Manuel utilisateur

HP Pavilion a200 - Desktop PC Manuel utilisateur

HP Brio BA Manuel utilisateur

HP Pavilion j208cn Manuel utilisateur

HP dx2250 - Microtower PC Manuel

HP Compaq Presario Manuel utilisateur

HP Z200 - Small Form Factor Workstation Guide de référence

HP Compaq dc7900 Convertible Minitower Business Instructions de montage

HP Kayak XU04 Manuel utilisateur

HP Compaq Presario Manuel

HP Vectra VL Manuel utilisateur

HP Xw6200 - Workstation - 2 GB RAM Manuel utilisateur

HP Compaq Presario Manuel utilisateur

HP Vectra XU 6/XXX Manuel utilisateur

HP dc7608 - Convertible Minitower PC Mode d’emploi

HP Xw4600 - Workstation - 2 GB RAM Manuel d'utilisation et d'entretien

HP Pavilion u1100 - Desktop PC Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Dell

Dell Alienware Area-51 R4 Manuel utilisateur
