HP Kayak XU PC Workstation —

Installing Accessories

In Your HP PC Workstation

Explains in detail how to install accessories, such as extra memory,

accessory boards, and additional disk drives.

cog-inst.fm Page 1 Thursday, February 4, 1999 1:02 PM

HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation

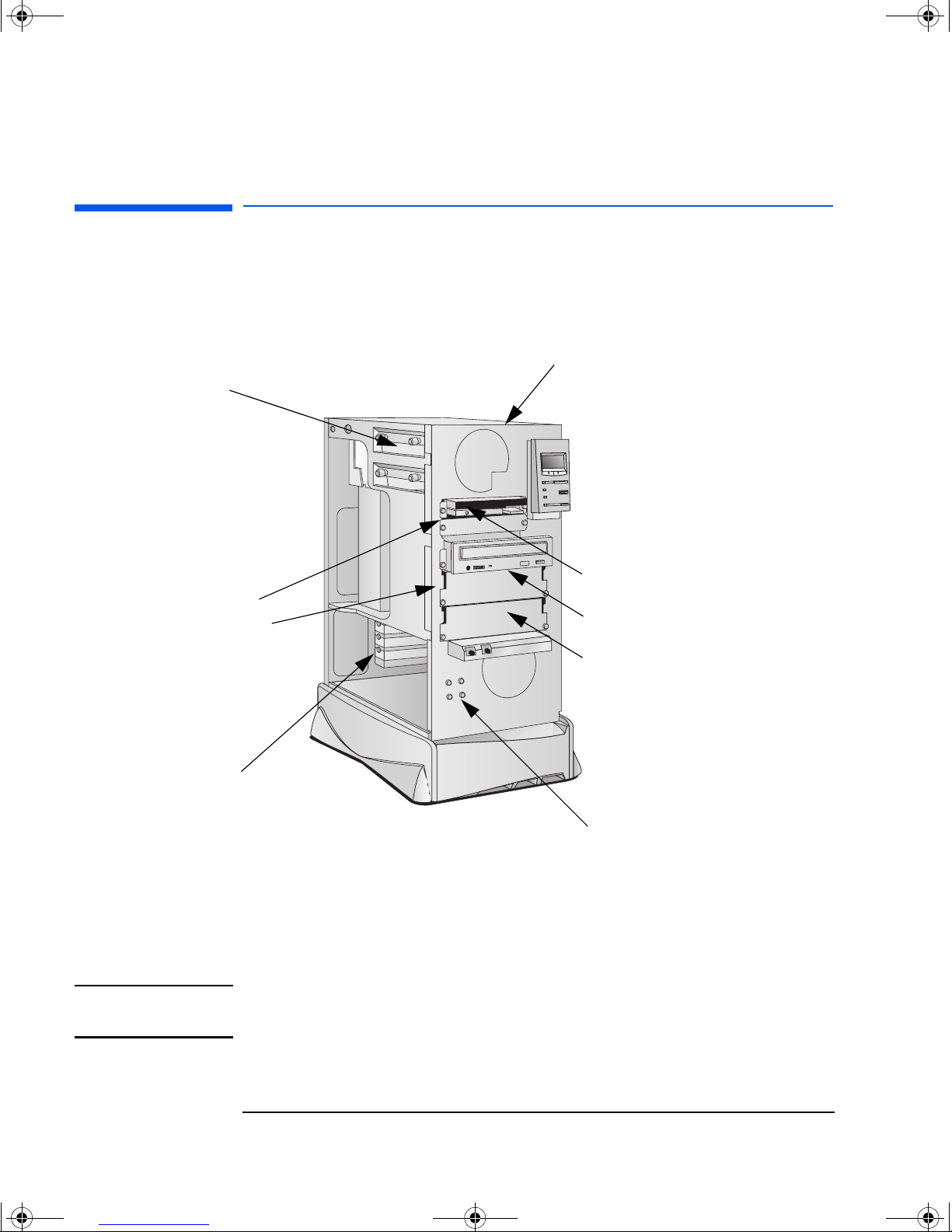

Supported HP Accessories

2English

Supported HP Accessories

Contact your dealer for an up-to-date list of supported devices.

NOTE 512 MB registered ECC SDRAM DIMMS cannot be used with 64 MB,

128 MB or 256 non-buffered MB DIMMs.

Up to six accessory boards

can be installed:

- One AGP slot (graphics)

- Four 32-bit PCI slots (one used by SCSI/LAN board,

and on selected models, one with a RAIDport)

- One combination PCI or ISA slot

Front Access Drives, for example:

- 3.5-inch 1.44 MB flexible disk drive

(one third height)

- 5.25-inch 1.2 MB flexible disk drive

(half height)

- 5.25-inch tape drive (half height)

Internal Mass

Storage Devices

5 Pairs of Rails for Front

Access Devices:

- 3.5-inch disk drive rails

- 5.25-inch disk drive rails

Main Memory Upgrades

(DIMM slots for ECC SDRAM):

- 64 MB non-buffered

- 128 MB non-buffered

- 256 MB non-buffered or,

- 512 MB registered (selected models only)

Four spare screws

cog-inst.fm Page 2 Thursday, February 4, 1999 1:02 PM

English 3

HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation

Removing and Replacing the Cover

WARNING For your safety, never remove the PC Workstation’s cover without first

removing the power cord from the power outlet, and any connection to

a telecommunications network. Always replace the cover on the

PC Workstation before switching it on again.

Removing the Cover

1Switch off the display and computer.

2Disconnect all power cables and any LAN or telecommunications

cables.

3If necessary, unlock the cover using the key on the back panel.

4Lift the two latches on the front sides of the computer upwards.

5Grasp the cover on the sides at the back of the computer and slide

it forwards and off the computer.

cog-inst.fm Page 3 Thursday, February 4, 1999 1:02 PM

HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation

Removing and Replacing the Cover

4English

Replacing the Cover

1Ensure that you have installed all your accessories and that all

internal cables are properly connected and safely routed.

2Ensure that the two latches on the front sides of the cover are lifted

up, and that the lock is unlocked.

3Slide the cover onto the computer, making sure that the two guides

at the bottom of the case slide into the two rails on the base of the

computer. Firmly slide the cover backwards into position.

4Lower the latches on the front sides of the cover.

5If required, lock the cover using the key provided.

6Reconnect all the power cables and any LAN or telecommunications

cables.

cog-inst.fm Page 4 Thursday, February 4, 1999 1:02 PM

English 5

HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation

Removing and Replacing the UltraFlow Airflow Guide

1Press the retaining buttons on each side of the airflow guide and lift

it partly out of the PC Workstation’s case.

2Remove the fan connection to the system board and lift the airflow

guide completely out of the PC Workstation’s case.

To improve access when installing accessories you may need to

remove the airflow guide.

To Replace the UltraFlow Airflow Guide

1Hold the airflow guide partly inside the PC Workstation’s case and

reconnect the fan to the system board.

2Align the airflow guide with the retaining slots on the PC

Workstation’s case and push firmly down into the case until it clicks

into place.

cog-inst.fm Page 5 Thursday, February 4, 1999 1:02 PM

HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation

Installing Memory

6English

Installing Memory

Main Memory Modules

If you need more main memory, you can install up to 2 GB of memory

in four DIMM slots. For details of supported memory, refer to

"Supported HP Accessories", on page 2.

To install a main memory module:

1Disconnect the computer’s power cord and any LAN or

telecommunications cables.

2Remove the computer’s cover (refer to page 3).

3Remove the HP UltraFlow airflow guide (refer to page 5).

4Remove the Ultra wide 16-bit SCSI cable from the system board.

5Remove the floppy disk drive data cable from the system board.

The location of the memory module slots (with retaining clips open) is

shown here.

Mem 1

Mem 4

cog-inst.fm Page 6 Thursday, February 4, 1999 1:02 PM

English 7

HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation

Installing Memory

NOTE To ease installation, place your PC Workstation on its side with the

system board facing upwards.

6Insert the memory module into the slot at 90º to the system board

(with the cutouts furthest from the processor).

7Firmly press the memory module completely into the connector

until the retaining clips click into position.

8Repeat this procedure for each additional memory module you want

to install.

9Install any other accessories if necessary, then replace all units and

reconnect all cables and power cords. Replace the cover (refer

to page 4) and the airflow guide (refer to page 5).

10 Check the HP Summary Screen to verify the new configuration.

Push the module until the

retaining clips click into position.

Insert the memory module into the

slot at 90º to the system board Memory module

cutouts

cog-inst.fm Page 7 Thursday, February 4, 1999 1:02 PM

HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation

Installing Mass Storage Devices

8English

Installing Mass Storage Devices

Connecting Devices

If you add an IDE Zip drive, hard disk drive, CD-ROM drive, CD-RW

drive, or tape drive, you need to connect it to power and data cables.

The data cables and power connectors provided are shown below:

16-bit SCSI with five

68-pin SCSI connectors

34-pin connector

8-bit SCSI with two

50-pin SCSI connectors

Cable with one connector for

3.5-inch Flexible Disk Drive

16-bit External 68-

pin SCSI connector

Power Cables for Hard Disk

Drives, Zip Drives, Tape Drives,

CD-RW, and CD-ROM Drives

Power Cable for 3.5-inch

Flexible Disk Drive

Cable with two 40-pin connectors for

IDE Drives such as CD-ROM Drives,

Zip Drives or Hard Disk Drives.

cog-inst.fm Page 8 Thursday, February 4, 1999 1:02 PM

English 9

HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation

Installing Mass Storage Devices

Disk Striping To achieve top performance through disk striping, a RAIDport™is

provided on the system board aligned with PCI socket 3.

When the Adaptec®FastRAID2 accessory is installed in the PCI

socket and RAIDport, the adapter sets up and accelerates disk striping

on hard disks connected to the internal UltraWide 16-bit SCSI

controller. The Adaptec®RAIDport adapter should be used with one

or more stripped hard disks.

For more information, refer to the “HP FastRAID Installation and

Configuration Guide” that came with your FastRAID2 accessory.

Before Installing an

IDE Hard Disk

Refer to the drive’s installation guide to see if you must set jumpers or

if there is a special installation procedure to follow.

Before Installing a

SCSI Hard Disk

If you are installing an additional SCSI drive, you should assign an

unused SCSI ID to this accessory. SCSI IDs range from 0 to 6 for Ultra

narrow 8-bit SCSI and from 0 to 15 for Ultra wide 16-bit SCSI. SCSI ID

0 is used by the first SCSI hard disk drive and SCSI ID 7 is reserved for

the integrated SCSI controller (the default for narrow and wide SCSI

devices).

NOTE Depending on your operating system, you may need to set a SCSI ID for

Plug and Play devices (SCSI devices that support the SCAM protocol).

If HP FastRAID is installed, you will need to set a SCSI ID.

You should assign an unused SCSI ID to the second SCSI hard disk

drive (for example, SCSI ID 1).

The SCSI ID is usually configured with jumpers on the SCSI hard disk

drive. Refer to the installation guide supplied with the drive for

information on selecting a SCSI ID.

Some internal SCSI disk drives may have termination resistors that

must be removed or disabled before installation in your computer.

Refer to the drive’s installation guide for more details and to see if

there is a special installation procedure to follow.

cog-inst.fm Page 9 Thursday, February 4, 1999 1:02 PM

HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation

Installing Mass Storage Devices

10 English

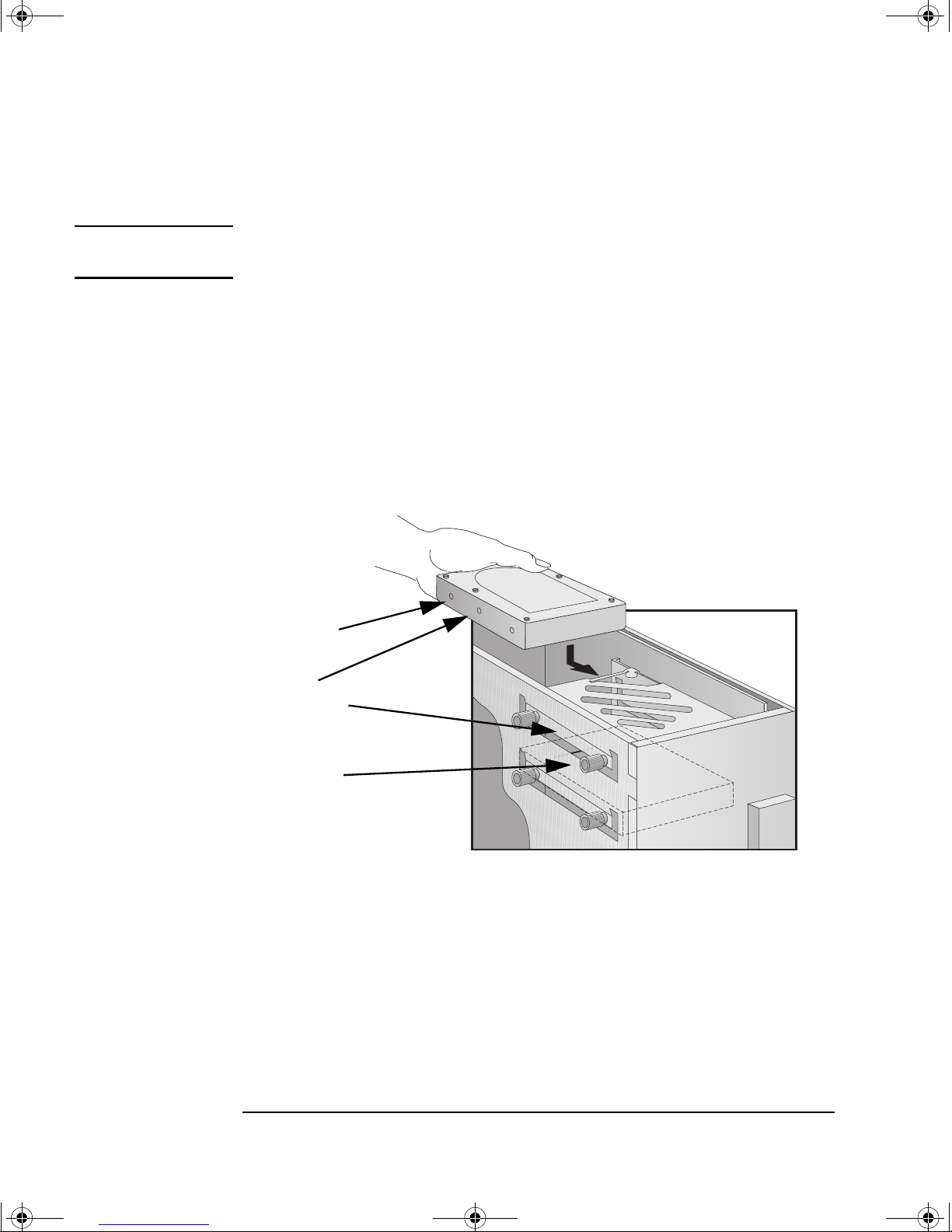

Installing a Hard Disk Drive in an Internal Shelf

CAUTION Hard disk drives larger than one inch (1”) in height can only be housed

in the lower internal shelf.

1Disconnect the computer’s power cord and any LAN or

telecommunications cable.

2Remove the computer’s cover (refer to page 3).

3Remove the HP UltraFlow airflow guide (refer to page 5).

4Slide the drive into position in the first internal shelf and align the

screw holes in the drive with the four self-retaining screws in the

drive shelf.

Screw hole

Self-retaining

screw

Align the hole in the drive

with the hole in the drive shelf

cog-inst.fm Page 10 Thursday, February 4, 1999 1:02 PM
