Medium-Profile

Desktop Vectras

HP Vectra VEi 7 PC 11-1

11

11

HP Vectra VEi 7 PC

Models and Accessories

Product

Number

Hard

Drive

Video

Controller1

Std.

RAM

Multi-media2LAN OS3

Vectra VEi 7 PC

Models with Intel Celeron Processor PPGA4package,

66 MHz System Bus Speed, and 128 KB Level 2 Cache Memory

HP Vectra VEi 7 PC 366/66 (CPL: 04/99; discontinued 07/99)

D8121A/T 4.3 GB

IDE

Integrated SiS

super AGP

(4 MB SGRAM

SO-DIMM,

upgradeable to 8

MB)

32 MB

SDRAM

100 MHz

no no W95

D8122N/T 64 MB

SDRAM

100 MHz

3COM

3C905B-

TX

NT

4.0

WS

D8123A/T 8.4 GB

IDE

32 ✕Max IDE

CD-ROM

no W95

D8124A 4.3 GB

IDE

W98

D8125T 32 MB

SDRAM

100 MHz

no W95

+

Word

HP Vectra VEi 7 PC 400/66 (CPL: 04/99; discontinued 10/99)

D8130A/T 4.3 GB

IDE

Integrated SiS

super AGP

(4 MB SGRAM

SO-DIMM,

upgradeable to 8

MB)

32 MB

SDRAM

100 MHz

no no DOS

D8131A/T W95

D8132N/T 64 MB

SDRAM

100 MHz

3COM

3C905B-

TX

NT

4.0

WS

D8133A/T 8.4 GB

IDE

32 ✕Max IDE

CD-ROM

no W95

D8134A 4.3 GB

IDE

W98

D8135T 32 MB

SDRAM

100 MHz

no W95

+

Word

6vei7.fm Page 1 Wednesday, December 15, 1999 2:50 PM

HP Vectra VEi 7 PC

11-2 HP Vectra VEi 7 PC Medium-Profile

Desktop Vectras

11

HP Vectra VEi 7 PC 433/66 (CPL: 04/99 )

D8141A 4.3 GB

IDE

Integrated SiS

super AGP

(4 MB SO-DIMM

SGRAM,

upgradeable to 8

MB)

32 MB

SDRAM

100 MHz

no no W95

D8142N 64 MB

SDRAM

100 MHz

3COM

3C905B-

TX

NT

4.0

WS

D8143A 8.4 GB

IDE

32 ✕Max IDE

CD-ROM

no W95

HP Vectra VEi 7 PC 466/66 (CPL: 06/99 )

D8126A/T 4.3 GB

IDE

Integrated SiS

super AGP

(4 MB SO-DIMM

SGRAM,

upgradeable to 8

MB)

32 MB

SDRAM

100 MHz

no no W95

D8127N/T 64 MB

SDRAM

100 MHz

3COM

3C905B-

TX

NT

4.0

WS

D8128A/T 8.4 GB

IDE

32 ✕Max IDE

CD-ROM

no W95

D8129A W98

D8144A 4.3 GB

IDE

no W95

D8148A/T 8.4 GB

IDE

48 ✕Max IDE

CD-ROM

W95

+

Word

HP Vectra VEi 7 PC 500/66 (CPL: 09/99 )

D8136A/T 4.3 GB

IDE

Integrated SiS

super AGP

(4 MB SO-DIMM

SGRAM,

upgradeable to 8

MB)

64 MB

SDRAM

100 MHz

no no W95

D8137N 3COM

3C905B-

TX

NT

4.0

WS

D8138A 8.4 GB

IDE

48 ✕Max IDE

CD-ROM

no W95

D8138T

D8139A W98

Product

Number

Hard

Drive

Video

Controller1

Std.

RAM

Multi-media2LAN OS3

6vei7.fm Page 2 Wednesday, December 15, 1999 2:50 PM

HP Vectra VEi 7 PC

Medium-Profile

Desktop Vectras

HP Vectra VEi 7 PC 11-3

11

Supported Accessories

Vectra VEi 7 PC xxx PC

Models with User Defined Processor, Main Memory, and Hard Disk

HP Vectra VL 6/xxx5Series 8 PC (CPL: 04/99 )

D8120E User

defined

Integrated SiS

super AGP

(4 MB SGRAM

SO-DIMM,

upgradeable to 8

MB)

User

defined

User defined User

defined

None

1. You can upgrade video memory by replacing the 4 MB module with an 8 MB module.

2. All models have an integrated full-duplex PCI audio controller.

3. Operating system preloaded on these models, as indicated in the table.

4. PPGA=Plastic Pin Grid Array.

5. Channel Assembly Program (CAP) models: Processor speed, hard disk size, and memory is

user defined.

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6501A/T

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20)

D6504A/T

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6502A/T

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20)

D6505A/T

128-MB, 32-bit SDRAM, 100 MHz non-ECC main memory module D6503A/T

256-MB, 32-bit SDRAM, 100 MHz ECC main memory module D6743A/T

1 ✕8 MB 143 MHz SDRAM, SO DIMM video memory module D8389A

Documentation

User’s Guide Manual Kit D8110A

Input Devices

HP Standard Keyboard C4735A

HP Multimedia Keyboard C4742A

HP Standard Mouse C3751A

HP Scrolling Mouse C4736A

HP Cordless Scrolling Mouse C4740A

Monitors

All current HP Monitors (see the HP Monitors Service Handbook)

Product

Number

Hard

Drive

Video

Controller1

Std.

RAM

Multi-media2LAN OS3

6vei7.fm Page 3 Wednesday, December 15, 1999 2:50 PM

HP Vectra VEi 7 PC

11-4 HP Vectra VEi 7 PC Medium-Profile

Desktop Vectras

11

Mass Storage

4.3-GB IDE hard disk, 5400 rpm D8371A

6.4-GB IDE hard disk, 5400 rpm D8372A

8.4-GB IDE hard disk, 5400 rpm D8373A

13.5-GB IDE hard disk, 7200 rpm D8092A

HP 100 MB Atapi II Iomega ZIP drive D6650A

HP 100 MB Atapi II Iomega ZIP drive (pack of 10) D6651A

Multimedia

5✕DVD-ROM drive D6935A

32✕Max IDE CD-ROM drive D4384A

32✕Max IDE CD-ROM drive (pack of 10) D6656A

Multimedia sound accessory kit (16-bit audio board, cables, and software) -

pack of 10

D5183A

Multimedia sound accessory kit (32✕Max CD-ROM drive, 16-bit audio

board, headphones, cables, and software)

D6657A

Data Communications and LAN Adapter Boards

HP 56K V90 PCI Fax Modem D7808A

HP 10/100 3Com 3C905B-TX, 10/100BT Ethernet card D7504A

HP 10/100 3Com 3C905B-TX, 10/100BT Ethernet card (pack of 10) D7505A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter D7506A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter (pack of 10) D7507A

Security

HP Master Pass Key System Kit D6655A

HP Master Pass Key D6658A

HP Locks for Master Pass Key System (pack of 50) D6659A

I/O Interfaces

HP Adaptec 2940 UW SCSI board D6951A

HP Serial interface card D8388A

6vei7.fm Page 4 Wednesday, December 15, 1999 2:50 PM

HP Vectra VEi 7 PC

Medium-Profile

Desktop Vectras

HP Vectra VEi 7 PC 11-5

11

System Board, BIOS, and Memory

Processor: Celeron PPGA

(Plastic Pin Grid Array)

package with Zero

Insertion Force (ZIF)

socket.

Main Memory:

Two DIMM sockets which support

up to a maximum of 512 MB.

Install 32 MB, 64 MB, 128 MB or 256

MB 100 MHz SDRAM modules.

Video memory: One socket

for a 4 MB SGRAM SO DIMM

(Small Outline Dual In-line

Memory Module). You can

upgrade video memory by

replacing the 4 MB module

with an 8 MB module.

System Board Jumpers:

See the diagram on the next page.

6vei7.fm Page 5 Wednesday, December 15, 1999 2:50 PM

HP Vectra VEi 7 PC

11-6 HP Vectra VEi 7 PC Medium-Profile

Desktop Vectras

11

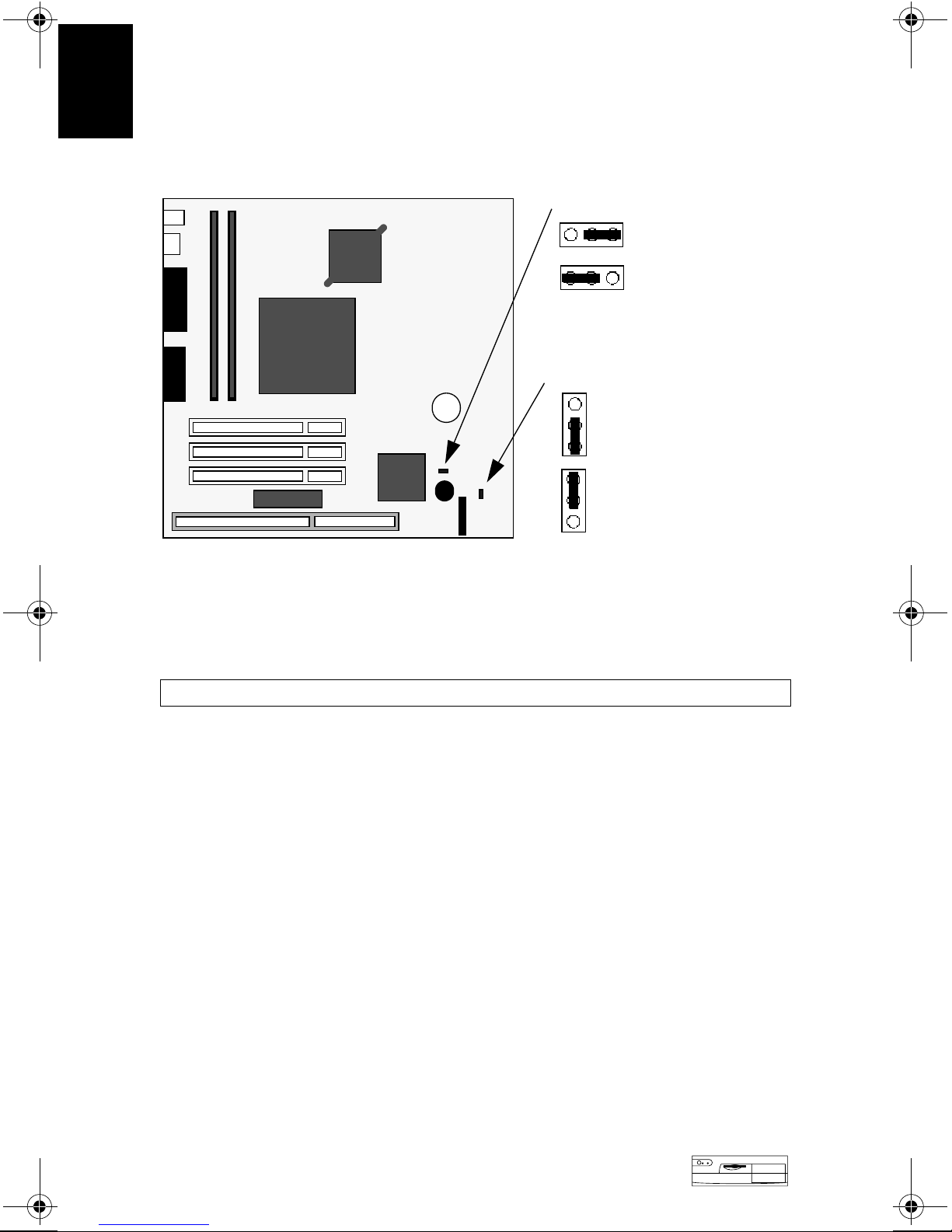

System Board Jumpers

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site.

http://www.hp.com/go/vectrasupport/

Clear CMOS jumper

Default position

Clear CMOS

Clear Password jumper

Default position

Clear Passwords

6vei7.fm Page 6 Wednesday, December 15, 1999 2:50 PM

HP Vectra VEi 7 PC

Medium-Profile

Desktop Vectras

HP Vectra VEi 7 PC 11-7

11

Part Numbers

1

4

a

b

23

6

7

8

9

10

11

12

13

14

16

15

17

5

6vei7.fm Page 7 Wednesday, December 15, 1999 2:50 PM

HP Vectra VEi 7 PC

11-8 HP Vectra VEi 7 PC Medium-Profile

Desktop Vectras

11

Parts List for HP Vectra VEi 7 PC

Item Description Repl.

Part Number

Exchange

Part Number

1 Chassis assembly:

a Top cover assembly

b Rear bezel

5064-9121

5064-9140

5064-7437

—

2 Status panel assembly 5064-9150 —

3 Front bezel assembly1

1. Includes front bezel, two 5.25 inch fillers, one 3.5 inch filler and name plate.

5064-9116 —

4 Power supply 0950-3423 —

5 FDD filler (for floppy-less models) 5042-3096 —

6 HDD and FDD cable kit 5064-9141 —

7 CD-ROM cable 5183-8063 —

8 Floppy disk drive (bezel-less) D2035-60391 —

9 IDE hard disk drive 2

4.3 GB

4.3 GB

4.3 GB

4.3 GB

8.4 GB

8.4 GB

8.4 GB

8.4 GB

13.5 GB

13.5 GB

2. For optional disk drive information, see the Accessory Service Handbook.

—

—

—

—

—

—

—

—

—

—

D7528-69001

D8195-69001

D8371-69001

D8604-69001

D7530-69001

D8197-69001

D8373-69001

D8605-69001

D8092-69001

D9440-69001

10 32 ✕Max IDE CD-ROM drive

32 ✕Max IDE CD-ROM drive (CAP models)

—

—

D4385-69001

D4385-69021

11 CD-ROM to audio connector cable 5182-1857 —

12 Headphones 5182-3552 —

13 Standard mouse C3751-60201 —

Standard keyboard C4739-601xx3

3. Where “xx” is the code for your national keyboard (see the Accessory Service Handbook).

—

14 Battery type CR2032 1420-0356 —

15 3COM Wake on LAN Cable 5183-2769 —

16 3Com 3C905B-TX LAN board 5064-6787 —

or Intel PRO/100+ LAN board 5064-7434 —

17 System board See PC’s system board parts list

6vei7.fm Page 8 Wednesday, December 15, 1999 2:50 PM

HP Vectra VEi 7 PC

Medium-Profile

Desktop Vectras

HP Vectra VEi 7 PC 11-9

11

Notes:

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

System Board Parts List for HP Vectra VEi 7 PC

Description Repl.

Part Number

Exchange

Part Number

System board:

Vectra VEi 7 system board with SiS super

AGP video controller

— D8115-69001

Processors:

Intel Celeron 366/66 128KB L2 cache 5064-7495 —

Intel Celeron 400/66 128KB L2 cache 5064-9130 —

Intel Celeron 433/66 128KB L2 cache D8117-63001 —

Intel Celeron 466/66 128KB L2 cache D8118-63001 —

Intel Celeron 500/66 128KB L2 cache 5065-0477 —

Thermal interface material 6040-0939 —

Heatsink 1205-0932 —

Main memory modules:

1 ✕32-MB, 100 MHz non-ECC SDRAM D6501-63001 —

1 ✕64-MB, 100 MHz non-ECC SDRAM D6502-63001 —

1 ✕128-MB, 100 MHz non-ECC SDRAM — D6503-69001

1 ✕256-MB, 100 MHz non-ECC SDRAM — D6743-69001

Video memory modules:

1 ✕4-MB SGRAM SO DIMM video memory D8116-63001 —

Manuals and Documentation for HP Vectra VEi 7 PC

User’s Guide D8110A

Troubleshooting and Upgrade Guide no number1

1. Electronic file available on HP’s Web site.

Technical Reference Manual: hardware and BIOS no number1

6vei7.fm Page 9 Wednesday, December 15, 1999 2:50 PM

HP Vectra VEi 7 PC

11-10 HP Vectra VEi 7 PC Medium-Profile

Desktop Vectras

11

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

____________________________________________________________________

6vei7.fm Page 10 Wednesday, December 15, 1999 2:50 PM
