HP TouchSmart 9300 Manuel utilisateur

Wall-Mounting your HP TouchSmart

User Guide

The only warranties for Hewlett-Packard

products and services are set forth in the

express statements accompanying such

products and services. Nothing herein

should be construed as constituting an

additional warranty. HP shall not be liable

for technical or editorial errors or omissions

contained herein.

HP assumes no responsibility for the use or

reliability of its software on equipment that is

not furnished by HP.

This document contains proprietary

information that is protected by copyright.

No part of this document may be

photocopied, reproduced, or translated to

another language without the prior written

consent of HP.

Hewlett-Packard Company

P.O. Box 4010

Cupertino, CA 95015–4010

USA

Development Company, L.P.

This product incorporates copyright

protection technology that is protected by

U.S. patents and other intellectual property

rights. Use of this copyright protection must

be authorized by Macrovision, and is

intended for home and other limited viewing

uses only unless otherwise authorized by

Macrovision. Reverse engineering or

disassembly is prohibited.

Microsoft, the Windows logo, and Windows

are trademarks or registered trademarks of

the Microsoft group of companies in the

United States and/or other countries/

regions.

Wi-Fi CERTIFIED 802.11n WLAN (wireless

local area network) are draft specification

and not final. If the final specifications differ

from the draft specifications, it may affect

the ability of this device to communicate with

other 802.11n WLAN devices.

HP supports lawful use of technology and

does not endorse or encourage the use of

our products for purposes other than those

permitted by copyright law. The information

in this document is subject to change without

notice.

Table of contents

1 Preparing your HP TouchSmart PC for wall-mounting ....................................................... 1

What you need ....................................................................................................................... 1

Safety information .................................................................................................................... 1

Before removing the stand ......................................................................................................... 2

Removing the computer stand .................................................................................................... 2

Installing the VESA adapter plate ............................................................................................... 7

2 Reinstalling the stand on your HP TouchSmart PC ........................................................... 10

What you need ..................................................................................................................... 10

Safety information .................................................................................................................. 10

Removing the wall-mounting hardware ...................................................................................... 11

Replacing the computer stand .................................................................................................. 12

Wall-Mounting your HP TouchSmart iii

iv Wall-Mounting your HP TouchSmart

1 Preparing your HP TouchSmart PC

for wall-mounting

This document provides instructions for computer wall-mounting preparation. The VESA adapter plate is

attached to bottom of the stand on the HP TouchSmart PC. This adapter assembly attaches to a wall-

mounting device (sold separately).

Should you decide to switch your computer back from a wall-mounted unit to desktop unit, instructions

are also included for reinstalling the stand on the computer. It is very important that you follow all the

steps to reinstall the computer stand.

What you need

●A Phillips screwdriver and a flathead screwdriver (magnetic-tipped recommended)

●A stable flat surface covered with a soft, clean cloth (such as a clean, large towel) to protect the

computer when you place it face down.

●Another person (it might require two people to lift and move the computer)

●Antistatic wrist strap and a conductive foam pad to stand on while working on the computer

(recommended)

●Wall-mounting device (sold separately) with the following specifications:

◦VESA standard 100 mm x 100 mm (3.9 in x 3.9 in) hole pattern

◦VESA standard 100 mm x 200 mm (3.9 in x 7.8 in) hole pattern

◦Designed for flat-panel displays ranging in size from 508 mm to 582 mm (20 inches to 22.9

inches) diagonal, and weighing up to 22.7 kg (50 lb)

Safety information

This product has not been evaluated for connection to an “IT” power system (an AC distribution system

with no direct connection to the earth, according to IEC 60950).

WARNING! Please read “Additional Safety Information” in the Limited Warranty and Support

Guide before installing and connecting your system to the electrical power system.

WARNING! The computer is heavy. Take proper precautions when lifting or moving your computer.

WARNING! Always disconnect the HP TouchSmart PC from the power source before removing the

computer stand. Failure to do so before you perform any procedures can result in personal injury or

equipment damage.

WARNING! Avoid touching sharp edges inside the computer.

Wall-Mounting your HP TouchSmart What you need 1

Before removing the stand

To avoid injury and equipment damage when opening the HP TouchSmart PC, always complete the

following steps in order:

1. Remove any media and external devices (such as any CD, DVD, memory cards, USB devices, or

external hard disk drives) from the HP TouchSmart PC.

CAUTION: Static electricity can damage the electronic components of the HP TouchSmart PC or

optional equipment. Ensure that you are discharged of static electricity by briefly touching a

grounded metal object.

2. Tap the Windows Start button and then tap Shut Down.

WARNING! To reduce the risk of personal injury from electrical shock or hot surfaces,

disconnect the power cord from the wall outlet, and allow the internal system components to cool

before touching them.

3. After the system has completely shut down, disconnect the power adapter from the back of the

HP TouchSmart PC.

4. Disconnect all other attached cables from the back and side of the HP TouchSmart PC.

Removing the computer stand

After completing the preceding steps, and before mounting the VESA adapter plate to the back of the

computer, remove the computer stand.

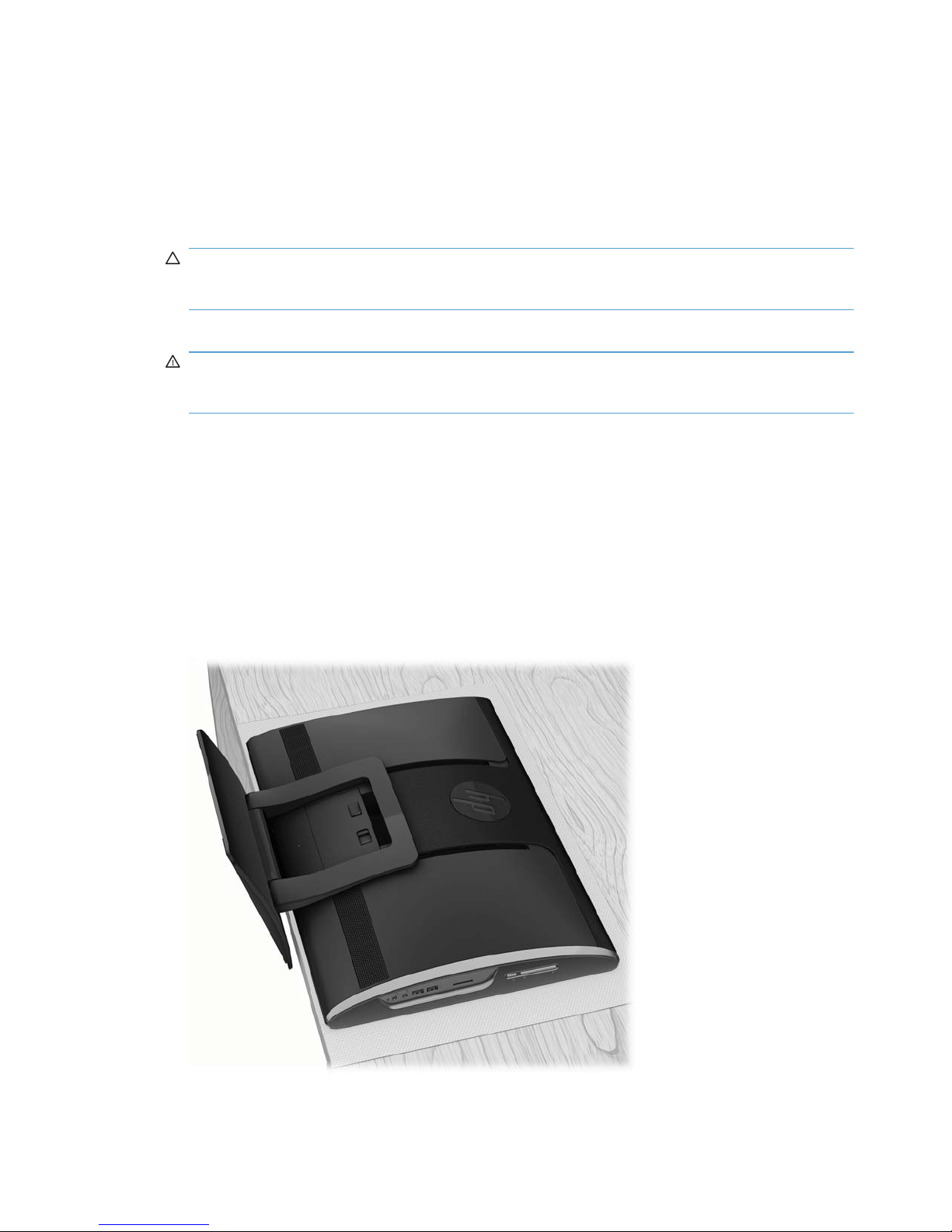

1. Place the computer facedown on a stable flat surface that is covered with a soft cloth.

2 Chapter 1 Preparing your HP TouchSmart PC for wall-mounting Wall-Mounting your HP TouchSmart

2. Insert your finger, or a flathead screwdriver, into the slot on the stand cover to pry it off of the

computer stand.

3. Remove the stand cover from the computer stand.

Wall-Mounting your HP TouchSmart Removing the computer stand 3

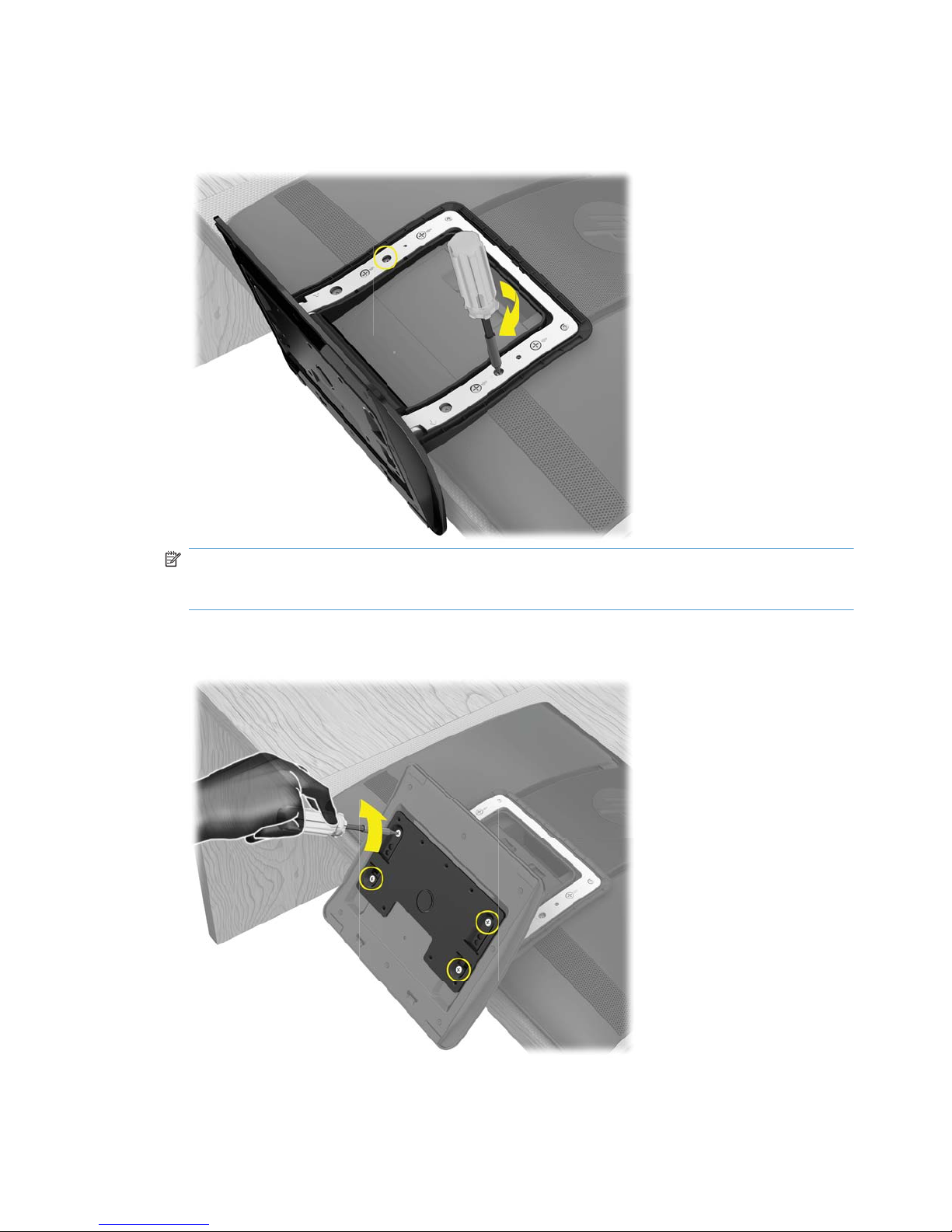

4. Use a Phillips screwdriver to tighten the recessed two brake screws (for the rails) on the computer.

It should take about 5–10 turns of the screwdriver to secure the screws. Take care not to

overtighten the screws.

NOTE: The tightened brake screws will hold the VESA adapter plate in the locked position, so

that the computer does not slide down once it is mounted on a wall. These screws must be tighten

before placing the VESA adapter plate on the back of the computer.

5. While the stand is still on the computer, use a Phillips screwdriver to remove the four screws

attaching the VESA adapter plate to the bottom of the computer stand. Save the screws.

4 Chapter 1 Preparing your HP TouchSmart PC for wall-mounting Wall-Mounting your HP TouchSmart

6. Remove the VESA adapter plate from the bottom of the computer stand.

7. Use a flathead screwdriver to remove the four screws attaching the computer stand to the back of

the computer.

Wall-Mounting your HP TouchSmart Removing the computer stand 5

8. Lift the computer stand away from the computer.

9. Save the computer stand, stand cover, and four screws, so that you can convert your

HP TouchSmart PC back to a desktop unit in the future.

NOTE: If the computer stand is ever replaced on the computer, the VESA adapter plate must be

replaced on the bottom of the computer stand in order to properly support the computer. Follow all

the steps in Reinstalling the stand on your HP TouchSmart PC on page 10.

6 Chapter 1 Preparing your HP TouchSmart PC for wall-mounting Wall-Mounting your HP TouchSmart
