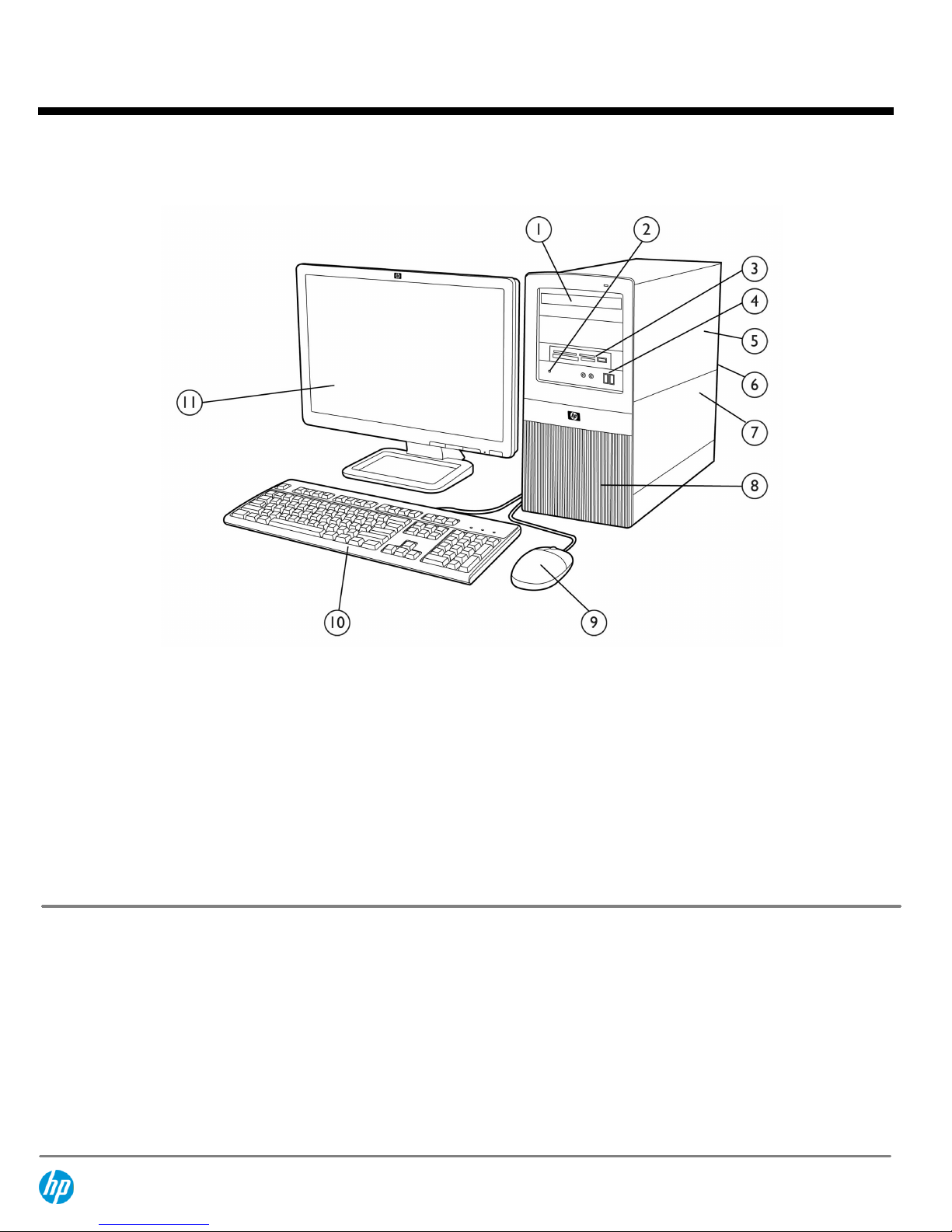

Microtower

(2) external 5.25" drive bays for optional optical drives

(2) full-height PCI 2.3 slots, (1) PCIe x1 slot,

(1) PCIe x16 slot

Reset/recovery button

(2) internal 3.5" hard drive bays

(1) external 3.5" drive bay for optional media reader or Pocket

Media drive

PS/2 Scroll Mouse

Front I/O includes: (2) USB 2.0 ports, dedicated headphone

output, microphone jack

10.

HP Standard Keyboard

Standard efficiency Power Supply or optional energy efficient

Power Supply

11.

Monitor (sold separately)

Rear I/O includes: (4) USB 2.0 ports, serial port, PS/2 mouse

and keyboard ports, RJ-45 network interface, DVI-D and VGA

video interfaces, microphone jack, audio in/out jacks

QuickSpecs

HP Pro 2000 Business PC

Overview

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 1

At A Glance

Support for Intel® Core™ 2 Duo and Core™ 2 Quad processors, Intel Pentium® processors, Intel Celeron® processors

Genuine Windows 7 versions, Genuine Windows Vista versions, Genuine Windows XP Professional available through downgrade

rights from Windows 7 Professional, SuSE Linux Enterprise Desktop 11, or FreeDOS

Intel G41 Express Chipset

Legacy serial port support

Intel I/O Controller Hub 7 (ICH7)

Intel Graphics Media Accelerator X4500 with DX10 support

PCI Express I/O bus

Serial ATA controller

Realtek 8111DL Gigabit Ethernet Controller

Choice of hard drives and optical drives

DDR3 SDRAM system memory

Optional energy efficient power supply for Microtower

Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.

QuickSpecs

HP Pro 2000 Business PC

Overview

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 2

Processor and Speed

One of the following

Intel Celeron Processors:

Intel Celeron 440 Processor (2.0-GHz, 512-KB L2 cache, 800-MHz FSB)

Intel Celeron 450 Processor (2.2-GHz, 512-KB L2 cache, 800-MHz FSB)

Intel Celeron Dual-Core Processors:

Intel Celeron E1500 Processor (2.2-GHz, 512K L2 cache, 800-MHz FSB)

Intel Celeron E1600 Processor (2.4-GHz, 512K L2 cache, 800-MHz FSB)

Intel Celeron E3200 Processor (2.4-GHz, 1-MB L2 cache, 800-MHz FSB)

Intel Celeron E3300 Processor (2.5-GHz, 1-MB L2 cache, 800-MHz FSB)

Intel Pentium Dual-Core Processors:

Intel Pentium E5300 Processor (2.6-GHz, 2-MB L2 cache, 800-MHz FSB)

Intel Pentium E5400 Processor (2.7-GHz, 2-MB L2 cache, 800-MHz FSB)

Intel Pentium E6300 Processor (2.8-GHz, 2-MB L2 cache, 1066-MHz FSB)

Intel Core 2 Duo Processors:

Intel Core 2 Duo E7500 Processor (2.93-GHz, 3 MB L2 cache, 1066-MHz FSB)

Intel Core 2 Duo E7600 Processor (3.06-GHz, 3 MB L2 cache, 1066-MHz FSB)

Intel Core 2 Duo E8400 Processor (3.0-GHz, 6 MB L2 cache, 1333-MHz FSB)

Intel Core 2 Duo E8500 Processor (3.16-GHz, 6-MB L2 cache, 1333-MHz FSB)

Intel Core 2 Duo E8600 Processor (3.33-GHz, 6 MB L2 cache, 1333-MHz FSB)

Intel Core 2 Quad Processors:

Intel Core 2 Quad Q8300 Processor (2.5-GHz, 4 MB L2 cache, 1333-MHz FSB)

Intel Core 2 Quad Q8400 Processor (2.66-GHz, 4 MB L2 cache, 1333-MHz FSB)

Intel Core 2 Quad Q9400 Processor (2.66-GHz, 6 MB L2 cache, 1333-MHz FSB)

Intel Core 2 Quad Q9550 Processor (2.83-GHz, 12 MB L2 cache, 1333-MHz FSB)

Intel Core 2 Quad Q9650 Processor (3.0-GHz, 12 MB L2 cache, 1333-MHz FSB)

NOTE:

Intel processor numbers are not a measure of performance. Processor numbers differentiate

features within each processor family, not across different processor families.

QuickSpecs

HP Pro 2000 Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 3

Operating Systems and

Application Software

(availability varies by

region)

Genuine Windows 7 Professional Edition (32-bit)

Genuine Windows 7 Professional Edition (64-bit)

Genuine Windows XP Professional available through downgrade rights from Windows 7

Professional

2,3

Genuine Windows 7 Home Premium Edition (32-bit or 64-bit)

Genuine Windows 7 Home Basic Edition (32-bit)

Genuine Windows Vista Business (32-bit)

Genuine Windows Vista Home Basic (32-bit)

Genuine Windows XP Home Basic (China only)

SuSE Linux Enterprise Desktop 11

Red Flag Linux (China only)

FreeDOS

Certain Windows Vista product features require advanced or additional hardware. See

www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade Advisor

can help you determine which features of Windows Vista will run on your computer. To download the tool,

visit:

www.windowsvista.com/upgradeadvisor

System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the

Windows 7 software and take full advantage of Windows 7 functionality. See

http://www.microsoft.com/windows/windows-7/

for details.

Windows 7 Professional disk may be included for future upgrade if desired. To qualify for this downgrade

an end user must be a business (including governmental or educational institutions) and is expected to

order at least 25 customer systems with the same custom image.

2007 Microsoft Office Ready PC

Microsoft Office 2007 Basic

Microsoft Office 2007 Small Business

Microsoft Office 2007 Professional

HP Recovery Manager

Mozilla Firefox for HP Virtual Solutions

Hard Disk Partitioning

Roxio Easy Media Creator 10

Core WinDVD 8

Core WinDVD BD for Blu-Ray

McAfee Total Protection Anti-Virus

***

PDF Complete

HP Power Manager v2.0 (Edison)

Credential Manager

HP Total Care Advisor

USB Port Disable

Sun Java Runtime Environment

Welcome Center SMB Offers

** Supporting software available with certain optical drive configurations

*** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to

receive updates. First update included. Subscription required for updates thereafter.

QuickSpecs

HP Pro 2000 Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 4

Hard Drives

160-GB 7200 rpm Serial ATA 3.0-Gb/s NCQ, SMART

250-GB 7200 rpm Serial ATA 3.0-Gb/s NCQ, SMART

320-GB 7200 rpm Serial ATA 3.0-Gb/s NCQ, SMART

500-GB 7200 rpm Serial ATA 3.0-Gb/s NCQ, SMART

System Memory

1-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (1 x 1GB)

2-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (2 x 1GB)

2-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (1 x 2GB)

3-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (1 x 1GB + 1 x 2GB)

4-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (2 x 2GB)

NOTE:

Memory runs at maximum system supported speed of 1066 MHz, or at 800 MHz when processor

has 800-MHz FSB. For systems configured with more than 3 GB of memory and a 32-bit operating system,

all memory may not be available due to system resource requirements. Addressing memory above 4 GB

requires a 64-bit operating system.

Storage

–

One or more of the

following (see Storage

section below)

USB Pocket Media Drive (PMD) and Bay

HP 3.5-inch Pocket Media Drive Bay

HP 320GB 3.5-inch Pocket Media Drive with Bay

Diskette Drive

1.44 MB Diskette Drive

Media Reader

HP 22-in-1 Media Card Reader

Optical Drives (Serial ATA)

SATA DVD-ROM Drive

SATA SuperMulti LightScribe DVD Writer

HP SATA Blu-ray Writer

Input Devices

Keyboard – One of the following

HP PS/2 Standard Keyboard

HP USB PS/2 Washable Keyboard

HP USB Standard Keyboard

HP USB Mini Keyboard

HP USB Smartcard Keyboard

Mouse – One of the following

PS/2 2-Button Optical Scroll Mouse

USB 2-Button Optical Scroll Mouse

USB 2-Button Laser Mouse

QuickSpecs

HP Pro 2000 Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 5

Audio

Realtek ALC662 High Definition audio codec

Internal PC speaker

HP USB Thin Powered Speakers

Communication

Realtek 8111DL GbE Ethernet Controller

Intel Gigabit CT Desktop NIC

LSI PCIe x1 56K International SoftModem

Graphics

Intel Graphics Media Accelerator X4500

ATI Radeon HD 4350 (512MB) FH PCIe x16 Card

ATI Radeon HD 4550 (256MB) DH PCIe x16 Graphics Card (available through January 2010)

ATI Radeon HD 4550 (512MB) DH PCIe x16 Graphics Card (available after January 2010)

ATI Radeon HD 4650 1GB Dual Head PCIe x16 Card

NVIDIA GeForce G210 512MB ATX PCIe x16

NVIDIA GeForce GT230 1.5GB PCIe x16 Card

NVIDIA GeForce 205 512MB ATX PCIe x16

NVIDIA GeForce 315 1GB ATX PCIex16

DMS-59 To Dual DVI Y-Cable Adapter

Miscellaneous

Hood Sensor

Port Control Cover

HP Chassis Security Kit

HP Parallel Port Adapter

HP Serial Port Full Height Adapter

HP Serial/Parallel PCI Card

HP 1394a FireWire 400 PCI Card

QuickSpecs

HP Pro 2000 Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 6

Base Unit

Micro ATX Microtower chassis, including power supply and front bezel; five (5) drive bays and four

expansion slots

Active type heatsink

92 x 92 x 25 mm chassis fan for Microtower chassis

System board with Intel G41 Express chipset, Intel I/O Controller Hub 7 (ICH7), Realtek RTL8111DL

Ethernet controller, Intel GMA X4500 graphics, and Realtek audio, (1) PCI Express x1 slots, (1) PCI

Express x16 slot, (2) PCI, (2) DDR3 DIMM memory slots, (4) Serial ATA data connectors, (6) USB Ports

(see USB support below), (1)VGA, (1)DVI-D port, (1) serial port in the rear IO

Power cord

Slots

PCI

One (1) PCI Express x1 slots on PCA

One (1) PCI Express x16 slot on PCA (for graphic cards)

Two (2) PCI slots on PCA

Memory Expansion

Two (2) DDR3 SDRAM DIMM slots (4 GB maximum memory support)

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory

may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64-

bit operating system.

Bays

Internal

Two (2) 3.5-inch

External

Two (2) 5.25-inch; One (1) 3.5-inch

USB Support

EHCI high-speed USB 2.0 controller

Two (2) front ports; Four (4) rear ports

Four (4) internal ports on system board:

2 for front ports

2 for media card reader

Interfaces

(Legacy)

One (1) PS/2 keyboard port

One (1) PS/2 mouse port

One (1) analog VGA video port

One (1) DVI-D video port

One (1) serial port

One (1) line in; one (1) line out; one (1) microphone in

One (1) RJ45 network port

QuickSpecs

HP Pro 2000 Business PC

System Details

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 7

Weight & Dimensions

Chassis Dimensions

(H x W x D)

15.14 x 7.27 x 16.36 in

385 x 185 x 416 mm

Packaged Dimensions

(D x L x W)

19.63 x 24.13 x 10.56 in

498.6 x 613 x 268.2 mm

System Weight

16.66 lb (7.56 kg)

Shipping Weight

24.63 lb (11.17 kg)

Technology and Features

Memory Type

PC3-10600 DDR3 SDRAM (1066/1333MHz) non-ECC

Up to 4 GB system memory standard

NOTE:

Memory runs at maximum system supported speed of 1066 MHz, or at 800 MHz when processor

has 800-MHz FSB. For systems configured with more than 3 GB of memory and a 32-bit operating system,

all memory may not be available due to system resource requirements. Addressing memory above 4 GB

requires a 64-bit operating system.

Hard Drive Interfaces

Supported

Serial ATA, NCQ support

Chassis

Front Panel

Power button

Power On LED

HDD Activity LED

Reset/recovery button (MT only)

Cooling Solutions

Supported

Power Supply Fan (variable speed)

Active heatsink (variable speed)

Chassis fan (variable speed)

Slots Supported

Four (4) full-height expansion slots

Front I/O

Two (2) USB 2.0 ports, Headphone, Mic

Rear I/O

Standard Micro ATX I/O connectors, including four(4) USB 2.0 ports, serial

ports

Drive Bays

Two (2) 5.25-inch (13.335 cm) half height external

One (1) 3.5-inch (8.89 cm) half height external

Two (2) 3.5-inch half height internal

Internal Speaker

Optional for APJ

Security

Padlock loop

Kensington Lock Support

Noble Universal Clamp Lock Cable Kit

Port Control Cover supported

Power Supply

250W PFC HV immunity (410V/s) with a 115v/230v line switch (varies by

country/region) as Standard configuration , and 300W PFC HV immunity

(410V/s) with a 115v/230v line switch and 300W 85% Efficiency power supply

as option

*Reset function will be set for China/Hong Kong/Korea; Recovery function will be set for all other regions.

QuickSpecs

HP Pro 2000 Business PC

System Details

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 8

Unit Environment and

Operating Conditions

General Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and

cold, to ensure that unit is operated within the specified operating range.

Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required airflow.

Never restrict airflow into the computer by blocking any vents or air intakes.

Do not stack computers on top of each other or place computers so near each other that they are

subject to each other's re-circulated or preheated air.

Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint,

dust and other foreign matter can block the vents and limit the airflow.

If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must

be provided on the enclosure, and the same operating guidelines listed above will still apply.

Temperature Range

Operating

41° to 95° F (5° to 35° C)

Non-operating

-22° to 149° F (-30° to 65° C)

Relative Humidity

Operating

10% to 90% (non-condensing at ambient)

Non-operating

5% to 95% (non-condensing at ambient)

Maximum Altitude

(unpressurized)

Operating

10,000 ft (3048 m)

Non-operating

30,000 ft (9144 m)

NOTE:

Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 7500 ft (2286 m) above sea

level, no direct sustained sunlight. Maximum rate of change is 7.5 deg C/Hr. The upper limit may be limited

by the type and number of options installed.

System Board

Processor

Socket T; LGA775 industry standard Micro ATX form factor

Support single Intel Core 2 Duo and Core 2 Quad, Pentium dual-core, or

Celeron processors

Chipset

Intel G41 Express

Intel I/O Controller Hub 7 (ICH7)

Front Side Bus Frequency

800/1066/1333 MHz

Memory

DDR3 SDRAM

2 x DIMM slots

Integrated Graphics

Intel Graphics Media Accelerator (GMA) X4500

Audio

Realtek ALC662 HD Audio compatible codec with two channel audio 3D audio

compliant with AC'97 rev. 2.3

LOM

Realtek RTL8111DL

Storage

Four Serial ATA interfaces

Expansion Slots

1 x PCI Express x1 slots

1 x PCI Express x16 slot

2 X PCI

BIOS

SPI FLASH ROM

Industrial Standard

PCIe compliant

USB 2.0

Rear I/O Ports

1 x PS/2 keyboard port

1 x PS/2 mouse port

4 x USB 2.0 ports

QuickSpecs

HP Pro 2000 Business PC

System Details

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 9

1 x RJ-45 10/100/1000 port

1 x serial port

1 x DVI-D video port

1 x DB 15-pin analog VGA port

3 x audio ports

On Board I/O Interfaces

1 x ATX power connector

1 x +12V power connector

1 x Floppy connector

1 x header (1 – 1x3) to support hood sensor

1x COM2 header

1x Parallel header

1 x Front panel connector, Switch, LED (ON/Flash/OFF)

2 x Fan headers for CPU, chassis, with voltage/fan speed control

1 x header (1 – 2x5, ) to support 2 USB 2.0 ports at front side

1 x header (1 – 2x5) to support USB Card Media Reader

1 x header (1 – 1x2) to support one touch reset

1 x header (1 –- 1x2) to support one touch recovery

1 x header to support 2 front (Headphone/Mic) audio ports

Board Size

Micro-ATX, PCB Size: 9.6 x 9.6 in (24.38 x 24.38 cm)

4-layer PCB with green color

Additional Features

Bootable without keyboard, mouse or monitor

Keyboard/mouse/USB wake up

Support S3, S4 and S5

ACPI status

Hardware monitor capability

CPU fan speed control

One button reset/recovery

*Reset function will be set for China/Hong Kong/Korea; Recovery function will

be set for the other regions.

Network Interface

Realtek 8111DL GbE Ethernet Controller

Intel Gigabit CT Desktop NIC

Modem

LSI PCIe x1 56K International SoftModem

QuickSpecs

HP Pro 2000 Business PC

System Details

DA - 13494 Worldwide — Version 5 — November 29, 2010

Page 10

Autres manuels pour Pro 2000

Table des matières

Autres manuels HP Ordinateur de bureau

HP Pavilion Elite m9040n Comment utiliser

HP Pavilion w1000 - Desktop PC Manuel utilisateur

HP Kayak XW A2-U2-W2 Manuel utilisateur

HP Workstation x1100 Manuel utilisateur

HP Compaq Presario Instructions d'installation

HP Compaq Presario Manuel d'utilisation et d'entretien

HP Presario S6000 - Desktop PC Manuel utilisateur

HP EliteDesk 880 G5 Manuel

HP Workstation xw6000 Instructions d'installation et d'entretien

HP 260 G1 Manuel d'utilisation et d'entretien

HP A320m - Pavilion - 256 MB RAM Manuel utilisateur

HP 9000 742i Manuel utilisateur

HP Pavilion t600 - Desktop PC Manuel utilisateur

HP Compaq dc5750 SFF Manuel d'utilisation et d'entretien

HP ML150 - ProLiant - G6 Guide d'installation

HP Pavilion Elite d5100 - ATX Desktop PC Manuel d'utilisation et d'entretien

HP Vectra VL410 Manuel utilisateur

HP Compaq Presario Manuel

HP 9000 Series 360 Comment utiliser

HP RN635AA#ABA Manuel utilisateur

HP Compaq AlphaServer DS20E Instructions d'utilisation

HP Presario SR1100 - Desktop PC Manuel utilisateur

HP ProDesk 405 G4 Small Form Factor Manuel

HP 3000 Series Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Dell

Dell Alienware Area-51 R4 Manuel utilisateur
