HP EliteDesk 480 G4 Instructions d'installation

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Personal Computers

Marketing Name / Model

[List multiple models if applicable.]

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description

Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

Acbel EPA85

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

Include the cartridges, print heads, tubes, vent

HP EliteDesk 480 G4 Microtower Business PC

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

including liquids, semi-liquids (gel/paste) and toner

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Screwdriver

T-15

Micro shear

170II

Screwdriver

PH1

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Loose the screw and remove access panel.(see Figure 1 below)

2. Disconnect ODD/HDD power cable and SATA cable from ODD/HDD.(see Figure 2- 5 below)

3. Remove the driver cage from chassis.(see Figure 6 below)

4. Remove ODD/HDD from driver cage.(see Figure 7-10 below)

5. Disconnect all cables from the MB.(see Figure 11-18 below)

6. Remove the heatsink from MB.(see Figure 19 below)

7. Separate the fan from CPU heatsink.（see Figure 20-21 below)

8. Remove the Memory card from the MB.(see Figure 22 below)

9. Remove the CPU from the MB.(see Figure 23-24 below)

10. Remove the battery from the MB .(see Figure 25 below)

11. Remove M/B from chassis.(see Figure 26-28 below)

12. Remove Speaker/system fan from chassis.(see Figure 29-30 below)

13. Remove PSU from chassis.(see Figure 31-33 below)

14. Separate PSU cover/fan and remove the Electrolytic Capacitors.(see Figure 34-41 below)

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

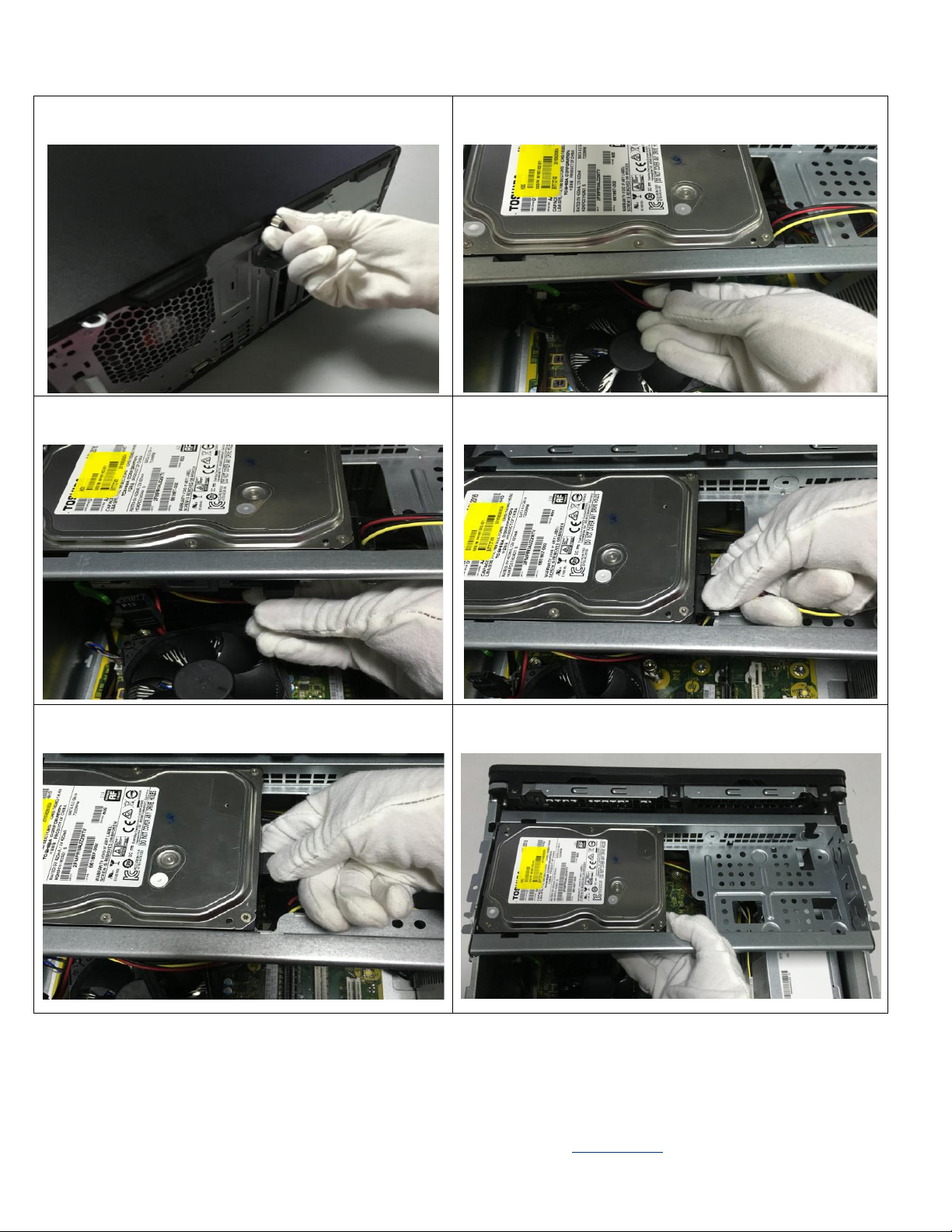

Figure 1 Loose thumb screw and remove access panel

Figure 2 Disconnect ODD power cable from ODD

Figure 3 Disconnect SATA cable from ODD

Figure 4 Disconnect HDD Power cable from HDD

Figure 5 Disconnect SATA cable from HDD

Figure 6 Remove the driver cage from chassis

EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

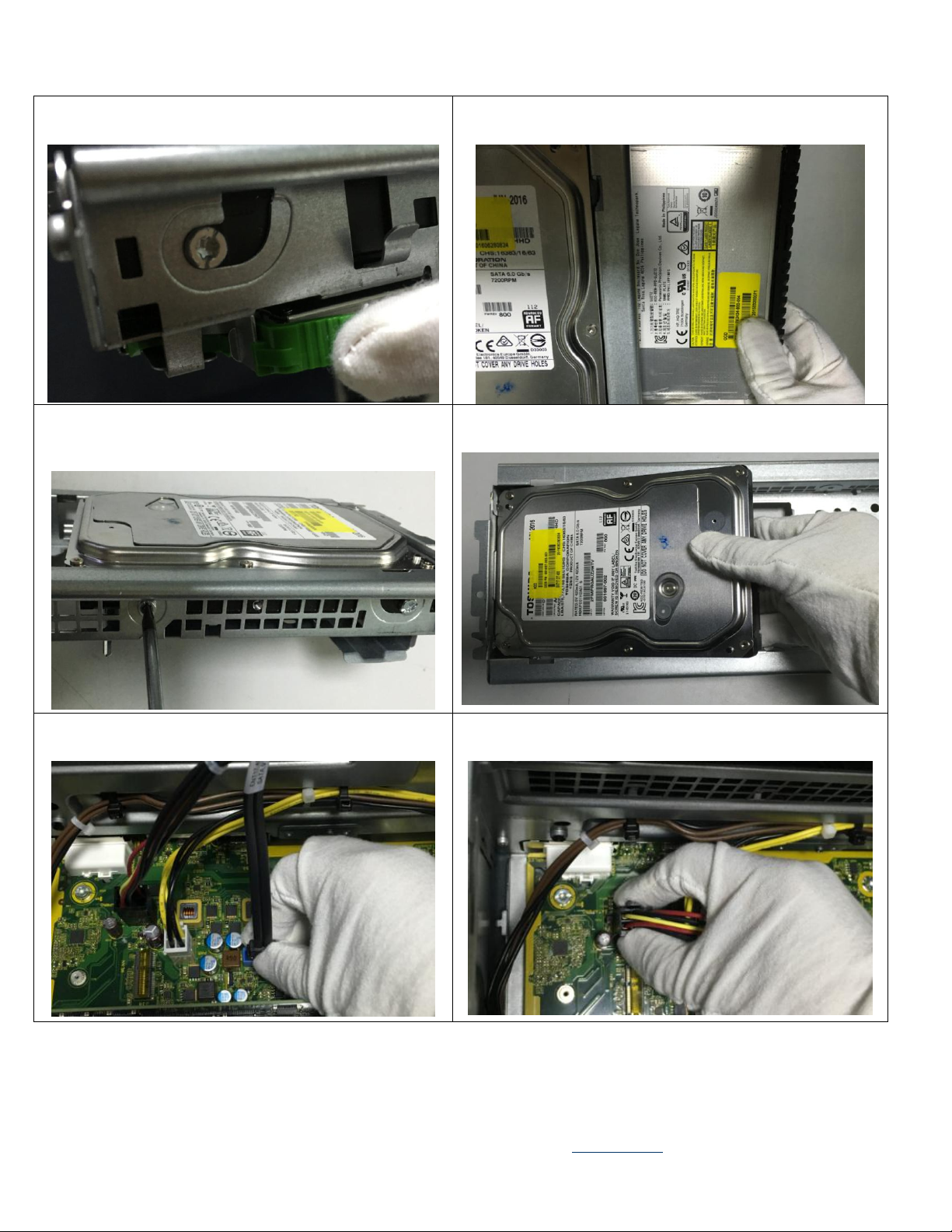

Figure 7 Press the ODD’s latch on ODD cage

Figure 8 Remove the ODD from ODD cage

Figure 9 Use T-15 screwdriver to loose the screws of HDD

from cage

Figure 10 Remove the HDD from HDD cage

Figure 11 Disconnect SATA cable from the MB

Figure 12 Disconnect ODD/HDD PSU cables from the MB

EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01

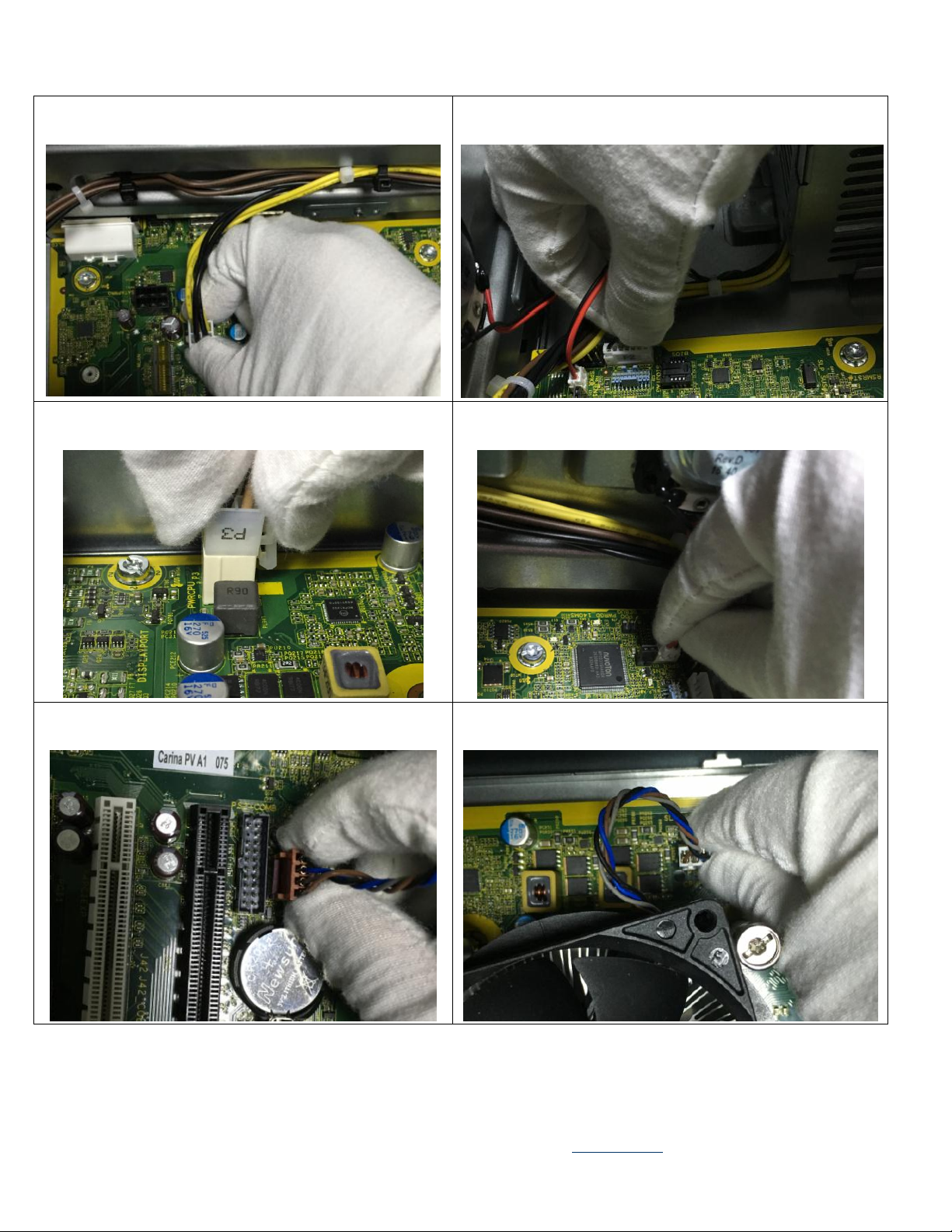

Figure 13 Disconnect PSU P1 cable from the MB

Figure 14 Disconnect PSU P2 cable from the MB

Figure 15 Disconnect CPU P3 cable from the MB

Figure 16 Disconnect Speaker cable from the MB

Figure 17 Disconnect system fan cable from the MB

Figure 18 Disconnect heat sink fan cable from MB

EL-MF877-00 Page 6

Template Revision B

PSG instructions for this template are available at EL-MF877-01

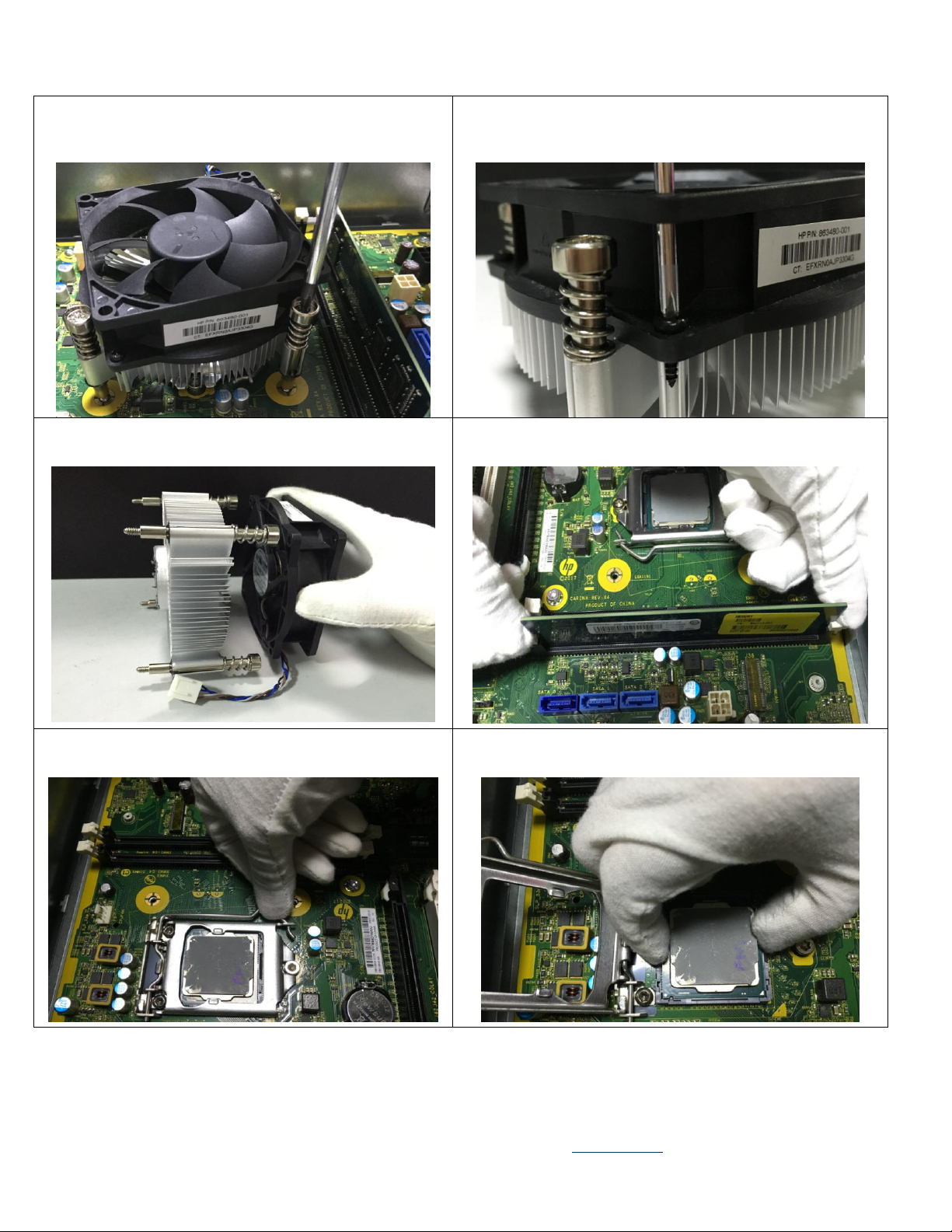

Figure 19 Use T-15 screwdriver to loose the screws and

remove heat sink

Figure 20 Use PH1 screwdriver to loose the screws and

remove the fan

Figure 21 Separate the fan from CPU heat sink

Figure 22 Remove the Memory card from the board

Figure 23 Rotate the handle and open it up

Figure 24 Remove the CPU from the board

EL-MF877-00 Page 7

Template Revision B

PSG instructions for this template are available at EL-MF877-01

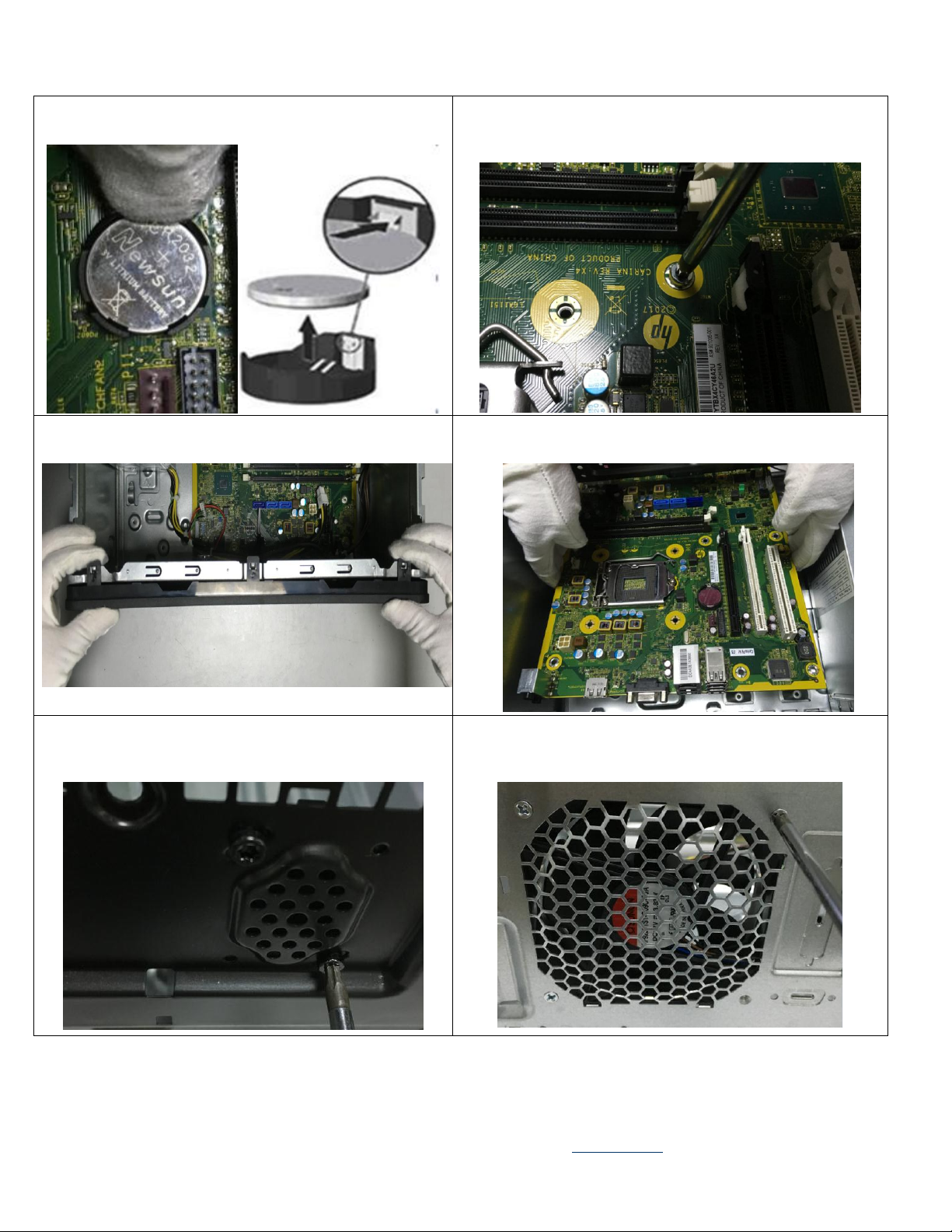

Figure 25 Remove the battery from the system board

Figure 26 Use T-15 screwdriver to loose the screws of MB

from board

Figure 27 Remove front panel from chassis

Figure 28 Remove MB from chassis

Figure 29 Use T-15 screwdriver to loose the screws of

speaker and remove it

Figure 30 Use PH1 screwdriver to loose the screws of

system fan and remove it

EL-MF877-00 Page 8

Template Revision B

PSG instructions for this template are available at EL-MF877-01

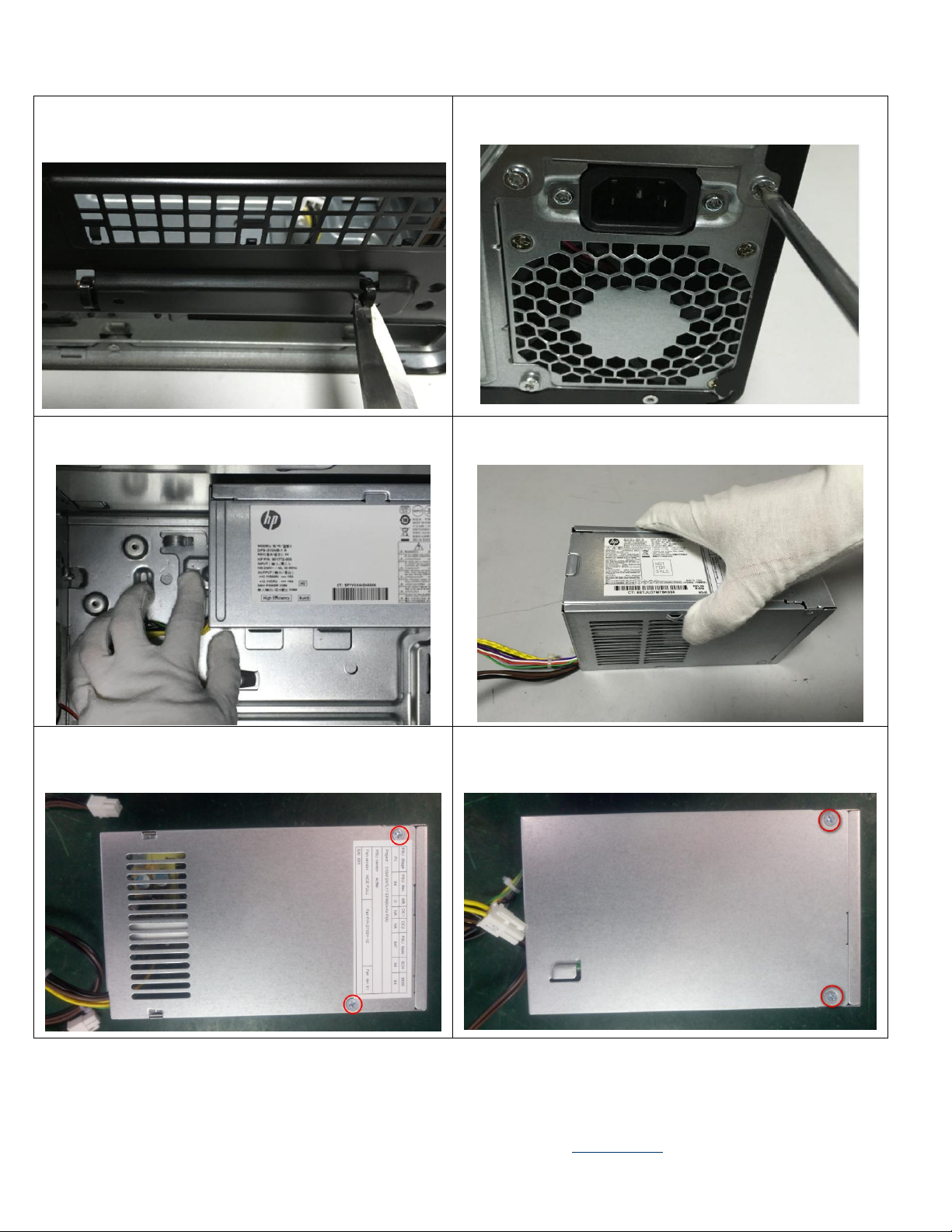

Figure 31 Use 170II micro shear to cut the cable ties from

chassis front wall

Figure 32 Use T-15 screwdriver to loose the screws of PSU

Figure 33 Press the PSU’s latch on chassis

Figure 34 Remove the PSU from chassis

Figure 35 Use PH1 screwdriver to loose screws from top

of PSU

Figure 36 Use PH1 screwdriver to loose screws from bottom

of PSU

EL-MF877-00 Page 9

Template Revision B

PSG instructions for this template are available at EL-MF877-01

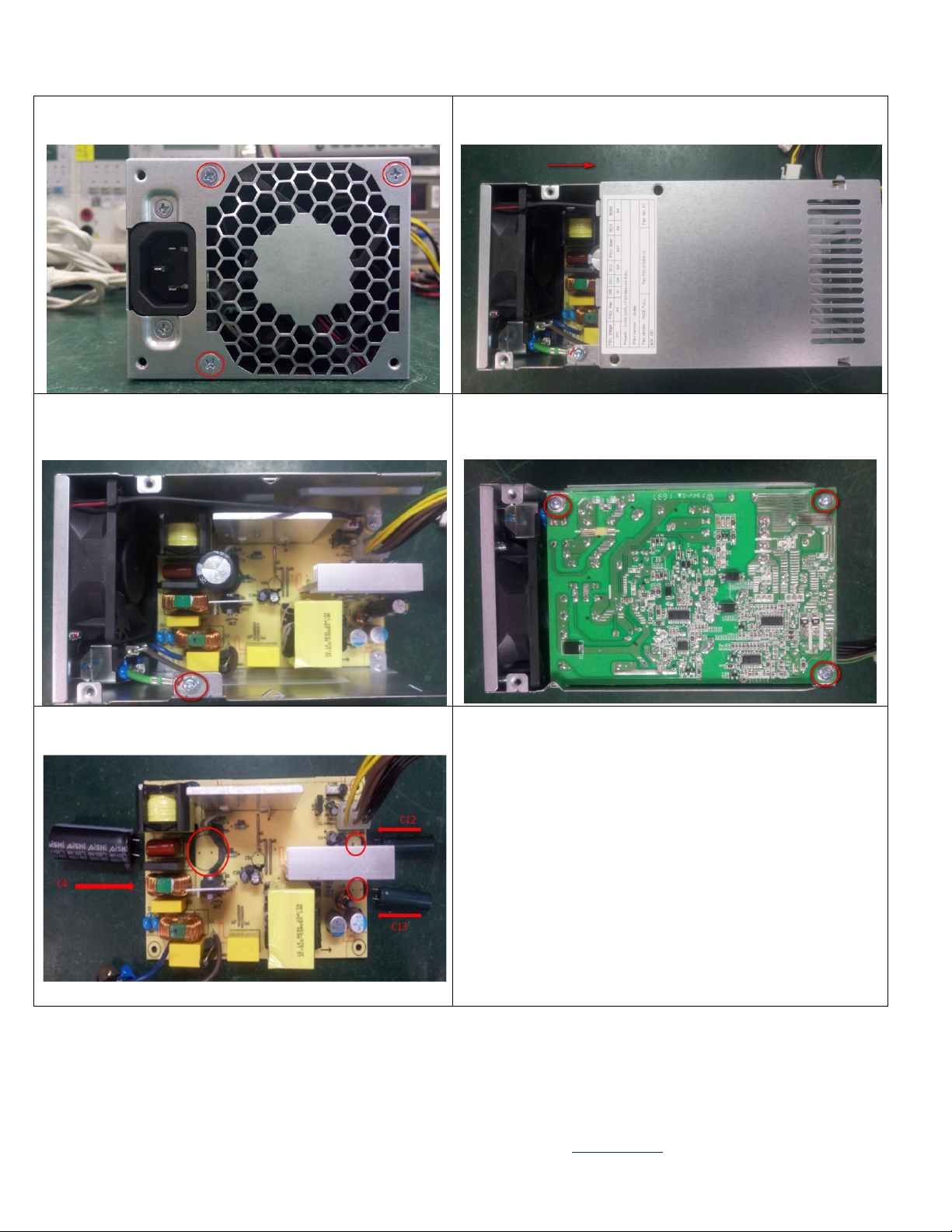

Figure 37 Use PH1 screwdriver to loose screws of PSU fan

Figure 38 Open the PSU case

Figure 39 Use PH1 screwdriver to loose the screw of

PCBA cable

Figure 40 Use PH1 screwdriver to loose screws and remove

PCB from case

Figure 41 Remove caps from PCB.
