HP Compaq Presario Manuel

3-96 Volume Two

Presario 5800

Processor/System

Boards Assembly Spare Part System

Board w/o Processor,

no Display Cache 140709-102 157070-102 5822, 27, 32, 34, 35

System Board, 1394 124888-101 153756-101 5831, 37, 38, 55, 58,

61, 68, 75, 88

System Board, 1394 388249-102 136109-102 5852, 63

Configuration

Code Assembly System Board

Spare Part Model

CTP1 124888-101 153756-101 5888

CTP2 124888-101 153756-101 5838

CTP3 124888-101 153756-101 5837

CTP4 124888-101 153756-101 5838

CTP6 124888-101 153756-101 5868

CTP7 124888-101 153756-101 5858

CTP8 124888-101 153756-101 5868

CTP9 124888-101 153756-101 5861

CTPB 124888-101 153756-101 5838

CTPC 124888-101 153756-101 5838

CTPD 124888-101 153756-101 5855

CTPG 124888-101 153756-101 5831

CTPH 124888-101 153756-101 5861

CTPJ 124888-101 153756-101 5861

CTPK 124888-101 153756-101 5875

CTPL 124888-101 153756-101 5831

CTQ3 140709-102 157070-102 5827

CTQ4 140709-102 157070-102 5834

CTQ5 140709-102 157070-102 5832

CTQ6 140709-102 157070-102 5822

CTQ7 140709-102 157070-102 5835

CVF6 388249-102 139109-102 5852

CVG2 388249-102 139109-102 5863

Microprocessors Assembly Spare Part System

500 MHz, K7, uP, w/ No

Fix 135146-001 155213-001 5831, 37, 38

500/66 MHz, CII, w/

Heat Sink 401264-007 149267-001 5822, 27, 32, 34, 35

550 MHz, K7, uP, w/ No

Fix 135146-002 155214-001 5855, 58

550 MHz PIII, w/ Heat

Sink 352772-006 153841-001 5852

600 MHz, K7, uP, w/ No

Fix 135146-003 155215-001 5861, 68

600 MHz PIII, w/ Heat

Sink 137365-001

352772-007 152818-001 5863

650 MHz, K7, uP, w/ No

Fix 135146-004 160396-001 5875

700 MHz, K7, uP, w/ No

Fix 160397-001 5888

Volume Two 3-97

Presario 5800

Memory DIMMs Assembly Spare Part System

32 MB, 100 MHz 323011-001 166890-001 5822, 27, 31, 32, 34, 58

64 MB, 100 MHz 323012-001 179190-001 5822, 27, 31, 32,

34, 58

128 MB, 100 MHz 323013-001 166966-001 5835, 37, 38, 52, 55,

61, 63, 68, 75, 88

Miscellaneous Assembly Spare Part System

Adapter, PTT/RJ11,

Black, United Kingdom 234441-032 158593-031 5838

Button/Headphone

Board w/ Cable 127738-101 141011-001 5822, 27, 32, 34, 35, 52,

Front I/O Board (1394, 2

USB) 115772-002 155641-001 5831, 37, 38, 55, 58, 61,

68, 75, 88

Front I/O Board (1394, 2

USB, Game Port) 115772-001 155891-021 5852, 63

Front I/O Board (2 USB,

1 Game Port) 115722-003 141214-001 5822, 27, 32, 34, 35

Hardware, Misc. 155689-001 5831, 37, 38, 55, 58, 61,

68, 75

Keyboard, Opal 341162-006 387084-003 5822, 27, 31, 32, 34, 35,

37, 38, 52, 55, 58, 61,

63, 68, 75, 88,

Mouse, Turnkey, Opal 334684-006 334689-002 5822, 27, 31, 32, 34, 35,

37, 38, 52, 55, 58, 61,

63, 68, 75, 88

NIC Card, 10/100 122849-001 123494-001 5861, 63

PCA, PCI Chopper

Ethernet Card 116158-001 120788-001 5822, 27, 32, 37, 68, 88

Controller Boards Assembly Spare Part System

Audio Board,

SoundBlaster Live 152936-001 153147-001 5861

NIC, 10/100 153110-001 157045-001 5863

PCA, Audio, PCI,

ES1373, OEM 102392-001 113897-001 5831, 37, 38, 55, 58, 61,

68, 75, 88

Graphics Boards Assembly Spare Part System

3DX, Voodoo3 - 1000,

16MB 154397-001 155138-001 5831, 37, 38, 52, 55, 58,

61, 63, 68, 75, 88

3DX, Voodoo3 – 3500,

16 MB 147286-001 147908-001 5861

32 MB, DFP, NVIDIA

TNT2 128501-001 126724-001 5861

S3 Savage 4 Video

Board, 16 MB 128503-001 144307-001 5838

Hard Drives Assembly Spare Part System

8.0 GB, 5400 rpm 112224-001 134127-001 5831

10.0 GB, 5400 rpm 118179-019 157400-001 5831, 35, 38

13.0 GB, 5400 rpm 118179-020 157401-001 5822, 58

13.0 GB, 7200 rpm 144368-001 123635-001 5832, 58, 61

17.0 GB, 5400 rpm 116195-001

118179-039 127245-001 5827, 34, 38, 61, 68

5827, 32, 34

20.0 GB, 5400 rpm 118179-022 157402-001 5837, 38, 52, 55, 63,

68, 75

27.0 GB, 5400 rpm 144370-001 157405-001 5888

3-98 Volume Two

Presario 5800

CD-ROM Drive Assembly Spare Part System

32X, IDE 170730-806

108936-001 135083-001 5827, 35, 38

5827, 35

6X DVD 401335-812 136435-001 5822, 32

8X DVD 140341-001 153771-001 5863

10X DVD 155669-812 157784-001 5831, 34, 37, 38, 52, 55,

58, 61, 63, 68, 75, 88

RW 115791-001 120893-001 5827, 32, 34, 35, 37, 38,

52, 55, 61, 63, 68, 75, 88

Diskette Drives Assembly Spare Part System

1.44 MB, M3, Stone 388617-802 136436-001 5822, 27, 31, 32, 34,

35, 37, 38, 52, 55, 58,

61, 63, 68

Zip, 100 MB, Stone 270928-803 135568-001 5858, 68

Modems Assembly Spare Part System

56K, Katana 334790-021 334808-021 5858, 68

56K, Controllerless,

Goldwing 125366-001 128384-001 5822, 27, 32, 34, 35,

38, 55, 61, 63, 75, 88

V90/DSL 152687-001 157041-001 5837, 52, 68

V90, International 155162-001 157123-002 5831, 61

Cables Assembly Spare Part System

Cable Kit 158662-001 5831, 37, 38, 55, 58,

61, 68, 88

Cable Kit, Misc. 166047-001 5822, 27, 32, 34, 35

Telephone Cable, L/Line 112666-003 137256-001 5822, 27, 32, 34, 35,

38, 55, 61

Modem Cables Assembly Spare Part System

Modem Cable 165268-001 165224-001 5838

Modem Cable, Ferrite,

United Kingdom 165227-033 165224-032 5838

Modem Cable,

Telephone, Norway 165227-091 304398-091 5838

Modem Cable Adapter -

Australia 234441-011 304398-011 5858

Modem Cable Adapter -

Belgium 234441-181 304398-181 5838

Modem Cable Adapter -

Denmark 234441-081 304398-081 5838

Modem Cable Adapter -

Finland 234441-351 304398-351 5838

Modem Cable Adapter -

France 234441-051 304398-051 5838

Modem Cable Adapter -

Italy 234441-061 304398-061 5838

Modem Cable Adapter -

Sweden 234441-101 304398-101 5838

Modem Cable Adapter

–United Kingdom 234441-031 304398-031 5858

Power Supply/Battery Assembly Spare Part System

Battery, RTC, 3V, 220m 298031-001 234556-001 5822, 27, 32, 34, 35

Power Supply, 145W,

5V 124848-001 127999-001 5822, 27, 32, 34, 35

Power Supply, 200W 152769-001 153652-001 5831, 37, 38, 55, 58,

61, 68, 75, 88

Power Supply, 200W 124892-001 128017-001 5852, 63

Volume Two 3-99

Presario 5800

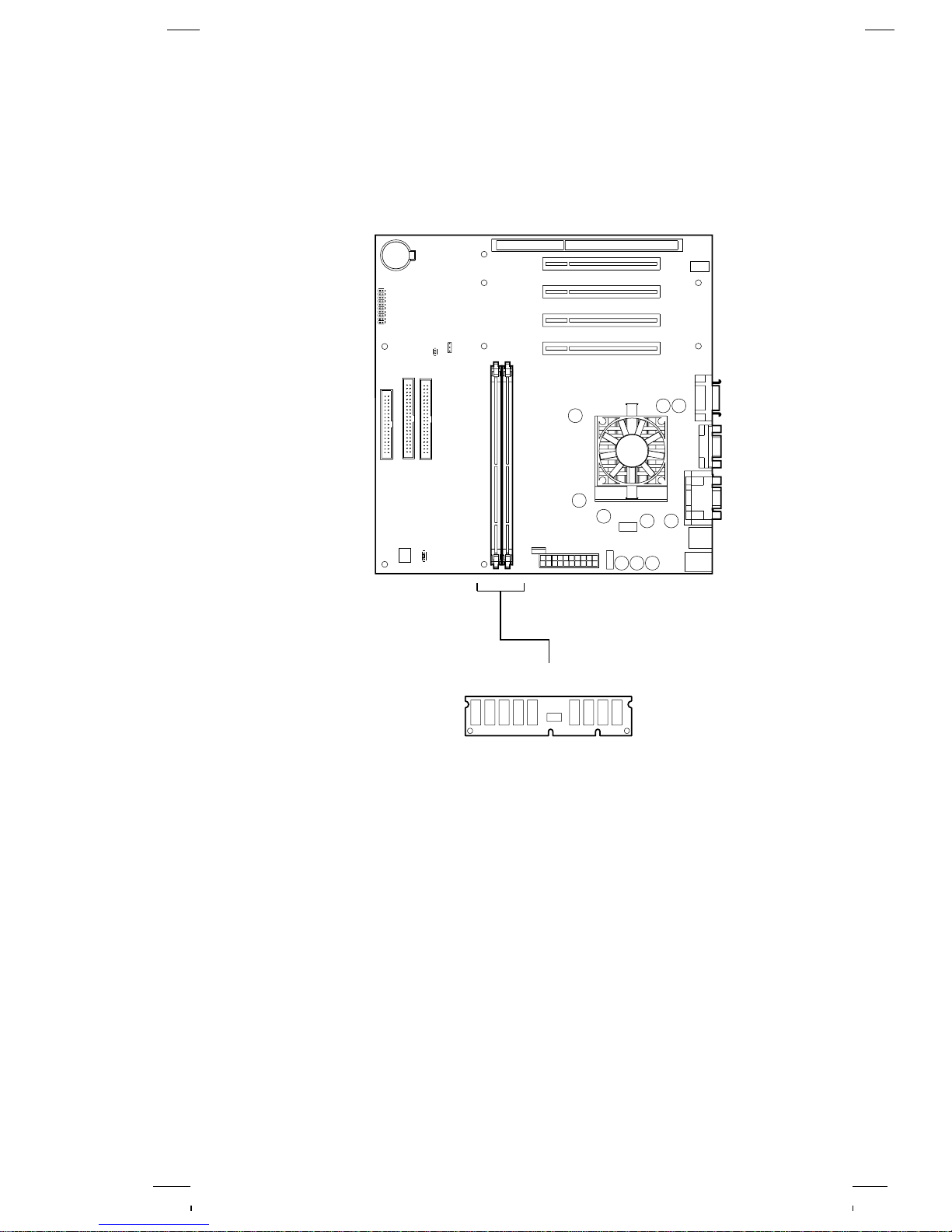

Presario 5822, 27, 32, 34, 35

Memory Upgrade Chart

MAXIMUM MEMORY 256MB

32-MB 100MHz SDRAM DIMM - OPTION PN 308875-001

64-MB 100MHz SDRAM DIMM - OPTION PN 308877-001

128-MB 100MHz SDRAM DIMM - OPTION PN 308878-001

SYSTEM BOARD

140709-102

(64MB)

3-100 Volume Two

Presario 5800

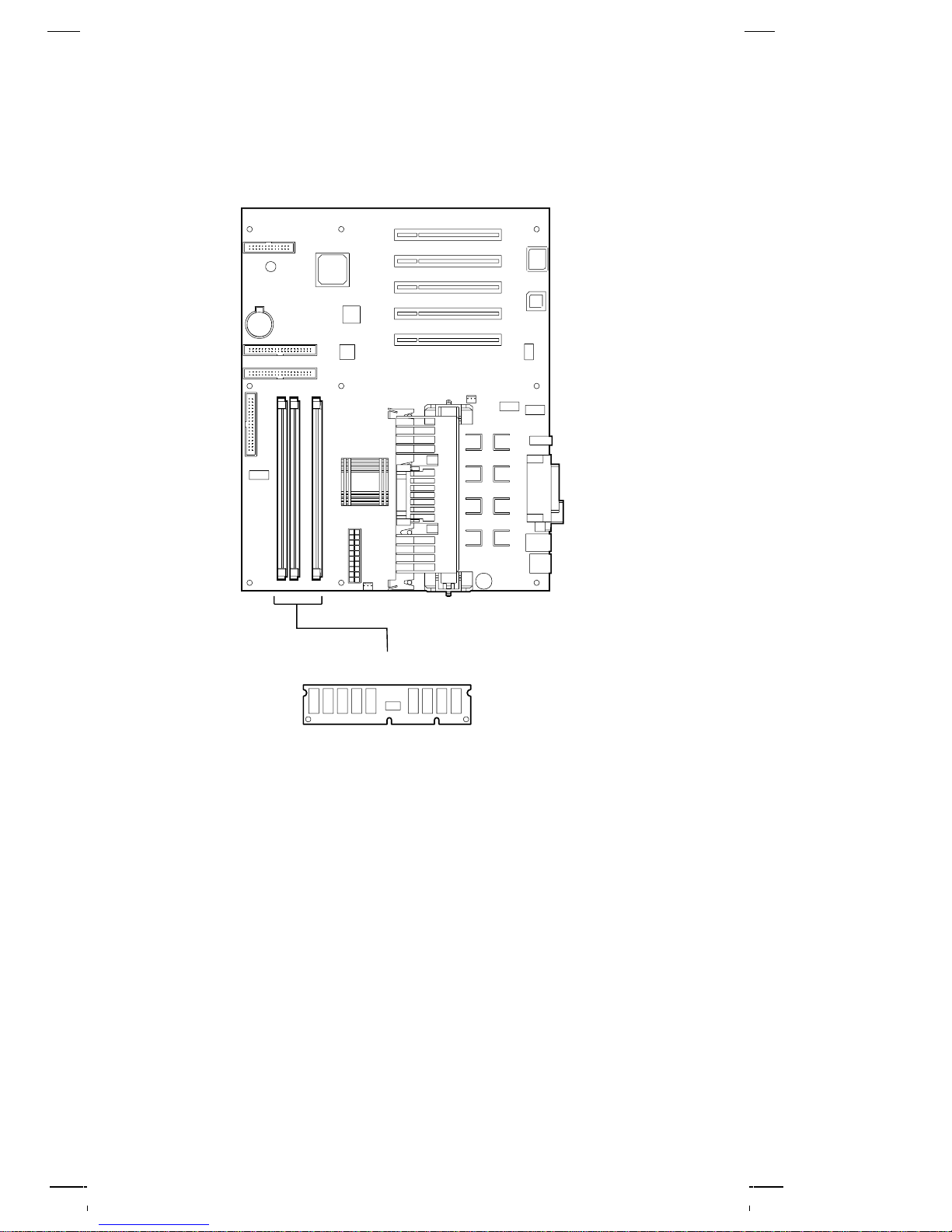

Presario 5831, 37, 38, 55, 58, 61, 68, 75, 88

Memory Upgrade Chart

MAXIMUM MEMORY 384MB

32-MB 100MHz SDRAM DIMM - OPTION PN 308875-001

64-MB 100MHz SDRAM DIMM - OPTION PN 308877-001

128-MB 100MHz SDRAM DIMM - OPTION PN 308878-001

SYSTEM BOARD

124888-101

Volume Two 3-101

Presario 5800

Presario 5852, 63

Memory Upgrade Chart

MAXIMUM MEMORY 384MB

32-MB 100MHz SDRAM DIMM - OPTION PN 308875-001

64-MB 100MHz SDRAM DIMM - OPTION PN 308877-001

128-MB 100MHz SDRAM DIMM - OPTION PN 308878-001

SYSTEM BOARD

388249-101, 388249-102

(96MB)
