HP Integrity cx2600 Manuel utilisateur
HP Server Mount Kit AB292A
for 19 in. 2-Post Rack
Installation Instructions
Manufacturing Part Number: AB292-96001
April 2004
U.S.A.
© Copyright 2004 Hewlett-Packard Development Company, L.P..
2
Legal Notices
Copyright Notices. © Copyright 2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Reproduction, adaptation, or translation of this document without prior written permission is prohibited,
except as allowed under the copyright laws.
Printed in the U.S.A.
Related Documents. The latest versions of server documents, and any updates to these documents are
posted under the appropriate server at http://docs.hp.com. For online access to technical support information,
self-solve tools, online assistance, community forums of IT experts, broad multi vendor knowledge base, and
monitoring and diagnostic tools, go to http://www.hp.com/support.
Chapter 1 3
1HP Server Mount Kit for 19 in. 2-Post Rack
Installation Instructions
Introduction
This manual provides instructions for installation of the hp Integrity cx2600 server chassis in a 19 in.
2-column rack, with column widths of 3 to 9 inches.
Cabinet Safety Precautions
WARNING Ensure that the rack is level and stable before working on the rack. Be sure the
leveling jacks (feet) extend to the floor and that the full weight of the rack rests
firmly on the floor.
WARNING Ensure that the rack has anti-tip measures in place. Such measures may include
floor-bolting, anti-tip feet, ballast, or a combination of these measures as specified by
the rack manufacturer and applicable codes.
WARNING Be sure that adequate personnel are on hand to support the product(s) during the
installation process. Use of the appropriate lifting device is recommended as an
installation aid.
WARNING Always load the rack from the bottom up. Load the heaviest items in the rack first.
This makes the rack bottom-heavy and helps prevent the rack from becoming
unstable.
WARNING Do not overload the branch circuit that provides power to the rack. The total rack
load should not exceed 80% of the branch circuit rating.
Mounting Kit Contents
This manual provides installation instructions for server mount kit AB292A. This kit is intended for use with
the hp Integrity cx2600 server, and includes the following:
•ChassisTray(Base)
•TwoRackBrackets
• Cable Management Strain Relief Bar
• Mounting Hardware (screws, washers, and nuts)
HP Server Mount Kit for 19 in. 2-Post Rack Installation Instructions
Mounting Options
Chapter 1
4
Mounting Options
The server chassis can be mounted with the chassis front at the rack columns, or with the chassis centered
between the rack columns. The front-mount option facilitates alignment of the chassis front panel with those
of other items in the rack. (The tray provides adequate support to prevent unbalancing the rack or stressing
the columns.) The center-mount option provides improved weight distribution for those installations where
columns are already stressed.
Figure 1-1 Mounting Options
The mounting holes in the chassis rack ears, together with the holes in the tray (base) and rack columns
(approximately 1/4-inch centers) allow adjustment of the server mounting position, up to the practical limits
of weight distribution. The server is supported in the tray (base) and held in position by eight screws
(provided).
2
pmntopt
Front Mount Center Mount
HP Server Mount Kit for 19 in. 2-Post Rack Installation Instructions
Mounting the Server with Chassis Front Aligned with Rack Posts
Chapter 1 5
Mounting the Server with Chassis Front Aligned with Rack Posts
Figure 1-2 Front Mounting in a 2-Column Rack
Mounting Kit
Before mounting your server in a 2-column rack, inspect the mounting kit hardware. Review the installation
procedure and determine which screws will be required. (Alternate screws are provided due to the variations
in rack column mounting threads.) Verify that all needed parts are available. (A mounting kit parts list is
provided at the rear of this manual.)
Installation Procedure – Front Mount
Front-mount a server in a 2-column rack as follows:
Step 1. Install the tray (base) to the back of the rack columns, at the desired mounting position. Attach the
tray to the rack columns with T25 10-32 or 12-24 panhead screws, lockwashers, and #12
flatwashers.
2pfrtmnt1
HP Server Mount Kit for 19 in. 2-Post Rack Installation Instructions
Mounting the Server with Chassis Front Aligned with Rack Posts
Chapter 1
6
Figure 1-3Attach Kit Hardware to Rack Columns – Front Mount
Step 2. Install the 10-32 nut clips on the tray (base) where the bracket mounting screws will be installed.
Step 3. From the front of the rack, slide the server chassis onto the tray (base), with the chassis rack ears
against the rack columns. Attach the rack ears to the columns with T25 10-32 or 12-24 panhead
screws, lockwashers, and #12 flatwashers.
Figure 1-4Attach Server Rack Ears to Rack Columns – Front Mount
Step 4. Loosely attach the chassis brackets to each side of the server chassis with T15 screws and plated
flatwashers. Attach the rack brackets to the tray (base) with T25 10-32 screws. Then tighten all
screws.
Step 5. Attach the cable management strain relief bar to the brackets with T25 10-32 screws. (See
Figure 1-3.)
2pfrthrd
T25 10-32 or
12-24 Screws
Nut Clips
Bracket
(View from Rear)
Cable Management Bar
T25 10-32 Screws
Nut Clips
Tray
2pfrtmnt2 (View from Front)
T25 10-32 or
12-24 Screws Tray
Rack Ear
T15 Screws
Bracket
HP Server Mount Kit for 19 in. 2-Post Rack Installation Instructions
Mounting the Server with Chassis Centered Between Rack Posts
Chapter 1 7
Mounting the Server with Chassis Centered Between Rack Posts
Figure 1-5 Center Mounting in a 2-Column Rack
Mounting Kit
Before mounting your server in a 2-column rack, inspect the mounting kit hardware. Review the installation
procedure and determine which screws will be required. (Alternate screws are provided due to the variations
in rack column mounting threads.) Verify that all needed parts are available. (A mounting kit parts list is
provided at the rear of this manual.)
Installation Procedure – Center Mount
Center-mount a server in a 2-column rack as follows:
Step 1. Install the tray (base) to the front of the rack columns, at the desired mounting position. Attach the
tray to the rack columns with T25 10-32 or 12-24 panhead screws, lockwashers, and #12
flatwashers.
2pcntmnt1
HP Server Mount Kit for 19 in. 2-Post Rack Installation Instructions
Mounting the Server with Chassis Centered Between Rack Posts
Chapter 1
8

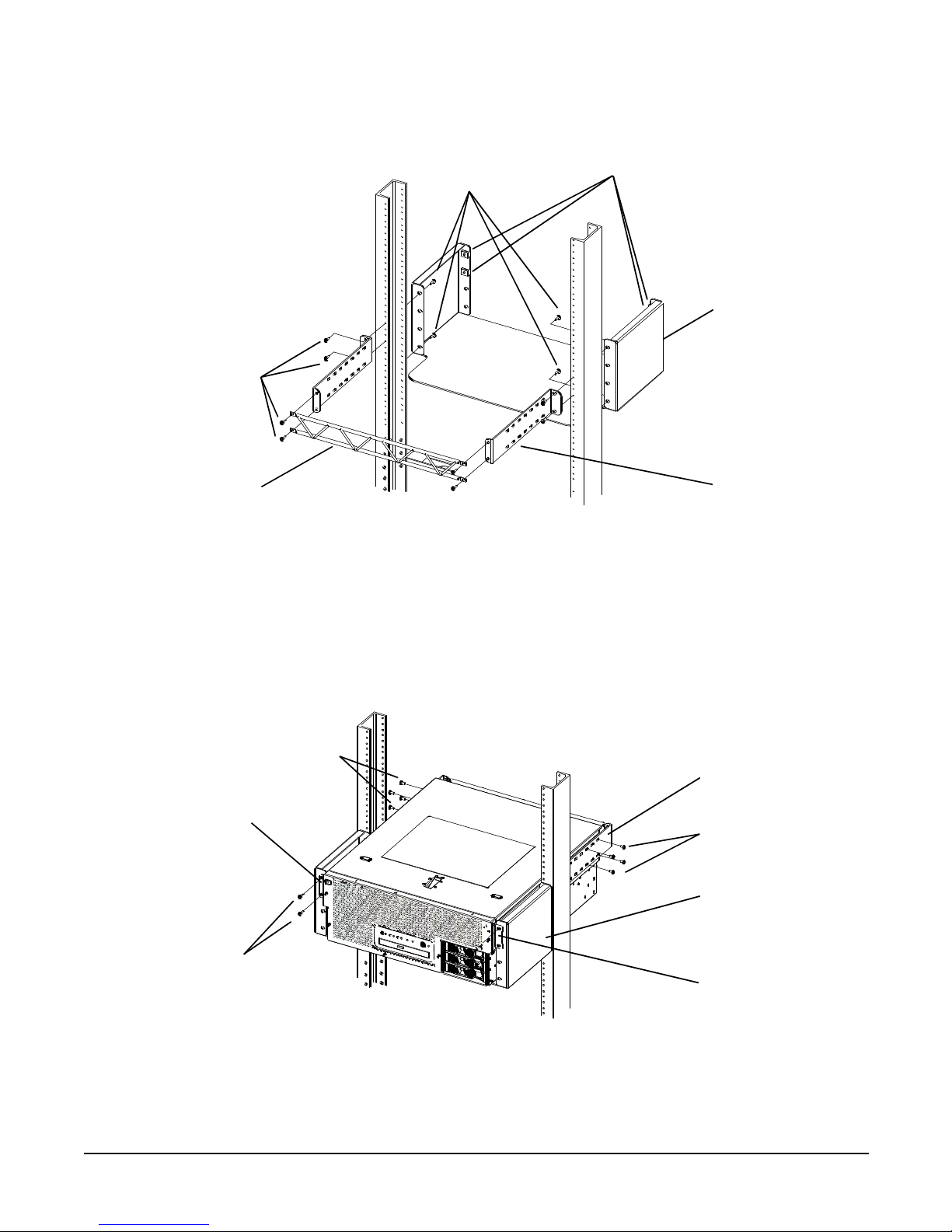

Figure 1-6Attach Kit Hardware to Rack Columns – Center Mount
Step 2. Install the 10-32 nut clips on the tray (base) where the chassis rack ear mounting screws will be
installed.
Step 3. From the front of the rack, slide the server chassis onto the tray (base), with the chassis rack ears
against the front of the tray. Attach the rack ears to the tray with T25 10-32 screws, lockwashers,
and #12 flatwashers.
Figure 1-7Attach Server Rack Ears to Server Tray – Center Mount
2pcnthrd
Tray
(View from Rear)
Bracket
T25 10-32 or
12-24 Screws Nut Clips
T25 10-32 or
12-24 Screws
Cable
Management
Bar
2pcntmnt2
Rack Ear
Bracket
Base
Rack Ear
(View from Front of Rack)
T15 Screws
T15 Screws
T25 10-32
Screws
HP Server Mount Kit for 19 in. 2-Post Rack Installation Instructions
Mounting the Server with Chassis Centered Between Rack Posts
Chapter 1 9
Step 4. Loosely attach the chassis brackets to each side of the server chassis with T15 screws and plated
washers. Attach the rack brackets to the rack columns with T25 10-32 or 12-24 panhead screws,
lockwashers, and #12 flatwashers. Then tighten all screws.
Step 5. Attach the cable management strain relief bar to the brackets with T25 10-32 screws. (See
Figure 1-6.)
HP Server Mount Kit for 19 in. 2-Post Rack Installation Instructions
AB292A Rack Mount Kit
Chapter 1
10
AB292A Rack Mount Kit
The HP Server Mounting Kit, part number AB292A includes the items listed below.
* Due to variations in rack column mounting threads, alternate hardware is provided for installation
flexibility.
Table 1-1 Mounting Kit Parts List
Item Quantity HP Part Number
MFAB, base, rack 2-column 1 AB292-00001
Bracket, rack 2-column 2 AB292-00002
MFAB, cable management strain
relief bar
1 AB292-00011
Screw, T15, waferscrew, w/captive
lock washer, M4 x 7 mm 7.5 mm
8 A6474-00134
Screw, T25, 10-32,* 0.625”L,
panhead w/CC washer
16 2680-0323
Screw, slot/Phillips, 12-24 x 0.6”L,
panhead
8 2940-0503
Washer, flat, 4.3 mm ID, 12 mm
OD, 1 mm thick
8 3050-1244
Washer-lock, HLCL #12 0.225 ID,
0.377 OD, SS w/passivated finish
8 2190-0631
Nut clip, 10-32* 4 0590-2997
Washer, flat, #12, 0.25 ID, 0.562
OD, 0.062 thick, steel w/zink
plating
8 3050-0212
HP Server Mount Kit AB292A for
19-in. 2-Post Rack Installation
Instructions
1 AB292-96001
