Instructions for Installation and Use

Electric Hood

Model HX901X

GB 2

CONTENTS

RECOMMENDATIONS AND SUGGESTIONS 3

INSTALLATION 4 - 7

GETTING TO KNOW YOUR COOKER HOOD 8

CARE AND CLEANING 9-11

AFTER SALES SERVICE 14

GUARANTEE 15

KEY CONTACTS Back Cover

Retention of this Instruction Book

This Instruction Book must be kept handy for reference as it contains important details on the safe and proper use

of the appliance.

If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is

also provided so the new owner can become familiar with the appliance and safety warnings.

If the Book is lost or damaged a copy may be obtained from:

GDA LTD., Morley Way, Peterborough, PE2 9JB

CE marking certifies that this appliance conforms to the

following EEC directives:-

-Low Voltage Equipment 72/23/EEC

-Electromagnetic Compatibility 89/336/EEC

3GB

RECOMMENDATIONS AND SUGGESTIONS

Using your new Cooker Hood is very simple. Nevertheless, to get the best results it is important

that you read this manual thoroughly before installing and using your appliance for the first time.

INSTALLATION

• All installation and repairs should be carried out by a qualified

technician in accordance to regulations in force.

• The manufacturer will not be held liable for any damage resulting

from incorrect or improper installation.

• After having removed the packaging, check the condition of the

appliance, if in any doubt, do not use and contact Hotpoint Service

(see Key Contacts, back page).

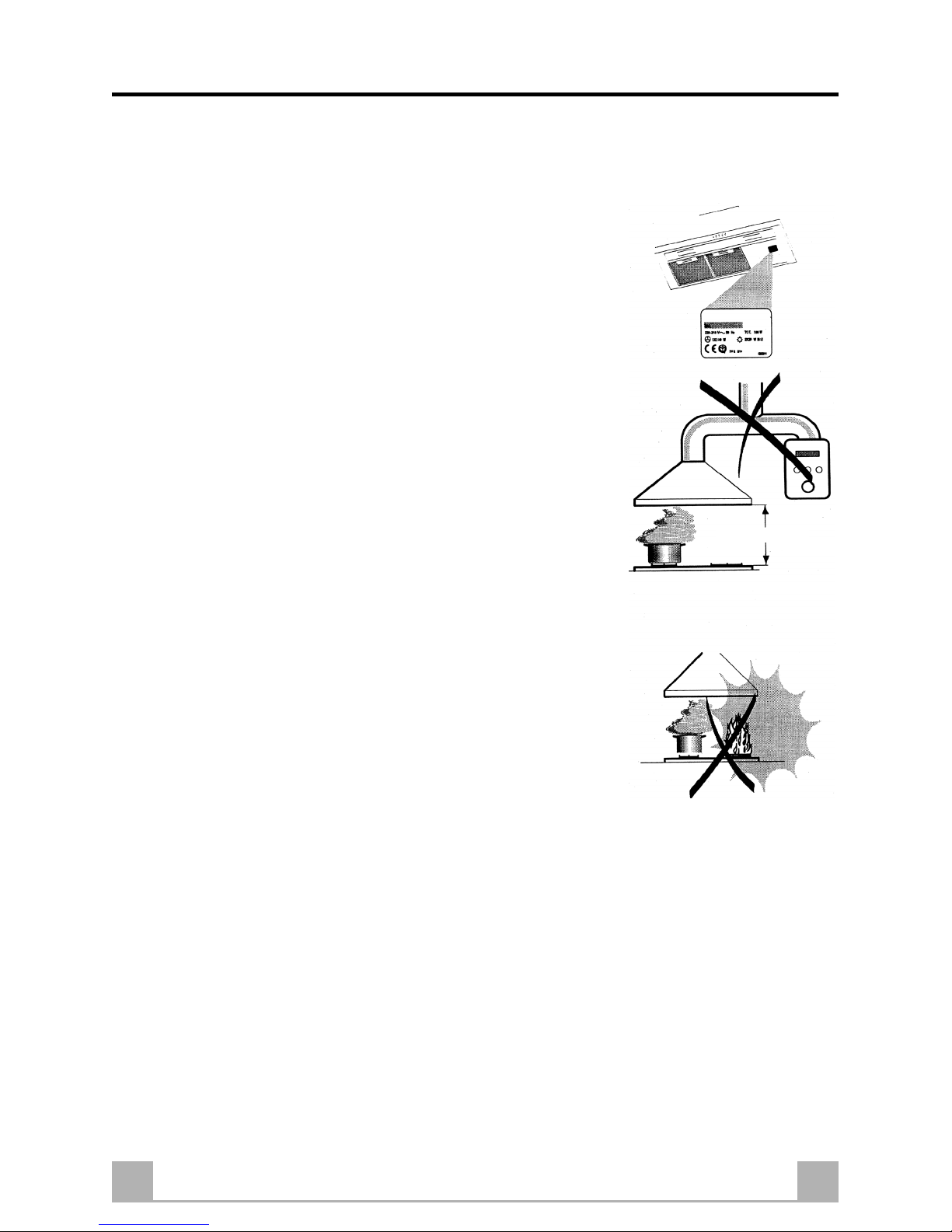

• The minimum safety distance between the hob and the extractor

hood is 700 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of ventilation

must be guaranteed in the room in order to prevent the backflow of

exhaust gas. The kitchen must have a suitable vent to the outside

of the building, so that clear fresh air can circulate through the

kitchen.

USE

• The extractor hood has been designed exclusively for domestic use

to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been

designed.

• Never leave high naked flames under the hood when it is in

operation.

• Adjust the flame intensity to direct it onto the bottom of the pan

only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames.

• When frying, never leave the pan unattended.

• The hood should not be used by children or persons not instructed

in its correct use.

MAINTENANCE

• Switch off and unplug the appliance from the mains supply before

carrying out any cleaning or maintenance work.

• Clean regularly (see Care and Cleaning section), build up of dirt

and grease could cause a fire hazard.

700mm

4GB

INSTALLATION

Assembly Instructions

The accessories required for the installation of the

hood can be found inside the packaging. The hood

is convertible and can therefore be installed for use

in either the OUTDOOR VENTING mode or the

AIR RECIRCULATION mode. If the hood is used

in the OUTDOOR VENTING mode, connect

opening ‘N’ (Fig.1) to an exhaust duct connected

directly to the outside and which is 150cm2

minimum in cross-section. The lowest part of the

hood should be at least 70cm from the hob.

• IN NO CASE WHATSOEVER SHOULD THE

HOOD BE CONNECTED TO EXHAUST

DUCTS FROM OTHER APPLIANCES

THAT RUN ON ENERGY SOURCES OTHER

THAN ELECTRICITY (water heaters, boilers,

stoves etc.). The hood must not be placed above

stoves with a top radiant hob.

• There are 3 main types of supports for

anchoring a hood onto a wall. As a rule each

hood has tow main anchoring points, one at either

side on the back of the hood.

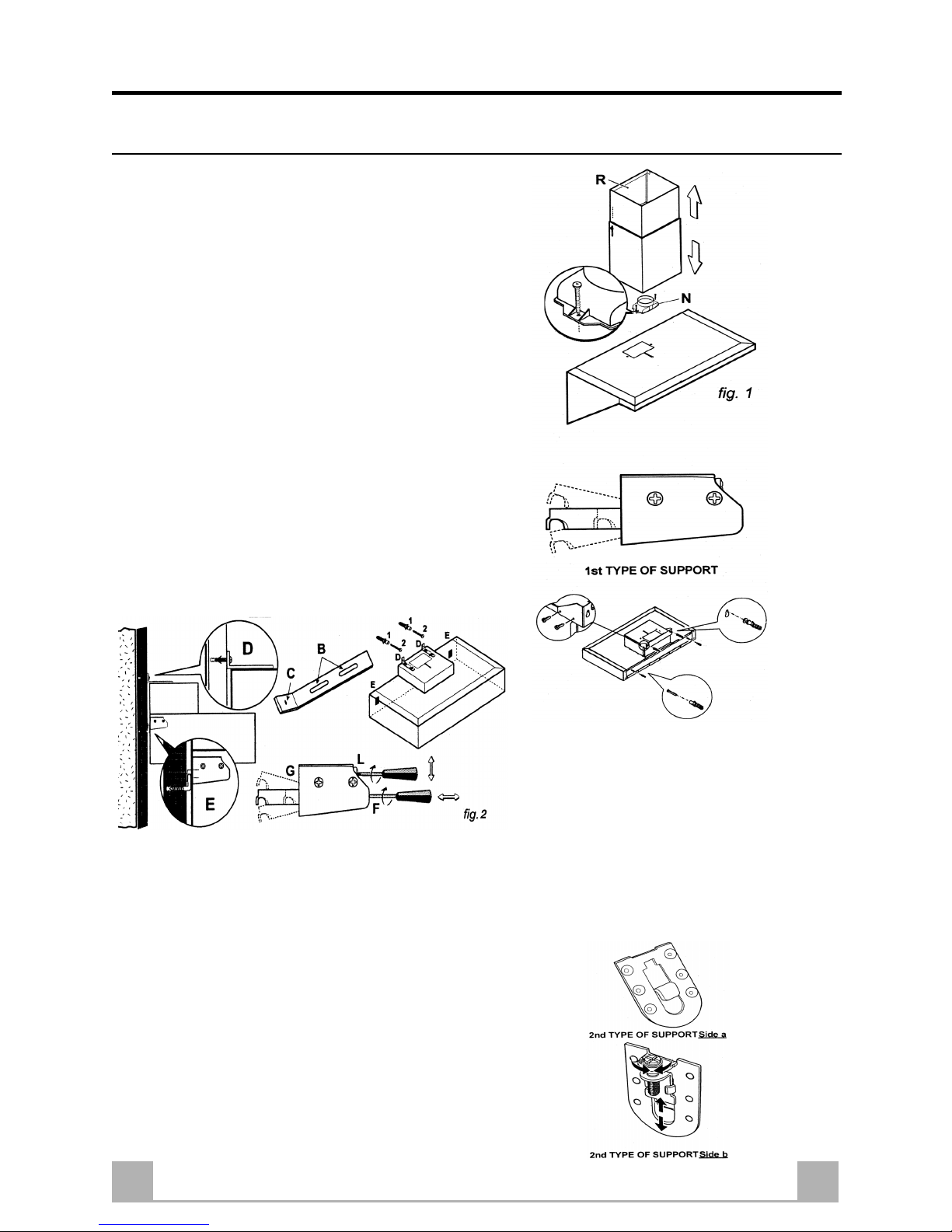

1ST TYPE OF SUPPORT

• This support is assembled onto the hood and allows for the adjustment of the hood both vertically

(screw L, Fig.2) and horizontally (screw F, Fig.2). For the installation, L-shaped hooks must be

fastened to the wall (see E, Fig.2).

2ND TYPE OF SUPPORT

This support is already assembled on the cooker

hood and only allows vertical adjustment, by

turning the screw situated on the high part of the

hood (see Side b). L-shaped hooks must be fastened

to the wall for installation.

5GB

INSTALLATION

Assembly Instructions

3RD TYPE OF SUPPORT

• This support (see E above) is supplied with the cooker hood (generally in two pieces) and should

be fastened to the wall by means of two wall plugs.

• In this case, some slots have been made on the back of the hood onto which these supports should

be hooked (see above).

To adjust the position of the hood, the support fixing screws should be loosened and the height of the

hood should be adjusted. The aforementioned 3 types of support are not sufficient to guarantee that

the hood is firmly anchored... you will also need to install one of the following:

ANTI-TIPPING BRACKET - (refer to Fig.2) This type of accessory (two pieces generally provided)

should be assembled onto the top part of the cooker hood and then fastened to the wall (D). Slots (B)

on the bracket allow for partial adjustment of the inclination of the hood.

ANTI-TIPPING SCREW - (refer to Fig.3) This anti-tipping device foresees that the hood is

fastened directly to the wall by means of one or more screws provided, using the holes on the back

panel of the hood (P).

Fig.3

ASSEMBLY OPERATIONS

• Locate the position of the holes to drill on the

wall for fastening screws and hooks.

• Remove the metal grease filters.

• Place the hood in its desired position, mark the

exact points on the wall where holes must be

drilled.

• Move the hood and follow above instructions

to anchor it to the wall according to the type of

support.

• Hook the hood on.

• Now proceed with the anti-tipping connections,

using the special bracket or screws (see above).

6GB

MOTOR CONNECTION

• There are two types of motor connections where

the main difference is the diameter of the steam

and odour outlet:

- 120mm diameter

- 150mm diameter

• If the motor connection (N, Fig.1) does not come

already fitted, it should be fastened to the top

of the hood using screws provided. Then connect

it to the steam and odour exhaust duct by means

of a pipe of a suitable diameter.

INSTALLATION

CHIMNEY DUCT ASSEMBLY

• Take the two chimney ducts A and B (Fig.5)

and rest the lower part of duct A on top of the

hood.

• Fasten duct A to the hood using screws K

(Fig.3), provided.

• Raise the mobile part B until it reaches the

ceiling, making sure it is perpendicular with the

hood.

• Fasten it with the screws M (Fig.5), provided.

Fig.5

Fig.4

7GB

INSTALLATION

Electrical Connection

• The hood is intended for a fixed permanent

installation. For the mains voltage and frequency

information, consult the rating plate situated

inside the hood. The power supply cable (type

H05VV-F 3x0.75mm2) connected to the hoods

terminals marked ‘L’ (mains), ‘N’ (neutral) and

fastened by means of the cable clamp. It must

be connected to a suitable and accessible fixed

power point by qualified personnel following

all laws in force, providing for an omnipolar

switch above the electrical connection with a

minimum contact opening of 3mm.

• The manufacturer declines all responsibility for

injury or damage resulting from incorrect

installation and use.

8GB

GETTING TO KNOW YOUR COOKER HOOD

The Controls

WARNING: Children should not be allowed to play

with the appliance or tamper with the controls.

Key 1 Switches the extractor motor on/off.

Key 2 Reduces the operating speed.

Key 3 Increases the operating speed.

Key 4 Will turn the motor off automatically after 12 minutes - When this function is

enabled a appears in the display A (bottom, right hand side).

Key 5 Switches the light on and off.

Key A Display.

κϕηφφδδδσσκϕηφφδδδσσ

κϕηφφδδδσσ

9GB

CARE AND CLEANING

Before cleaning your cooker hood or carry out any

maintenance, switch the omnipolar switch to

OFF to disconnect the hood from the electricity

supply.

CLEANING METAL GREASE FILTERS

The filters must be cleaned every 2 months of

operation, or more frequently with heavy usage,

and can be washed in a dishwasher.

• Remove the filters one at a time by pushing

them towards the back and pulling down at the

same time.

• Wash the filters, taking care not to bend them.

Allow them to dry thoroughly before refitting.

• When refitting the filters, make sure that the

handle is visible on the outside.

NOTE: After every 30 hours of use, the microprocessor which is the heart of the system, indicates

with a flashing letter ‘A’ on the display that the metal grease filters should be cleaned. Cleaning the

filters reduces the fire risk and improves the performance and efficiency of your cooker hood.

Clean the metal grease filters, following instructions in the ‘Care and Cleaning’ section.

After cleaning cancel the warning message as follows:

• Switch off the hood.

• Press and hold Key 2 for more than 5 seconds.

When the key is pressed the letter ‘A’ will

appear on the display, after the 5 seconds the

letter disappears and the microprocessor starts

a new 30 hour count down to the next warning

message.

10GB

CARE AND CLEANING

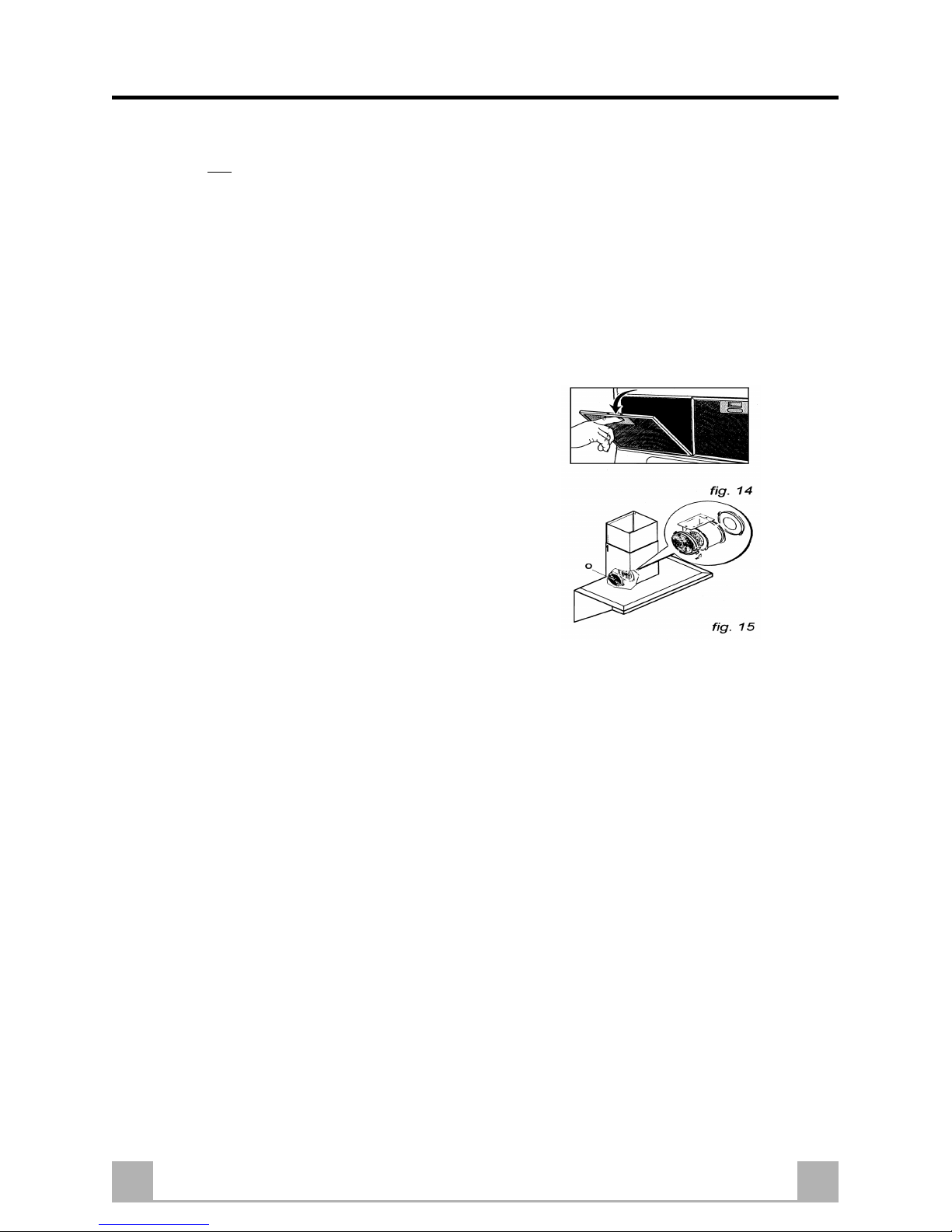

REPLACING THE ACTIVATED CARBON FILTER (RECIRCULATION VERSION)

The filter is not washable and must be replaced

(see NOTE below).

• Remove the metal grease filters.

• Remove the saturated activated carbon filters

‘O’ Fig. 15, by turning them clockwise and

then removing them from the guide pegs on the

outdoor venting assembly.

• Dispose of the carbon filters.

• Fit the new filters making sure that the holes fit

well around the guide pegs of the outdoor venting

assembly. Turn them anti-clockwise until you

hear them click into position.

• Replace the metal grease filters.

NOTE: If the hood is used in the recirculation version with carbon filters to purify exhaust fumes,

the microprocessor which is the heart of the system, must first be ‘informed’ that it is managing a

cooker hood in recirculation mode. To do this:

• Switch off the hood.

• Press and hold Key 4 for more than 5 seconds.

When the key is pressed ‘-’ will appear on the

display (indicating that the hood is not using

the carbon filter). After the 5 seconds this

becomes a ‘C’ on the display (indicating that

the hood is using the carbon filter).

When set to using carbon filters, every 120 hours, the microprocessor will indicate with a flashing

‘C’ on the display that the carbon filters need to be replaced.

After replacing the carbon filters, cancel the warning message as follows:

• Switch off the hood.

• Press and hold Key 3 for more than 5 seconds.

When the key is pressed the letter ‘C’ will

appear on the display, after the 5 seconds the

letter disappears and the microprocessor starts

a new 120 hour count down to the next warning

message.

Table des matières

Autres manuels Hotpoint hotte de ventilation

Hotpoint

Hotpoint kitchen think HD70X Instructions for and... Manuel utilisateur

Hotpoint

Hotpoint HNP 6.5 CM X/HA Manuel utilisateur

Hotpoint

Hotpoint HPHV 62FLTD BL Manuel utilisateur

Hotpoint

Hotpoint HXV9K Manuel utilisateur

Hotpoint

Hotpoint kitchen think HTU32 Manuel utilisateur

Hotpoint

Hotpoint HHP7.5CM Manuel utilisateur

Hotpoint

Hotpoint HHBS 6.7F LT X Manuel utilisateur

Hotpoint

Hotpoint PSLMO 65F LS X Manuel utilisateur

Hotpoint

Hotpoint LI2JEA Manuel utilisateur

Hotpoint

Hotpoint LI2I2A Manuel utilisateur

Hotpoint

Hotpoint HTN41 Manuel utilisateur

Hotpoint

Hotpoint kitchen think HE92SX Manuel utilisateur

Hotpoint

Hotpoint HC9X Manuel utilisateur

Hotpoint

Hotpoint HHC6.7AB Manuel utilisateur

Hotpoint

Hotpoint kitchen think HSD92 I Instructions for and... Manuel utilisateur

Hotpoint

Hotpoint HXB9.8LT Manuel utilisateur

Hotpoint

Hotpoint PHPN6.5 FLMX Manuel utilisateur

Hotpoint

Hotpoint PHBS 9.8C LTD K Manuel utilisateur

Hotpoint

Hotpoint LI2SZA Manuel utilisateur

Hotpoint

Hotpoint PHBG 9.8 LTSI X Manuel utilisateur

Hotpoint

Hotpoint HNB 9.6 LMI X/HA Manuel utilisateur

Hotpoint

Hotpoint HD90X Manuel utilisateur

Hotpoint

Hotpoint HPHV 62FLT BL Manuel utilisateur

Hotpoint

Hotpoint HLB 9.5S AT(ICE)/HA Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
