Instructions for Installation and Use

Electric Hood

Models HE91 and HE61

GB 2

CONTENTS

RECOMMENDATIONS AND SUGGESTIONS 3

INSTALLATION 4 - 8

ELECTRICAL CONNECTION 9

GETTING TO KNOW YOUR COOKER HOOD 10

CARE AND CLEANING 11-12

AFTER SALES SERVICE 14

GUARANTEE 15

KEY CONTACTS Back Cover

Retention of this Instruction Book

This Instruction Book must be kept handy for reference as it contains important details on the safe and proper use

of the appliance.

If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is

also provided so the new owner can become familiar with the appliance and safety warnings.

If the Book is lost or damaged a copy may be obtained from:

GDA LTD., Morley Way, Peterborough, PE2 9JB

CE marking certifies that this appliance conforms to the

following EEC directives:-

-Low Voltage Equipment 72/23/EEC

-Electromagnetic Compatibility 89/336/EEC

3GB

RECOMMENDATIONS AND SUGGESTIONS

Using your new Cooker Hood is very simple. Nevertheless, to get the best results it is important

that you read this manual thoroughly before installing and using your appliance for the first time.

INSTALLATION

• All installation and repairs should be carried out by a qualified

technician in accordance to regulations in force.

• The manufacturer will not be held liable for any damage resulting

from incorrect or improper installation.

• After having removed the packaging, check the condition of the

appliance, if in any doubt, do not use and contact Hotpoint Service

(see Key Contacts, back page).

• The minimum safety distance between the hob and the extractor

hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of ventilation

must be guaranteed in the room in order to prevent the backflow of

exhaust gas. The kitchen must have a suitable vent to the outside

of the building, so that clear fresh air can circulate through the

kitchen.

USE

• The extractor hood has been designed exclusively for domestic use

to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben

designed.

• Never leave high naked flames under the hood when it is in

operation.

• Adjust the flame intensity to direct it onto the bottom of the pan

only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames.

• When frying, never leave the pan unattended.

• The hood should not be used by children or persons not instructed

in its correct use.

MAINTENANCE

• Switch off and unplug the appliance from the mains supply before

carrying out any cleaning or maintenance work.

• Clean regularly (see Care and Cleaning section), build up of dirt

and grease could cause a fire hazard.

4GB

INSTALLATION

Dimensions

Technical Characteristics

Hood Type 60 90

L598 898

Basic Hood

Supply Voltage 220-240V

Supply Frequency 50Hz

Insulation Class IInd

Weight 12kg

Motor Qty Power

6/40K-A 1 150W

6/50K-A 1 190W

8BS/28K-A-P 1 205W

5GB

INSTALLATION

Components

Ref. Qty Ducted Version

11 Hood Body, complete with: Controls, Light,

Blower, Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

7.1 2 Hood Body Fixing Brackets

7.2.1 2 Upper Chimney Section Fixing Brackets

8a 1 Right Air Outlet Grill

8b 1 Left Air Outlet Grill

91 Reducer Flange ø 150-120 mm

11 8 Wall Plugs

12a 8 Screws 4.2 x 44,4

12d 2 Screws M4 x 25

12e 6 Screws 2.9 x 9.5

14 1 Hood Body Air Outlet Extension Piece

consisting of two half shells

15 1 Air Outlet Connection

16 1 Air Outlet Deflector

17 2 Lower Chimney Fixing Bush

Qty Documentation

1 Instruction Manual

Ref. Qty Recirculation or Ducted Version

11 Hood Body, complete with: Controls, Light,

Blower, Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

7.1 2 Hood Body Fixing Brackets

7.2.1 2 Upper Chimney Section Fixing Brackets

8a 1 Right Air Outlet Grill

8b 1 Left Air Outlet Grill

91 Reducer Flange ø 150-120 mm

11 8 Wall Plugs

12a 8 Screws 4.2 x 44,4

12d 2 Screws M4 x 25

12e 6 Screws 2.9 x 9.5

15 1 Air Outlet Connection

117 2 Lower Chimney Fixing Bush

Qty Documentation

1 Instruction Manual

6GB

INSTALLATION

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre

of the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at

height H (height of the visible part of the panel) for installation with the back panel (see diagram

above).

• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the

centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper

chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 as shown 120mm from the vertical reference line and 175mm above the

horizontal reference line.

• Mark the centres of the holes in the bracket.

• Repeat this operation on the other side.

Rear Panel (optional)

The rear panel must be fitted before fixing the hood body and if it is to be fixed at both top and

bottom, must be fitted at the correct height prior to installing the bases. As this operation is rather

complex, it should be carried out either by the kitchen installer or a qualified person who knows

the final dimensions of the units.

For fixing at the top only, proceed as follows:

• Rest the back panel on the base, inserting the lower plate between the upper surface and the wall,

centring it on the vertical reference line.

• Mark the centres of the two holes in the upper plate.

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the brackets using the 12a screws supplied.

• Fix the back panel (where present) using the 12a screws supplied.

7GB

Connections

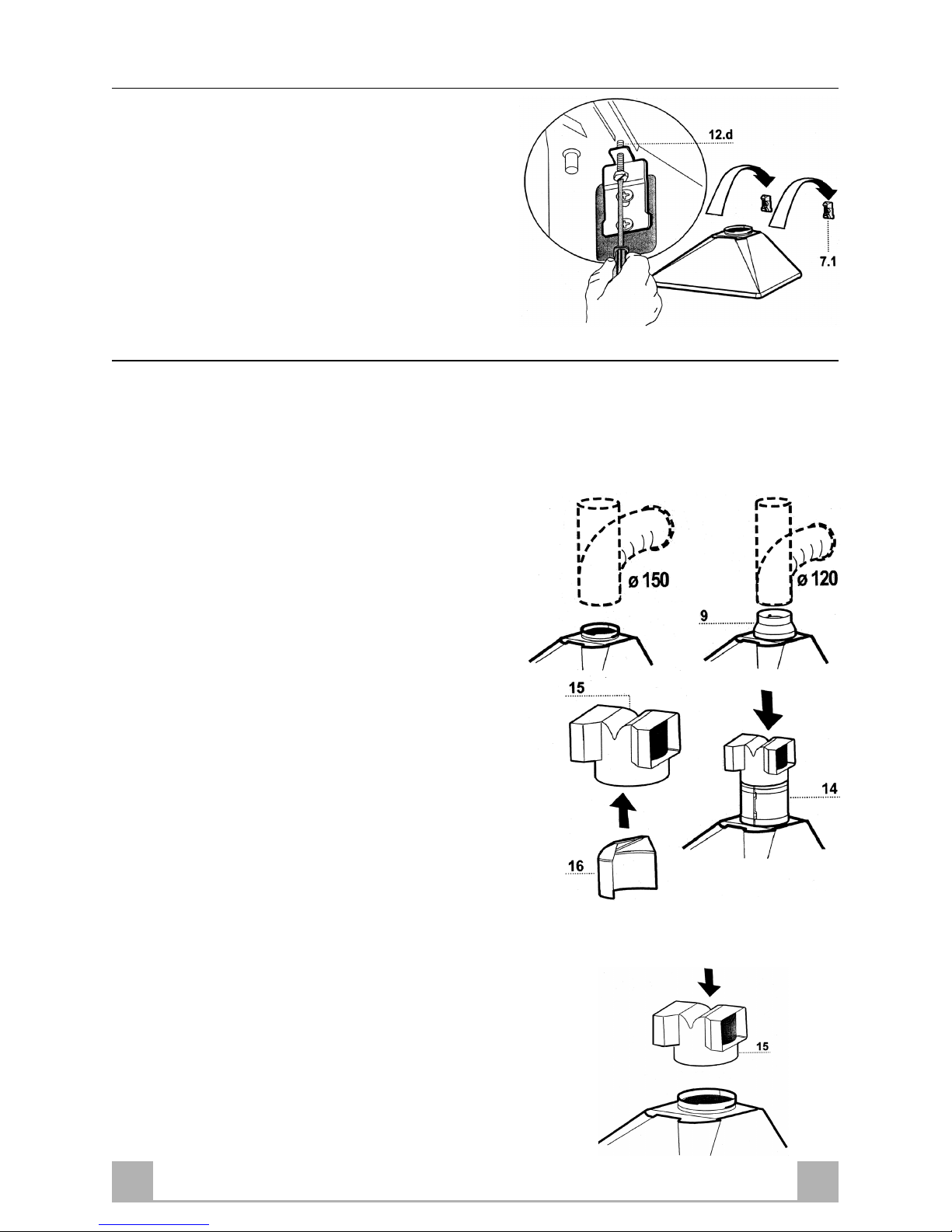

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid

pipe ø 150 or 120 mm, the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection,

insert the reducer flange 9on the hood body

outlet.

• Fix the pipe in position using sufficient pipe

clamps (not supplied).

• Remove any activated charcoal filters.

Side air exhaust on ducted version (connection

to exhaust flue above wall cupboards).

• Assemble the half-shells of the hood body

extension piece 14.

• Push fit the assembled hood body extension 14

onto the air exhaust outlet.

• Insert the deflector 16 into the air exhaust fitting

15 to close off the unused outlet.

• Push fit connection piece 15 to the hood body

extension piece 14, ensuring that the free end

matches up with the required opening in the

chimney.

• Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Push fit the air outlet fitting 15 onto the air

outlet of the hood body.

• The air outlet directional grills must be fitter

after the lower outlet duct has been installed.

• Ensure that the activated charcoal filters have

been inserted.

Mounting the hood body

• Screw the two screws 12d supplied onto the

brackets 7.1

• Hook the hood body onto bracket 7.1, centring

it around the vertical line.

• Using the adjusting screws 12d underneath the

hood to level the hood body.

8GB

Chimney assembly

Upper chimney section

• Slightly widen the two sides of the upper

chimney and hook them behind the brackets

7.2.1, making sure that they are properly

housed.

• Secure the sides to the brackets using the 4

screws 12e supplied.

Lower chimney section

• Insert the lower chimney fixing bush 17 in the

top of the hood body and rotate it 90°clockwise

as far as it will go.

• Slightly widen the two sides of the chimney and

hook them between the upper chimney section

and the wall, making sure that they are properly

housed.

• Secure the sides of the bottom section to the

bushes provided using the 2 screws 12e

supplied.

• When installing the recirculation version, fit the

directional grills 8a-8b in their housing so that

the directional symbols are at the top and

towards the front of the hood. Ensure that they

are inserted correctly in the outlet connection

piece 15.

9GB

Electrical Connection

WARNING: This appliance MUST be earthed. Connect to a 230 - 240V A.C. Supply only.

• Connection to the electricity supply should be made via a properly earthed, readily accessible

wall socket which is adjacent to and not more than 1.25m away from the appliance and capable of

electrical isolation.

Should this plug not fit the socket outlet in your home it should be cut off and replaced with a

suitable plug as outlined below.

Note: The removed plug cannot be used for any other appliance and should therefore be properly

disposed of and not left where children might find it and plug it into a supply socket - with the

obvious consequent danger.

IF THE FITTED PLUG IS REMOVED

The flexible mains lead must be correctly connected as below, to a three pin plug of not less than 13

amp capacity. If a B.S.1363 fused plug is used, it must be fitted with a 3amp fuse which is approved

to B.S.1362.

IMPORTANT: The wires in the mains lead fitted to this appliance are coloured in accordance with

the following code:

GREEN and YELLOW - EARTH

BLUE - NEUTRAL BROWN - LIVE

CORD CLAMP 3amp FUSE

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows:- The wire which is green and

yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth

symbol or coloured green or green and yellow. The wire which is coloured blue must be connected

to the terminal which is marked with the N or coloured black. The wire which is coloured brown

must be connected to the terminal which is marked with the letter L or coloured red. When wiring the

plug, ensure that all strands of wire are securely retained in each terminal. Do not forget to tighten the

mains lead clamp on the plug. As the appliance must be earthed, DO NOT use 2-pin socket outlets,

if you are in doubt, consult a qualified electrician.

Should the mains lead ever require replacement, it is essential that this operation be carried out by a

qualified electrician and should only be replaced with a flexible cord of the same size ie. 0.75mm2

cross sectional area and temperature rating of 85°C eg. heat resisting PVC.

IF A MOULDED PLUG IS FITTED

In the event of replacing a fuse in the plug supplied a 3amp ASTA approved fuse to B.S.1362 must

be fitted.

Note: The fuse cover must be refitted when changing the fuse. In the event of losing the fuse cover

the plug must not be used until a replacement fuse cover has been obtained and fitted. A new fuse

cover can be obtained from your local Electrical Retailer. The colour of the correct replacement fuse

cover is that of the coloured marks or inserts in the base of the plug.

10GB

GETTING TO KNOW YOUR COOKER HOOD

The Controls

WARNING: Children should not be allowed to play

with the appliance or tamper with the controls.

LLight Switches the lighting system

on and off.

MMotor Switches the extractor motor

on and off.

VSpeed Sets the operating speed of

the extractor:

1. Low Speed, used for a

continuous and silent

air change in the

presence of light

cooking vapour.

2. Medium Speed,

suitable for most

operating conditions.

3. Maximum Speed, used

for eliminating the

highest cooking vapour

emission, including

long periods.

LLight Switches the lighting system

on and off.

MMotor Switches the extractor motor

on and off.

VSpeed Varies the operating speed

of the extractor, from

minimum - used for a

continuous and silent air

change in the presence of

light cooking vapour, to

maximum - used for

eliminating the highest

cooking vapour emission,

including long periods.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hotpoint hotte de ventilation

Hotpoint

Hotpoint HTU30 Manuel du propriétaire

Hotpoint

Hotpoint HS 110 Manuel utilisateur

Hotpoint

Hotpoint BHCA66741BBHS Manuel utilisateur

Hotpoint

Hotpoint PHVP 6.4F AL K Manuel utilisateur

Hotpoint

Hotpoint BH11 Manuel du propriétaire

Hotpoint

Hotpoint HDI92X Instructions for and use Manuel utilisateur

Hotpoint

Hotpoint PSLMO 65F LS X Manuel utilisateur

Hotpoint

Hotpoint HNB 9.6 LMI X/HA Manuel utilisateur

Hotpoint

Hotpoint HLB 6.7.AT Manuel utilisateur

Hotpoint

Hotpoint kitchen think HSD92 Manuel utilisateur

Hotpoint

Hotpoint PHFG6.4FLMX Manuel utilisateur

Hotpoint

Hotpoint HTC95 Mode d’emploi

Hotpoint

Hotpoint PHBS6.7FLLIX Manuel utilisateur

Hotpoint

Hotpoint HHC6.7AB Manuel utilisateur

Hotpoint

Hotpoint HC9X Manuel utilisateur

Hotpoint

Hotpoint kitchen think HSD92 I Instructions for and... Manuel utilisateur

Hotpoint

Hotpoint PHBG 9.8 LTSI X Manuel utilisateur

Hotpoint

Hotpoint LI2JDA Manuel utilisateur

Hotpoint

Hotpoint kitchen think HE62 Instructions for Mode d’emploi

Hotpoint

Hotpoint HHC6.7AB Manuel utilisateur

Hotpoint

Hotpoint CANNON BCH100 Manuel du propriétaire

Hotpoint

Hotpoint LI2JEA Manuel utilisateur

Hotpoint

Hotpoint HTV10 Manuel utilisateur

Hotpoint

Hotpoint HTN40 Manuel du propriétaire

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
