Hotpoint RGB790SEP Manuel utilisateur

RGB790SEP – Hotpoint 30" Free-Standing Gas Range

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is an

important, required step in the

installation of the range.

Installation Information: Before

installing, consult installation

instructions packed with product

for current dimensional data.

Optional gas range

accessory drip pans:

(Available at additional cost)

To order these accessory drip pans,

call toll-free 800-626-2002.

CERTIFIED

Specification Created 12/08

430182

Dimensions (in inches)

46-1/8

26-1/4*

46-3/8

36-1/4

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area

for gas outlet and electrical outlet

*Depth from wall

to front of closed

oven door.

46-1/8

26-1/4*

46-3/8

36-1/4

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area

for gas outlet and electrical outlet

*Depth from wall

to front of closed

oven door.

46-1/8

26-1/4*

46-3/8

36-1/4

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area

for gas outlet and electrical outlet

*Depth from wall

to front of closed

oven door.

RGB790SEP – Hotpoint 30" Free-Standing Gas Range

RGB790WEK/CEK

BROIL

SELF

CLEAN

OVEN

LIGHT

CLOCK

OVENCONTROLS True Temp

KITCHEN

TIMER

BAKE START

CLEAR

OFF

TIMECONTROLS

COOKING

TIME

START

TIME

BROIL

SELF

CLEAN

OVEN

LIGHT

CLOCK

OVENCONTROLS True Temp

KITCHEN

TIMER

BAKE START

CLEAR

OFF

TIMECONTROLS

COOKING

TIME

START

TIME

Features and Benefits

• Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing

• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more items at once

• Sealed Cooktop Burners - Eliminate the space between the burners and the cooktop to help

contain spills and boil over liquids, ensuring easy cleanup

• Performance Plus Burner - Provides a maximum output of 12,000 BTUs for fast heat-up

and boiling

• Simmer Burner - Provides low, even heat distribution for delicate foods and sauces

• All Purpose Burners - Deliver a wide range of heat output ideal for most cooking requirements

• Two removable oven racks - Make room for up to six plates or three 9" x 13" casserole dishes

• Porcelain Upswept Cooktop - Features raised edges to help contain spills and make

clean-up easy

• Big ClearView™ Window - An extra large clear window makes monitoring the progress

of food easy

• Heavy Steel Grates - Constructed from quality steel for long-lasting performance and durability

• EasySet III Controls - Features a smooth glass design that's easy-to-operate and easy-to-clean

• Model RGB790SEPSA – Silver metallic

Specification Created 12/08

430182

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hotpoint Gamme

Hotpoint

Hotpoint RB525DPCT - 30" Electric Range Manuel utilisateur

Hotpoint

Hotpoint RB525BH Instructions d'utilisation

Hotpoint

Hotpoint RGB528BEAAD Manuel de service

Hotpoint

Hotpoint RB526HCC - 30 Inch Electric Range Manuel utilisateur

Hotpoint

Hotpoint RGA624PF Instructions d'utilisation

Hotpoint

Hotpoint RGA720EK Manuel de service

Hotpoint

Hotpoint RB525DDCC Guide de l'utilisateur

Hotpoint

Hotpoint RB787DPWW - Electric Range Manuel utilisateur

Hotpoint

Hotpoint RS734GP Fiche technique

Hotpoint

Hotpoint RGB533DEPBB - 30.0 Range Manuel utilisateur

Hotpoint

Hotpoint SA2840P Manuel d'installation et d'exploitation

Hotpoint

Hotpoint RS778GJ Instructions d'installation

Hotpoint

Hotpoint RGB501 Guide d'installation

Hotpoint

Hotpoint RB790DT Manuel utilisateur

Hotpoint

Hotpoint RB525HCT Manuel utilisateur

Hotpoint

Hotpoint RB787WC Manuel de service

Hotpoint

Hotpoint RGA5121 Instructions d'installation

Hotpoint

Hotpoint JKP65WV Guide de référence rapide

Hotpoint

Hotpoint RGB751GEL Manuel utilisateur

Hotpoint

Hotpoint RA720 Mode d'emploi

Hotpoint

Hotpoint RB787BHBB - 30" Electric Range Instructions d'utilisation

Hotpoint

Hotpoint RB757BH Instructions d'utilisation

Hotpoint

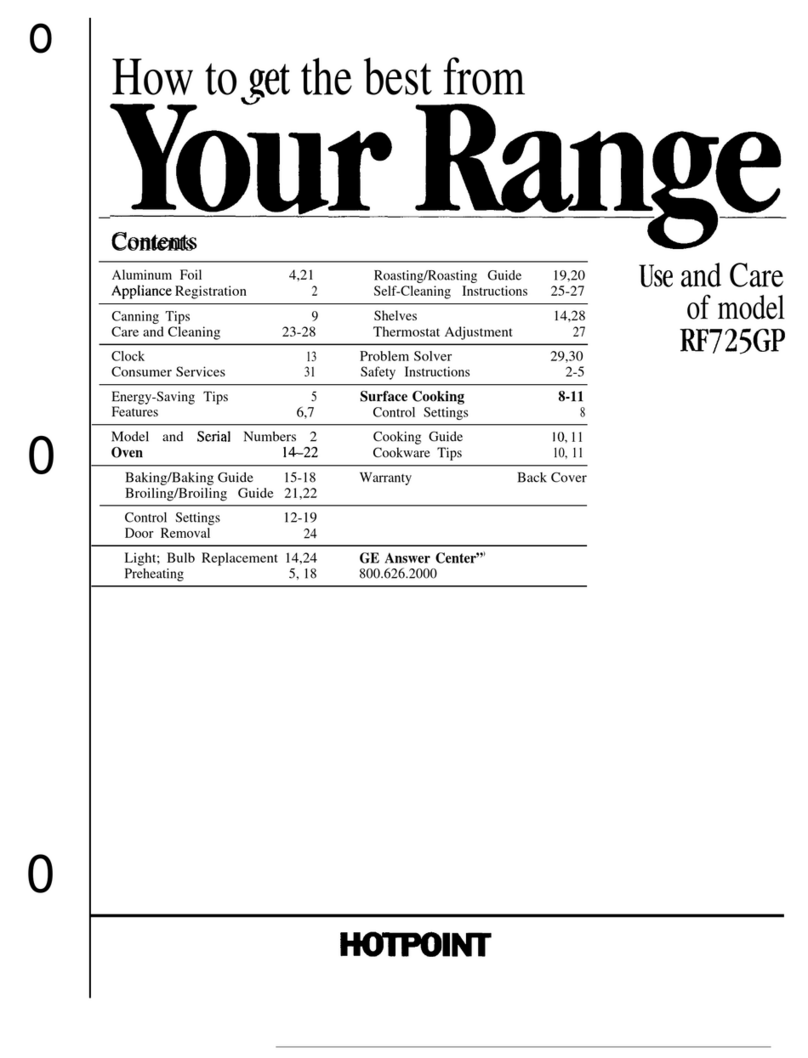

Hotpoint RF725GP Instructions d'installation
