Hotpoint RGB530DEP - 30 in. Gas Range Guide de l'utilisateur

RGB530DEP – Hotpoint 30" Free-Standing Gas Range

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is an

important, required step in the

installation of the range.

Installation Information: Before

installation, consult installation

instructions packed with product

for current dimensional data.

Optional gas range

accessory drip pans:

(Available at additional cost)

To order these accessory drip pans,

call toll-free 800-626-2002.

*Depth from wall to front of

closed oven door

Dimensions (in inches) 30" Gas Range Installation Information (in inches)

Specification Created 5/09

430183

46-1/8

26-1/4*

46-3/8

36-1/4

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area

for gas outlet and electrical outlet

*Depth from wall

to front of closed

oven door.

46-1/8

26-1/4*

46-3/8

36-1/4

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area

for gas outlet and electrical outlet

*Depth from wall

to front of closed

oven door.

CERTIFIED

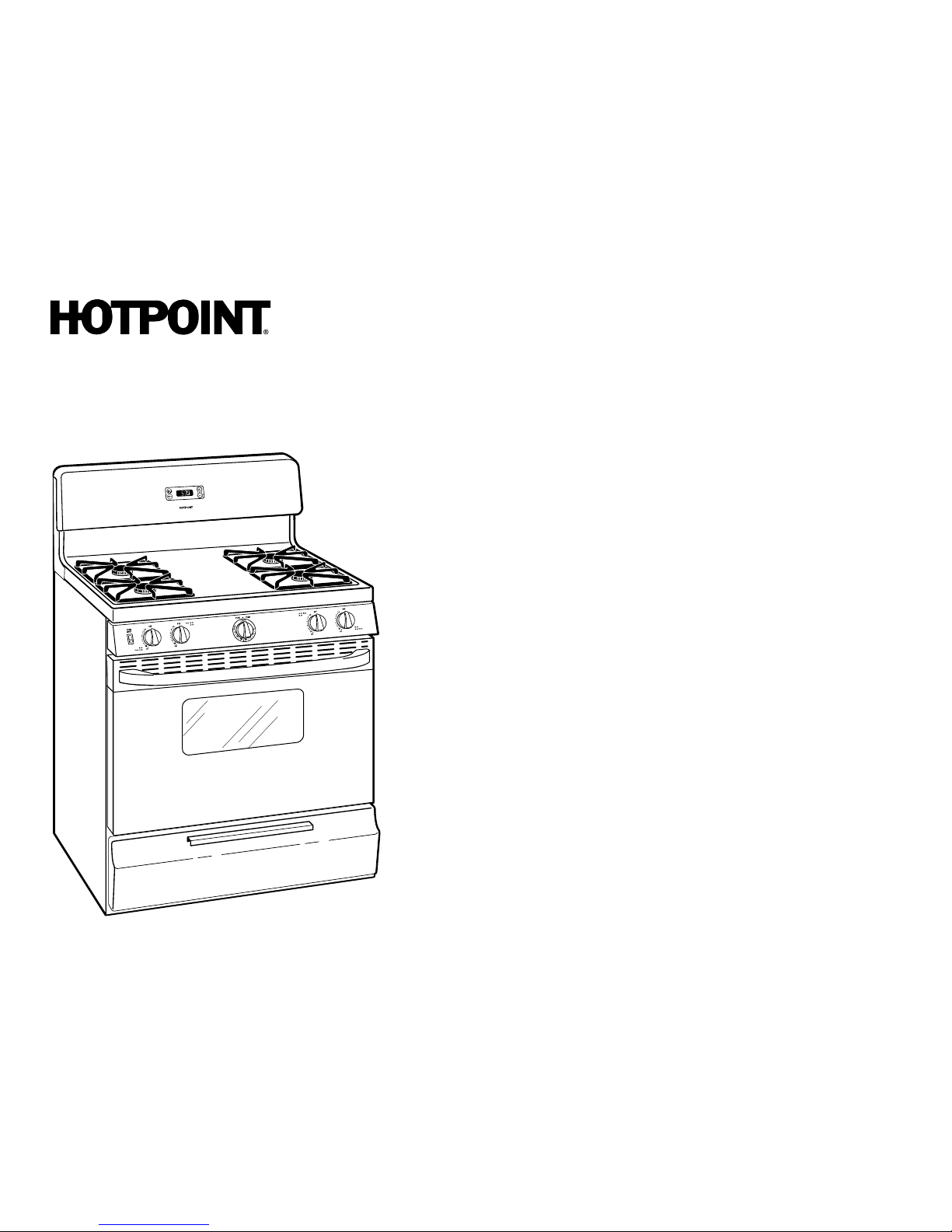

RGB530DEP – Hotpoint 30" Free-Standing Gas Range

Features and Benefits

• Extra-large oven capacity – Enough room to cook an entire meal at once

• Sealed cooktop burners – Burner elements are sealed to the cooktop to keep foods and liquid

contained on the cooktop, making cleaning painless

• Performance plus burner – This 12,000 BTU burner element provides the high heat ideal for

frying or sautéing and fast heat-up

• Simmer setting – Simmer setting allows for low, even heat distribution for delicate foods

and sauces

• All-purpose burners – All-purpose burner delivers two levels of BTU output to accommodate

virtually all your cooking needs

• Electronic clock and timer – Convenient clock and timer helps you coodinate meal preparation

and cooking

• Standard grates – Quality grates keep pots and pans securely in place over the burners

• Model RGB530DEPBB – Black

• Model RGB530DEPWW – White

Specification Created 5/09

430183
