Hotpoint RGB528BEAWH Manuel de service

Created 2/98

RGB528BEAWH—30" Free-Standing Gas Range

Dimensions (in inches)

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

46-1/2

26-1/4*

46-3/8

36±1/4

Installation Information:

Dimensions shown here are the

same as those shown on the

installation instructions at the

time this sheet was printed. Before

proceeding with installation, see

your Hotpoint supplier for latest

detailed preparation and installation

instructions or install from the

instructions packed with each unit.

Optional gas range

accessory drip pans:

(Available at additional cost)

To order these accessory drip pans,

call toll-free 800-626-2002.

L2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area

for gas outlet and electrical

outlet for GE free-standing gas

range models

CANADIAN GAS ASSOCIATION

RAPPROVED

*Depth including handle

For answers to your Monogram,®GE Profile

Performance Series,™GE Profile,™and

GE appliance questions, call

GE Answer Center®service, 800.626.2000.

Created 2/98

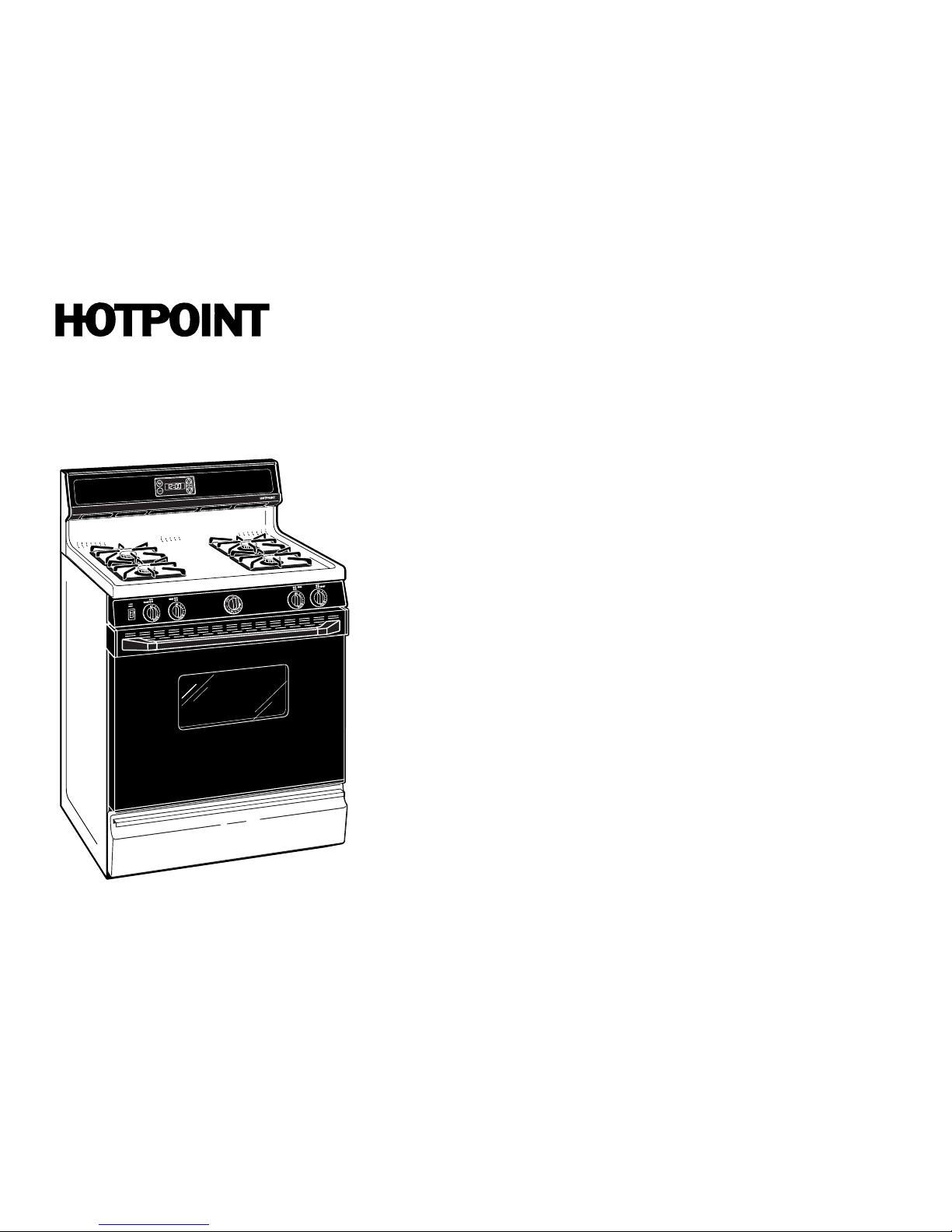

RGB528BEAWH—30" Free-Standing Gas Range

OVENCONTROL

Features and Benefits

•Porcelain-Enameled Up-Swept Cooktop

•Lift-Up Cooktop with Easy Clean Subtop

•Twin Cooktop Burners

•Black Removable Square Grates

•Electronic Pilotless Ignition System

•Extra-Large Standard Clean Oven

•Electronic Clock and Minute Timer

•Slide-Out Broiler Drawer

•2 Oven Shelves / 6 Embossed Rack Positions

•Black Frameless Glass Oven Door with Window

•Designer-Style Handle

•Optional Accessory One-Piece Drip Pans Available at Additional Cost

•Model RGB528BEAWH–White

•Model RGB528BEAAD–Almond
